Description

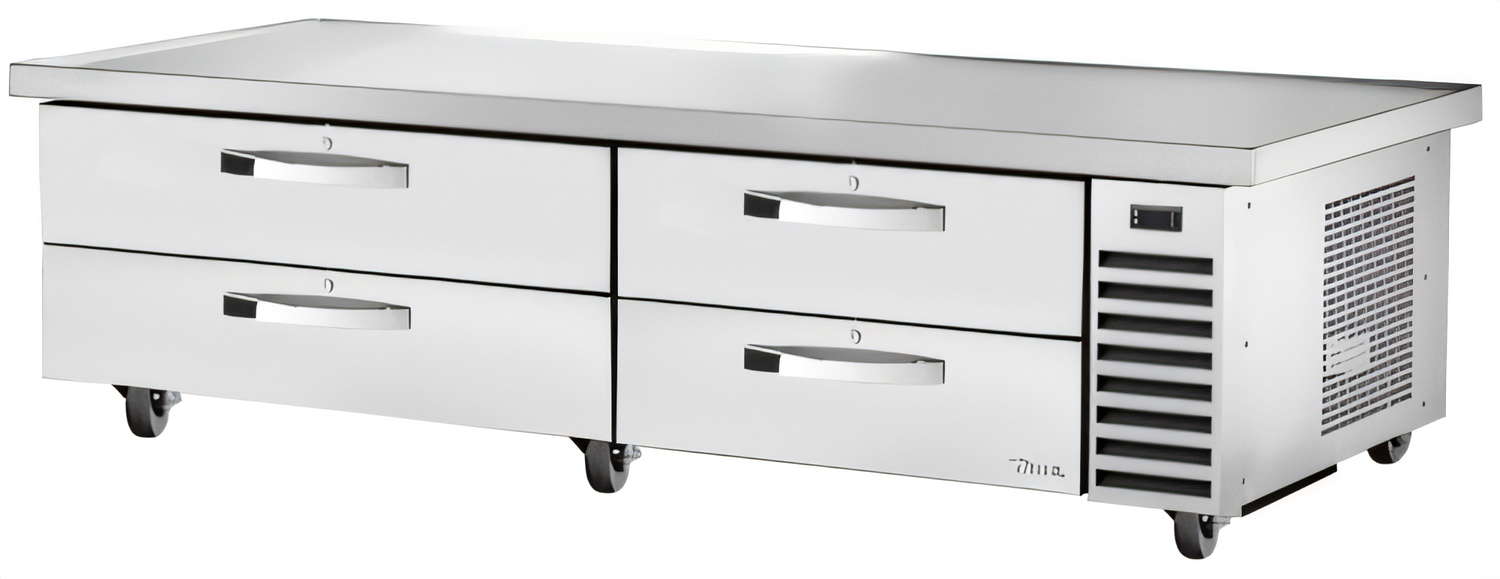

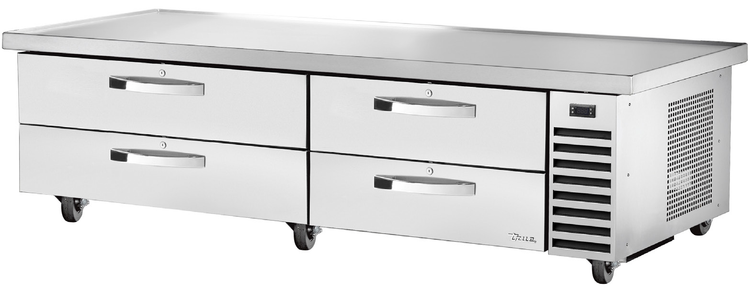

True TRCB-82-86-HC~SPEC3 Refrigerated Chef Base

4-Drawer | 86¼" Wide | Spec Series® Package 3

Give your busy kitchen the cold-holding muscle of True’s Spec Series® chef base. Built entirely from 300-series stainless steel and powered by an oversized R290 refrigeration system, the TRCB-82-86-HC~SPEC3 keeps ingredients at 33-38 °F while supporting up to 1,084 lb of countertop equipment.

Why this chef base stands out

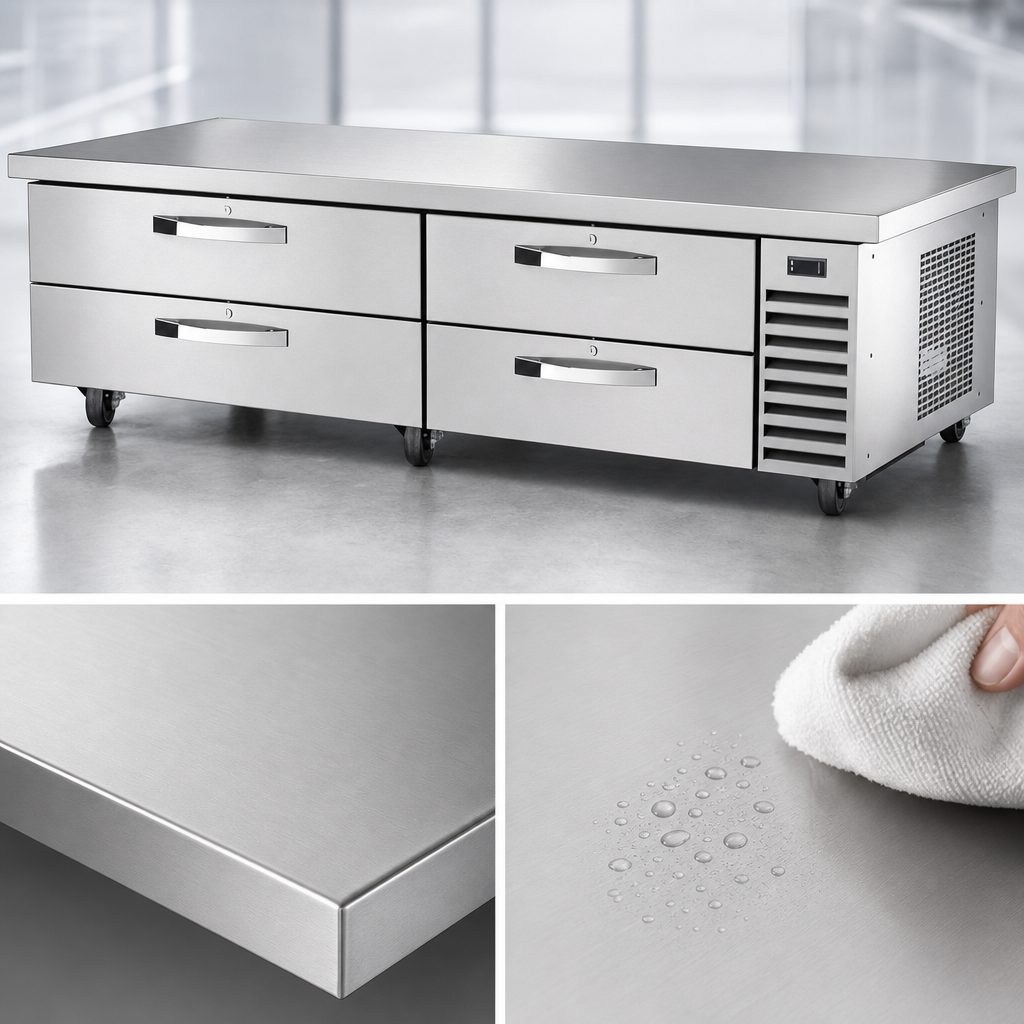

  • Rugged one-piece top with “V” edge resists drips and buckling under heavy equipment.
  • Four locking drawers glide on heavy-duty slides & rollers—tool-free removal for cleaning.
  • Pan flexibility: left drawers hold (3) and right drawers hold (2) full-size 12 x 20 x 4" pans (sold separately).
  • High-performance refrigeration with extra-large evaporator coil, 1/3 HP compressor and eco-friendly R290 refrigerant.
  • Self-Cleaning RCU technology removes debris from the condenser to reduce energy use and extend component life.
  • All-stainless construction—front, back, sides, interior and drawers—for maximum durability and food safety.
  • Electronic temperature control with easy-to-read digital display.
  • Locking 4" castors (front two lock) for instant mobility and secure placement.
  • NSF/ANSI 7, UL EPH Classified, cULus & CE listed; proudly Made in the USA.

Technical specifications

Exterior width 86 ¼" (2191 mm)
Exterior depth 32 ⅛" (814 mm)
Add 1 ½" for drawer handles & 1" for rear bumpers.
Exterior height 20 ½" (520 mm) cabinet only
25 ½" with 4" castors
Drawer count / locks 4 drawers, individual locks
Pan capacity (pans not included) (3) 12 x 20 x 4" pans per left drawer
(2) 12 x 20 x 4" pans per right drawer
Temperature range 33 – 38 °F (0.5 – 3.3 °C)
Refrigerant R290 Hydrocarbon (0 ODP, 3 GWP)
Compressor 1/3 HP, self-contained
Electrical 115 V / 60 Hz / 1-ph, 4.4 A, NEMA 5-15P
Factory-wired; 230-240 V / 50-60 Hz option available.
Top load rating 1,084 lb (492 kg)
Shipping weight 495 lb (225 kg) crated
Certifications cULus, UL EPH, CE, NSF/ANSI 7
Origin Made in the USA

Industry-leading warranty

  • 7-year parts warranty
  • 7-year labor warranty
  • 7-year compressor warranty
Important: Counter-top cooking equipment must sit on its factory-supplied legs with a minimum 4" clearance between the heating element and the chef-base top. Failure to provide clearance or install a heat shield (where recommended) voids the manufacturer warranty.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Certifications

CE, cULus, UL EPH Classified, Made in USA

Depth

82.37in

Compressor HP

1/3 HP

Drawer Qty

4 drawers

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Width

73" - 84" wide

Specifications

Refrigerated Chef Base, 82-3/8"W base, SPEC Package 3 includes: one-piece 300 series 18 gauge stainless steel top with V edge, (4) drawers with locks (left drawer accommodates (3) and right drawer accommodates (2) 12" x 20" x 4" pans, NOT included)), stainless steel front, sides & back, stainless steel interior, 4" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
