Description

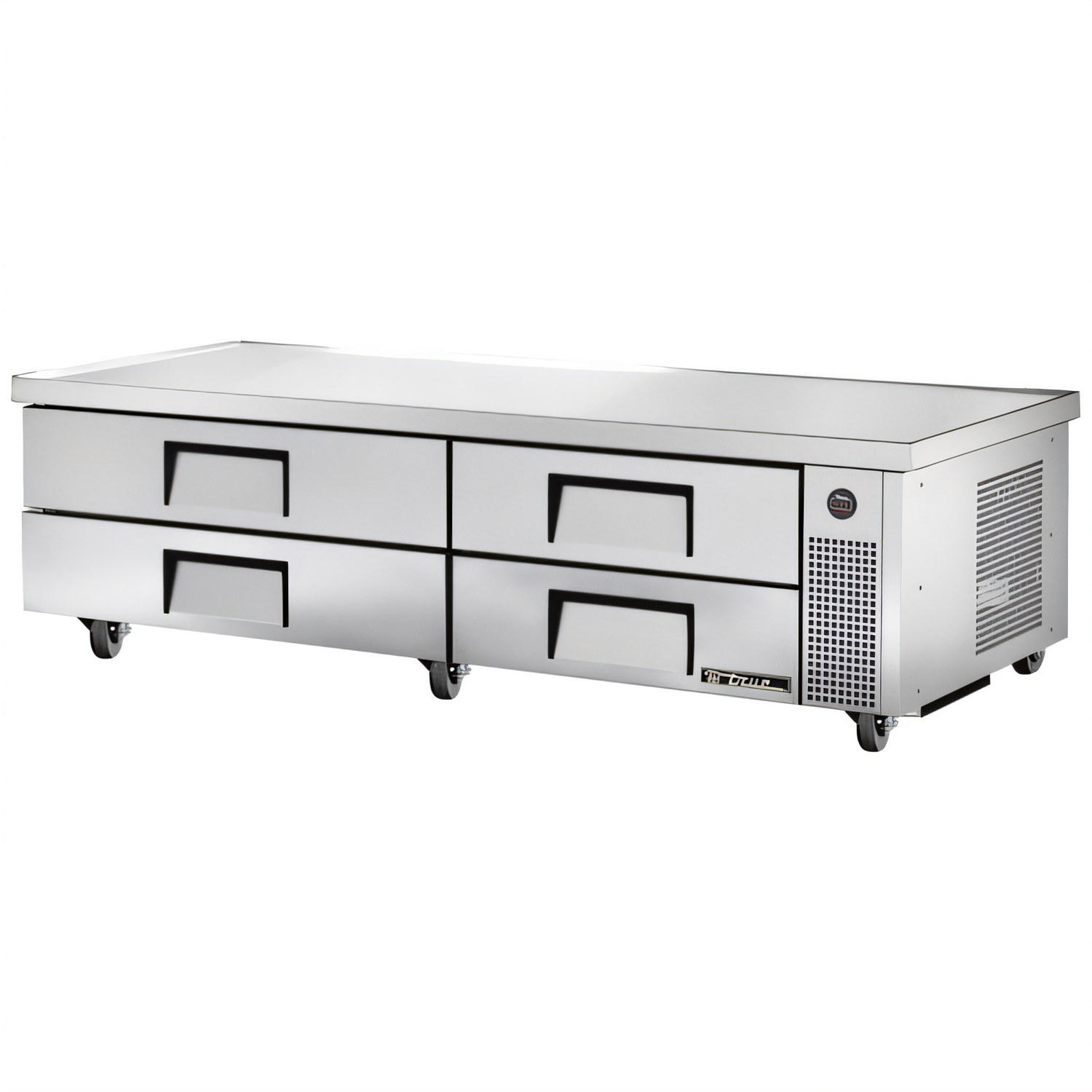

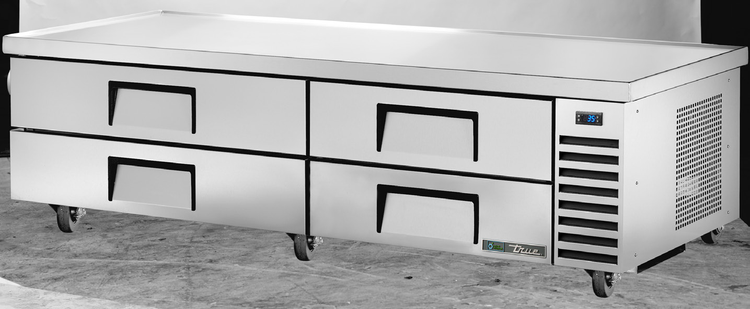

True Refrigeration TRCB-82-84-HC Refrigerated Chef Base

84" • 4 Drawers • Hydrocarbon Refrigerant

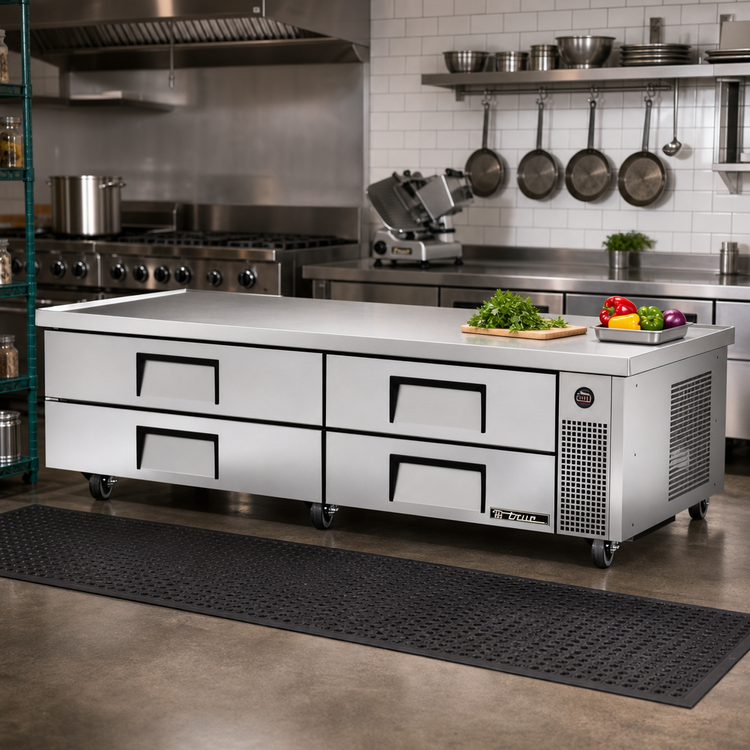

Boost production on the cookline while keeping ingredients safely chilled. True’s TRCB-82-84-HC pairs a heavy-duty, 84-inch stainless work surface with high-performance drawer refrigeration that recovers temperatures fast—even during peak service.

Key Features

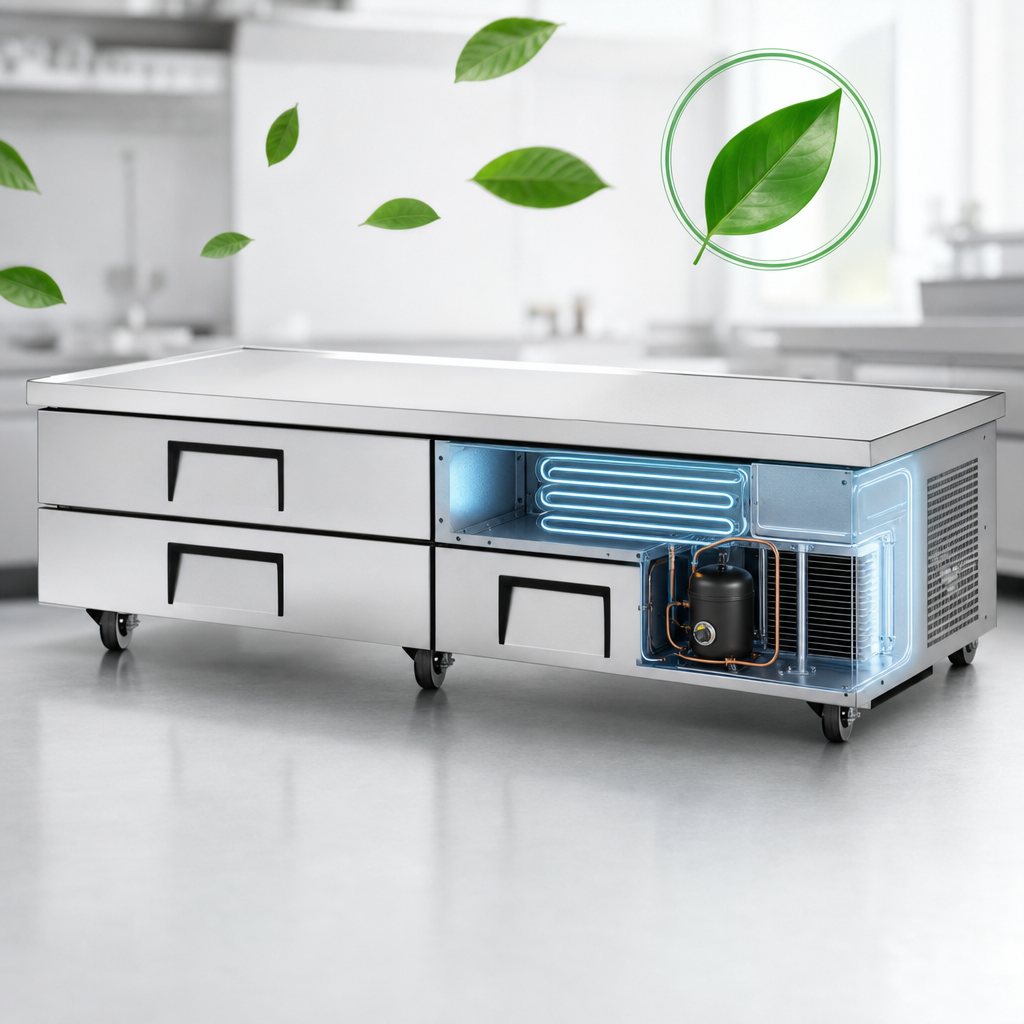

  • Eco-friendly R290 hydrocarbon refrigerant (zero ODP, <0.02 GWP).
  • Factory-balanced system holds 33–38 °F (0.5–3.3 °C) for optimum food safety.
  • One-piece, 18-gauge 300-series stainless top with spill-containing “V” edge—rated to 1,084 lb.
  • (4) refrigerated drawers on heavy-duty SS slides; tool-free removal for cleaning.
  • Pan capacity: left drawer fits (3) and right drawer fits (2) 12" × 20" × 4" pans (pans sold separately).
  • Foamed-in-place, high-density polyurethane insulation (zero ODP & GWP).
  • 4" locking castors for easy mobility; slide-out condensing unit simplifies service.
  • Exterior digital temperature display; NSF/ANSI 7 compliant for open food storage.
  • cULus, UL EPH Classified & CE listed — made in the USA.

Specifications

Model TRCB-82-84-HC
Width 84" / 2134 mm
Depth 32 1/8" / 814 mm (add 1" for rear bumpers)
Height 24 1/2" / 622 mm (with 4" castors)
Worktop Load 1,084 lb / 492 kg
Drawer Count 4 total
Pan Capacity (3) full-size pans left + (2) full-size pans right
Temperature Range 33–38 °F / 0.5–3.3 °C
Refrigerant R290 Hydrocarbon
Compressor 1/3 HP
Electrical 115 V / 60 Hz / 1-ph • 4.4 A • NEMA 5-15P • 10 ft cord
Exterior SS front/top/sides; GalFan-coated steel back
Interior White aluminum liner with SS coved floor
Insulation High-density polyurethane, foamed in place
Certifications cULus • UL EPH • CE • NSF/ANSI 7
Crated Weight 555 lb / 252 kg
Origin Made in USA

Warranty

True backs this unit with an industry-leading 7-year parts & labor warranty plus 7-year compressor coverage (USA/Canada/Puerto Rico).

Installation Note: Provide at least 4" (102 mm) of clearance between the bottom of countertop cooking equipment and the chef-base top. A manufacturer-approved heat shield is recommended. Failure to follow these guidelines may void the warranty.

Food pans, divider bars, legs, and other accessories are sold separately.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Certifications

CE, cULus, UL EPH Classified, Made in USA

Height

20.38in

Width

84.0in

Depth

32.13in

Shipping Weight

555.0lbs

Drawer Qty

4 drawers

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Width

73" - 84" wide

Compressor HP

1/3 HP

Specifications

Refrigerated Chef Base, 82-3/8"W base, 84"W one-piece 300 series 18 gauge stainless steel top with V edge, (4) drawers (left drawer accommodates (3) and right drawer accommodates (2) 12" x 20" x 4" pans, NOT included), stainless steel front/sides, aluminum back, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA
