Description

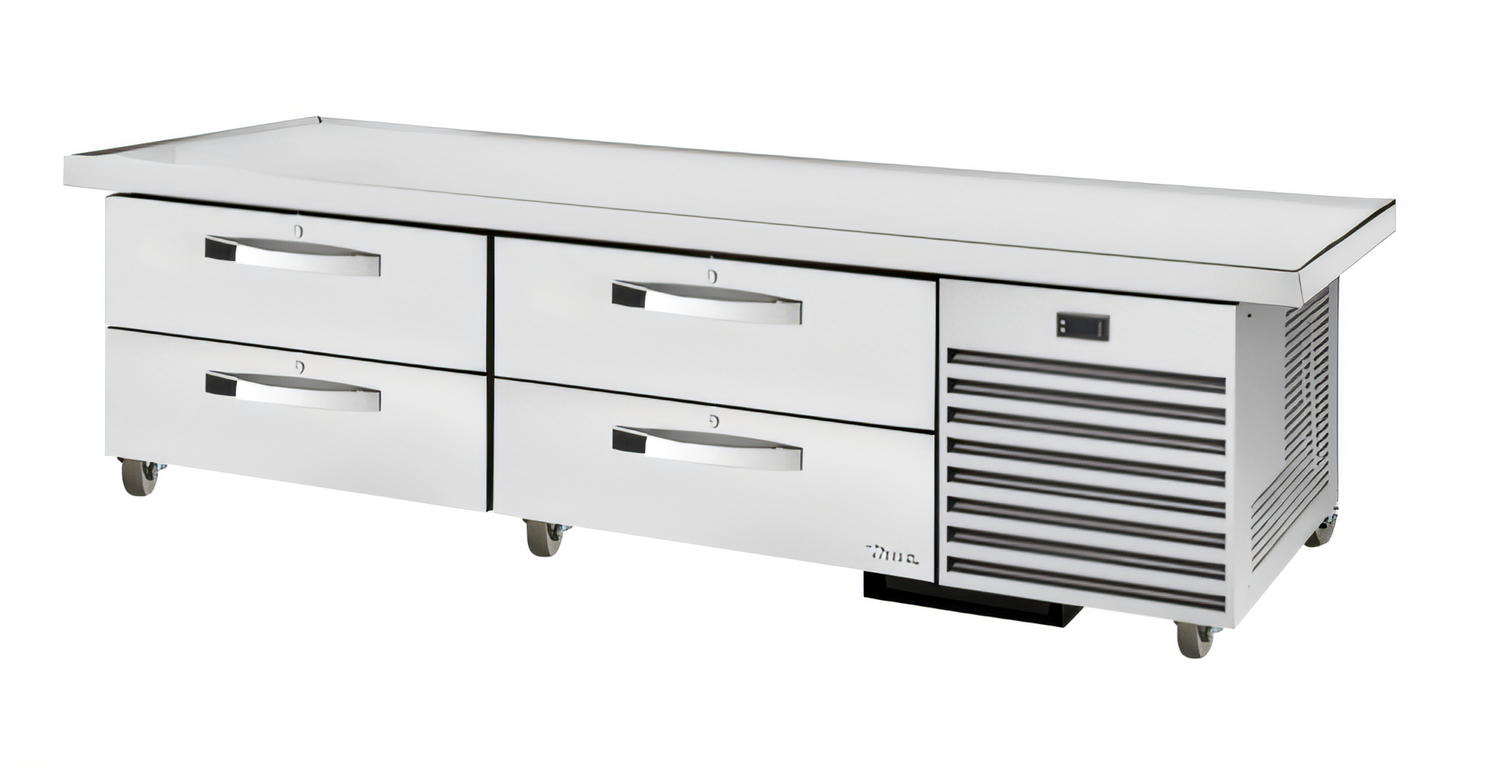

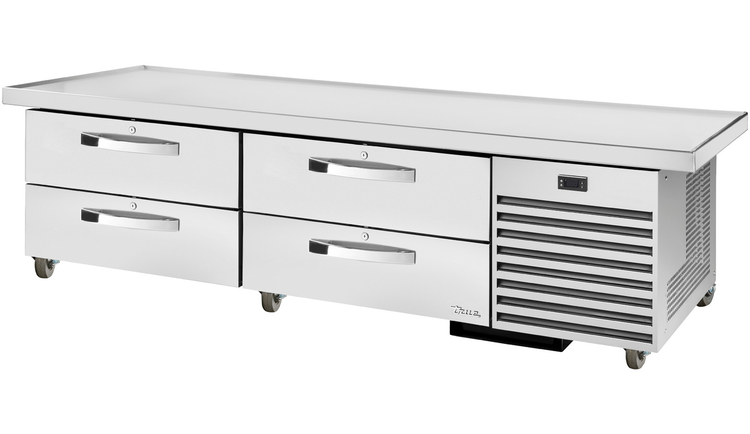

True TRCB-79-86-HCSpec Series® Refrigerated Chef Base – Spec Package 3
Built in the USA for demanding commercial kitchens, the 79 in. True TRCB-79-86-HC delivers rapid, even cooling right where you cook. Four locking drawers keep up to eight full-size pans at a food-safe 33-38 °F, while the heavy-duty stainless steel top supports ovens, griddles, or charbroilers up to 1,084 lb.
Performance & Convenience
- Factory-balanced refrigeration system with eco-friendly R290 hydrocarbon refrigerant.
- Self-Cleaning RCU technology helps maintain peak efficiency—no manual condenser brushing needed.
- Extra-large evaporator coil, 1/3 HP compressor and guided airflow for fast recovery in hot kitchens.
- Electronic temperature control with bright digital readout (°F/°C switchable).
- One-piece 18-gauge 300-series stainless steel top with drip-resistant “V” edge.

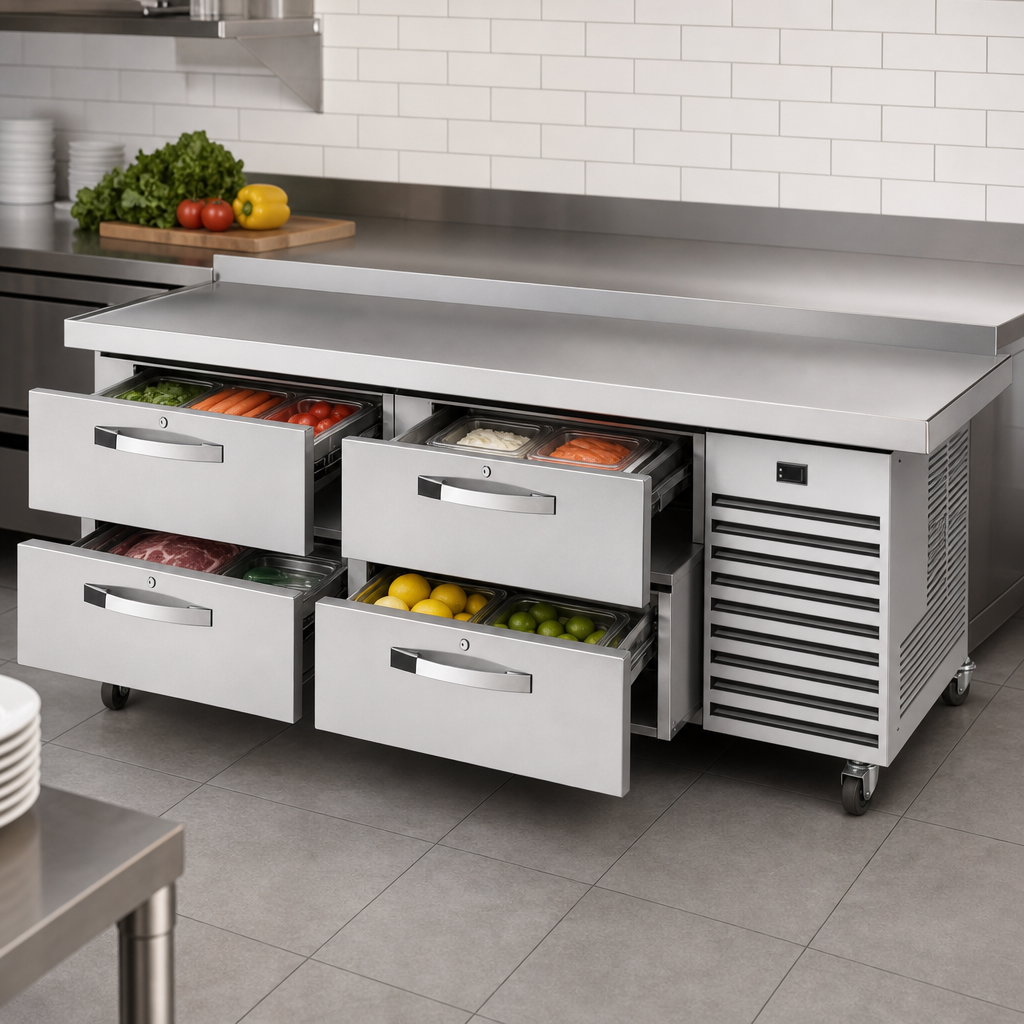

- Four full-extension drawers with locks, removable stainless slides & liners—tool-free cleaning.
- Each drawer holds 2 × 12 in × 20 in × 4 in hotel pans (pans sold separately).
- Foamed-in-place, zero-ODP high-density polyurethane insulation.
- 4 in locking plate castors make relocation and cleaning a breeze.
- NSF/ANSI 7 for open food, cULus, UL EPH Classified & CE listed.
Technical Specifications
| Model | TRCB-79-86-HC~SPEC3 |
|---|---|
| Exterior Width | 86 ¼ in (2191 mm) |
| Exterior Depth | 30 ½ in (775 mm) +1 ½ in for drawer handles |
| Exterior Height | 20 ⅜ in (520 mm) +5 in castors |
| Number of Drawers | 4, locking |
| Total Pan Capacity | 8 × full-size 12 × 20 × 4 in pans |
| Temperature Range | 33 – 38 °F (0.5 – 3.3 °C) |
| Refrigerant | R290 Hydrocarbon |
| Compressor | 1/3 HP |
| Electrical | 115 V / 60 Hz / 1-phase, 4.4 A, NEMA 5-15P, 10 ft cord |
| Crated Weight | 490 lb (223 kg) |
| Load Rating (Top) | 1,084 lb (492 kg) |
| Construction | Stainless steel front, sides, back & interior; epoxy-coated evaporator |
| Country of Origin | Made in the USA |
Warranty Coverage
- 7-Year Parts Warranty
- 7-Year Labor Warranty
- 7-Year Compressor Warranty
Warranty valid in U.S.A., Canada & Puerto Rico when installed and maintained per True’s guidelines.
