Description

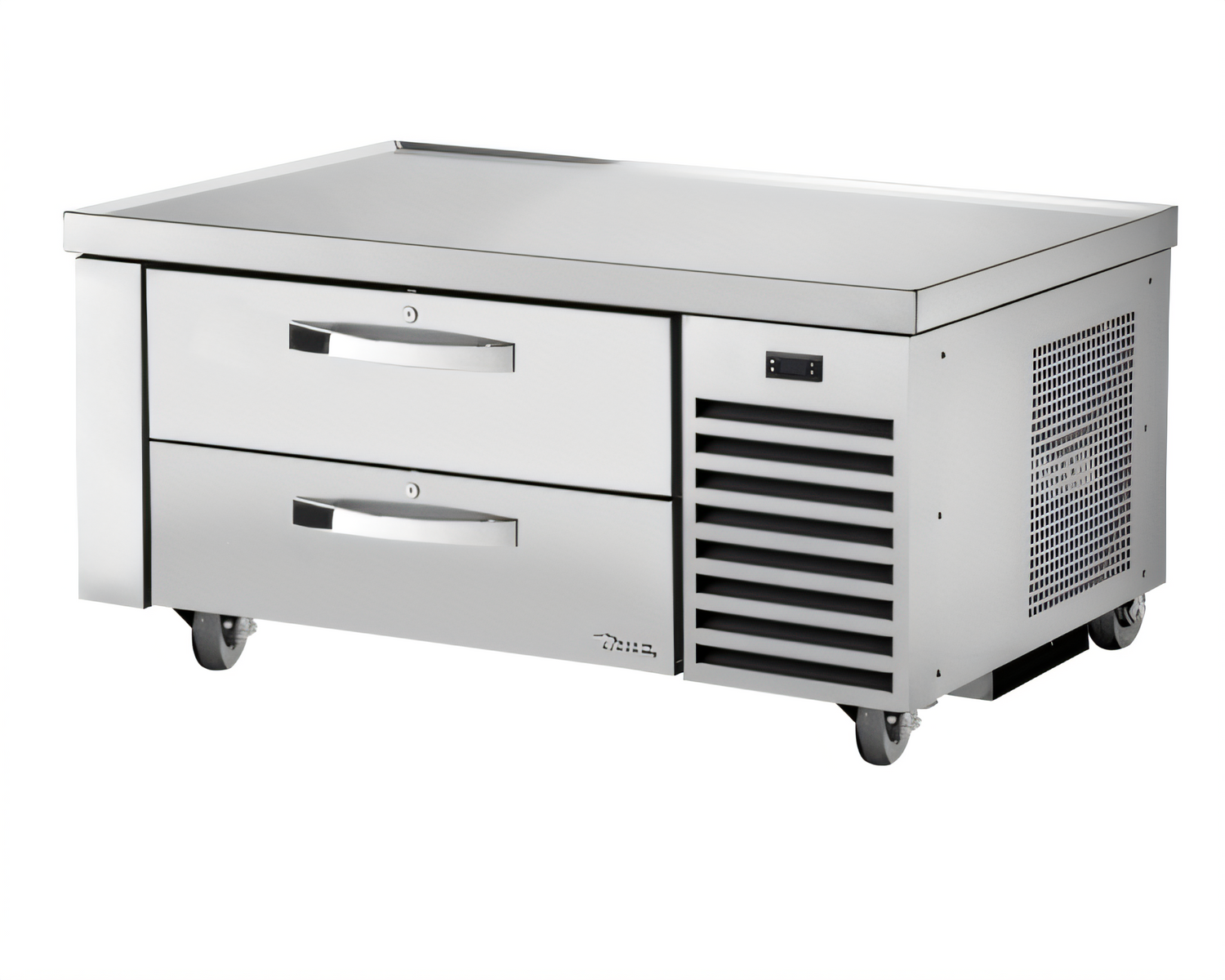

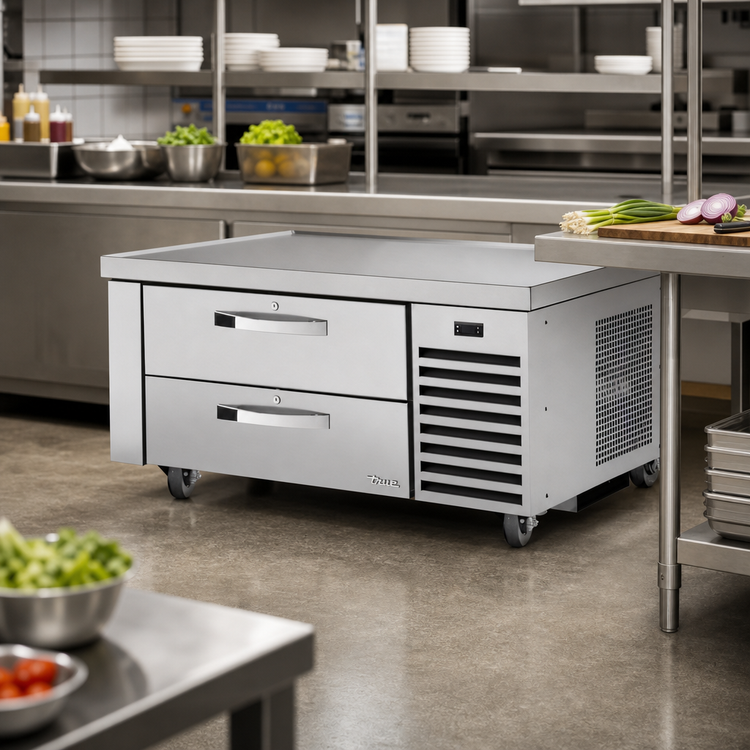

True TRCB-48-HC-SPEC3 Refrigerated Chef Base – 48 ⅜" Wide
Spec Package 3 • 2 Locking Drawers • R290 Hydrocarbon RefrigerantEngineered for demanding commercial kitchens, the True TRCB-48-HC-SPEC3 combines a heavy-duty equipment stand with a high-performance, self-contained refrigerator. Keep ingredients safely between 33-38°F while your griddles, charbroilers or countertop fryers ride securely on the reinforced 18-gauge stainless-steel top.
Why You’ll Love It

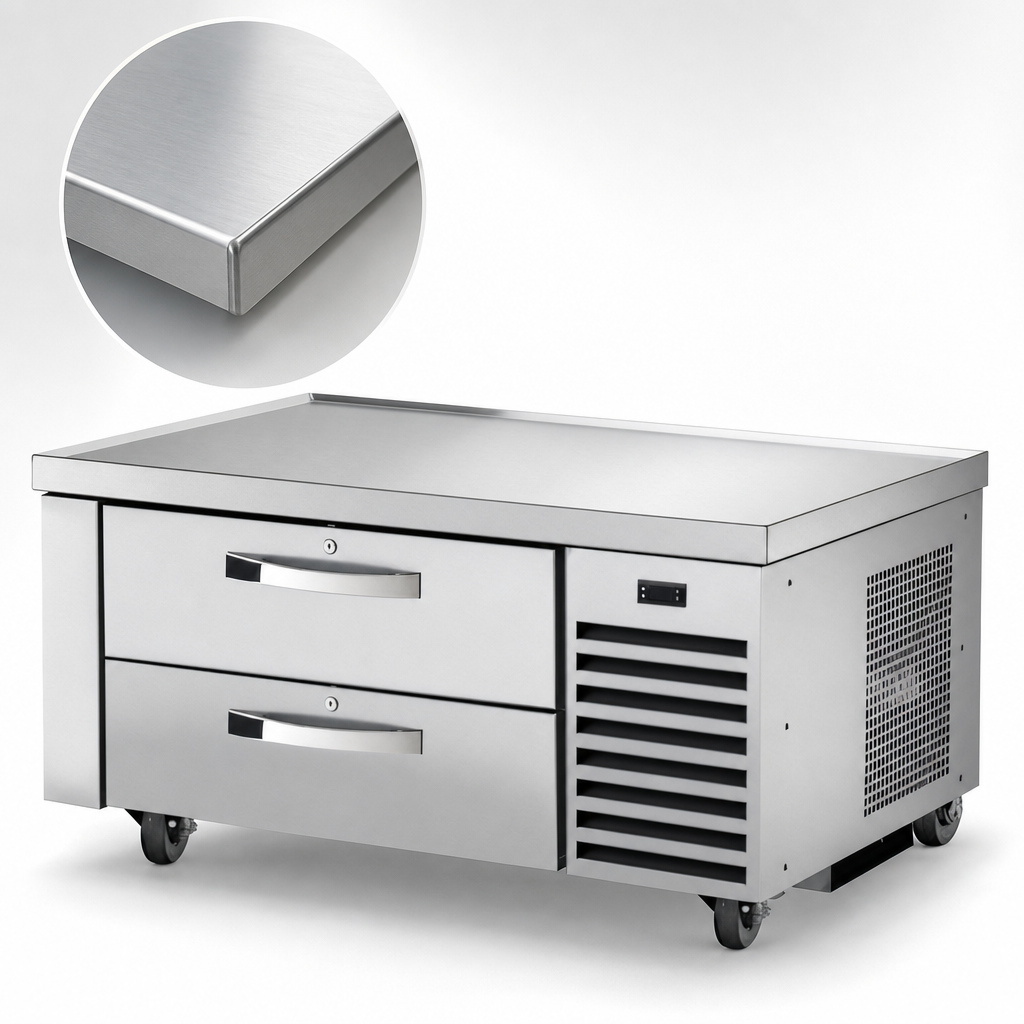

- One-piece 300-series stainless top with drip-resistant “V” edge supports up to 717 lb / 326 kg.
- Factory-balanced refrigeration with an extra-large evaporator coil and ¼ HP compressor maintains 33-38°F (0.5-3.3°C) for superior food safety.
- Eco-friendly R290 hydrocarbon refrigerant – 0 ODP & 0.02 GWP.
- True Self-Cleaning RCU technology helps keep the condenser coil clear, cutting maintenance and energy costs.
- All-stainless exterior (front, sides, back) and interior liner with coved corners for fast, sanitary wipe-downs.
- Two heavy-duty drawers on stainless slides (tool-free removal) each hold 2 × 12"×20"×4" food pans (4 total, pans sold separately).
- Drawer locks, one-piece magnetic gaskets and all-metal spec handles add security and strength.
- Electronic temperature control with easy-read digital display.
- 4" locking plate casters (front) for quick cleaning access and safe positioning.
- NSF/ANSI 7 for open food, cULus, UL EPH Classified & CE listed. Made in the USA.
Capacity & Clearance
- Top accepts most countertop cooking equipment; maintain a minimum 4" (102 mm) clearance between heating elements and chef-base top.
- A heat shield is recommended for high-heat appliances (supplied by others).
- Total refrigerated pan capacity: 4 full-size, 4" deep pans or equivalent fractional pans.
Technical Specifications
| Model | TRCB-48-HC-SPEC3 |
|---|---|
| Exterior width | 48 ⅜" (1227 mm) |
| Exterior depth* | 32 ⅛" (814 mm) |
| Cabinet height* | 20 ½" (520 mm) |
| Overall height w/ casters | ≈25 ½" (648 mm) |
| Drawers / pan capacity | 2 drawers / 4 full-size 4"-deep pans |
| Top load rating | 717 lb (326 kg) |
| Temperature range | 33-38°F (0.5-3.3°C) |
| Refrigerant | R290 (hydrocarbon) |
| Compressor | ¼ HP, self-contained |
| Electrical | 115 V / 60 Hz / 1-ph, 2.4 A, NEMA 5-15P, 10 ft cord |
| Approvals | cULus, UL EPH Classified, CE, NSF/ANSI 7 |
| Crated weight | 280 lb (127 kg) |
*Depth excludes 1 ½" drawer handles & 1" rear bumpers. Height excludes 5" casters.
Industry-Leading Warranty
True backs every TRCB-48-HC-SPEC3 with a 7-year parts, labor & compressor warranty for complete peace of mind.
