Description

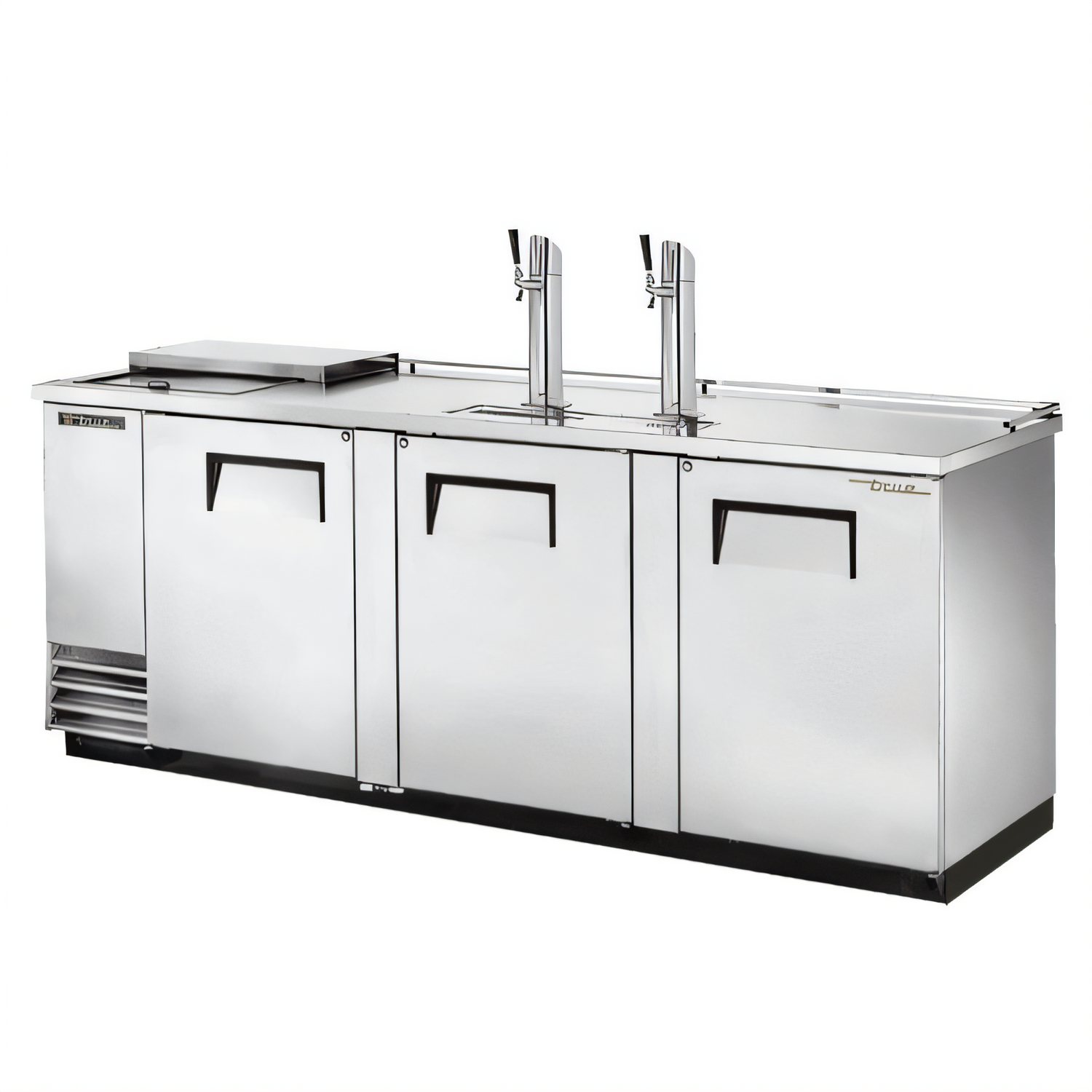

True TDD-4CT-S-HC Club Top Draft Beer Cooler

4 Half-Barrel Capacity • 3 Locking Doors • Stainless Steel • ENERGY STAR®

Built for demanding bar service, the True TDD-4CT-S-HC delivers brewery-fresh pours from a rugged, USA-made cabinet that keeps product ice-cold and profits flowing.

Pour-Ready Performance

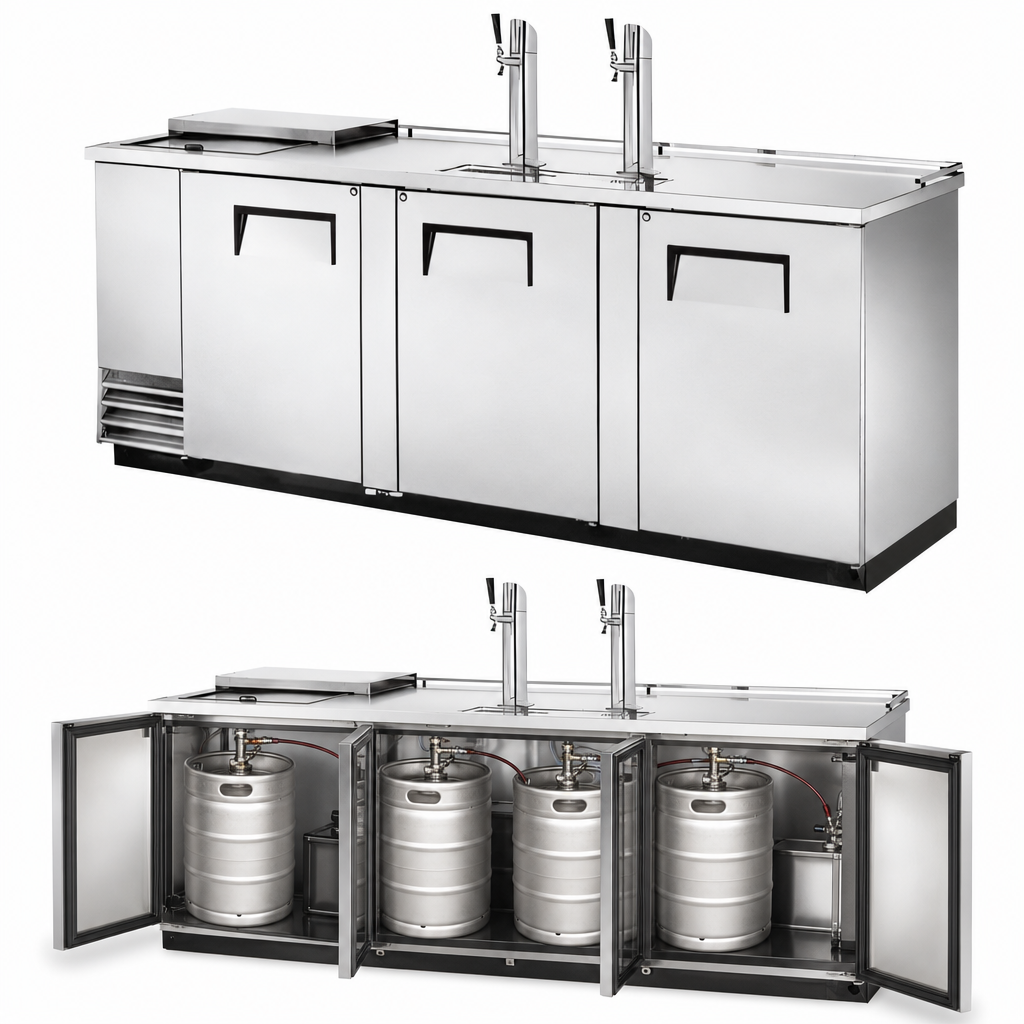

  • Holds four (4) full-size ½-barrel kegs behind three stainless, self-closing doors—each door includes a factory-installed lock.

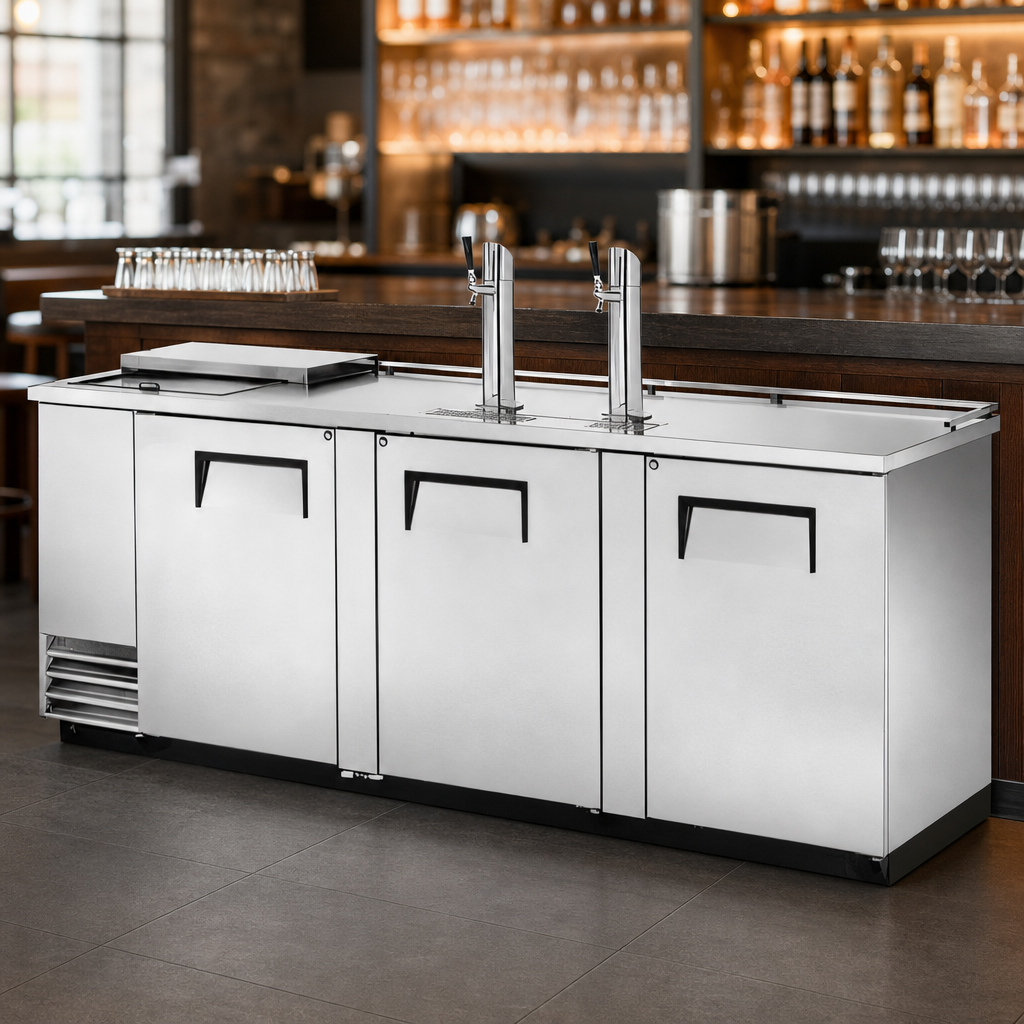

  • Club-top slide lid provides quick access to a refrigerated storage cavity for chilled mugs, bottles, or garnishes.
  • Two 3" (77 mm) diameter stainless steel insulated beer columns, each fitted with a single-faucet draft arm. Cold air is directed up the towers to reduce foam and waste.
  • Factory-balanced refrigeration system maintains a consistent 33 °F – 38 °F (0.5 °C – 3.3 °C).
  • High-efficiency ECM evaporator & condenser fan motors cut energy use and heat output.
  • Heavy-duty, PVC-coated wire shelf (adjustable) for bottles or glassware inside the cabinet.
  • Anodized aluminum glass rail on the counter top keeps clean glasses within reach.

Built to Last

  • All-stainless steel counter top, lid, doors, front, and sides resist dents and corrosive bar environments.
  • Galvanized steel interior walls with a stainless steel floor & ½" reinforced lip handle heavy keg changes.
  • Foamed-in-place, high-density polyurethane insulation (zero ODP / zero GWP).
  • Welded, black-powder-coated steel frame rail for superior structural integrity.
  • Slide-out condensing unit simplifies routine cleaning and service.
  • Proudly Made in the USA at True’s Missouri manufacturing facility.

Technical Specifications

Model TDD-4CT-S-HC
Capacity 4 × ½-barrel (full-size) kegs
Doors 3 solid hinged, locking
Exterior Dimensions 90 ⅜" W × 27 ⅛" D × 38 ½" H
Add 14 ¼" (362 mm) draft-arm height
Shelf Storage 1 adjustable PVC-coated wire shelf
Compressor ¼ HP, side-mounted, slide-out
Refrigerant R290 Hydrocarbon (natural)
Electrical 115 V / 60 Hz / 1-ph, 2.8 A, NEMA 5-15P
Energy Rating ENERGY STAR® certified
Certifications cULus, UL EPH Classified
Shipping Weight Approx. 495 lb (225 kg)

Compliance & Warranty

  • NSF/ANSI 7 listed for storage of bottled or packaged product.
  • Factory-installed two-way tapper manifold included.
  • 7-year parts & labor warranty plus 7-year compressor coverage (USA & Canada).
Installation note: Ships pre-wired with a 9 ft cord and NEMA 5-15P plug. Connect to a dedicated 15-amp, 115 V outlet and allow 1" rear clearance for bumpers and airflow.

Ideal For

  • High-volume bars & nightclubs
  • Sports arenas & breweries
  • Hotel banquet and catering operations
  • Any venue demanding reliable, ice-cold draft beer service

Elevate your draft program with the efficiency, durability, and American craftsmanship only True® can provide. Order the TDD-4CT-S-HC today and start pouring better beer tomorrow.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Certifications

cULus, UL EPH Classified, Made in USA, ENERGY STAR

Height

38.5in

Width

90.38in

Depth

27.13in

Shipping Weight

495.0lbs

Column Qty

2 columns / towers

Keg Capacity

3 - 4 kegs

Top Style

club top

Exterior Finish

all stainless steel exterior

Barrel Style

1/2 barrel (full keg)

Faucet Qty

1 faucet per column

Width

73" (and up)

Energy Efficiency

ENERGY STAR®

Specifications

Club Top Draft Beer Cooler, (4) 1/2 keg capacity, stainless steel counter top & lid, (3) solid hinged doors with locks, (1) PVC coated adjustable wire shelf, (2) 3" dia. insulated beer columns with single faucet draft arm, anodized aluminum glass rail, stainless steel front & sides exterior, aluminum back, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR®
