True Mfg. - General Foodservice TDD-4CT-HC Back Bar Coolers
$5,857.84
Unit price
/
Unavailable
Description

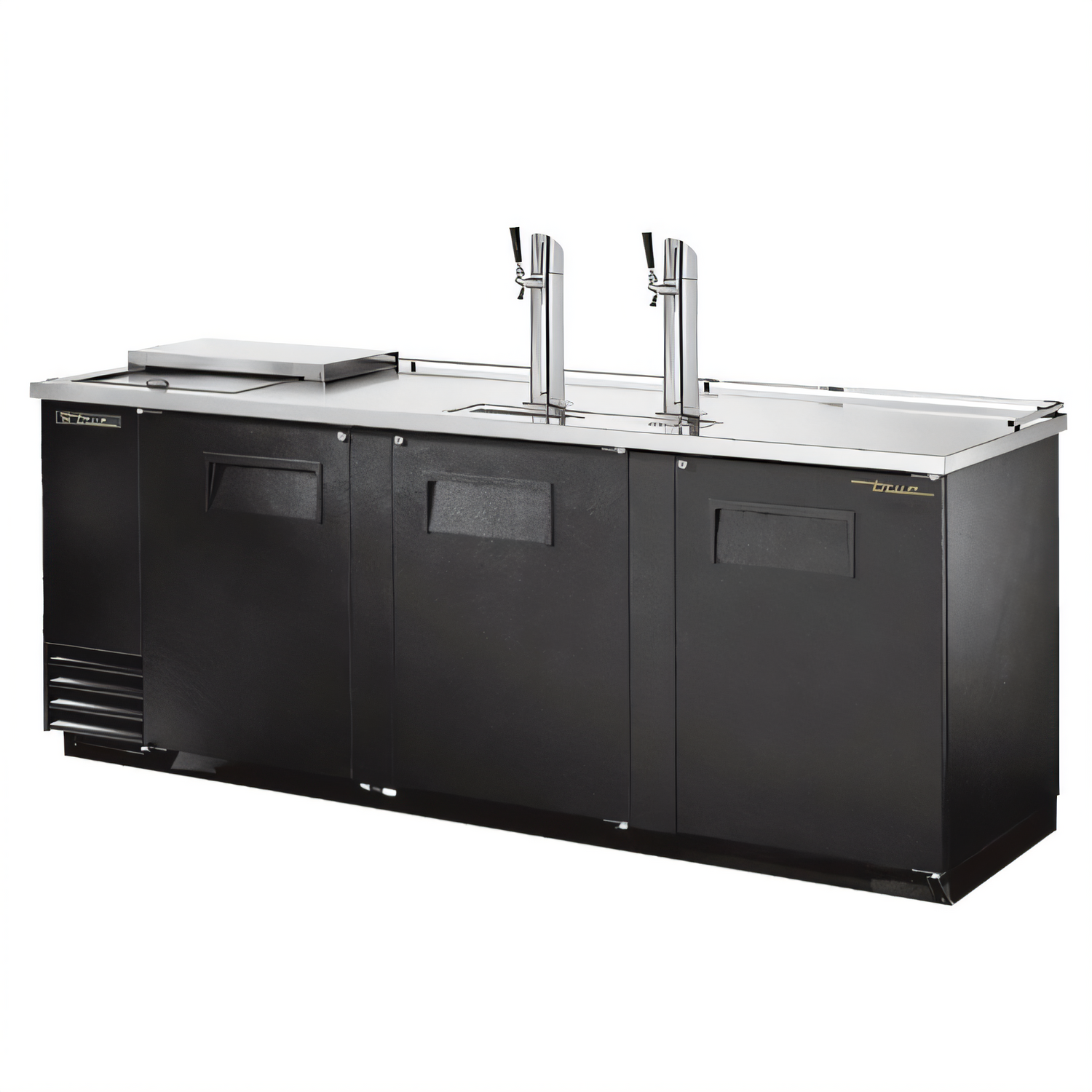

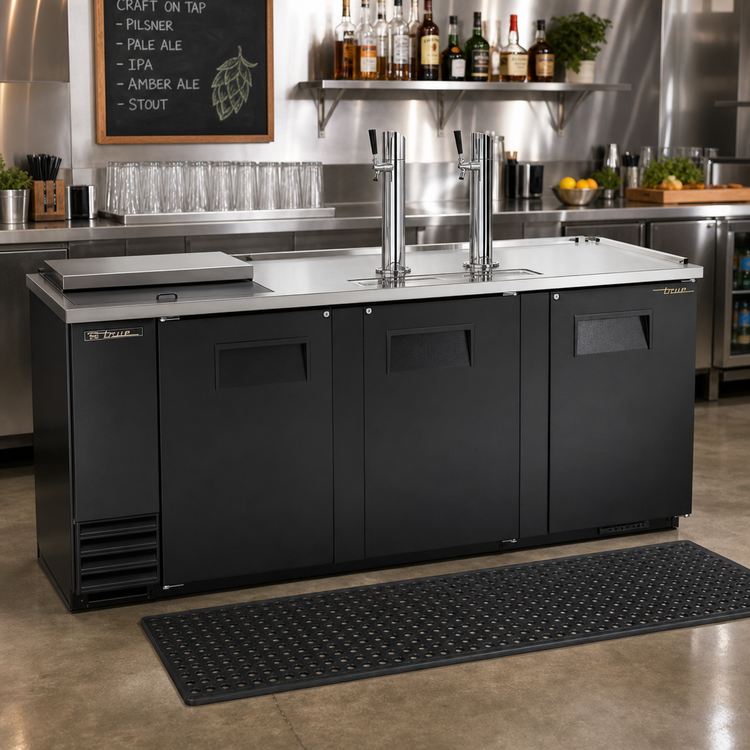

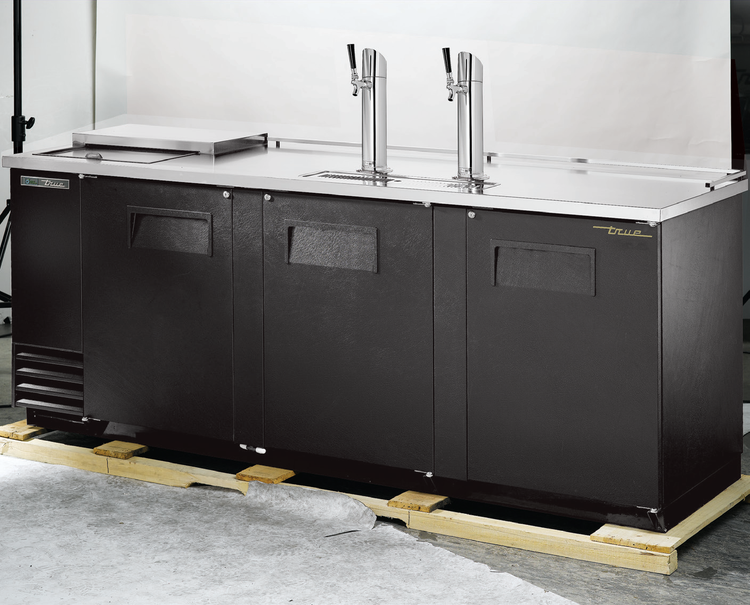

True TDD-4CT-HC Club-Top Draft Beer Cooler
4 × 1/2-Barrel | 3 Solid Doors | Energy Star® | Made in USACrafted for high-volume bars, clubs, and banquet venues, the True TDD-4CT-HC brings rock-solid reliability, fast keg changes, and ice-cold pours to your beverage program— all in a sleek club-top footprint that doubles as a profitable glass-storage station.
Why You’ll Love It

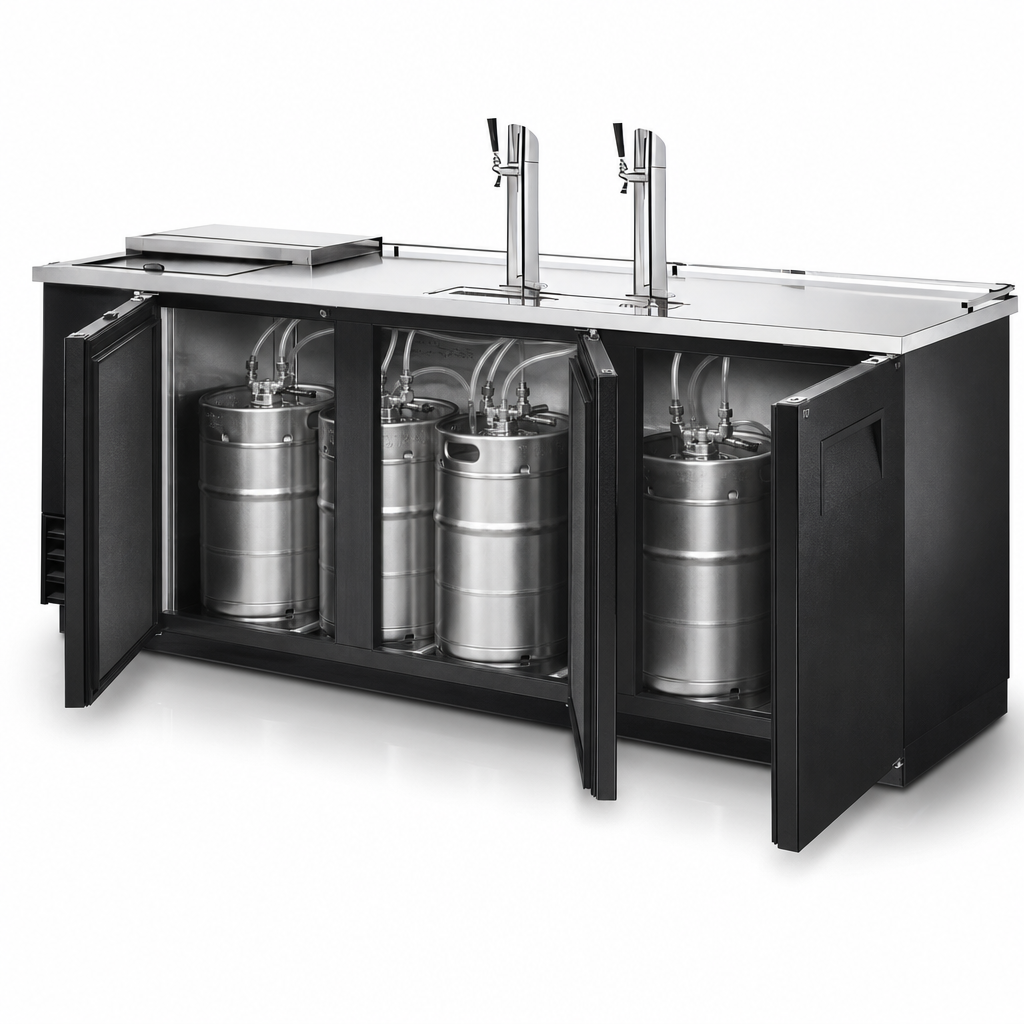

- Holds four (4) ½-barrel kegs beneath a durable stainless-steel countertop and lid.
- Two 3" dia. stainless, foam-insulated beer towers (single-faucet each) are forced-air chilled to minimize foam and maximize profits.

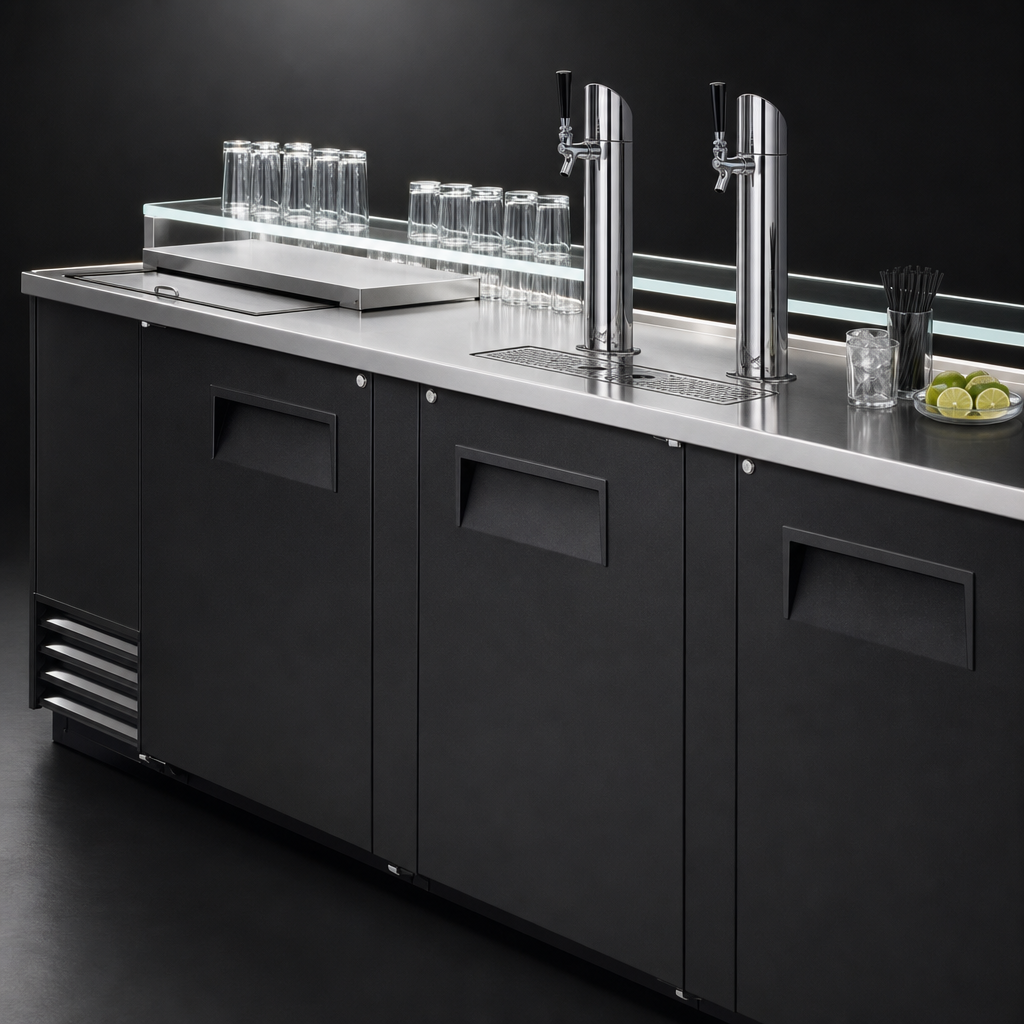

- Easy-reach club-top compartment with anodized aluminum glass rail keeps frosted mugs or bottled product at 33–38°F.
- Three self-closing, lockable solid doors protect inventory during peak hours and overnight.
- Adjustable PVC-coated wire shelf adds flexible storage for garnishes or backup cans.
- Hydrocarbon R290 refrigeration + ECM fan motors = lower energy bills and an ENERGY STAR® rating.
- Black powder-coated steel front & sides with matching aluminum back—built to look sharp against any bar façade.
- Galvanized interior with seamless stainless floor and welded ½" lip for effortless spray-out cleaning.
- Slide-out condensing unit and front barbed T-drain simplify routine maintenance.
Built for the Long Haul
- Cabinet & doors are foamed-in-place with zero-ODP, zero-GWP polyurethane insulation.
- Heavy-duty steel frame rail resists rust and road rash during moves.
- Epoxy-coated evaporator combats corrosion in humid bar environments.
- NSF/ANSI 7 listed for packaged and bottled product.
- Proudly made in O’Fallon, Missouri and backed by True’s unmatched 7-year parts & labor warranty.
Key Specifications
| Model | TDD-4CT-HC |
|---|---|
| Exterior Dimensions (W × D × H) | 90 ⅜″ × 27 ⅛″ × 38 ½″ (2296 × 689 × 978 mm) +14 ¼″ (362 mm) for towers |
| Keg Capacity | 4 × ½-barrel (15.5 gal) / standard D-system |
| Doors | 3 locking solid swing doors with 12″ recessed handles |
| Refrigeration | Self-contained, 1/4 HP, R290 hydrocarbon |
| Temperature Range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Electrical | 115 V / 60 Hz / 1-ph, 2.8 A NEMA 5-15P cord & plug included |
| Energy Star® Qualified | Yes |
| Certifications | cULus, UL EPH Classified |
| Shipping Weight | 495 lb (225 kg) |
Included with Your Cooler
- (2) single-faucet draft arms with chrome taps & black tap handles
- (1) two-way CO₂ manifold
- (1) adjustable interior shelf with 4 chrome clips
- Factory-installed door locks & magnetic gaskets
- 7-year parts, labor & compressor warranty (USA/Canada/Puerto Rico)
Please Note: CO₂ tank, regulator, keg couplers, and cleaning kit are sold separately.
Always follow local codes and a certified installer for gas hook-ups.
Need a double- or triple-faucet tower, seismic legs, or casters? Ask your sales rep about factory options.
Features & Specs
Features & Specs
Manufacturer
True Mfg. - General Foodservice
Certifications
cULus, UL EPH Classified, Made in USA, ENERGY STAR
Height
38.5in
Width
90.38in
Depth
27.13in
Shipping Weight
495.0lbs
Column Qty
2 columns / towers
Keg Capacity
3 - 4 kegs
Barrel Style
1/2 barrel (full keg)
Energy Efficiency
ENERGY STAR®
Exterior Finish
all black exterior
Faucet Qty
1 faucet per column
Top Style
club top
Width
73" (and up)
Specifications
Club Top Draft Beer Cooler, (4) 1/2 keg capacity, stainless steel counter top & lid, (3) solid hinged doors with locks, (1) PVC coated adjustable wire shelf, (2) 3" dia. insulated beer columns with single faucet draft arm, anodized aluminum glass rail, black vinyl front & sides exterior, aluminum back, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR®
