True Mfg. - General Foodservice TDD-4-S-HC Back Bar Coolers
Description

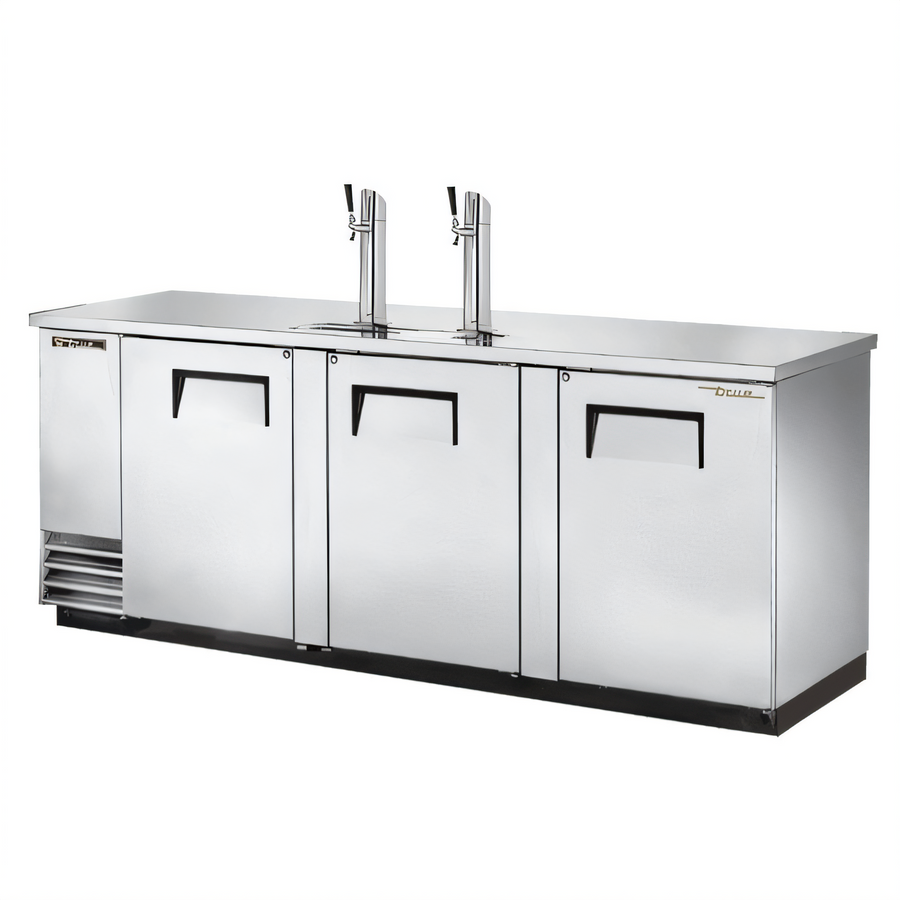

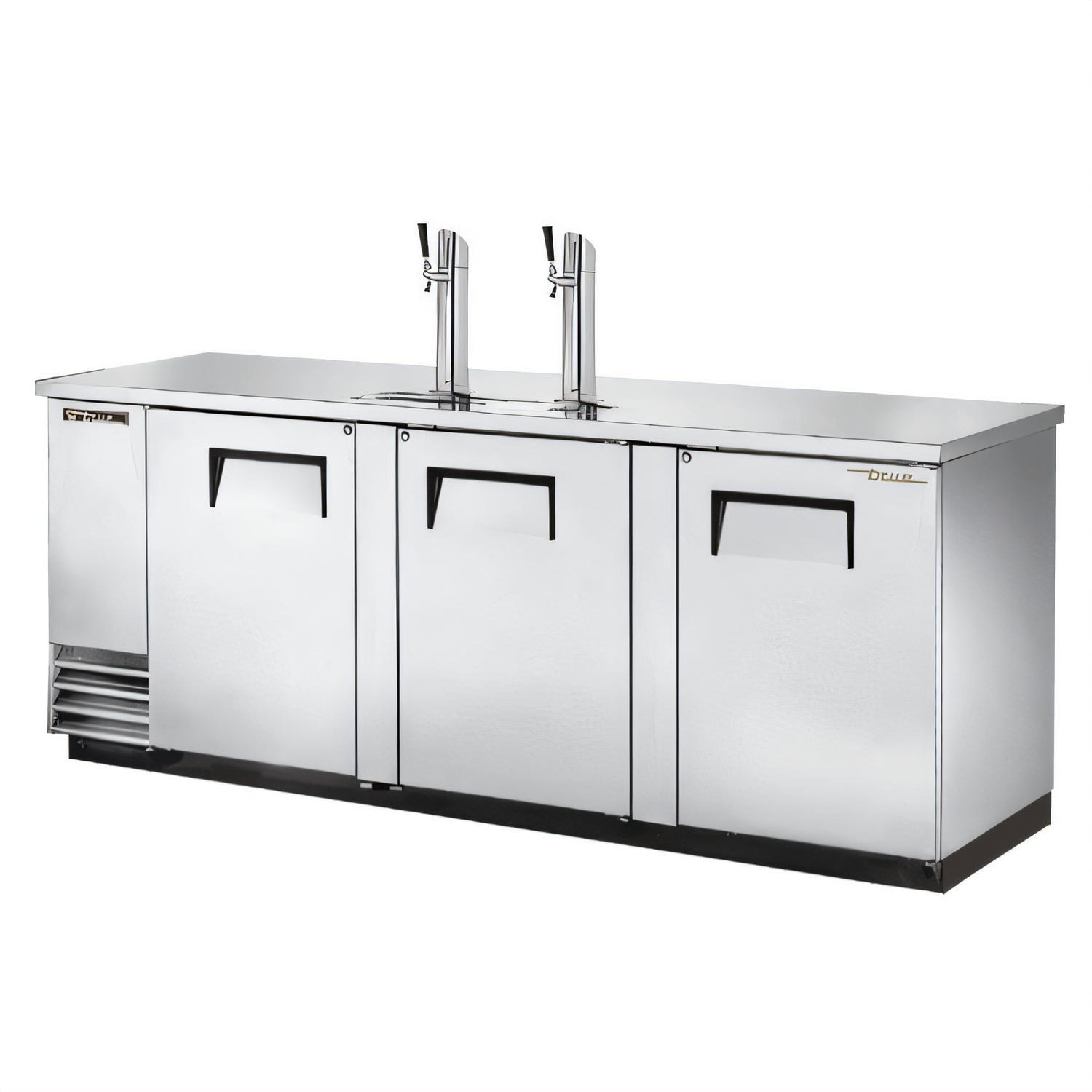

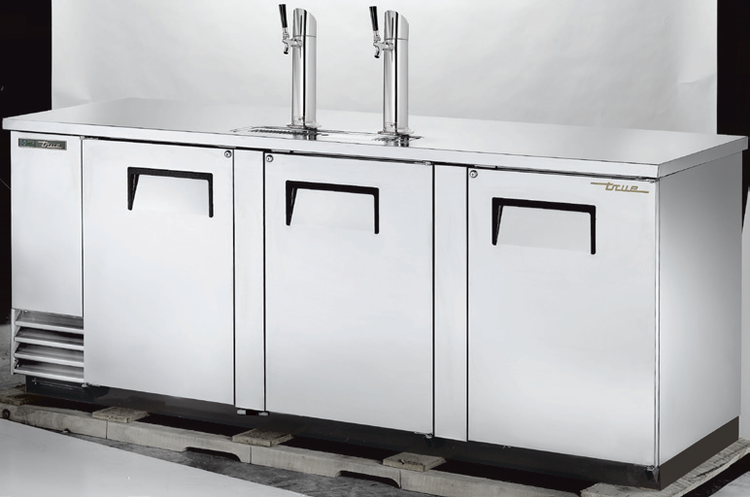

True TDD-4-S-HC Direct-Draw Beer Dispenser
4 × ½-Barrel • 90 ⅜" Underbar Draft Beer Cooler • Stainless SteelEngineered and built in the USA, the ENERGY STAR® qualified True TDD-4-S-HC keeps four full-size kegs ice-cold, pours with virtually zero foam and stands up to the daily grind of the busiest bar. From the all-stainless counter top to the hydrocarbon refrigeration system, every detail is optimized for colder product temperatures, reduced energy use and years of trouble-free service.
Why You’ll Love It

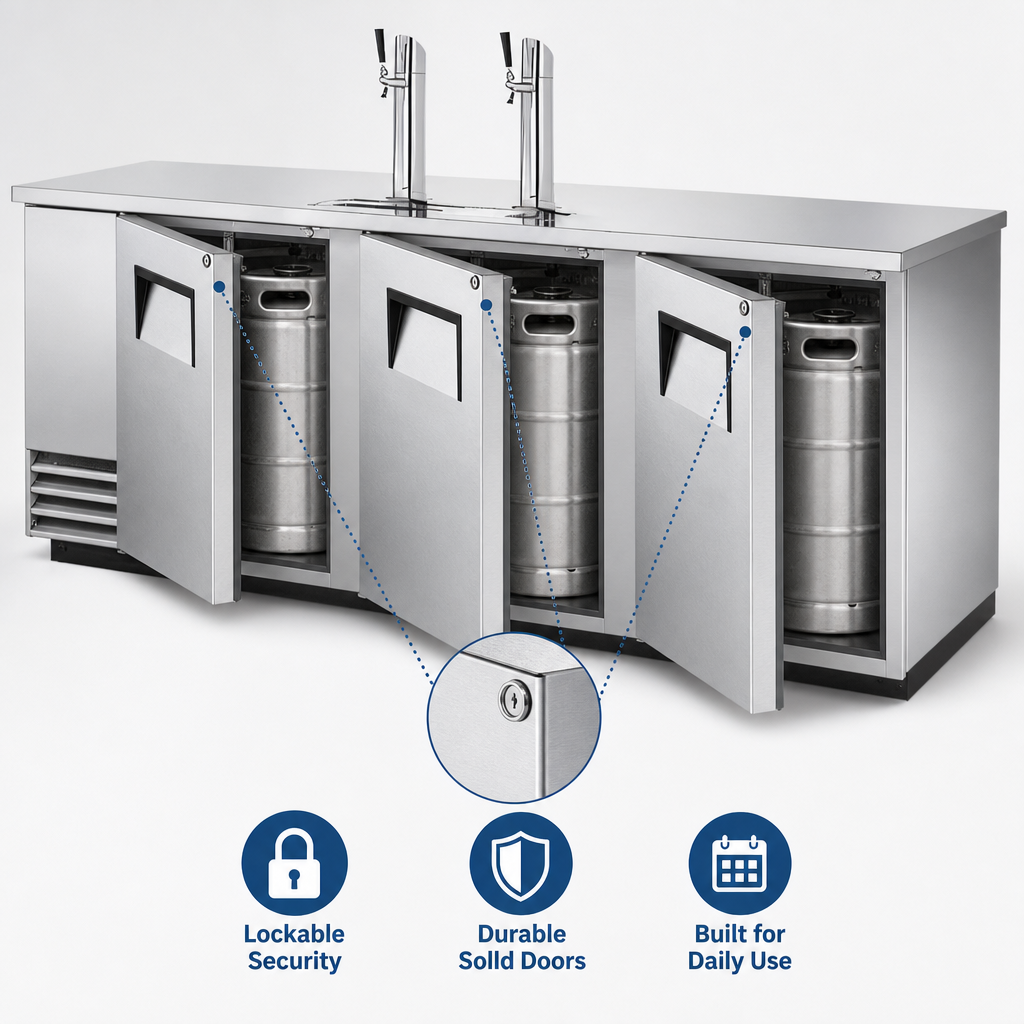

- Holds four ½-barrel kegs behind three locking, solid stainless doors with 12" recessed handles.
- Two 3" insulated beer columns (single faucet arms included) are continuously refrigerated to minimize foaming and maximize profits.
- Factory-balanced R290 hydrocarbon refrigeration maintains 33 °F–38 °F (0.5 °C–3.3 °C) while using eco-friendly, zero-ODP polyurethane insulation.
- Electronically commutated (ECM) evaporator & condenser fan motors move more air, draw less energy and run cooler for longer life.
- Front-access, slide-out condensing unit makes routine cleaning and maintenance fast and easy.
- LED interior lighting brightens the cabinet while sipping power.
- Designed to accept virtually any keg style and ships with a two-way tapper manifold pre-installed.
- cULus & UL EPH Classified for safety and sanitation; ENERGY STAR listed for operating efficiency.
Built for Real-World Abuse
- All-stainless steel counter top, front & sides with matching aluminum back.
- Heavy-gauge galvanized interior walls and a stainless steel floor with ½" reinforced lip that resists rust, spills and repeated keg changes.
- Welded steel frame rail, black powder-coated for superior corrosion protection.
- Door threshold protectors prevent damage during loading and unloading.
Technical Specifications
| Model | TDD-4-S-HC |
|---|---|
| Capacity | 4 × ½-barrel kegs |
| Doors | 3 solid hinged, lockable |
| Beer Columns | Two 3" Ø stainless, insulated – single faucet arms |
| Temperature Range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Refrigerant / HP | R290 Hydrocarbon / ¼ HP |
| Electrical | 115 V / 60 Hz / 1-phase, 2.8 A, NEMA 5-15P (7 ft cord) |
| Energy Certification | ENERGY STAR® Qualified |
| Exterior Dimensions* | 90 ⅜" L × 27 ⅛" D × 37" H (52 ¾" H with draft arms) |
| Shipping Weight | 495 lb (225 kg) crated |
| Certifications | cULus, UL EPH Classified, Made in USA |
*Depth excludes 1" rear bumpers.
Best-in-Class Warranty
True backs the TDD-4-S-HC with an industry-leading 7-year parts, labor & compressor warranty, giving you complete peace of mind from day one.

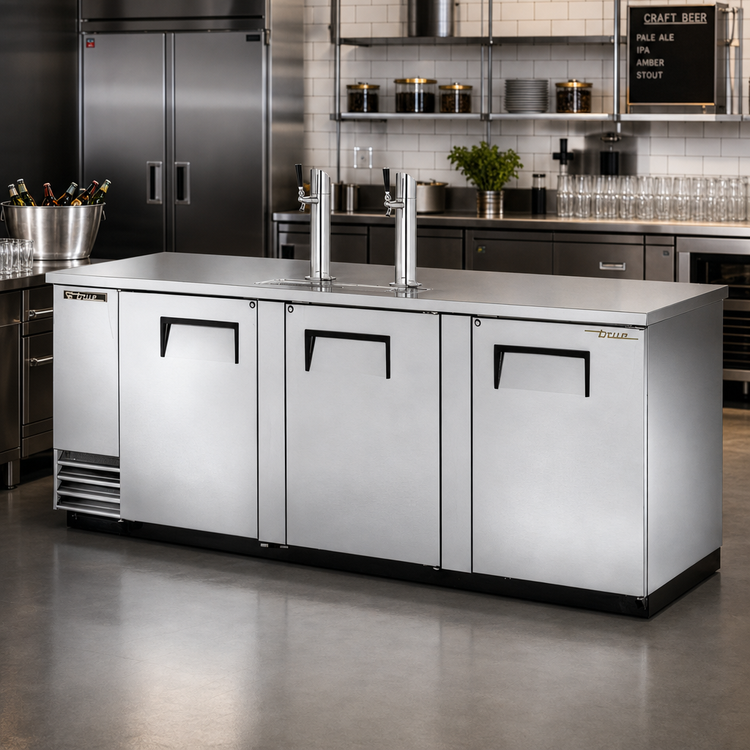

Images may show optional accessories such as multi-head draft towers or castors. Please review the specifications above for the exact configuration supplied.
