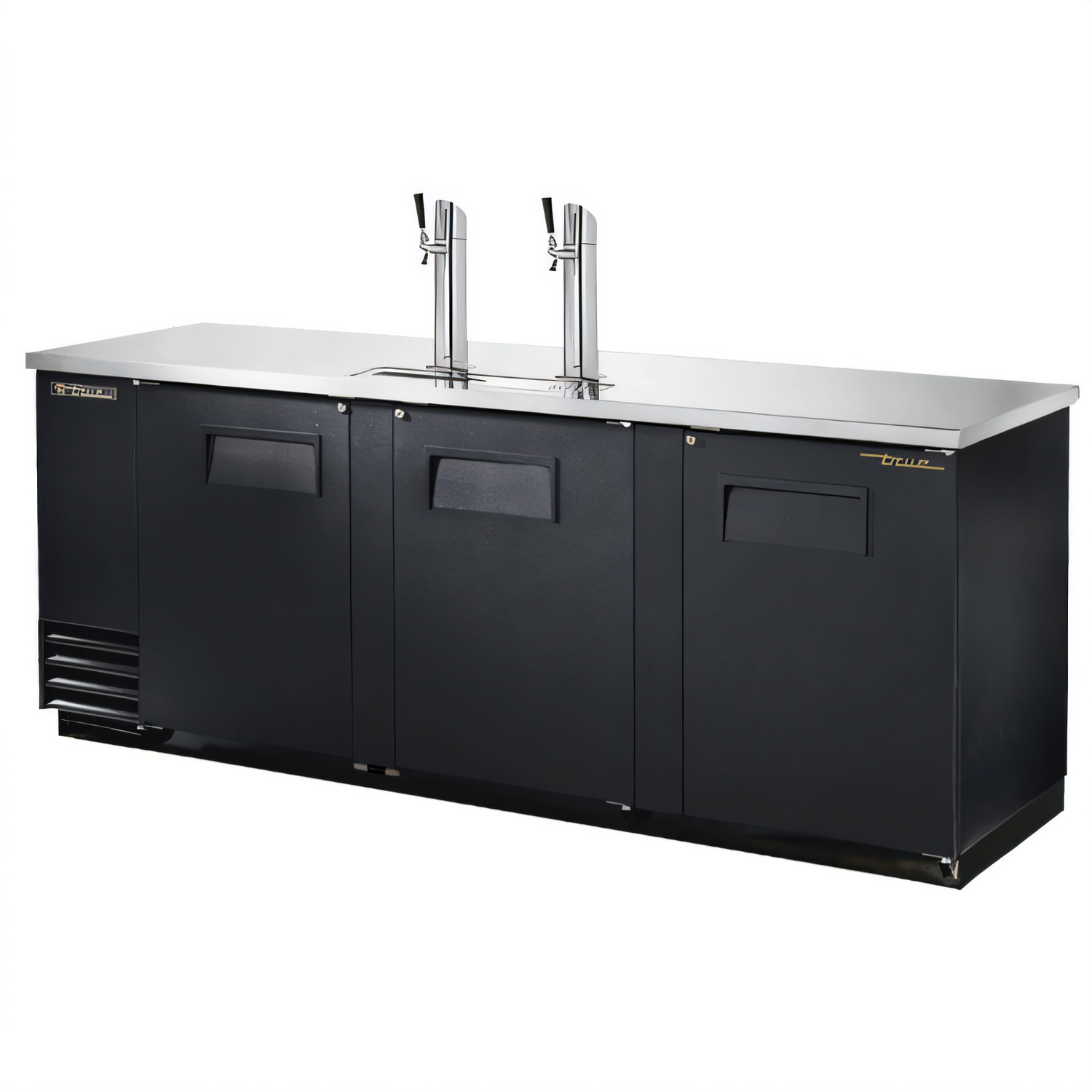

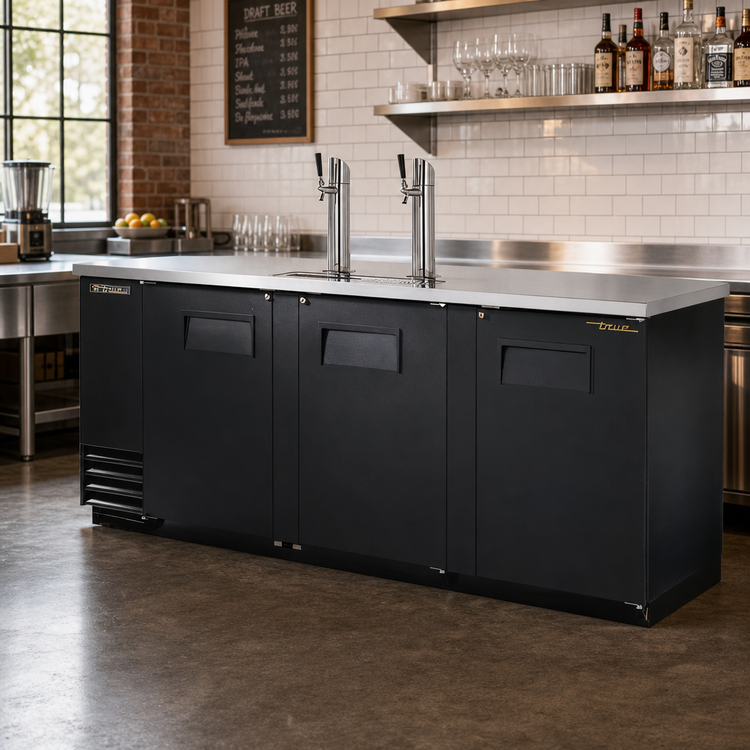

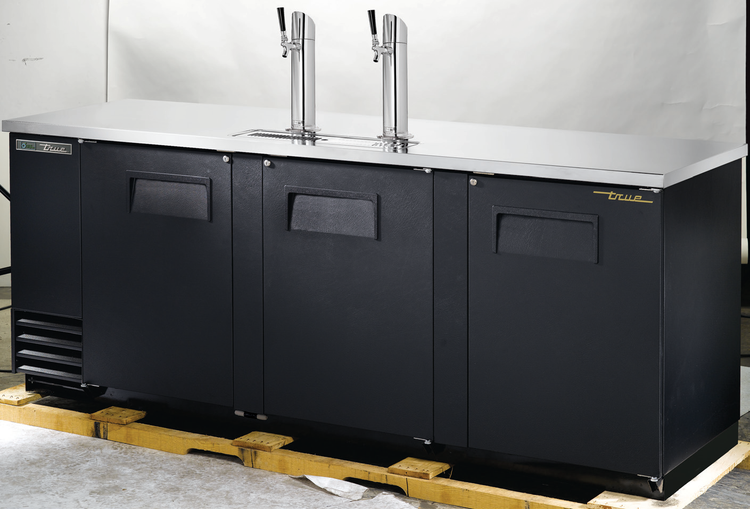

True TDD-4-HC Direct Draw Beer Dispenser – 4 Half-Keg Capacity
Stainless Top • 3 Locking Doors • Dual 3" Draft Towers • ENERGY STAR®Keep the beer flowing and the profits rising with True’s TDD-4-HC. Built in the USA and engineered for demanding bar service, this 90-inch under-counter cooler delivers ice-cold, foam-free pours while using eco-friendly R290 refrigerant and energy-saving ECM fan motors.
Key Features

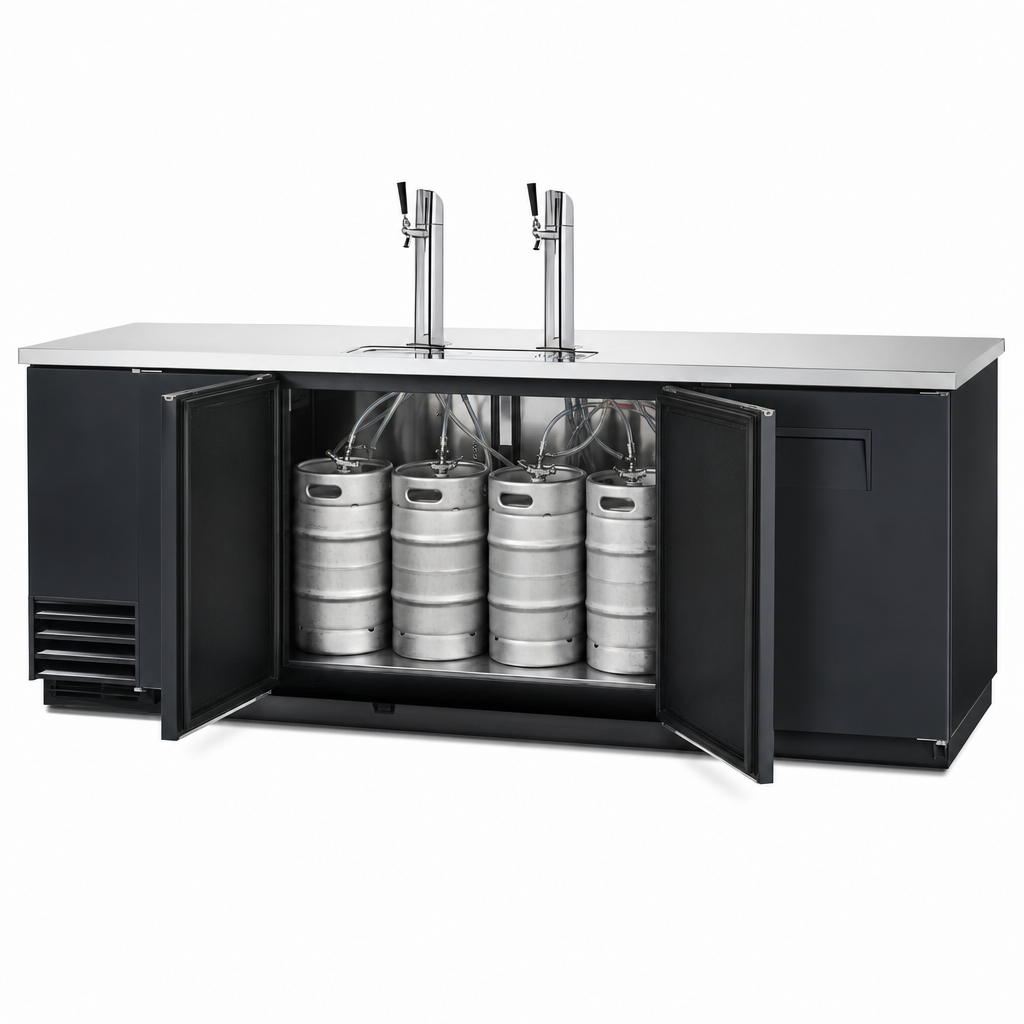

- Accommodates four (4) ½-barrel kegs behind three solid, self-closing doors with factory-installed locks.
- Factory-balanced refrigeration system maintains 33°F–38°F (0.5°C–3.3°C) for consistently cold, great-tasting draft.

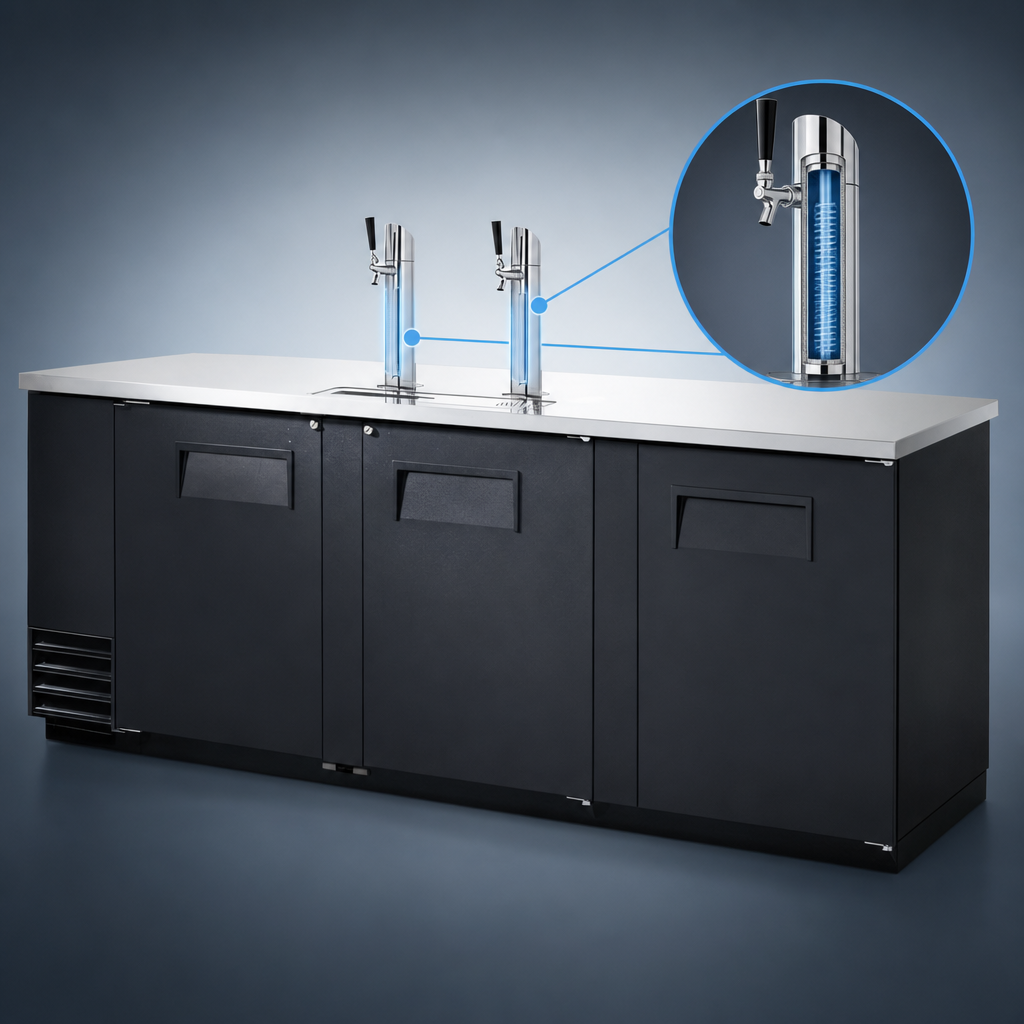

- Two 3" diameter stainless steel insulated beer columns are air-chilled all the way to the faucet to minimize foam.
- Comes ready to pour with single-faucet draft arms and a two-way tapper manifold.
- Durable stainless steel countertop resists scratches and cleans easily between shifts.
- Black powder-coated steel front & sides, aluminum back, and heavy-gauge galvanized interior for long-term corrosion resistance.
- Stainless steel floor with ½" reinforced lip stands up to keg impacts and frequent cleaning.
- High-efficiency electronically commutated evaporator & condenser fan motors reduce energy consumption and heat output.
- Environmentally safe R290 hydrocarbon refrigerant (zero ODP, 3 GWP) and ENERGY STAR® certification.
- Backed by True’s industry-leading 7-year parts, labor & compressor warranty.
Specifications
| Model | TDD-4-HC |
|---|---|
| Doors / Type | 3 × solid hinged, lockable |
| Keg Capacity | 4 × ½-barrel (15.5 gal) kegs |
| Draft Towers | (2) 3" Ø insulated stainless steel columns, single faucet each |
| Temperature Range | 33°F – 38°F (0.5°C – 3.3°C) |
| Refrigerant | R290 Hydrocarbon |
| Compressor | ¼ HP, rear mounted, slide-out |
| Electrical | 115 V / 60 Hz / 1-phase, 2.8 A, NEMA 5-15P (7 ft cord) |
| Exterior Dimensions | W 90 ⅜″ × D 27 ⅛″ × H 37″ Add 15 ¾″ to height for draft towers |
| Interior Construction | Galvanized walls, stainless steel floor |
| Certifications | cULus, UL EPH Classified, NSF/ANSI 7, ENERGY STAR® |
| Country of Origin | Made in the USA |
Included With Your Dispenser
- (2) Insulated draft towers with single faucets
- Two-way tapper manifold
- LED interior lighting
- ½" barbed drain fitting (front of cooler)
- User/installation manual & 7-year warranty coverage
Heads-up: This unit requires a dedicated 15-amp outlet and at least 1" of clearance behind the rear bumpers. CO₂ tank, regulator, and keg couplers are sold separately.
Need more taps or mobility? Double/triple-faucet towers, seismic legs, and caster kits are available—contact us for details.
True Mfg. - General Foodservice
True Mfg. - General Foodservice TDD-4-HC Back Bar Coolers
SKU: TDD-4-HC
$4,707.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
True Mfg. TDD-4-HC back bar cooler: ENERGY STAR® draft beer cooler, 4-keg capacity, stainless top, 3 lockable doors, R290 efficient refrigeration.
Manufacturer
True Mfg. - General Foodservice
Certifications
cULus, UL EPH Classified, Made in USA, ENERGY STAR
Height
37.0in
Width
90.38in
Depth
27.13in
Shipping Weight
495.0lbs
Column Qty
2 columns / towers
Energy Efficiency
ENERGY STAR®
Top Style
flat top
Keg Capacity
3 - 4 kegs
Exterior Finish
all black exterior
Width
73" (and up)
Barrel Style
1/2 barrel (full keg)
Faucet Qty
1 faucet per column
Specifications
Draft Beer Cooler, (4) 1/2 keg capacity, stainless steel counter top, (3) solid hinged doors with locks, (2) 3" dia. insulated beer columns with single faucet draft arm, black vinyl front & sides exterior, aluminum back, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR®
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
