True Mfg. - General Foodservice TDD-3CT-S-HC Back Bar Coolers
Description

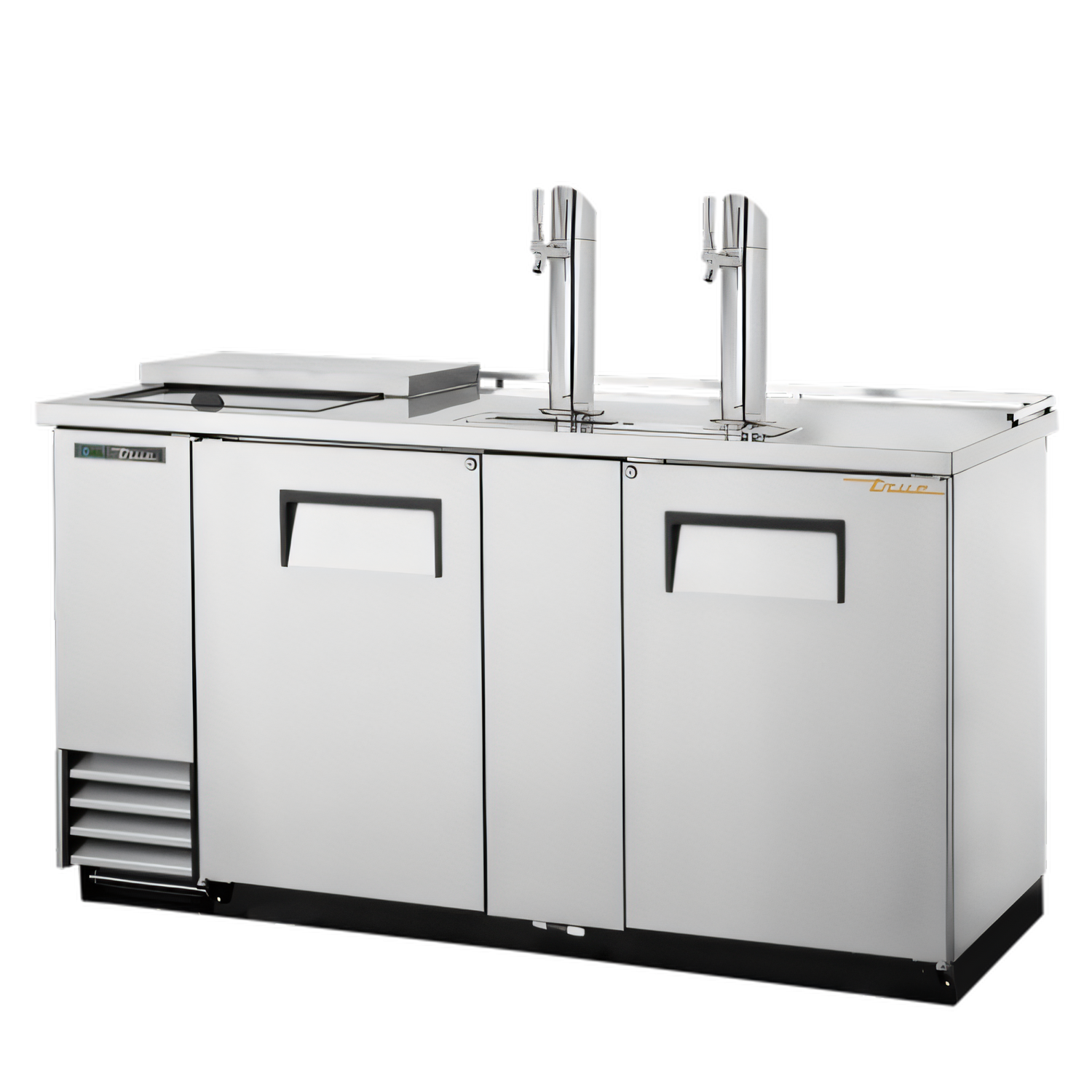

True TDD-3CT-S-HC Club Top Draft Beer Cooler
3 half-barrel capacity • Dual 3" towers • Stainless steel exterior & lidBuilt for the busiest bars, stadium suites and event venues, True’s TDD-3CT-S-HC delivers ice-cold, foam-free pours while doubling as a convenient under-bar refrigerator for chilled mugs or packaged product. Oversized refrigeration, rugged stainless construction and an industry-leading 7-year warranty make this American-made club-top dispenser a rock-solid investment behind any bar.
Key features

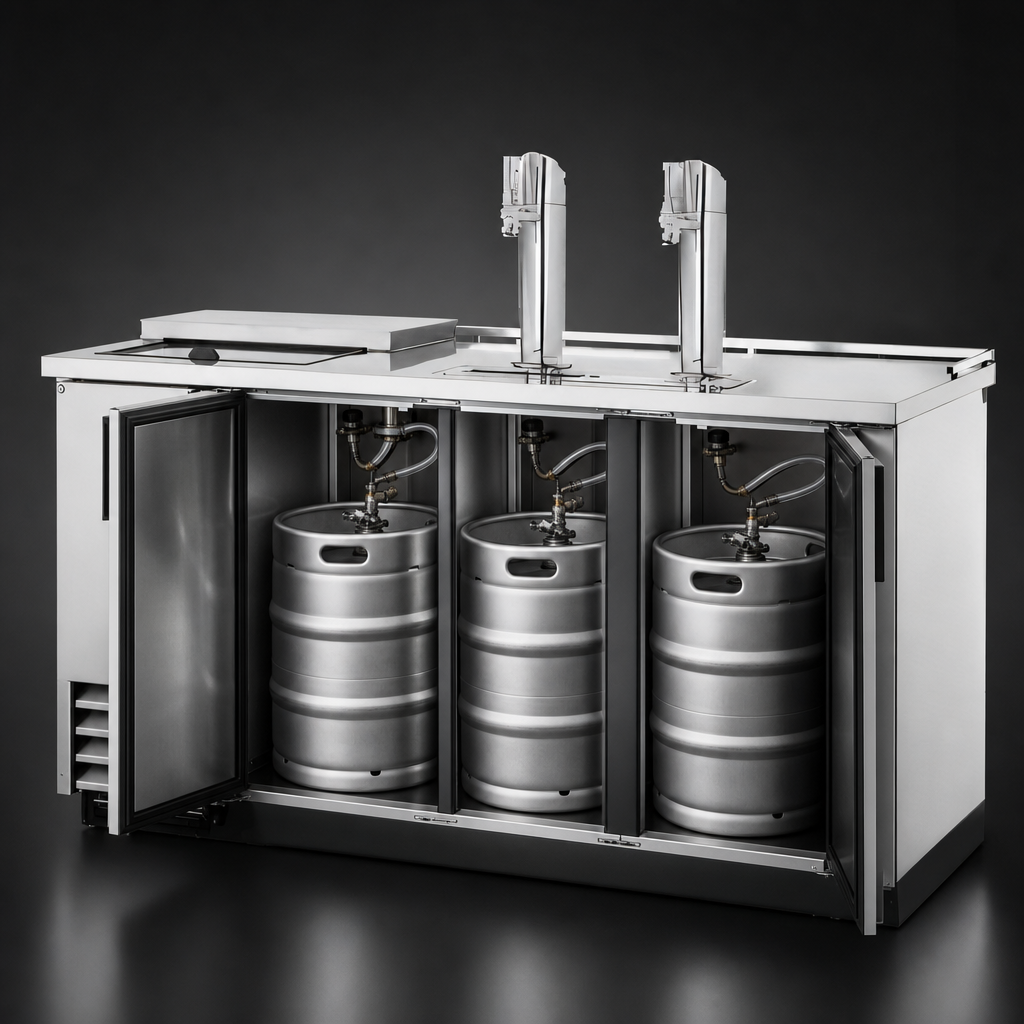

- Holds up to three (3) full-size / ½-barrel kegs.

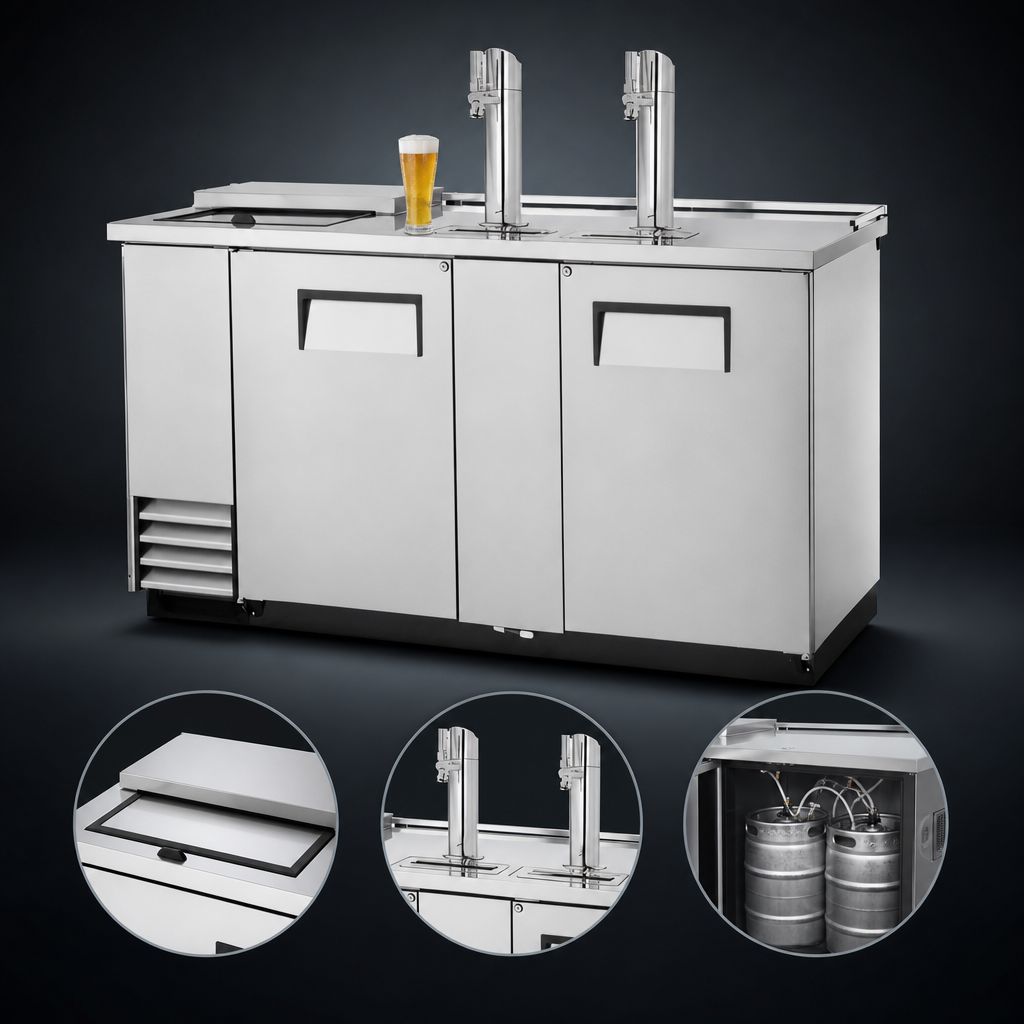

- Club-top slide lid provides quick access to a refrigerated bin—perfect for frosted glasses or back-up cans.
- (2) 3" Ø insulated stainless steel beer columns with single-faucet draft arms; cold air is continuously channeled up each tower to minimize foaming.
- All-stainless countertop and lid stand up to daily abuse and wipe clean fast.
- (2) locking stainless hinged doors with 12" recessed handles & positive-seal magnetic gaskets.
- (1) adjustable, heavy-duty PVC-coated wire shelf for bottles, cans or garnishes.
- Bright, energy-saving LED interior lighting.
- Factory-balanced refrigeration keeps contents between 33 °F – 38 °F (0.5 °C – 3.3 °C).
- Eco-friendly R290 hydrocarbon refrigerant & electronically-commutated fan motors cut energy use and heat output.
- Foamed-in-place, high-density polyurethane insulation (zero ODP / zero GWP).
- Epoxy-coated evaporator resists corrosion in high-moisture bar environments.
- Anodized aluminum glass rail keeps pint glasses safely at hand on the counter top.
At-a-glance specs
| Model | TDD-3CT-S-HC |
|---|---|
| Capacity | 3 × ½-barrel (full-size) kegs |
| Exterior | Stainless steel front, sides, doors, countertop & lid; matching aluminum back |
| Interior | Galvanized walls with stainless steel floor & ½" reinforced lip |
| Beer towers | (2) 3" Ø stainless towers, each with single faucet |
| Temperature range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Refrigerant / HP | R290 Hydrocarbon / ¼ HP |
| Electrical | 115 V / 60 Hz / 1-phase • 2.8 A • NEMA 5-15P |
| Dimensions (W × D × H) | 69 1/8" × 27 1/8" × 38 ½" (1,756 mm × 689 mm × 978 mm) Height to top of faucet: approx. 52 ¾" (1,340 mm) |
| Weight (crated) | 400 lb (182 kg) |
| Certifications | cULus • UL EPH Classified • Made in USA |
| Warranty | 7-year parts, labor & compressor (U.S./Canada/Puerto Rico) |

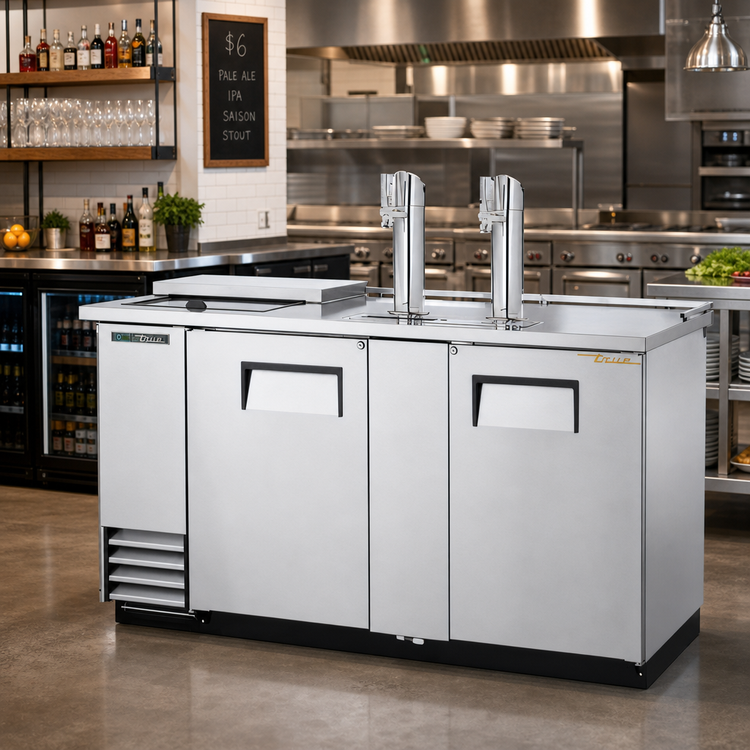

Ideal applications
- Sports bars & brewpubs
- High-volume concession stands
- Event venues & catering operations
- Hotel, casino or stadium suites
Ships completely pre-wired and includes a two-way tapper manifold. Kegs, CO2 components and glassware sold separately.
