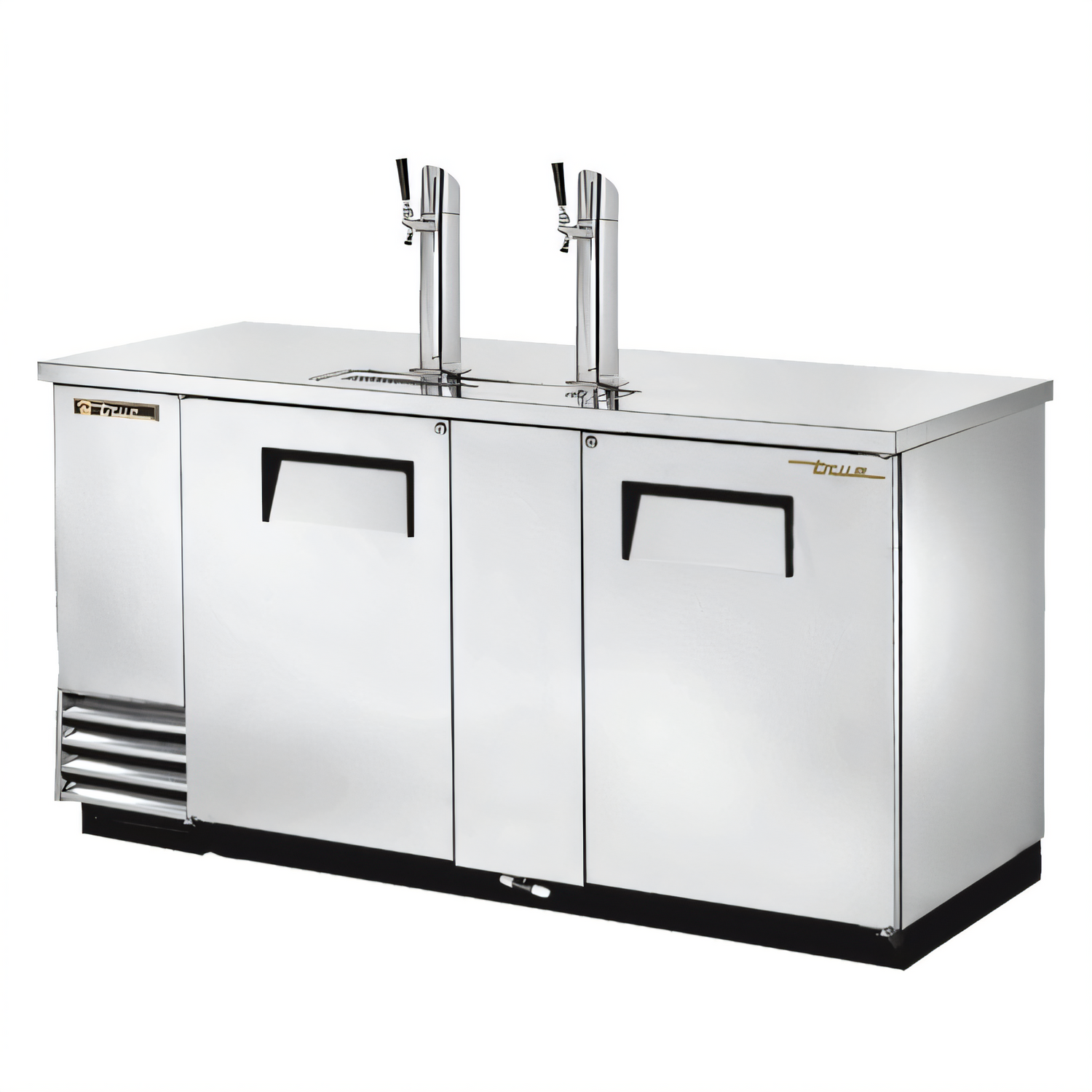

True TDD-3-S-HC Direct-Draw Beer Cooler – 69 in.
Stainless steel, 3 keg capacity, ENERGY STAR®Chill, protect and pour your most profitable draft brews with True’s flagship TDD-3-S-HC. Built in the USA from heavy-gauge stainless steel and powered by an eco-friendly R290 refrigeration system, this under-bar workhorse keeps up to three 1/2-barrel kegs at an ice-cold 33-38 °F (0.5-3.3 °C) while using less energy and delivering years of trouble-free service.
Key performance features
- High-capacity, factory-balanced refrigeration maintains a rock-solid 33-38 °F keg temperature.
- Natural R290 hydrocarbon refrigerant with zero ODP and almost zero GWP.

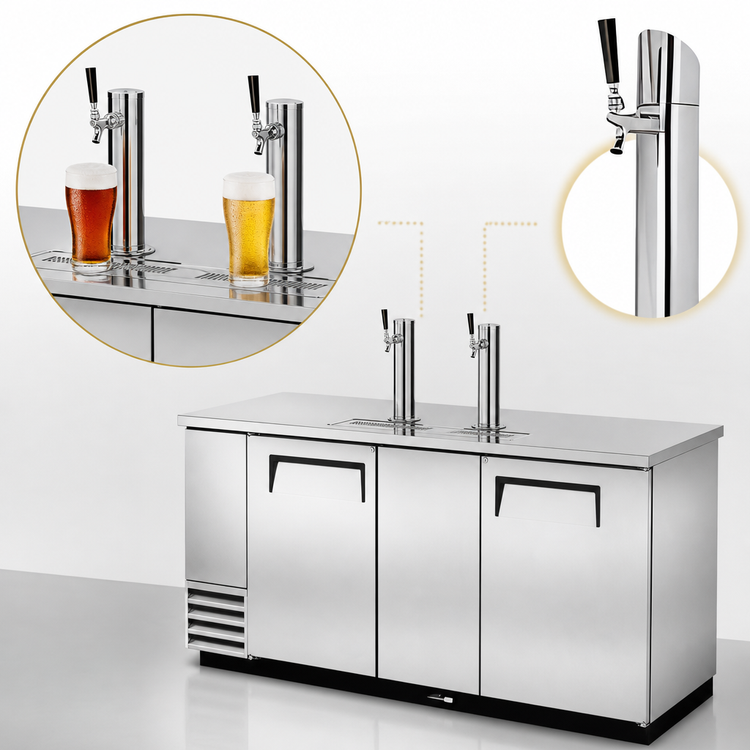

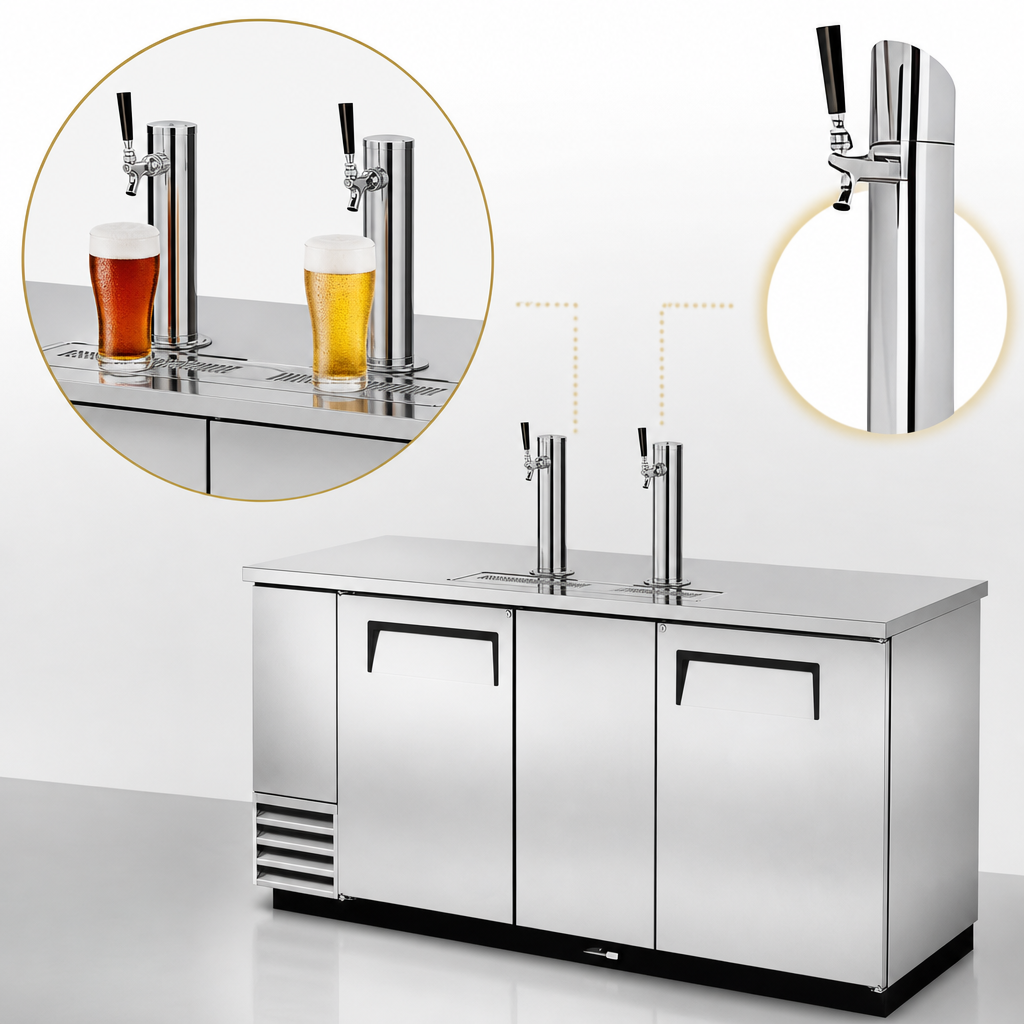

- (2) 3"-dia. stainless steel insulated beer columns with cold-air jackets to minimise foam.
- (2) single-faucet draft towers & a factory-installed two-way tapper manifold included.
- (2) lockable solid swing doors with 12" recessed handles & tool-free magnetic gaskets.
- Bright, long-life LED interior lighting.
- Slide-out condensing unit and epoxy-coated evaporator for easy maintenance.
- Front ½" barbed T-drain simplifies cleaning and line flushing.
Built for commercial durability
- Stainless steel countertop, doors, front & sides; corrosion-resistant aluminum back.
- Stainless floor with ½" reinforced lip and heavy-gauge galvanized interior walls.
- Foamed-in-place, high-density polyurethane insulation for superior cold retention.
- Welded, black-powder-coated steel frame rail for maximum structural strength.
- Made in O’Fallon, Missouri – supporting American manufacturing.
Certifications & sustainability
- ENERGY STAR® qualified for lower utility costs.
- cULus Listed & UL EPH Classified (NSF/ANSI 7 for packaged/bottled product).
- Compliant with current SNAP & CARB hydrocarbon refrigerant regulations.
Technical specifications
| Model | TDD-3-S-HC |
|---|---|
| Exterior dimensions | 69 1/8" W × 27 1/8" D × 37" H Add 15 3/4" height for draft towers |

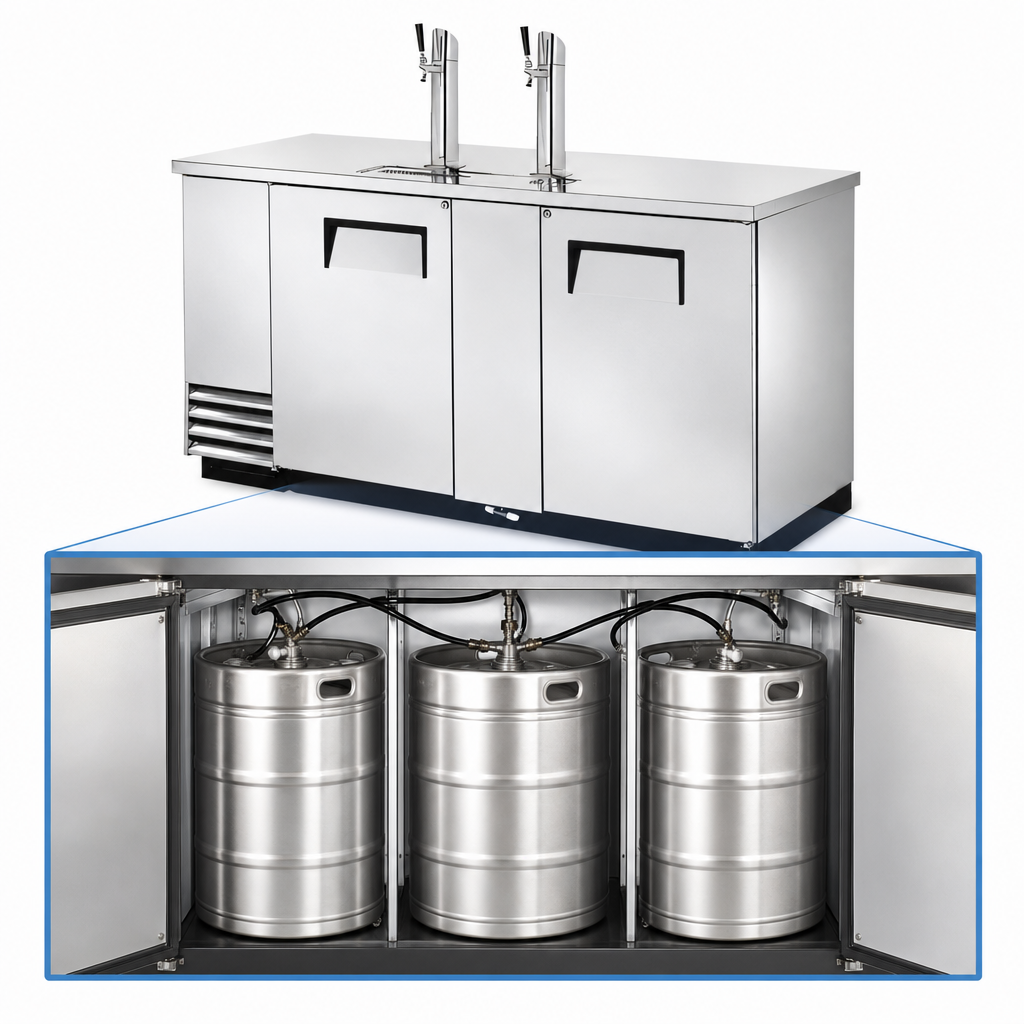

| Capacity | (3) 1/2-barrel kegs |
| Doors | (2) solid, hinged, lockable |
| Draft towers | (2) 3"-dia. insulated stainless, single faucet each |
| Compressor | 1/4 HP, self-contained, slide-out |
| Refrigerant | R290 (hydrocarbon) |
| Temperature range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Electrical | 115 V / 60 Hz / 1-ph, 2.8 A, NEMA 5-15P plug |
| Cord length | 7 ft (2.13 m) |
| Crated weight | 400 lb (182 kg) |
| Warranty (US/Canada) | 7 years parts & labor • 7 years compressor |
Need legs, casters, or a double/triple faucet tower? Factory-installed upgrade kits are available—ask your sales rep for details.
Installation note: Connect to a dedicated 115 V / 15 A outlet and allow adequate ventilation behind the unit
for optimal performance.
True Mfg. - General Foodservice
True Mfg. - General Foodservice TDD-3-S-HC Back Bar Coolers
SKU: TDD-3-S-HC
$6,198.13
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
True Mfg. TDD-3-S-HC 3-keg draft cooler with stainless steel top, dual lock doors, LED light, insulated beer columns, ENERGY STAR®, R290 refrigerant.
Manufacturer
True Mfg. - General Foodservice
Certifications
cULus, UL EPH Classified, Made in USA, ENERGY STAR
Height
37.0in
Width
69.13in
Depth
27.13in
Shipping Weight
400.0lbs
Keg Capacity
3 - 4 kegs
Column Qty
2 columns / towers
Exterior Finish
all stainless steel exterior
Top Style
flat top
Faucet Qty
1 faucet per column
Barrel Style
1/2 barrel (full keg)
Width
60" - 72"
Energy Efficiency
ENERGY STAR®
Specifications
Draft Beer Cooler, (3) 1/2 keg capacity, stainless steel counter top, (2) solid hinged doors with locks, LED interior light, (2) 3" dia. insulated beer columns with single faucet draft arm, stainless steel exterior, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR®
