True Mfg. - General Foodservice TDD-1-HC Back Bar Coolers
Description

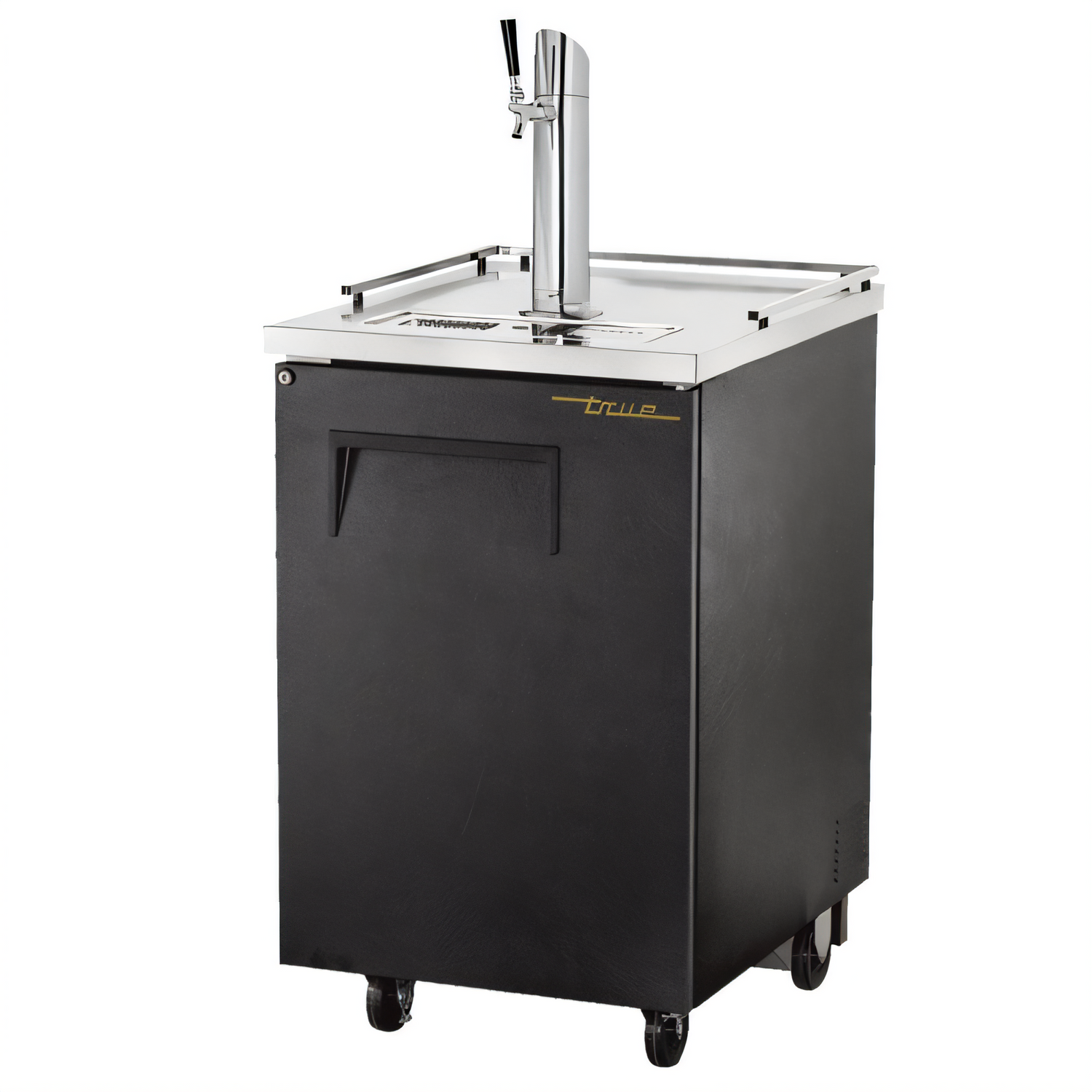

True TDD-1-HC Draft Beer Dispenser – 23.5" W
Single-Faucet • 1/2-Keg • ENERGY STAR® CertifiedPour perfect pints from almost anywhere behind the bar. The compact True TDD-1-HC direct-draw cooler chills one 1/2-barrel keg to a frosty 33-38 °F, uses eco-friendly R290 refrigerant, and rolls effortlessly on built-in castors—all while saving energy and floor space.
Key Benefits
- Space-saving 23 ½" width holds a full 1/2-barrel keg.
- High-capacity refrigeration system with natural R290 keeps beer consistently cold (33-38 °F).
- 3" stainless steel insulated draft tower is continuously cooled to minimize foaming.
- Durable stainless steel countertop with anodized glass rail for easy service and cleanup.
- Black powder-coated steel exterior resists scratches and fingerprints.
- Galvanized interior with stainless steel floor & ½" lip stands up to heavy kegs.
- Locking solid door with 12" recessed handle secures your inventory.
- 4" swivel castors (installed) make the unit easy to move for cleaning or events.
- ENERGY STAR® listed for lower operating costs.
- Built in the USA and protected by an industry-best 7-year warranty.
Specifications
| Model | TDD-1-HC |
|---|---|

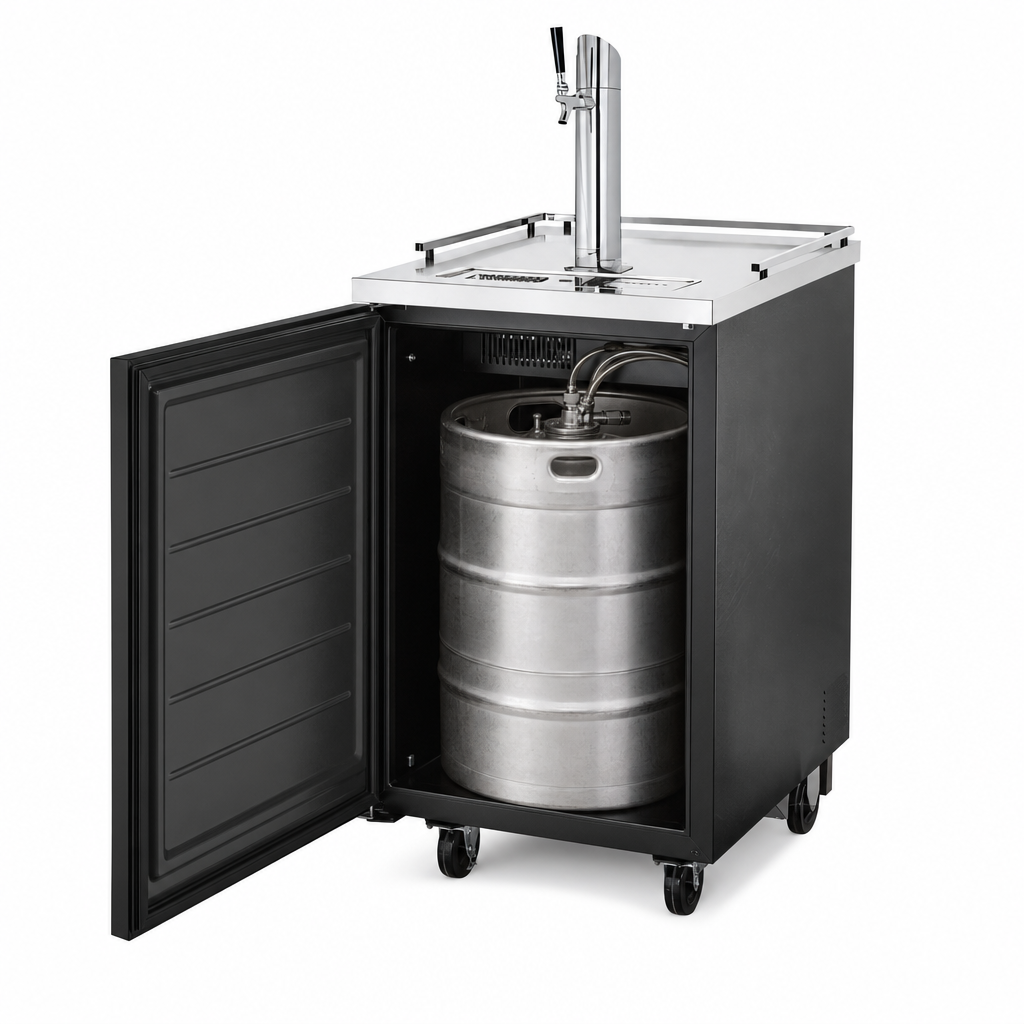

| Capacity | One (1) ½-barrel keg |

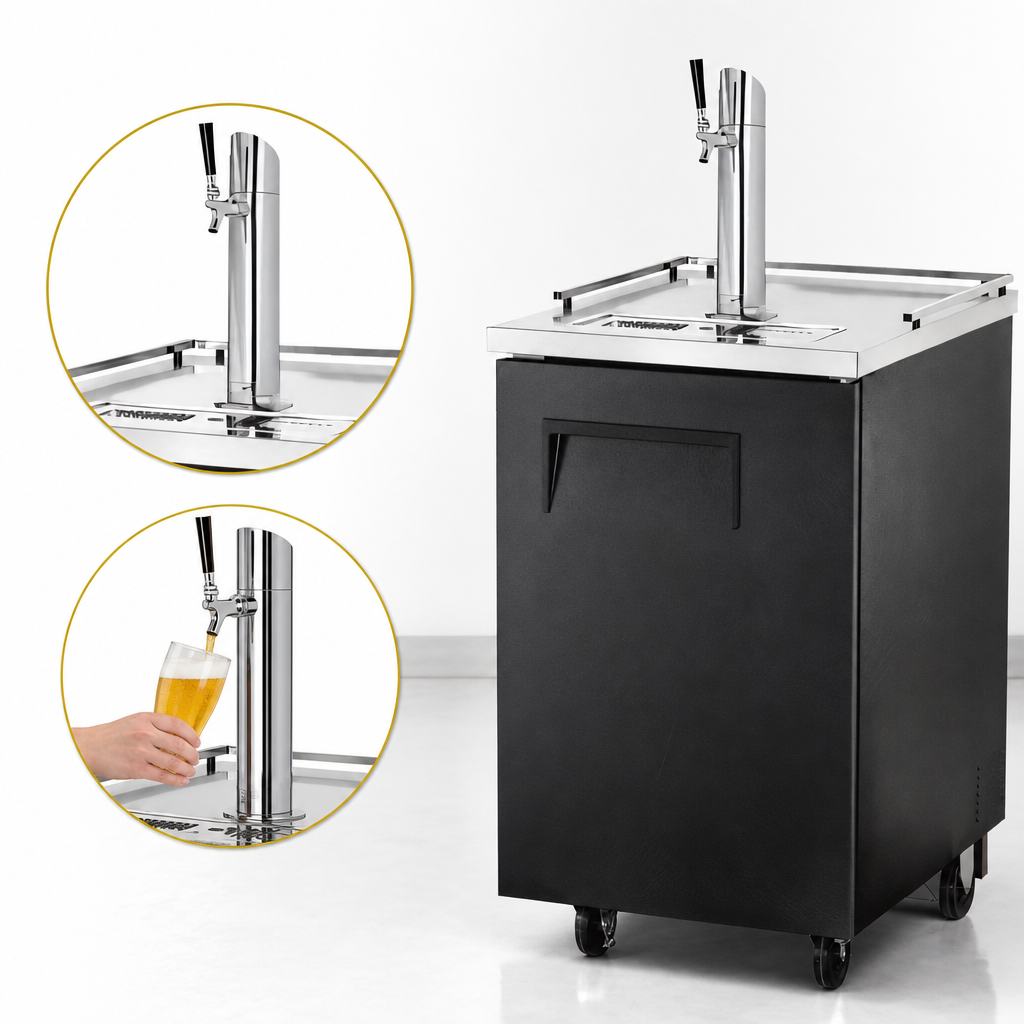

| Beer Column / Faucet | 3" Ø stainless, insulated — single faucet included |
| Temperature Range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Exterior | Black vinyl-coated steel w/ stainless steel countertop |
| Interior | Galvanized walls, stainless steel floor w/ ½" lip |
| Width | 23 ½" (597 mm) |
| Depth | 31 ¼" (794 mm) |
| Height | 39 ¾" (1 010 mm) to countertop + 14 ¾" (375 mm) draft tower |
| Refrigerant | R290 Hydrocarbon (zero ODP, <3 GWP) |
| Compressor | 1/10 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1-ph, 1.4 A, NEMA 5-15P |
| Cord Length | 7 ft (2.13 m) |
| Shipping Weight | 210 lb (96 kg) |
| Certifications | cULus, UL EPH Classified, ENERGY STAR® |
What’s Included
- Pre-installed single draft tower with faucet, shank & beer line
- Lock & keys for door
- Factory-installed 4" swivel castors
- 7-ft power cord with plug
Warranty
True backs this unit with a full 7-year parts, labor & compressor warranty. Register your dispenser and view full terms at TrueMfg.com.
Need more taps? Double- and triple-head draft towers, two-way manifolds, and other accessories are available by special order.
