True Mfg. - General Foodservice TBB-4PT-S Back Bar Coolers
Description

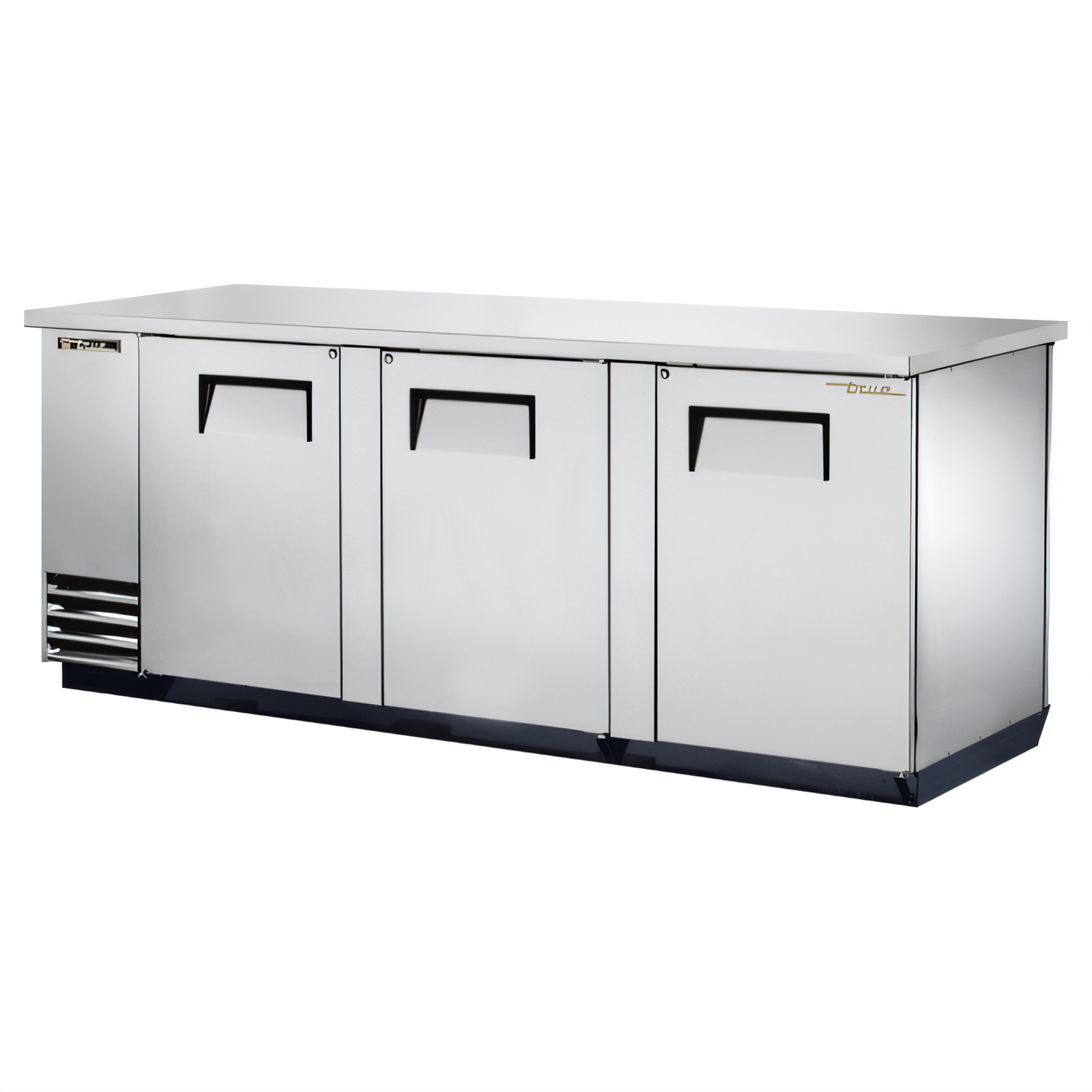

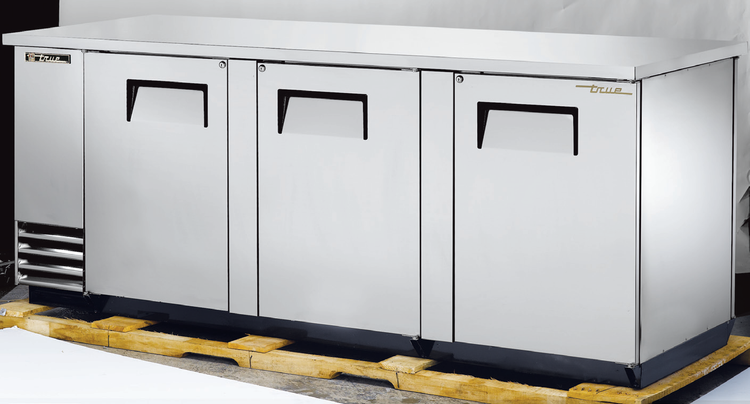

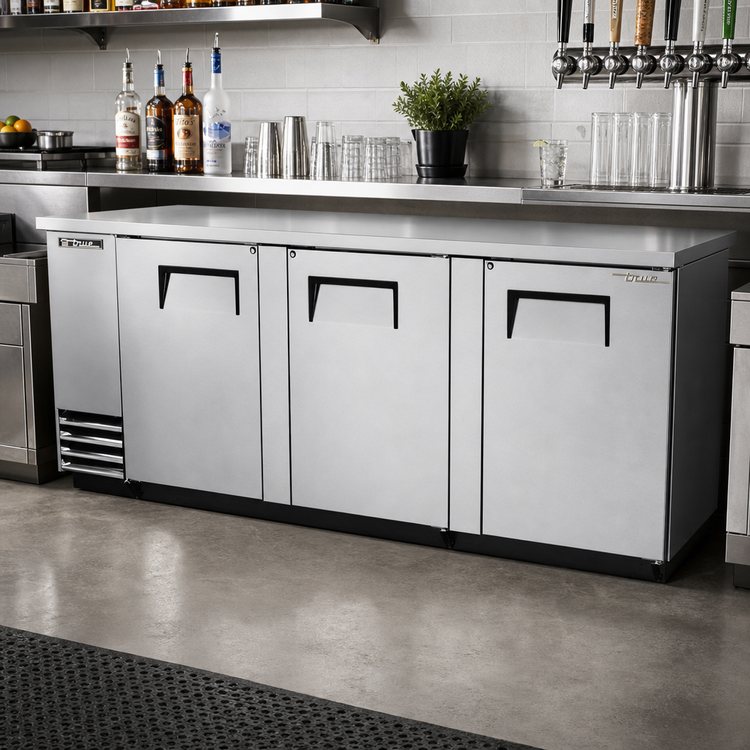

True TBB-4PT-S Pass-Thru Back Bar Cooler
90-3/8″ three-section · 152 six-packs or 4 half-keg capacity · Made in USABuilt for the busiest bars, nightclubs and venues, the True TBB-4PT-S keeps product ice-cold, secure and easy to access from either side of the counter. 100 % stainless steel on the outside, oversized refrigeration on the inside – this is the last back-bar you’ll buy for years to come.
Key advantages

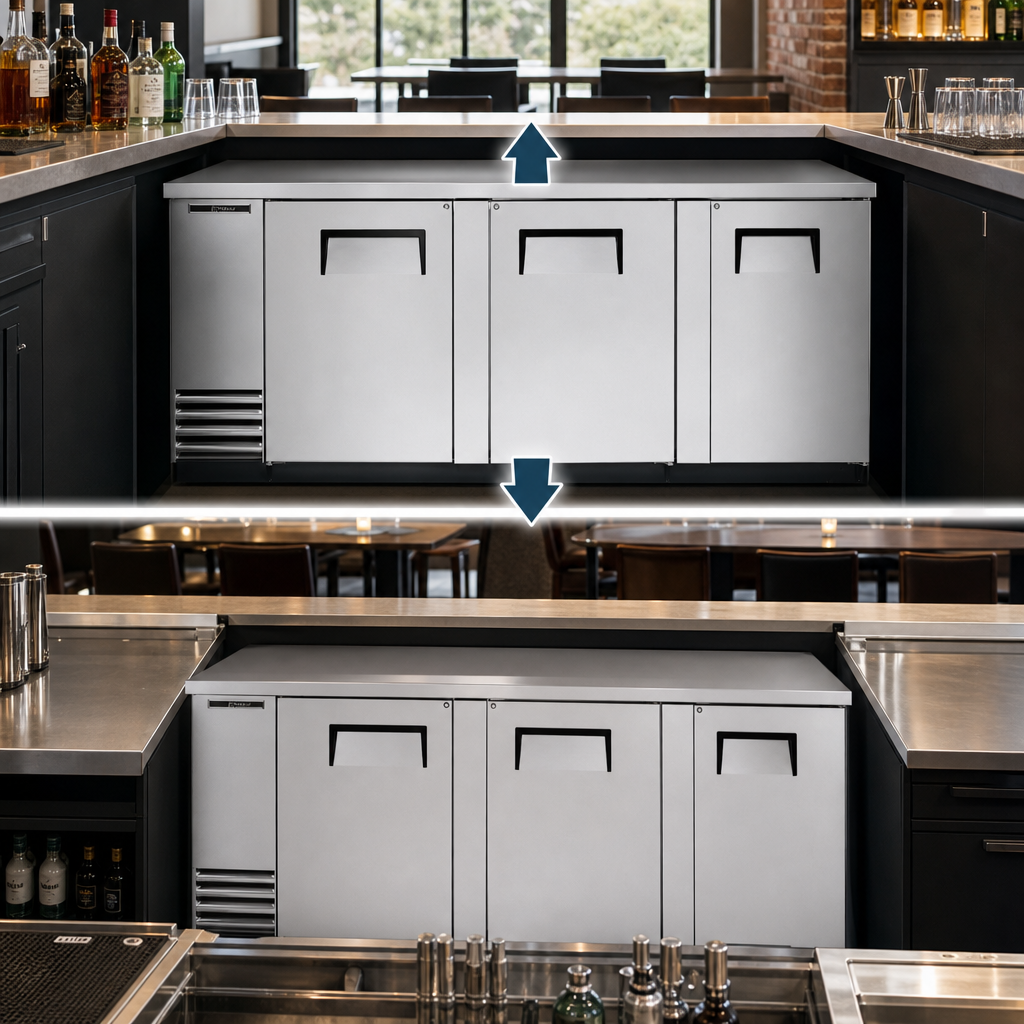

- Pass-thru design with six locking solid doors (3 front / 3 back) speeds service and simplifies restocking.
- Oversized, factory-balanced refrigeration system holds 33 °F–38 °F (0.5 °C–3.3 °C) for perfectly chilled drinks.
- 1/2 HP self-contained condensing unit (slides out from the left side) for fast maintenance.
- All stainless-steel exterior, countertop and floor; heavy-gauge galvanized steel interior walls.
- Six adjustable, PVC-coated wire shelves with chrome clips; 1/2″ shelf-to-shelf adjustability.

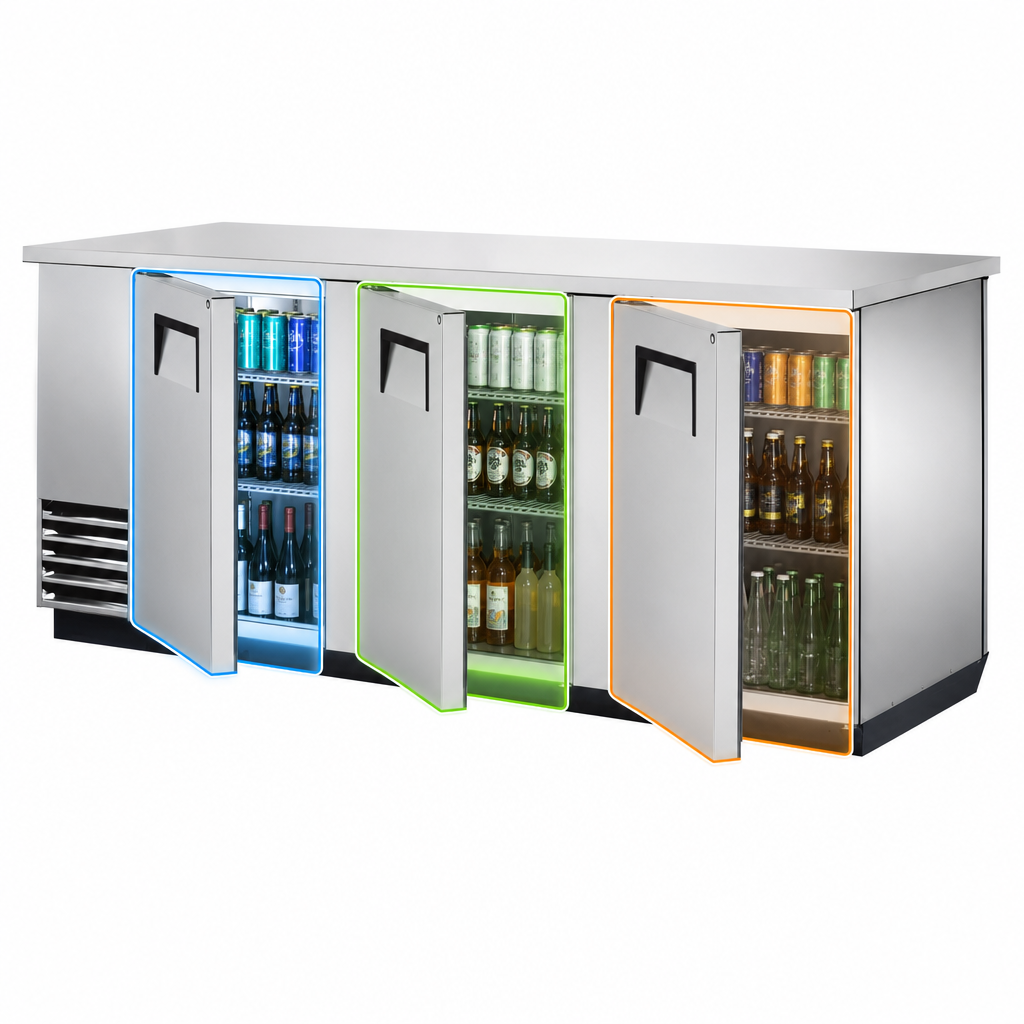

- Holds either 152 six-packs of 12 oz cans or up to four 1/2-barrel kegs.
- Energy-efficient fluorescent interior lighting showcases product without adding heat.
- Foamed-in-place polyurethane insulation (zero ODP / zero GWP).
- Magnetic door gaskets & positive-seal recessed handles for maximum cold retention.
- NSF-7, cULus & UL EPH Classified for packaged & bottled products.
Full specifications
| Model | TBB-4PT-S |
|---|---|
| Door configuration | 6 solid swing doors (lockable) – 3 front / 3 rear |
| Exterior dimensions (W × D × H) | 90-3/8″ × 31″ × 37″ (2296 × 788 × 940 mm) |
| Capacity | 152 six-packs of 12 oz cans (4) 1/2-barrel kegs |
| Shelves | 6 adjustable PVC-coated wire shelves |
| Temperature range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Refrigeration | Self-contained capillary tube, R-134a |
| Horsepower | 1/2 HP |
| Electrical | 115 V / 60 Hz / 1-phase, 8.8 amps, NEMA 5-15P (supplied cord & plug) |
| Interior lighting | Fluorescent |
| Certifications | cULus, UL EPH Classified, NSF-7 |
| Shipping weight | 585 lb (266 kg) |
| Country of origin | Made in the USA |
Included & optional extras
- Included: six shelves with chrome clips, door locks, fluorescent bulbs, 7′ power cord.
- Optional (contact us for pricing): 6″ legs or seismic legs, 2.5″–4″ castors, additional shelves, wine racks.
Industry-leading warranty
True backs the TBB-4PT-S with a 7-year parts, labor and compressor warranty (USA, Canada & Puerto Rico). Register on installation for hassle-free coverage.
Capacity figures are nominal. Always verify clearances, ventilation and power requirements before installation. Use of non-OEM parts will void warranty.
