True Mfg. - General Foodservice TBB-4PT Back Bar Coolers
Description

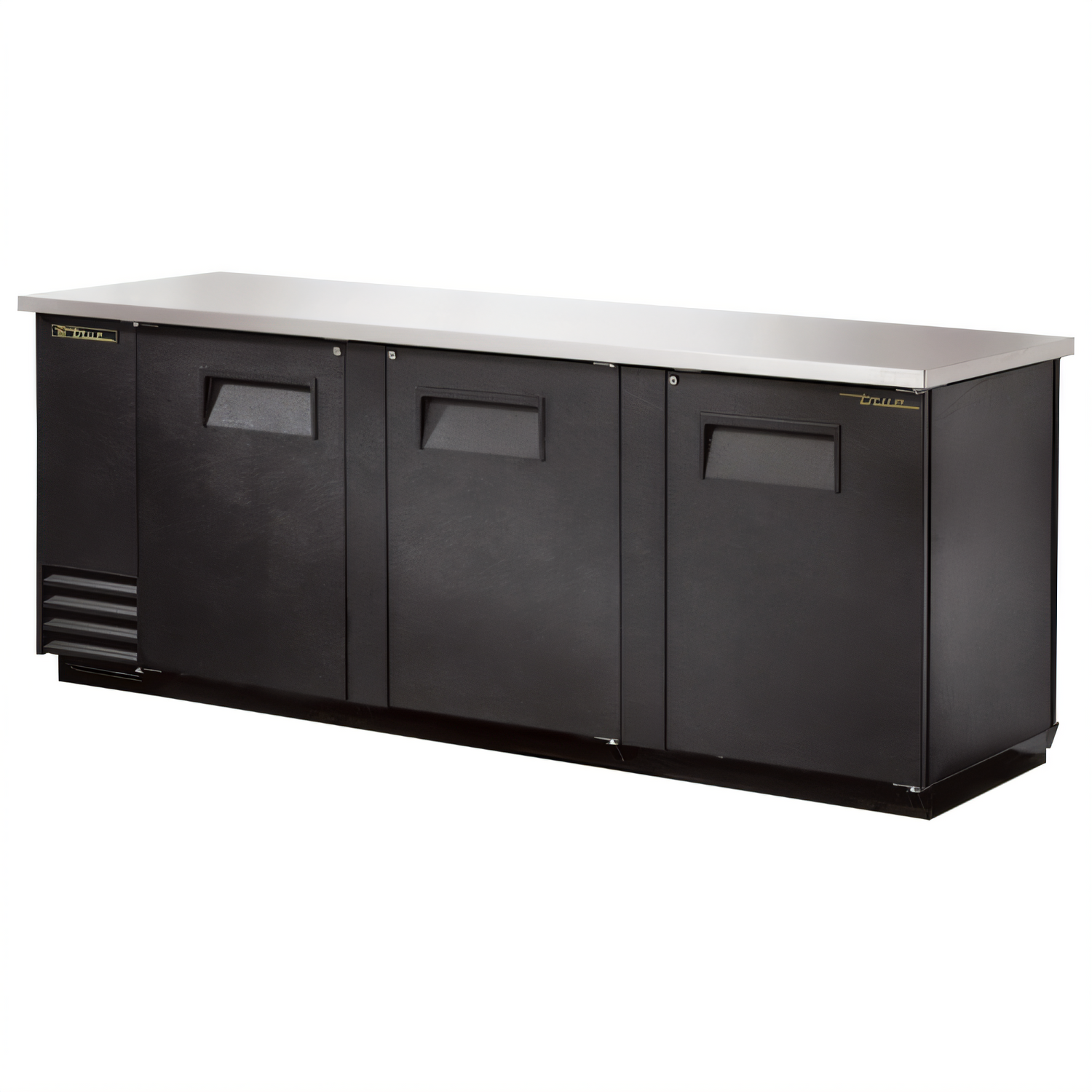

True TBB-4PT Pass-Thru Back Bar Cooler
90 3⁄8" W • Three-Section • 6 Solid Swing Doors w/ LocksBuilt for high-volume beverage programs, the True TBB-4PT keeps product ice-cold and always within reach — from either side of the bar. Its pass-thru layout, oversized refrigeration and rock-solid construction deliver years of trouble-free service in the toughest hospitality environments.
Why You’ll Love It

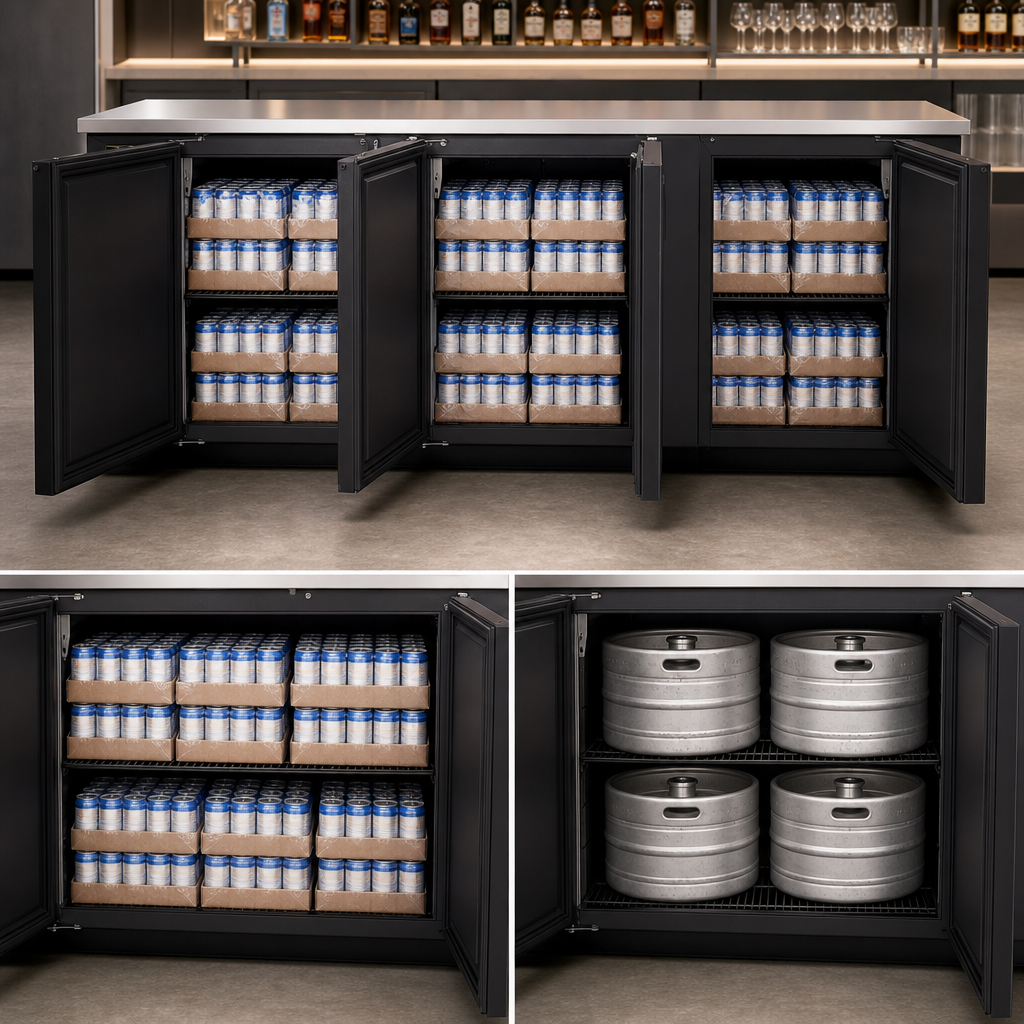

- Massive 152 six-pack or 4 half-barrel keg capacity in a compact, under-bar footprint.

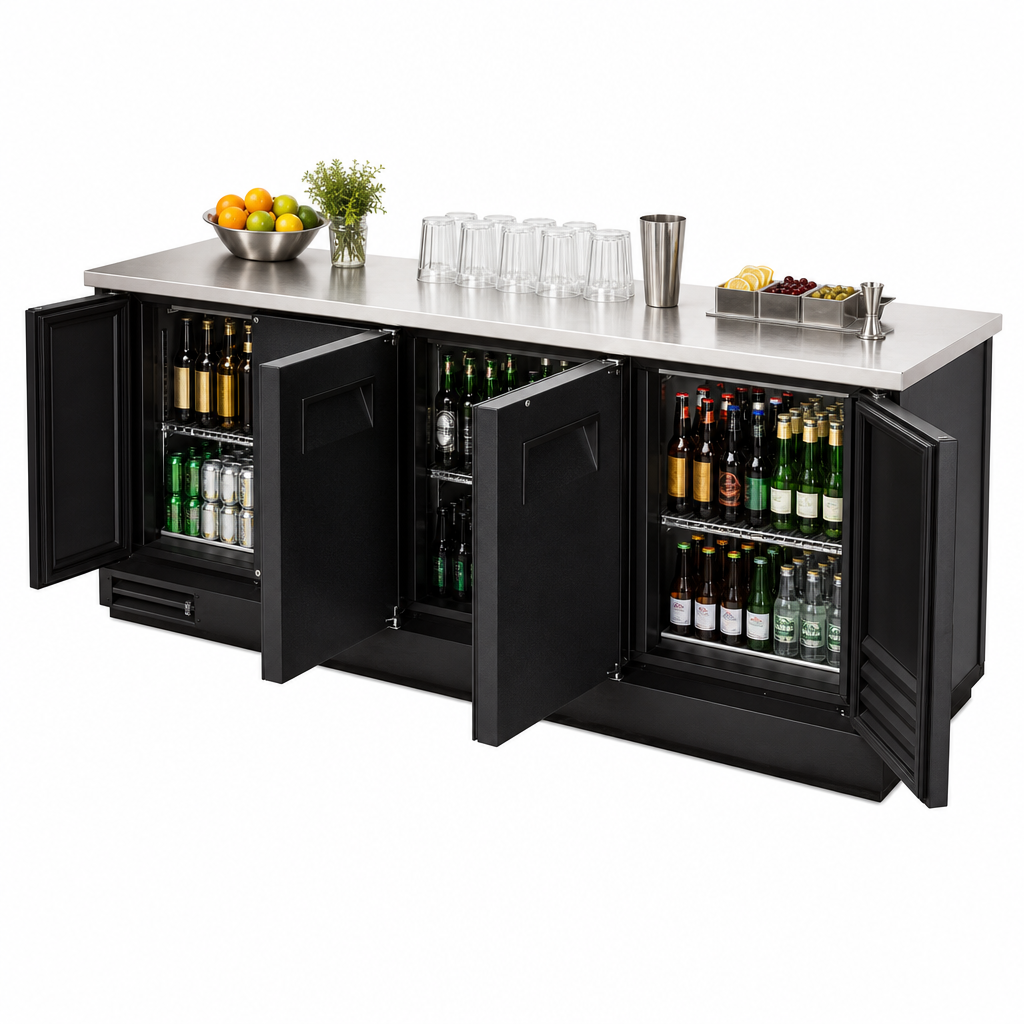

- Pass-thru convenience: six lockable solid doors (3 front / 3 rear) speed up loading & service.
- Factory-balanced ½ HP refrigeration system holds a frosty 33 – 38 °F (0.5 – 3.3 °C) for colder pours.
- Durable black powder-coated steel exterior capped with an easy-to-clean stainless steel countertop.
- Stainless floor with reinforced ½" lip plus heavy-gauge galvanized sidewalls for unbeatable longevity.
- Six adjustable PVC-coated wire shelves on ½" increments adapt to bottles, cans or specialty packaging.
- Bright, energy-saving fluorescent interior lighting showcases product from both sides.
- Ecomate® foamed-in-place insulation: zero ODP, zero GWP, maximum efficiency.
- Epoxy-coated evaporator, slide-out condensing unit & magnetic door gaskets simplify maintenance.
- NSF-7, cULus & UL EPH Classified — proudly Made in the USA.
Specifications
| Model | TBB-4PT – Pass-Thru Back Bar Cooler |
|---|---|
| Exterior Dimensions | Width 90 3⁄8" • Depth 31" • Height 37" |
| Sections / Doors | 3 sections / 6 solid swing doors (front × 3, back × 3) |
| Shelves | 6 adjustable, PVC-coated wire shelves |
| Storage Capacity | 152 six-packs (12 oz cans) or 4 ½-barrel kegs |
| Temperature Range | 33 °F – 38 °F (0.5 °C – 3.3 °C) |
| Refrigeration | Self-contained, R-134A, ½ HP compressor, slide-out condensing unit |
| Electrical | 115 V / 60 Hz / 1-phase - 8.8 A - NEMA 5-15P plug (dedicated 15 A circuit) |
| Lighting | Fluorescent interior lights |
| Construction | Black powder-coated cold-rolled steel exterior, stainless steel top & floor |
| Certifications | NSF/ANSI 7, cULus, UL EPH |
| Warranty | 7-Year Parts & Labor • 7-Year Compressor (USA/Canada/Puerto Rico) |
| Ship Weight | Approx. 580 lb (264 kg) crated |
| Country of Origin | O’Fallon, Missouri USA |
Looking for optional 6" legs, casters, wine racks or extra shelves? Contact us — we’re happy to configure the TBB-4PT for your exact bar layout.
