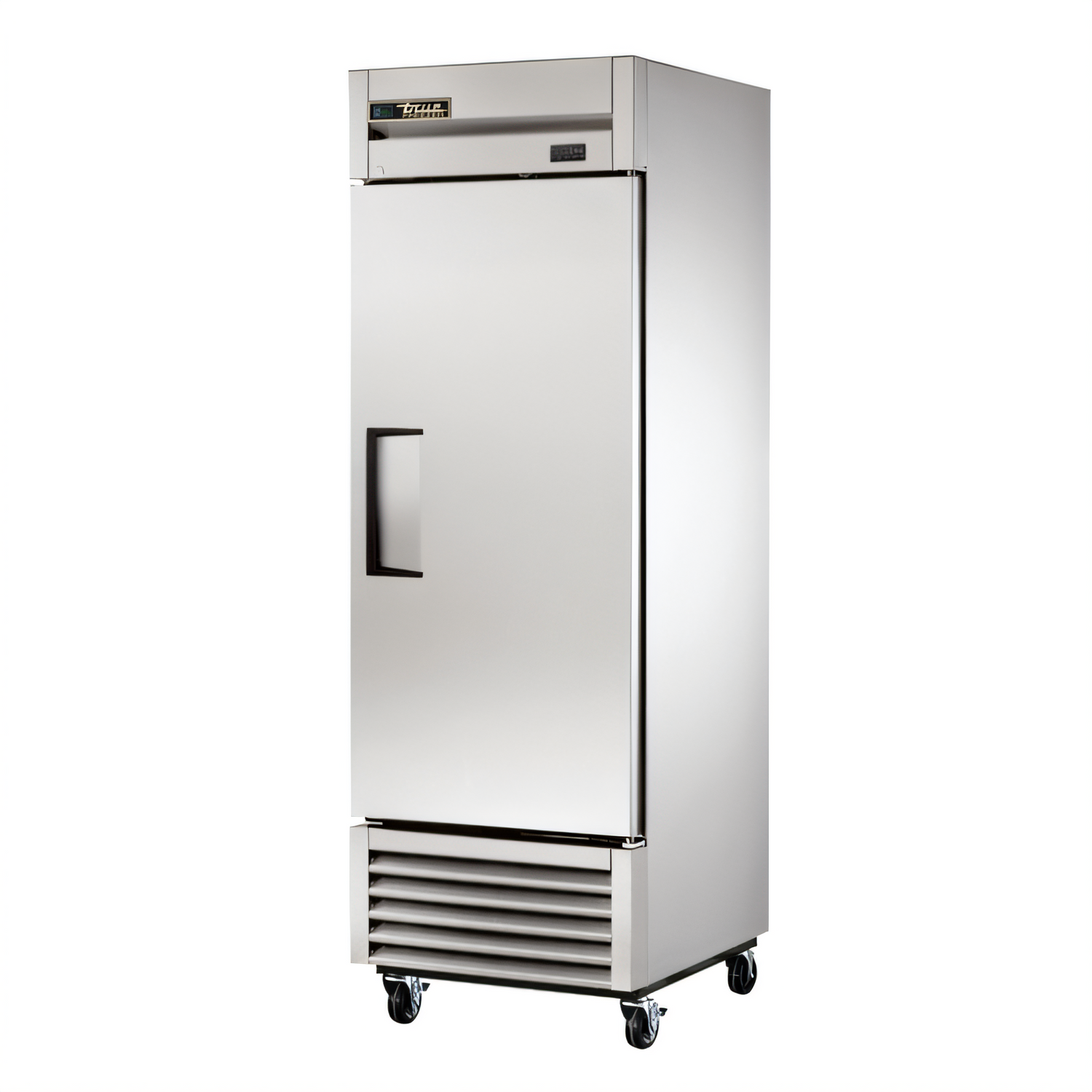

True T-23F-HC One-Section Reach-In Freezer
ENERGY STAR® • -10 °F holding temperatureBuilt for high-volume kitchens, the True T-23F-HC pairs rugged stainless-steel construction with an oversized, bottom-mounted refrigeration system that holds a steady -10 °F—perfect for ice cream and frozen foods. Its eco-friendly R290 refrigerant, energy-saving ECM fan motors and 7-year warranty make it a smart, future-proof investment.
Top reasons operators choose the T-23F-HC
- -10 °F (-23.3 °C) cabinet temperature maintained by an extra-large evaporator coil and ½ HP compressor.
- R290 hydrocarbon refrigerant with 0 ODP and 3 GWP—greener and more efficient than R404A.
- Stainless-steel door & front; anodized aluminum sides withstand dents, scratches and chemicals.
- Clear-coated aluminum interior with coved stainless-steel floor wipes clean in seconds.
- (3) heavy-duty, PVC-coated wire shelves adjustable on ½" increments.
- Positive-seal, self-closing solid door with lifetime-guaranteed hinges and torsion closure.

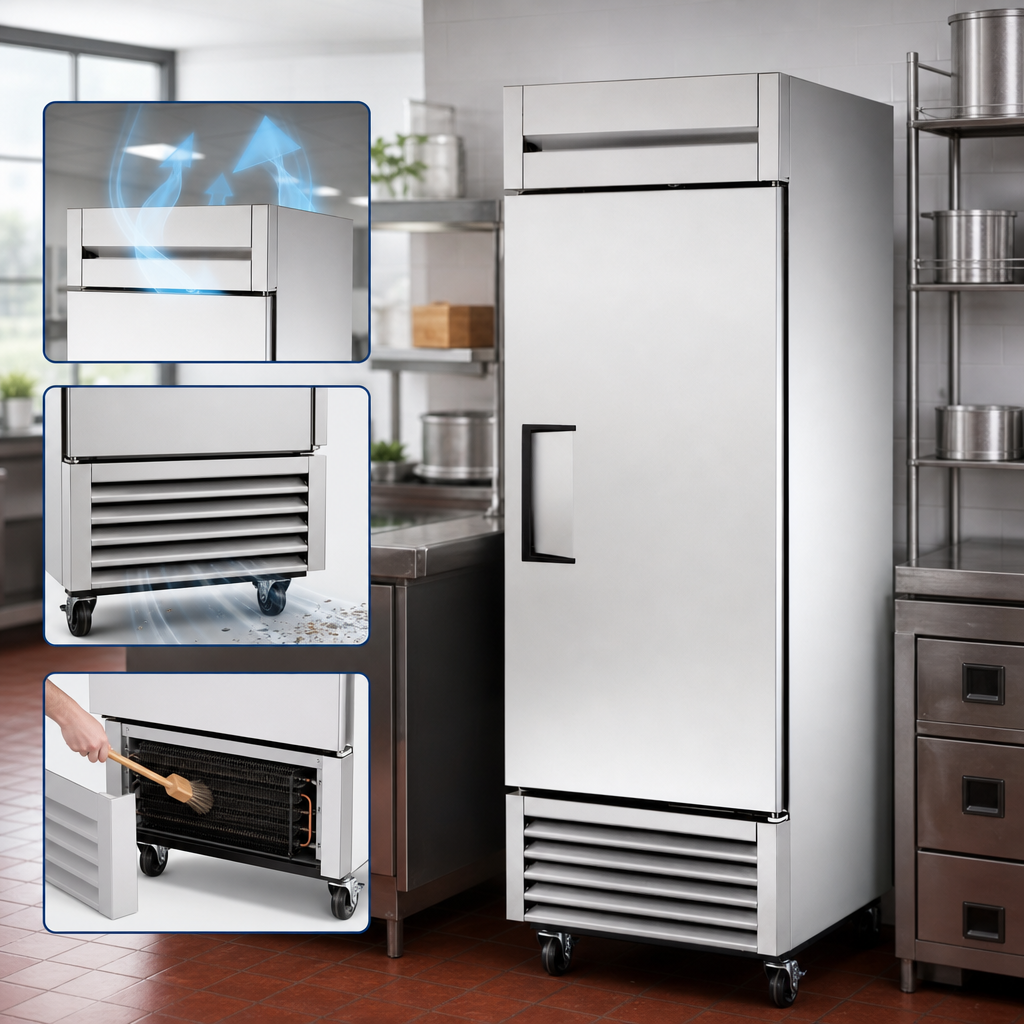

- Bottom-mounted condenser keeps the compressor in the coolest part of the kitchen and creates a “no-stoop” lower shelf.
- ECM condenser & evaporator fan motors cut energy use and radiate less heat.
- Automatic, time-initiated/temperature-terminated defrost shortens cycles to save energy.
- Safety-shielded interior lighting and an exterior digital temperature display for effortless monitoring.
- 4" stem castors (front locking) for easy mobility; top of cabinet doubles as additional storage.
- NSF/ANSI 7, cULus & UL EPH Classified. Listed ENERGY STAR® for lower utility bills.
Specifications
| Model | True T-23F-HC |
|---|---|
| Capacity | ≈ 23 cu ft |
| Exterior dimensions (W × D × H) | 27" × 29 ½" × 83 5⁄16" (686 × 750 × 2117 mm) (height includes 4" castors) |
| Door | (1) solid swing, self-closing |
| Shelves | (3) adjustable PVC-coated wire 22 ⅞" × 23 ¼" |
| Temperature | -10 °F / -23.3 °C |
| Refrigerant | R290 (hydrocarbon) |
| Compressor | ½ HP, bottom mounted |
| Electrical | 115 V / 60 Hz / 1-ph, 3.7 A, NEMA 5-15P |
| Energy certification | ENERGY STAR® |
| Crated weight | 295 lb / 134 kg |
| Listings | cULus, UL EPH Classified |
Built-in advantages
- Lifetime-warranted door hinges & handle dramatically reduce service costs.
- Black-powder-coated steel frame rail adds strength and corrosion resistance.
- Rear airflow guards keep product from blocking the evaporator for even cooling.
- Front-accessible condenser coil simplifies routine cleaning—no tools required.
7-Year warranty protection
True backs every T-23F-HC with a 7-year parts, labor & compressor warranty (USA/Canada/Puerto Rico), giving you unmatched peace of mind.
Need 230 V power, 6" legs or extra shelves? Contact us for factory-configured options.
