One-Section Dual-Temperature Reach-In Refrigerator/Freezer with Framed Glass Half Doors

Top Refrigerator / Bottom Freezer, Stainless Steel Front, Hydrocarbon Refrigerant

Keep refrigerated and frozen items in one compact footprint with dual independent cooling systems, glass half doors, and an easy-to-clean stainless and aluminum cabinet.

  • One-section reach-in cabinet with the refrigerator section on top and freezer on bottom.
  • Two independent, self-contained refrigeration systems use R290 hydrocarbon refrigerant.
  • Framed glass half doors, LED lighting, and exterior digital temperature displays improve visibility and control.
  • Stainless steel front, aluminum sides, and a clear-coated aluminum interior with stainless steel floor support durability and cleaning.
  • Three adjustable PVC-coated wire shelves are included for flexible storage.
  • Bottom-mounted condensing units help keep maintenance accessible and the cabinet area efficient.

Overall Dimensions:

27.0"W x 29.75"D x 78.38"H

Product Weight:

380.0 lb

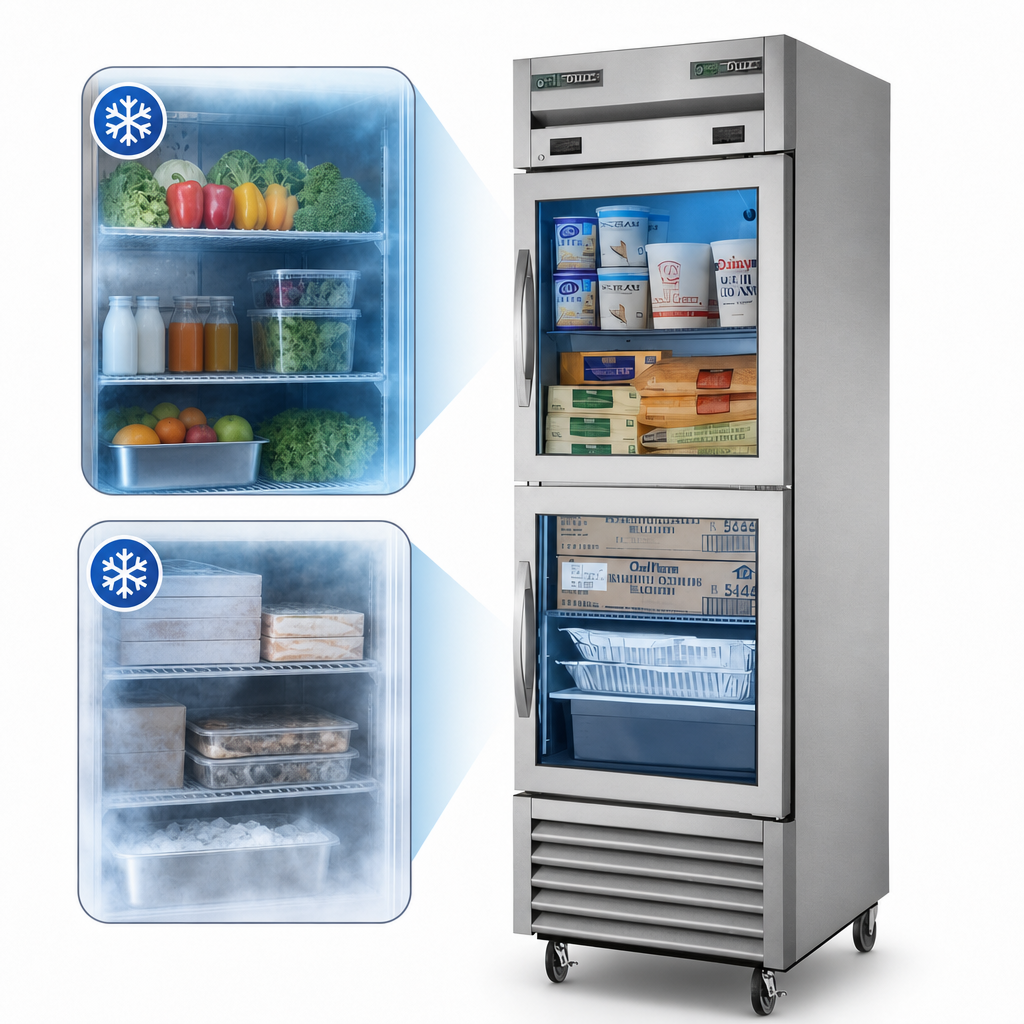

Dual-Temperature Reach-In Design

One cabinet combines a top refrigerator section and a bottom freezer section.

Dual-Temperature Reach-In Design

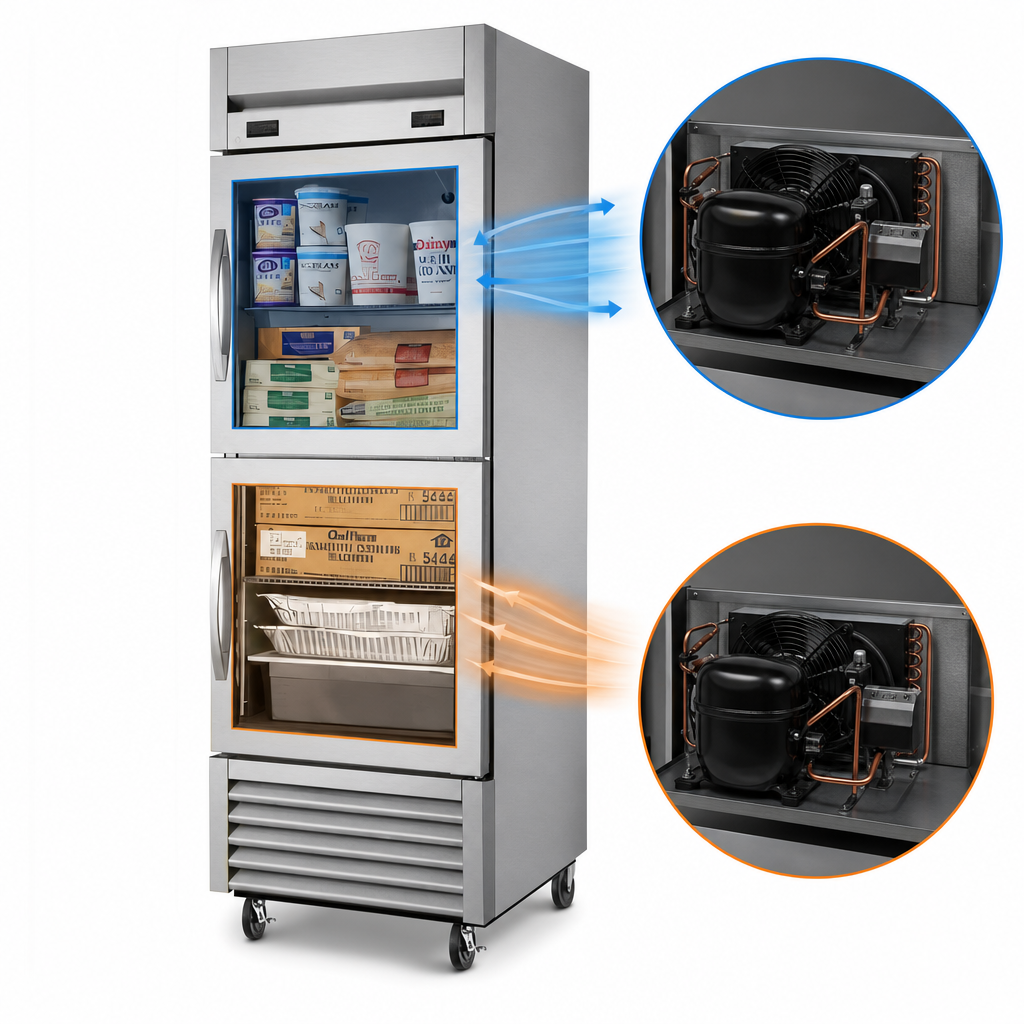

Two Independent Self-Contained Refrigeration Systems

Each section has its own refrigeration system for dedicated temperature control and efficiency.

Two Independent Self-Contained Refrigeration Systems

R290 Hydrocarbon Refrigerant

Uses environmentally friendly hydrocarbon refrigerant with zero ozone depletion potential.

Energy-Efficient Glass Door Assembly

Low-E double-pane glass is used in the refrigerator section and triple-pane insulated glass in the freezer section.

Adjustable PVC-Coated Wire Shelves

Three heavy-duty shelves are included and can be adjusted in 1/2-inch increments.

Stainless Steel Front With Aluminum Sides

Durable exterior construction supports long-term use and easier cleaning.

Clear-Coated Aluminum Interior

The interior liner is clear coated with a stainless steel floor and coved corners for cleanup.

LED Interior Lighting

Shielded LED lighting provides bright, even illumination inside the cabinet.

Exterior Digital Temperature Displays

Separate exterior displays show refrigerator and freezer temperatures.

Bottom-Mounted Condensing Unit

The condensing units are positioned low for easier cleaning and a cooler operating environment.

Self-Closing Doors With Locks

Positive-seal self-closing doors include standard locks, magnetic gaskets, and lifetime-guaranteed hinges.

Type Refrigerator/Freezer
Style Reach-In
Installation Type Floor Model
Capacity 1 Section
Material Stainless Steel
Interior Finish Clear Coated Aluminum
Finish Stainless Steel Front / Aluminum Sides
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Voltage 115 Volts
Amps 6.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 30 Inches
Shipping Height 79 Inches
Shipping Weight 380 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year labor, 7-year parts, and 7-year compressor warranty.

Frequently Asked Questions

The refrigerator is located in the top section and the freezer is located in the bottom section.
The refrigerator section holds 33°F to 38°F, and the freezer section holds -10°F.
It is pre-wired for a 115/60/1, 15-amp dedicated outlet and includes a cord and plug set.
This model includes two glass half doors and three adjustable PVC-coated wire shelves.
It uses R290 hydrocarbon refrigerant in two independent, self-contained refrigeration systems.
The exterior has a stainless steel front with aluminum sides, and the interior is clear-coated aluminum with a stainless steel floor.
