True Mfg. - General Foodservice STR2HPT-2S-2S SPEC SERIES Heated Cabinets & Holding Shelves
True Mfg. - General Foodservice STR2HPT-2S-2S SPEC SERIES Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STR2HPT-2S-2S SPEC SERIES Heated Ca...
Description

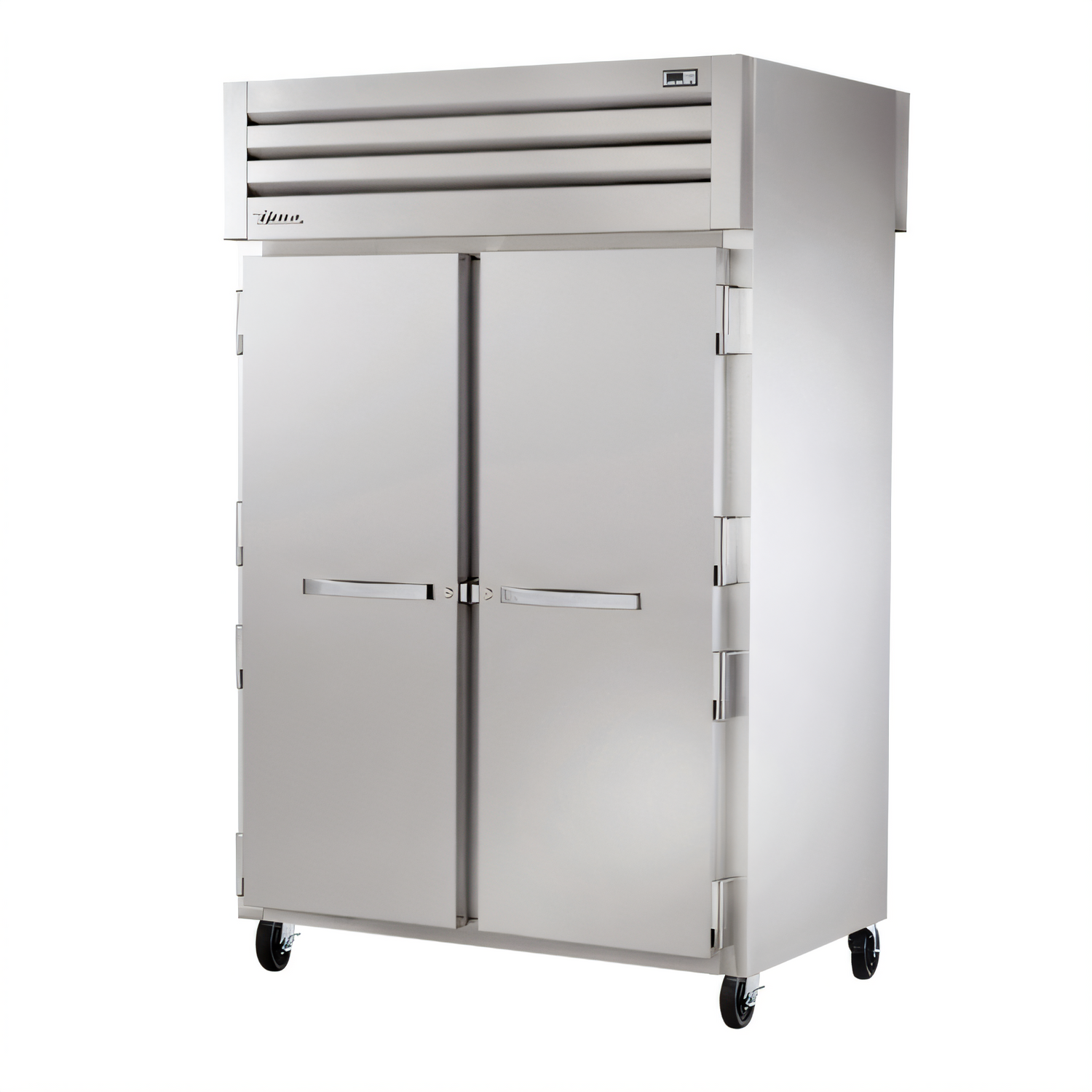

True SPEC SERIES® STR2HPT-2S-2S Pass-Thru Heated Cabinet
All-stainless, two-section | 52 5⁄8" W x 36 1⁄8" D | 3000 W, 208-240 V hard-wiredBuilt in the USA for the most demanding commercial kitchens, True’s SPEC SERIES® STR2HPT-2S-2S keeps plated meals and pans of product at safe serving temperatures on both sides of the line. Dual solid stainless doors, a powerful 3 kW heating system, and premium insulation come together to deliver dependable hot-holding day after day.
Why choose the STR2HPT-2S-2S?
- 140 – 180 °F (60 – 82 °C) holding range maintained by 1 stainless steel heating element per section.

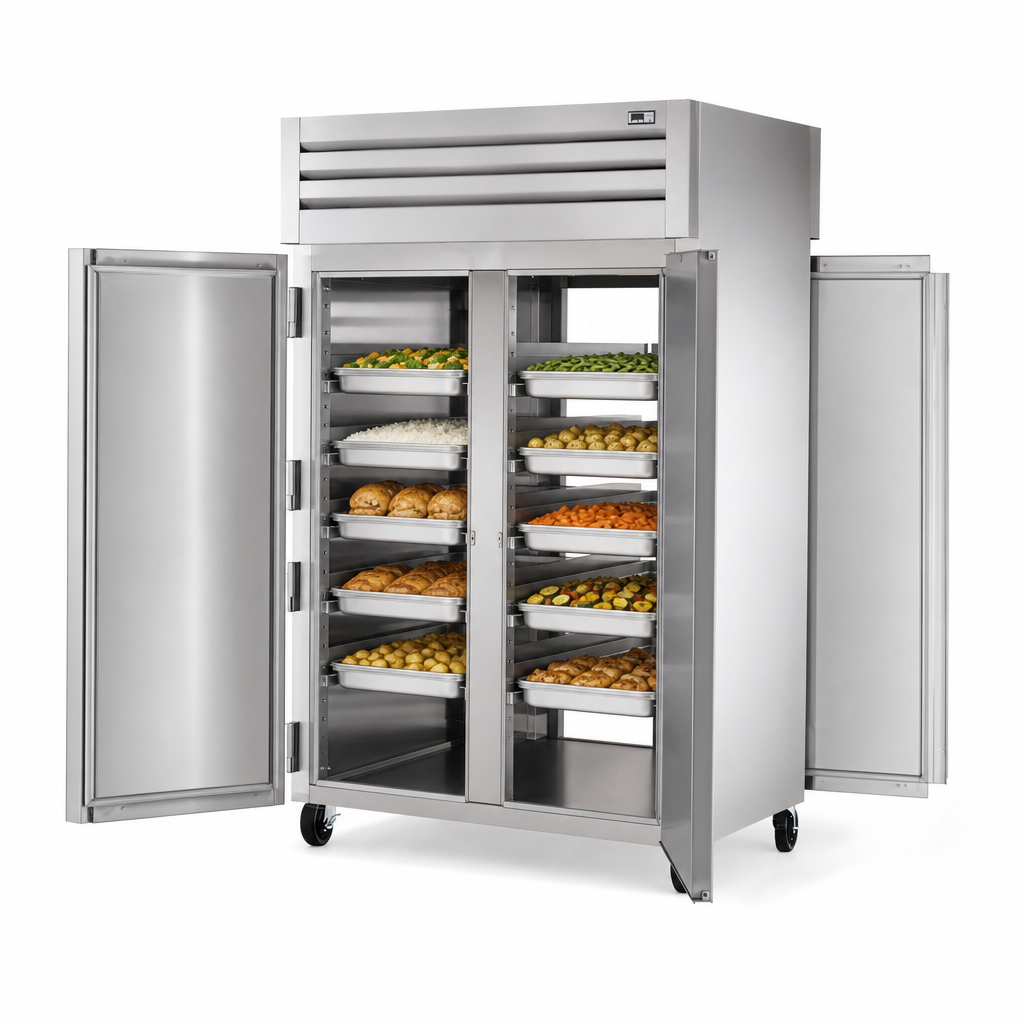

- Pass-thru design speeds service—load in the back, plate up in the front.
- All-stainless exterior, interior & doors resist corrosion and simplify sanitation.
- Exterior digital control & temperature display (°F/°C) plus manual top-mounted vent for humidity management.

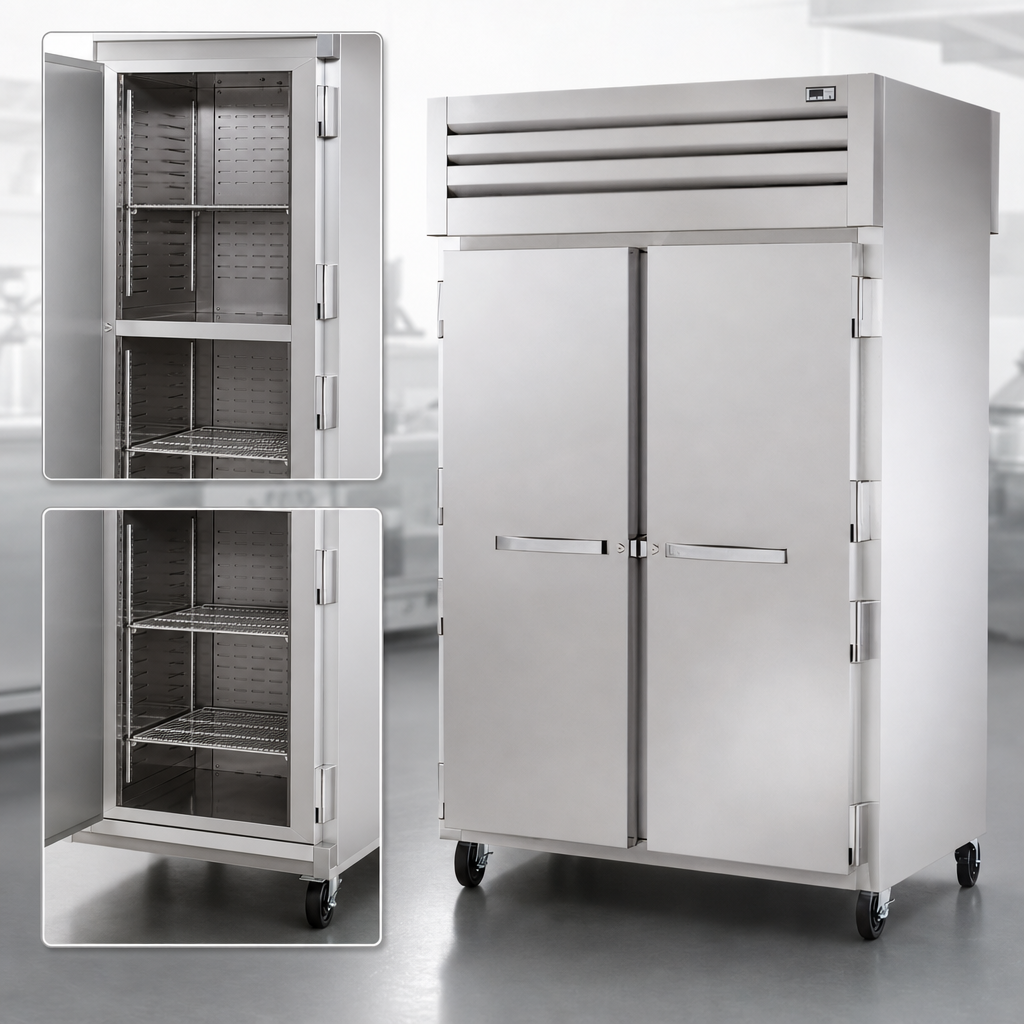

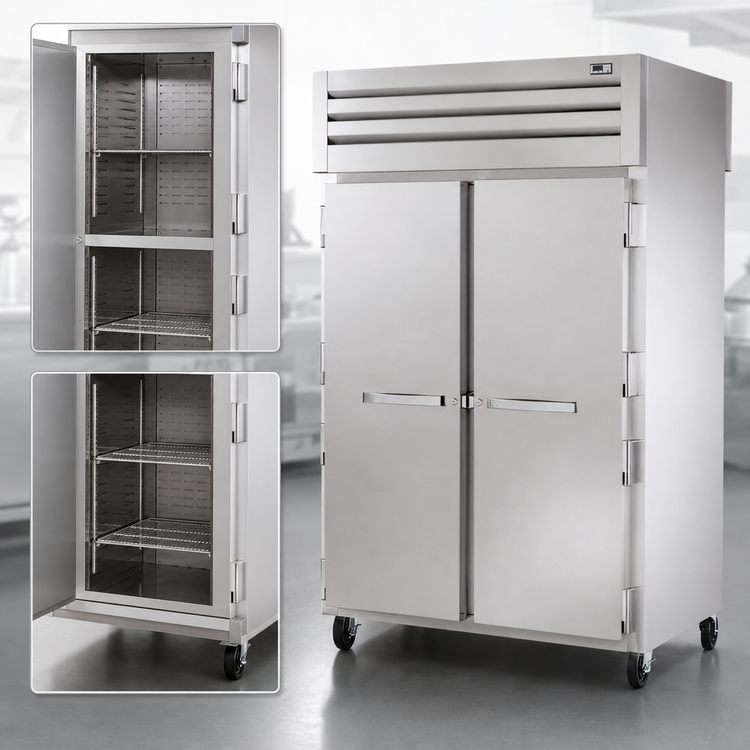

- (2) factory-installed Interior Kit #1 sets (9 tray slide runners per section) accommodate 18" x 26" sheet pans or (2) 14" x 18" pans per runner.
- Lifetime-guaranteed cam-lift hinges, bolt-style door locks, and heavy-duty all-metal handles.
- Bright, shielded incandescent interior lighting activated by an exterior switch.
- 5" locking plate castors provide effortless mobility for cleaning and maintenance.
- Foamed-in-place, zero-ODP/GWP polyurethane insulation for exceptional heat retention and energy savings.
This cabinet is engineered to hold hot, cooked food—do not use to heat cold or ambient product.
Technical specifications
| Model | STR2HPT-2S-2S |
|---|---|
| Sections / Doors | 2 / 4 (solid stainless, pass-thru; locks & self-closing with 120° hold-open) |
| Overall width | 52 5⁄8" (1337 mm) |
| Overall depth | 36 1⁄8" (918 mm) (add 1 ½" for handles) |
| Overall height | 83 7⁄8" (2131 mm) with 5" castors |
| Temperature range | 140 – 180 °F / 60 – 82 °C |
| Heat output | 3000 W total (1 x stainless element per section) |
| Electrical | 208-240 V / 60 Hz / 1-phase, hard-wired, 20 A dedicated circuit |
| Interior configuration | (2) Kit #1 tray-slide assemblies installed; accepts 18" x 26" or 14" x 18" pans |
| Mobility | (4) 5" plate castors, front pair locking |
| Construction | Stainless steel front, sides, back, floor, ceiling & door liners; foamed-in-place insulation |
| Certifications | cULus, UL EPH Classified, NSF-4, Made in USA |
| Warranty | 7-year parts & labor (U.S. & Canada) |
Popular accessories (sold separately)
- Universal, universal-rod or half-section tray slide kits (#2 – #4) for custom layouts
- Additional chrome wire shelves with wall-mount pilasters
- 6" stainless, seismic or flanged legs in lieu of castors
- Security package for high-traffic or correctional environments
Need a different interior or accessory? Contact us for configuration assistance before ordering.
