Description

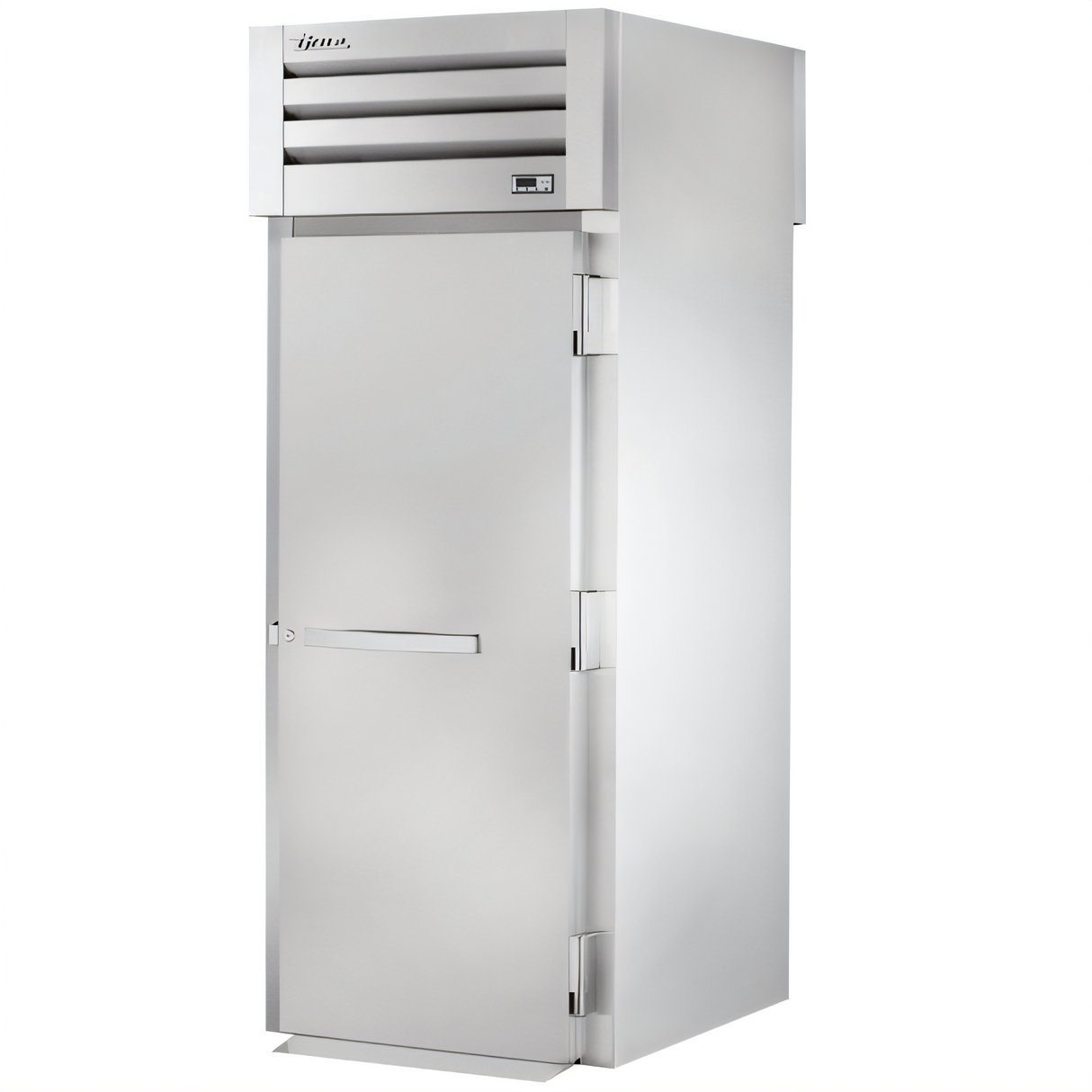

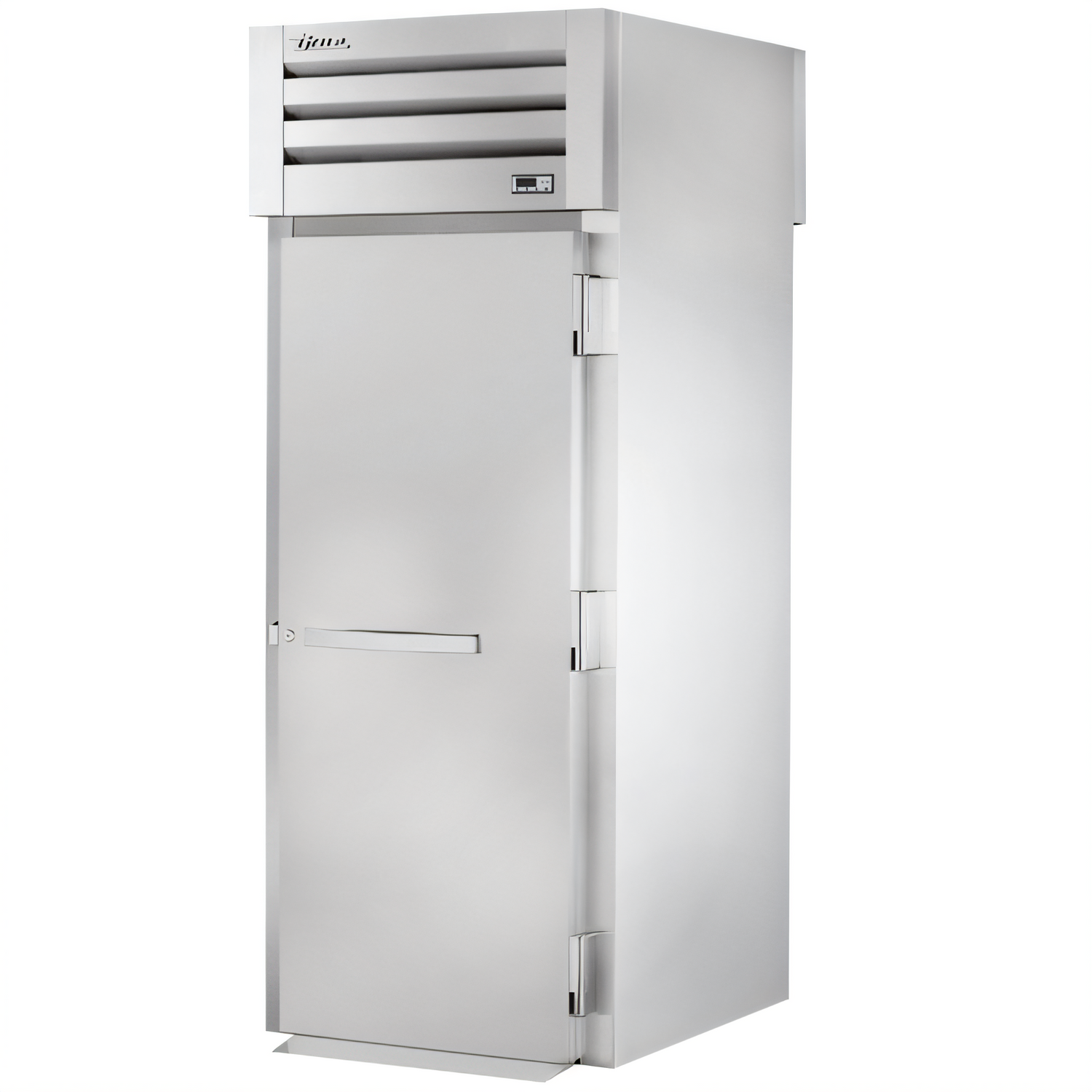

True SPEC SERIES® STR1HRT89-1S-1S Roll-Thru Heated Cabinet – 89" H, One Section
Heavy-duty stainless steel construction with precise 140-180 °F holdingKeep plated meals, sheet-pan bakes, or full mobile racks of cooked product at perfect serving temperature with the True STR1HRT89-1S-1S. 100 % stainless inside and out, this roll-thru cabinet accepts a standard 27" × 29" × 72" rack (not included) and surrounds it with gentle, fan-circulated heat. A color-coded temperature display, lifetime-guaranteed hardware, and True’s unmatched 7-year commercial warranty make it the last heated cabinet you’ll need to buy.
Key features
- Roll-thru design with front & rear solid stainless doors for streamlined kitchen flow.

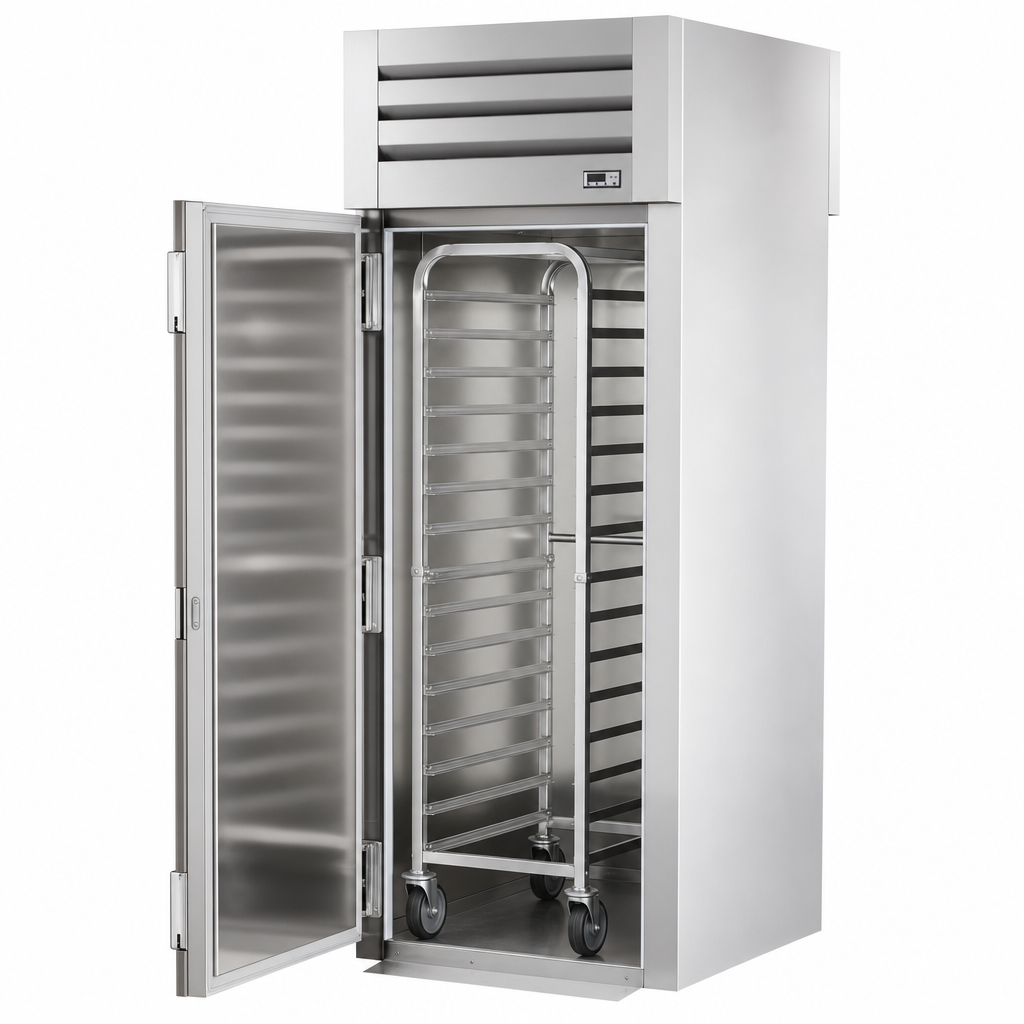

- Accepts inboard-caster racks up to 27" W × 29" D × 72" H (686 × 737 × 1829 mm).

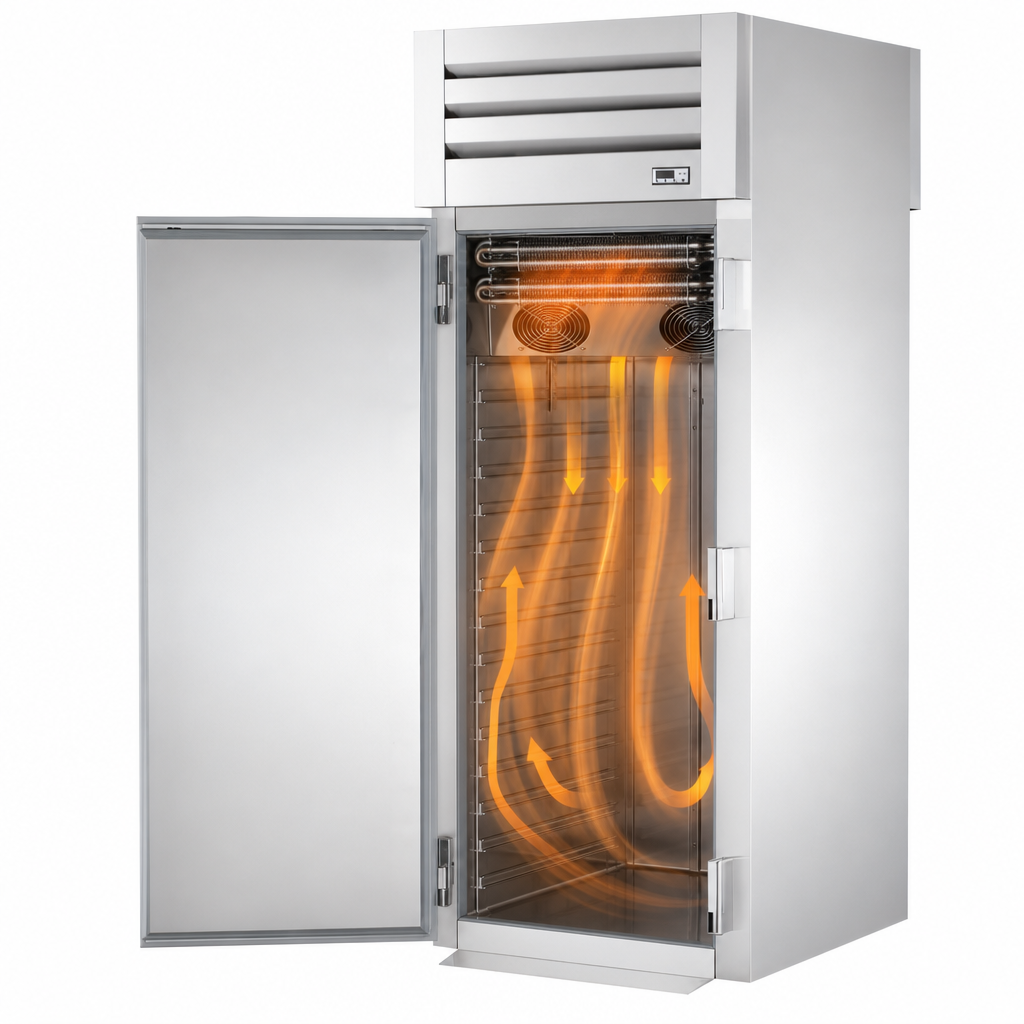

- Two 1,000 W fin-tube elements plus low-velocity fans provide even 140-180 °F (60-82 °C) heat.
- Top-mounted manual vent and included 12" × 20" water pan give you positive humidity control.
- Exterior, color-coded LED readout shows cabinet temperature at a glance.
- Heavy-gauge stainless ramps (front & rear) and interior bumpers protect both rack and cabinet.
- Self-closing doors with 120° stay-open, lifetime cam-lift hinges, bolt-style locks, and all-metal handles.
- Incandescent interior lighting with exterior switch; safety-shielded.
- Foamed-in-place, zero-ODP/GWP high-density polyurethane insulation for maximum efficiency.
- NSF/ANSI 4 listed for holding open food; cULus & UL EPH Classified.
- Proudly Made in the USA and covered by True’s 7-year parts & labor warranty.
Specifications
| Model | STR1HRT89-1S-1S |
|---|---|
| Capacity | 1 roll-in rack (27" W × 29" D × 72" H) |
| Exterior dimensions | 35" W × 37 ½" D × 88 ¾" H (889 × 953 × 2255 mm) |
| Power | 2.0 kW | 115/208-230 V, 60 Hz, 1-ph |
| Plug | NEMA 14-20P, 9 ft (2.74 m) cord – dedicated 20 A circuit required |
| Doors | 1 solid stainless door front, 1 solid stainless door rear |
| Temperature range | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Interior lighting | Incandescent, switch-controlled |
| Certifications | cULus, UL EPH, NSF/ANSI 4 |
| Country of origin | Made in the USA |
Rack/cart shown for reference only and is not included.
Installation notes
- Ships completely pre-wired; simply connect to a dedicated 115/208-230 V, 20 A outlet.
- Allow 1" (26 mm) clearance above for mechanical components.
- Ramps extend 4 ⅛" (105 mm) beyond cabinet depth on each side.
- Optional field-reversible hinges and security package available (contact us for details).
7-year commercial warranty
True covers the entire cabinet – parts, labor, and heating system – for seven (7) years from installation when used in commercial foodservice environments within the U.S. & Canada.
