Description

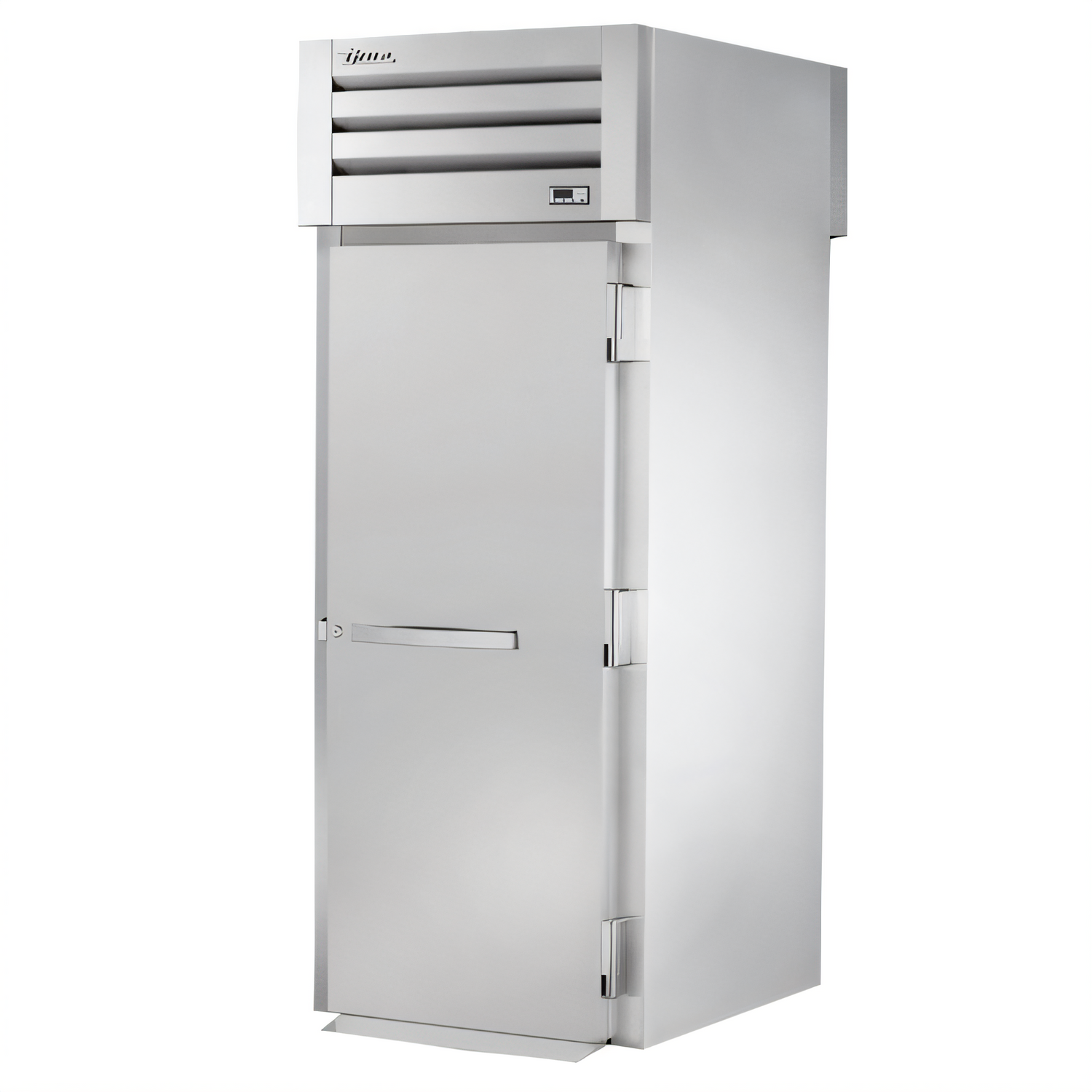

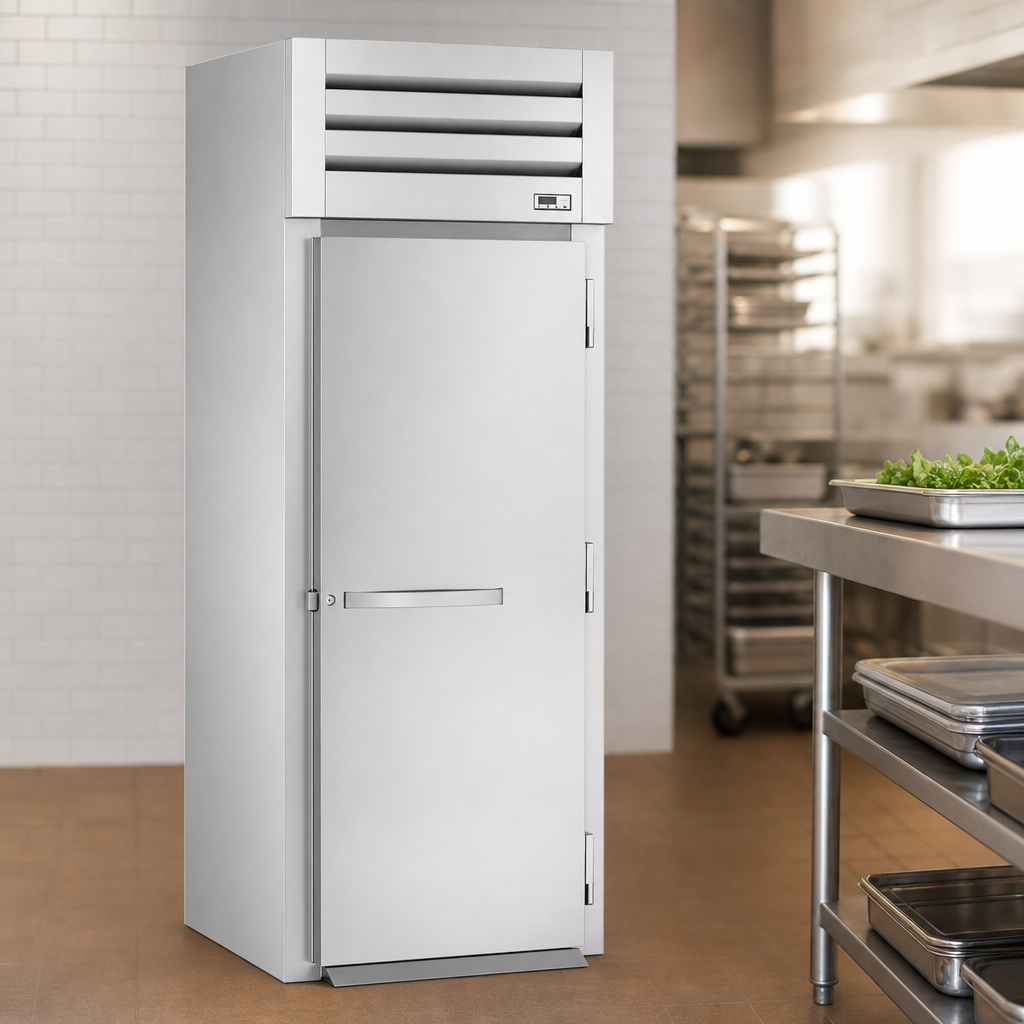

SPEC SERIES® STR1HRT-1S-1S Roll-Thru Heated Holding Cabinet
One-Section | Stainless Steel | 2.0 kW • 115/208-230 V • NEMA 14-20PGive pre-cooked product the perfect landing zone. True’s U.S-built SPEC SERIES® STR1HRT-1S-1S marries heavy-gauge stainless steel with precise electronic heat control, creating a roll-thru cabinet that maintains 140 °F – 180 °F (60 °C – 82.2 °C) without breaking workflow or flavor.
Key advantages

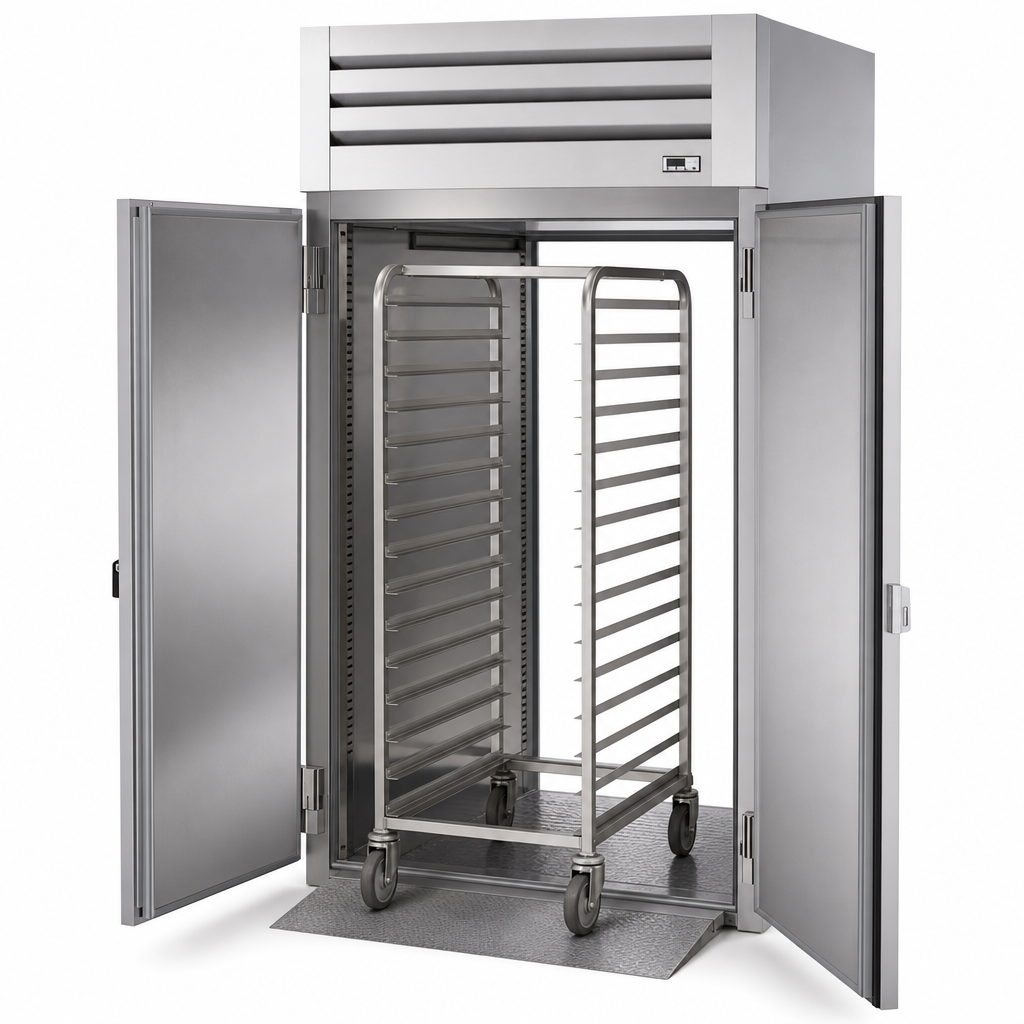

- Roll-thru design with front & rear stainless-steel doors for fast pass-through service.
- (2) 1000 W finned-tube elements + low-velocity fan system for even, gentle heat.
- Exterior color-coded temperature display and on/off switches for heat, fan & lights.
- Pair of heavy-duty stainless-steel ramps lets carts glide straight in and out.
- Accepts a roll-in rack up to 27" W × 29" D × 66" H (cart not included).
- Self-closing solid swing doors with 120° stay-open feature, cam-lift hinges & bolt-style locks.
- Magnetic one-piece door gaskets remove without tools for speedier cleaning.
- Manually adjustable top vent and included 12" × 20" pan for controlled humidity.
- Incandescent interior lighting (safety shielded) activated by exterior switch.
- Foamed-in-place, zero-ODP/GWP polyurethane insulation for maximum efficiency.
Technical specifications
| Model | STR1HRT-1S-1S |
|---|---|
| Holding temperature | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Capacity | 1 roll-in cart, max 27" W × 29" D × 66" H (686 × 737 × 1677 mm) |
| Exterior dimensions | 35" W × 37 ½" D† × 83 ¾" H* (889 × 953 × 2128 mm) |
| Heating elements | 2 × 1000 W stainless-steel finned-tube (total 2000 W) |
| Electrical | 115/208-230 V, 60 Hz, 1-phase, 20 A dedicated circuit |
| Plug & cord | NEMA 14-20P • 9 ft (2.74 m) cord |
| Construction | All stainless-steel exterior & interior; stainless breaker caps & ramps |
| Doors | (2) solid swing, self-closing, locking; heavy-duty handles |
| Interior lighting | Safety-shielded incandescent, toggle-switch controlled |
| Certifications | cULus • UL EPH Classified |
| Warranty (U.S.A.) | 3-year parts & labor |
| Origin | Made in the USA |
†Depth does not include 4 ⅛" (105 mm) for the stainless-steel ramps at each door.
*Height does not include 1" (26 mm) for mechanical components.

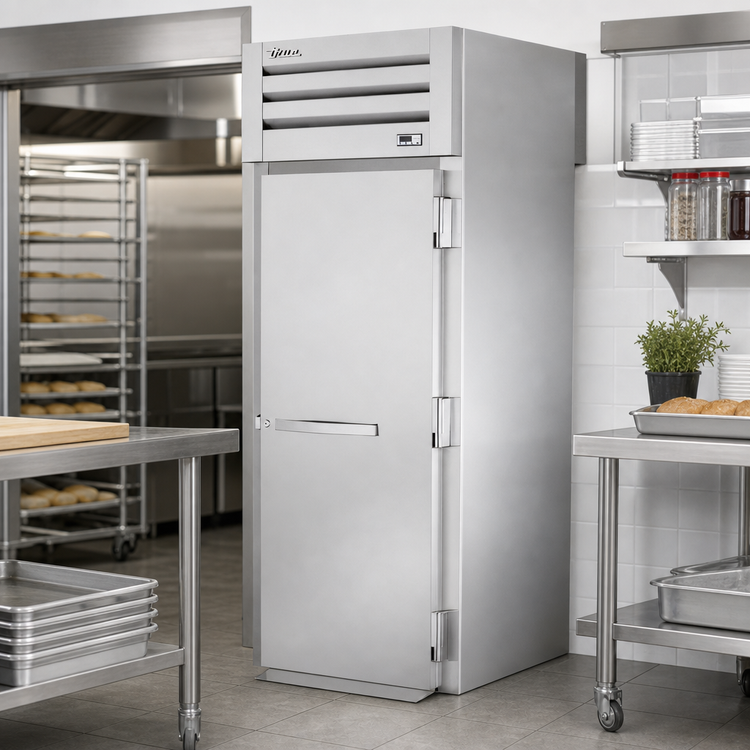

Roll-in cart shown in photos is sold separately.
