Description

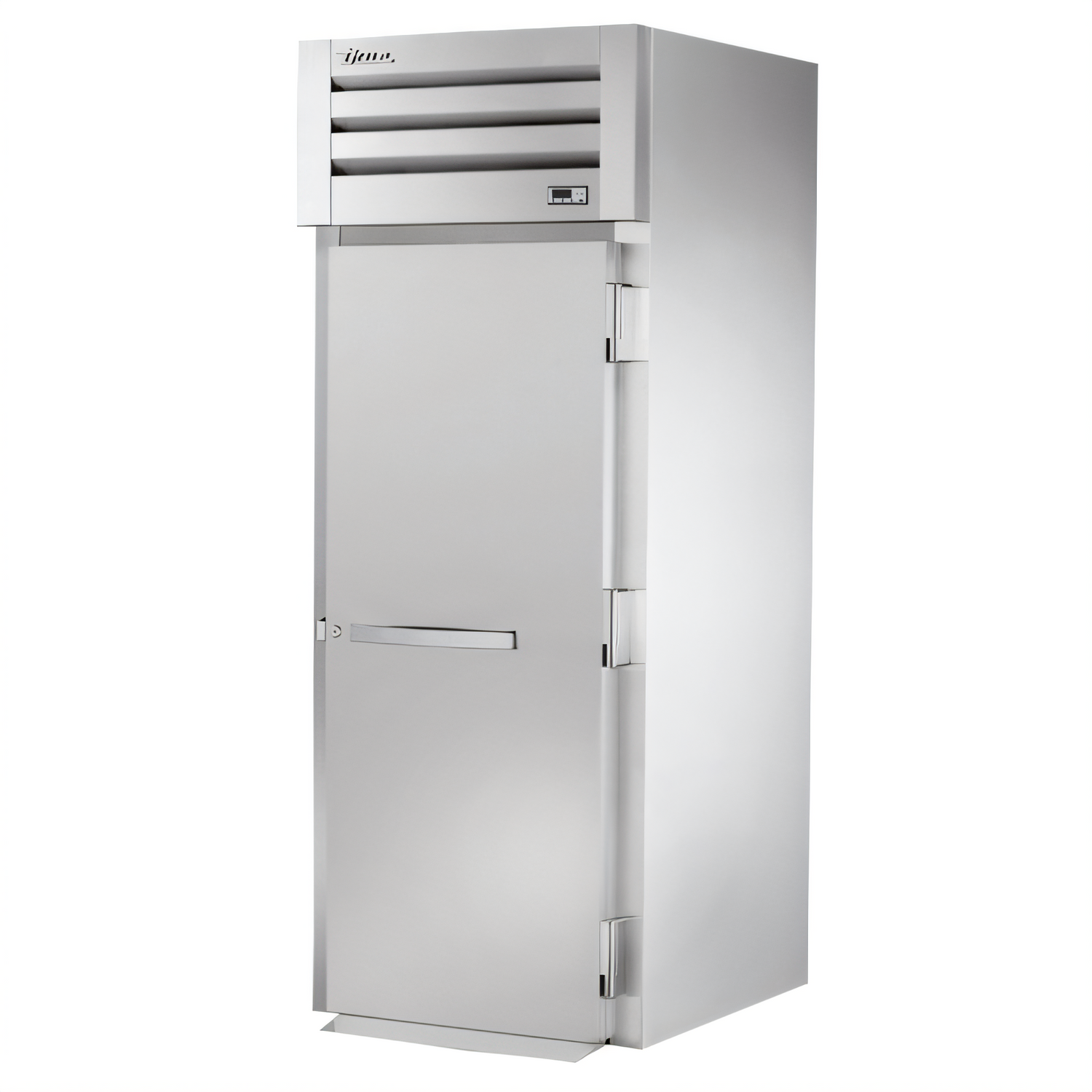

True Spec Series® STR1HRI-1S Roll-In Heated Cabinet
One-Section • Solid Stainless Door • 27" × 29" × 66" Cart CapacityKeep plated meals, sheet pans or hotel pans perfectly hot and ready for service. The STR1HRI-1S accepts a full roll-in rack, seals in heat with a lifetime-guaranteed stainless door, and maintains a gentle 140–180 °F (60–82.2 °C) environment with fan-assisted air flow.
Signature Advantages

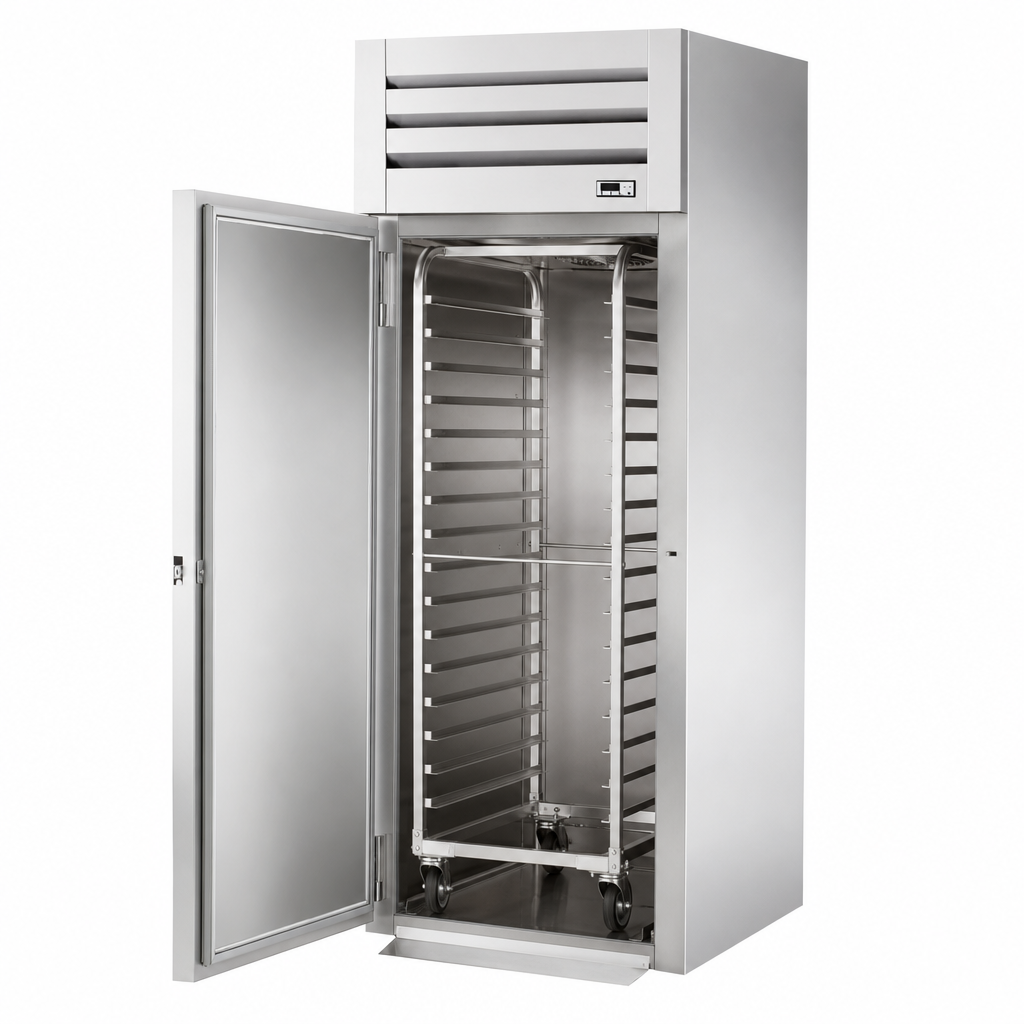

- Roll-in convenience: Fits racks up to 27" W × 29" D × 66" H; seamless stainless steel ramp included.
- Uniform 2 kW heating: Two 1 000 W finned-tube elements and low-velocity fans spread heat evenly from top to bottom.
- Precise digital control: Exterior on/off switch with color-coded temperature display—toggle between °F and °C at a glance.
- Humidity on demand: Manually adjustable top vent plus a 12" × 20" water pan (included) let you fine-tune moisture levels.
- Lifetime door hardware: Cam-lift hinges, bolt-style lock and all-metal handle are guaranteed for life.

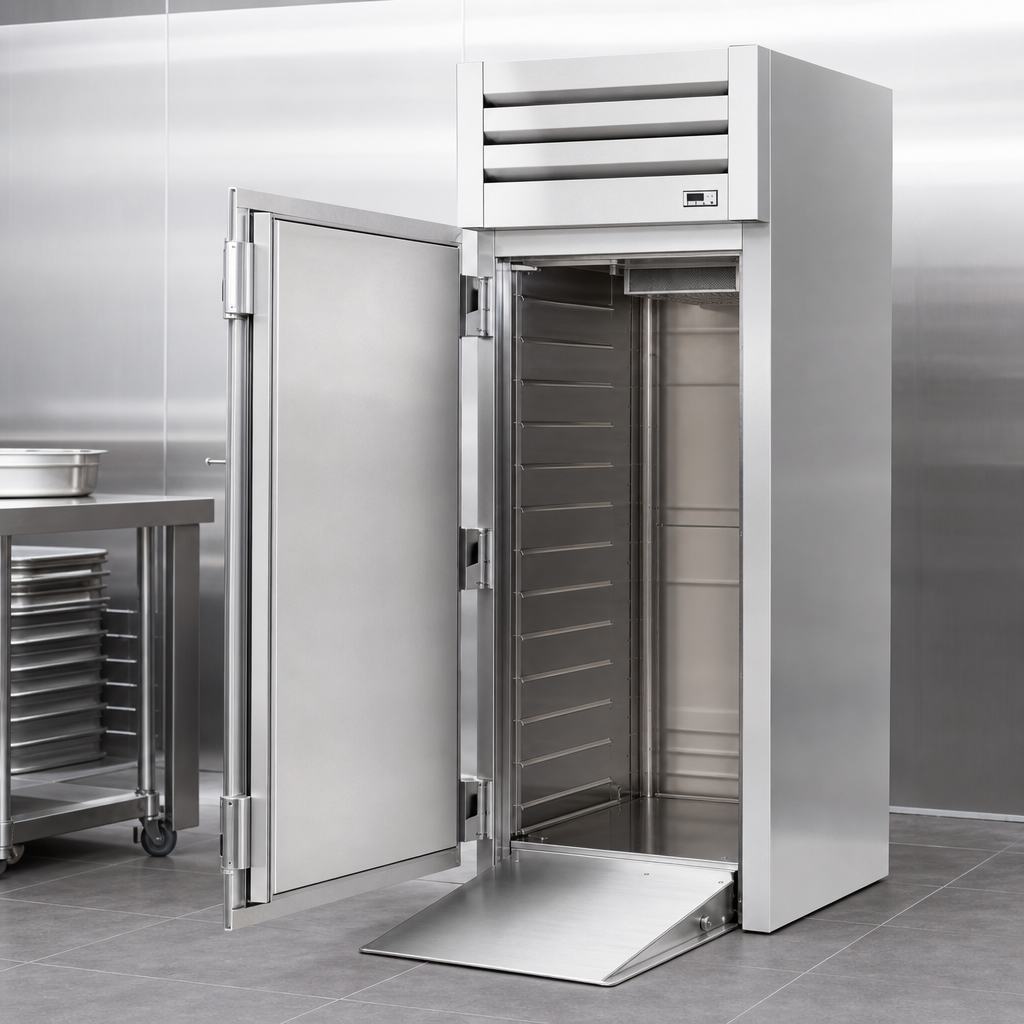

- All-stainless build: Door, front, sides, interior, ceiling, floor and ramp are 300-series stainless for superior sanitation and durability.
- Bright interior lighting: Safety-shielded incandescent lamps activate with an exterior switch for quick product checks.
- Energy-smart insulation: Foamed-in-place polyurethane with zero ODP & zero GWP keeps heat inside where it belongs.
- Made in the USA: Built at True’s Missouri facility and protected by a 7-year parts & labor warranty.
Technical Specifications
Model | STR1HRI-1S |
---|---|
Internal Capacity | One roll-in rack (27" W × 29" D × 66" H) – rack not included |
Holding Temperature | 140 °F – 180 °F / 60 °C – 82.2 °C |
Exterior Dimensions | 35" W × 34 ¾" D* × 83 ¾" H* |
Ramp Depth | Add 4 ⅛" to overall depth |
Heat Output | 2 000 W (2 × 1 000 W elements) |
Construction | All-stainless exterior & interior, foamed-in-place insulation |
Electrical | 115/208-230 V, 60 Hz, 1-ph, 20 A, NEMA 14-20P, 9 ft cord (dedicated circuit required) |
Certifications | cULus, UL EPH Classified, NSF/ANSI 4, Made in USA |
*Height excludes ¼" for mechanical components.
What’s Included
- Factory-installed stainless steel ramp
- 12" × 20" water pan for optional humidity
- 9 ft power cord with NEMA 14-20P plug
- True’s 7-year parts & labor warranty
Perfect For
- High-volume cafeterias and commissaries
- Hospitals, schools and correctional facilities
- Catering operations needing off-site hot holding
- Bakeries requiring gentle proofing or warm holding
