Description

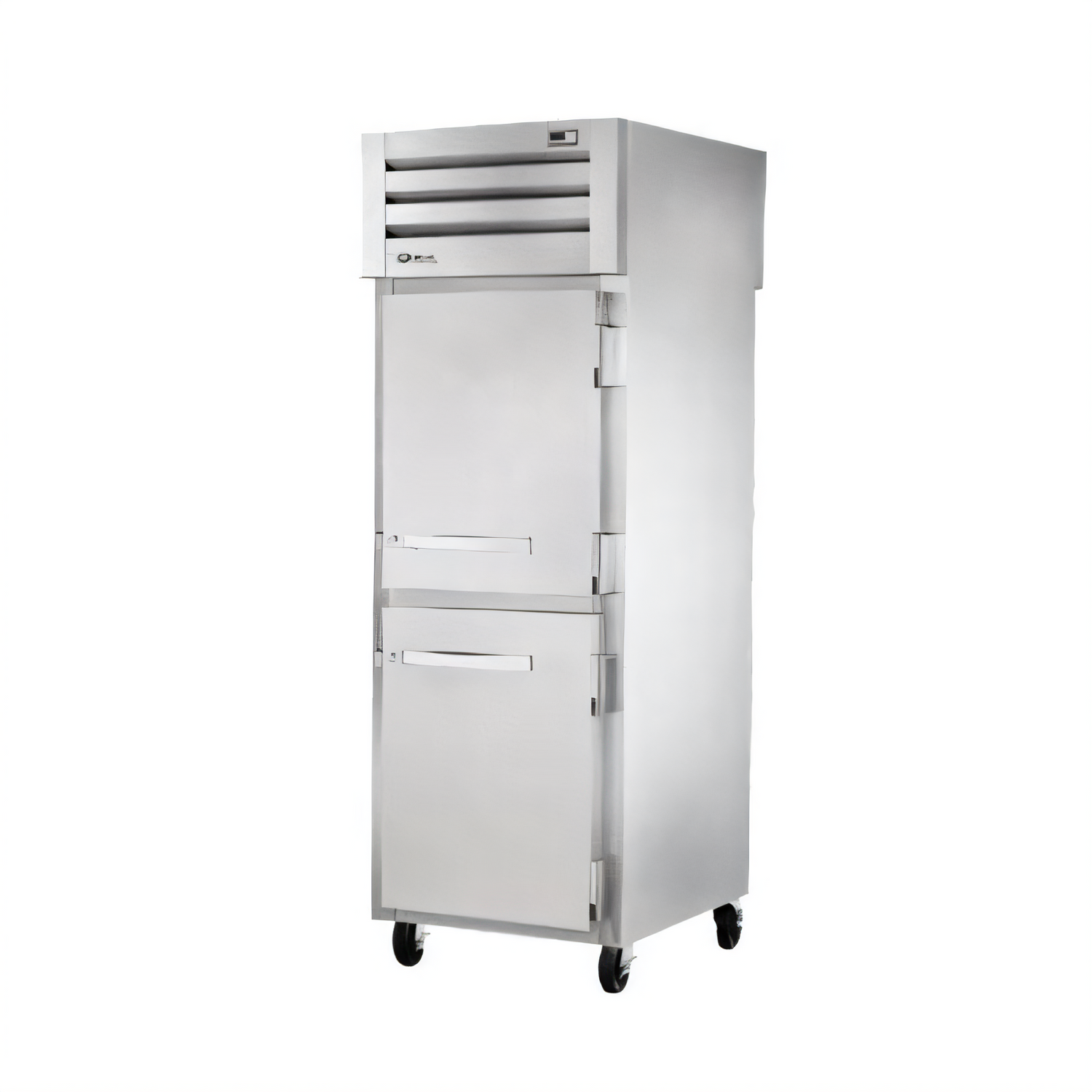

True SPEC SERIES® STR1HPT-2HS-2HS Pass-Thru Heated Holding Cabinet
One-section • Solid half doors front & rear • 208-240 VGive your kitchen a seamless hot-food workflow with True’s premier SPEC SERIES® pass-thru heated cabinet. Built for the rigors of high-volume service, the STR1HPT-2HS-2HS keeps prepared foods at a steady 140-180 °F (60-82.2 °C) while allowing loading from the cookline and retrieval from the service side—all without sacrificing temperature consistency or food safety.
Key advantages
- Pass-thru design with four lockable stainless-steel half doors (2 front / 2 rear) for maximum productivity.
- External digital control & display (°F/°C) plus on/off rocker for quick, intuitive operation.
- Powerful 1.5 kW stainless-steel heating element maintains 140 – 180 °F holding temps.
- Manually adjustable top-mounted vent for positive humidity management.
- Factory-installed Interior Kit #1: nine tray-slide sets—ideal for full-size 18 × 26 in sheet pans or two 14 × 18 in pans per level.
- High-density Ecomate® polyurethane foam insulation (zero ODP / zero GWP).
- 5 in (127 mm) swivel plate castors—front set locking—for easy mobility and cleaning access.
- NSF-4 listed for open food product and UL/cULus certified.
- Proudly Made in the USA and backed by an industry-leading 7-year parts & labor warranty.
Built for daily abuse
- Stainless-steel exterior (front & sides) and all-stainless interior walls, floor, ceiling & door liners.
- Lifetime-guaranteed cam-lift hinges and bolt-style door locks.
- Positive-seal, self-closing doors with 120° stay-open feature and tool-free magnetic gaskets.
- Heavy-duty all-metal door handles engineered for a lifetime of pulls.
Electrical & installation
- 208-240 V / 60 Hz / 1-phase, 1.5 kW, 9 ft cord with NEMA 6-15P plug (dedicated 15 A circuit required).
- Ships fully wired—simply roll into place, level, and connect.
Technical specifications
| Model | STR1HPT-2HS-2HS |
|---|---|
| Capacity | One full section • 9 tray-slide positions (kit #1 installed) |
| Temperature range | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Exterior dimensions (W × D × H) | 27 ½ in × 36 ⅛ in × 84 ⅛ in (699 mm × 918 mm × 2137 mm) (height includes 5 in castors) |
| Doors | 4 solid stainless half doors, front & rear, lockable |
| Construction | Stainless exterior & interior, foamed-in-place Ecomate insulation |
| Heat source | 1 × stainless element, 1.5 kW |
| Electrical | 208-240 V / 60 Hz / 1ɸ • 6-15P plug • 9 ft (2.74 m) cord |
| Certifications | UL, cULus, NSF-4 |
| Country of origin | USA |
| Warranty | 7-year parts & labor (U.S./Canada/Puerto Rico commercial use) |
Optional accessories (factory or field install)
- 6 in (153 mm) legs—standard, seismic/flanged, or stainless.
- Additional chrome shelves or alternative tray-slide kits.
- Security package for high-risk environments.
- Wall-mounted shelf pilasters for fixed locations.
Looking for a different interior configuration or custom options? Chat with our foodservice team—we’ll tailor a SPEC SERIES® cabinet to your exact operation.
