True Mfg. - General Foodservice STR1HPT-2HS-2HG SPEC SERIES Heated Cabinets & Holding Shelves
True Mfg. - General Foodservice STR1HPT-2HS-2HG SPEC SERIES Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STR1HPT-2HS-2HG SPEC SERIES Heated ...
Description

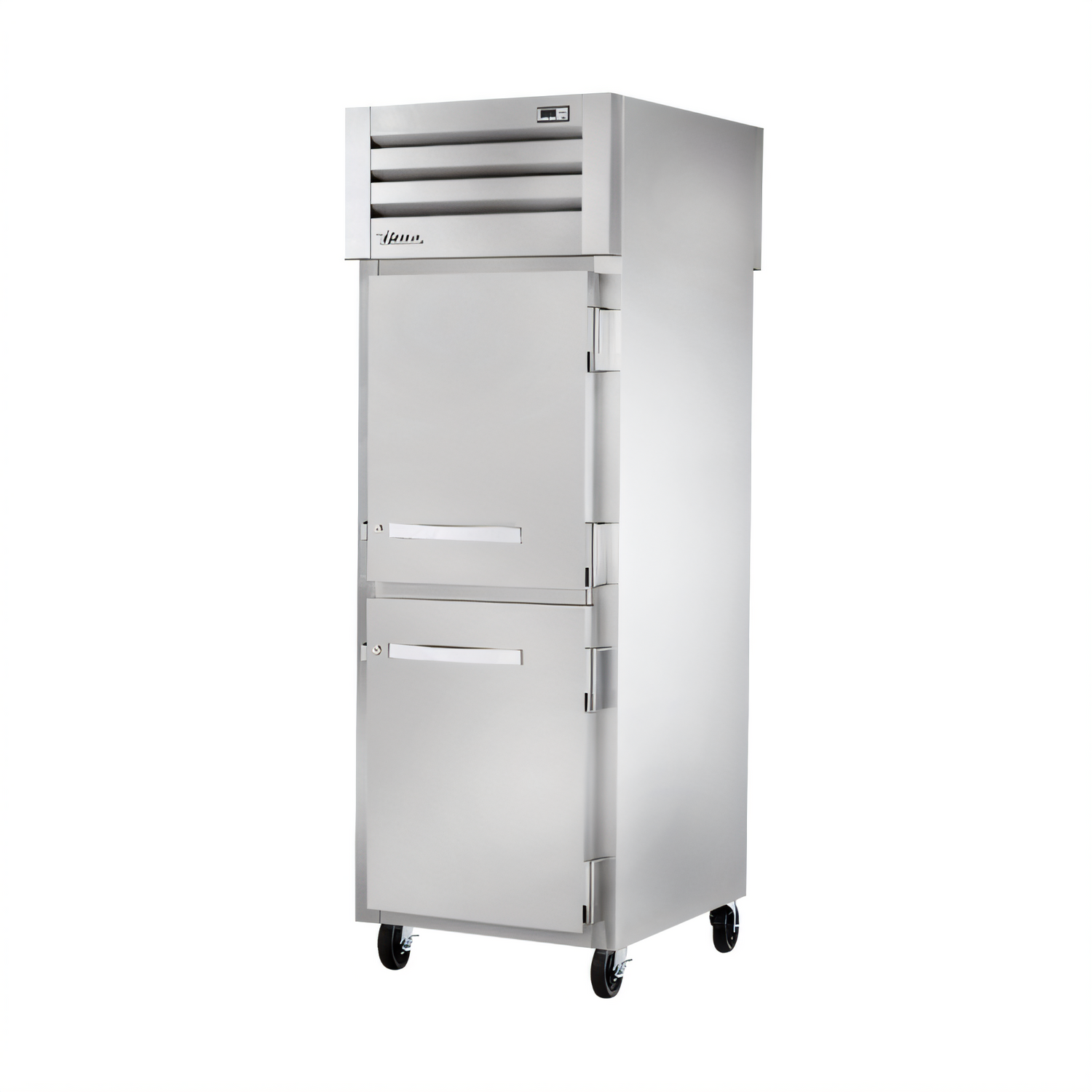

True SPEC SERIES® Pass-Thru Heated Cabinet – STR1HPT-2HS-2HG
1-Section | Solid Half Doors Front / Glass Half Doors Rear | Made in USAPurpose-built for the busiest commercial kitchens, True’s SPEC SERIES® STR1HPT-2HS-2HG keeps plated meals, baked goods, and catered pans at the perfect serving temperature—right where you need them—on both sides of the line. A rugged stainless-steel cabinet, precise digital controls, and energy-smart insulation combine to deliver dependable performance shift after shift.
Key Advantages
- 140 °F–180 °F (60 °C–82.2 °C) adjustable holding range powered by a 1.5 kW stainless-steel heating element.

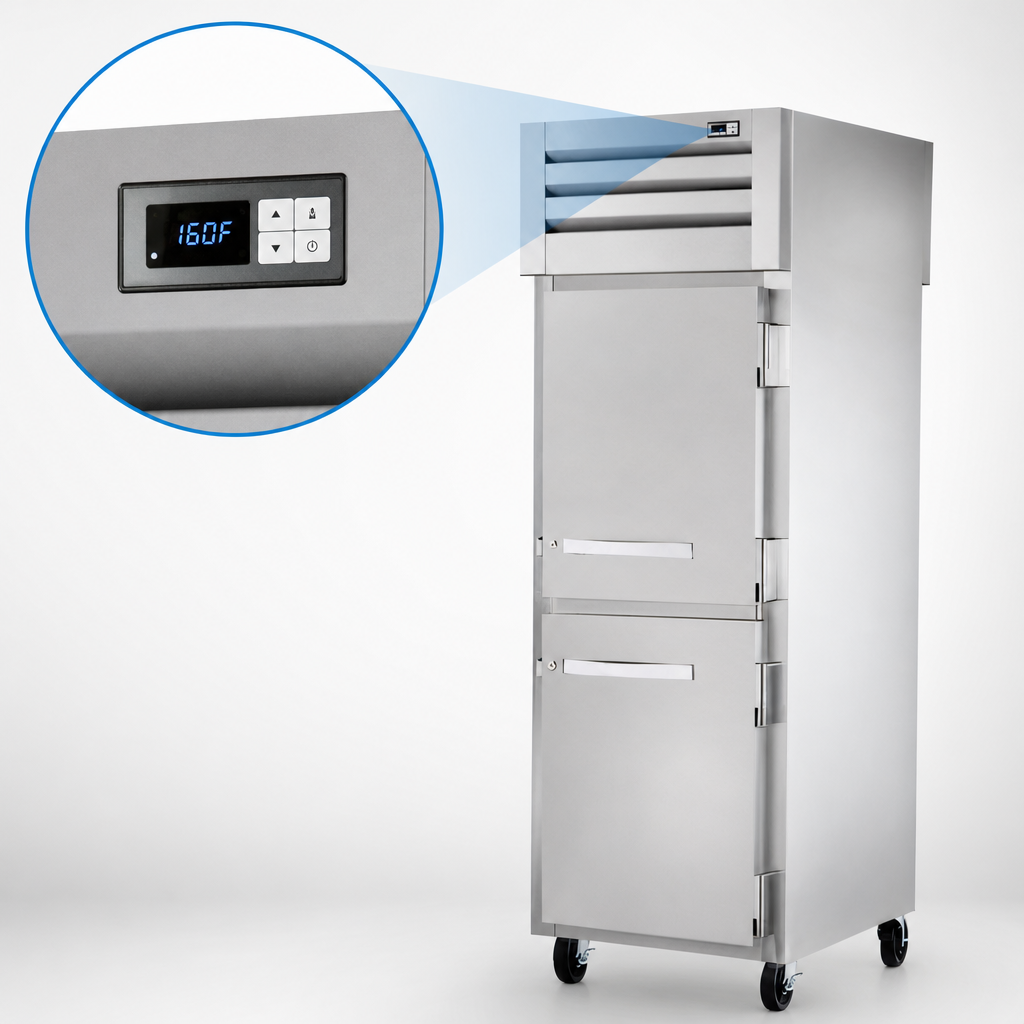

- Exterior electronic control with bright digital °F/°C read-out for instant verification.

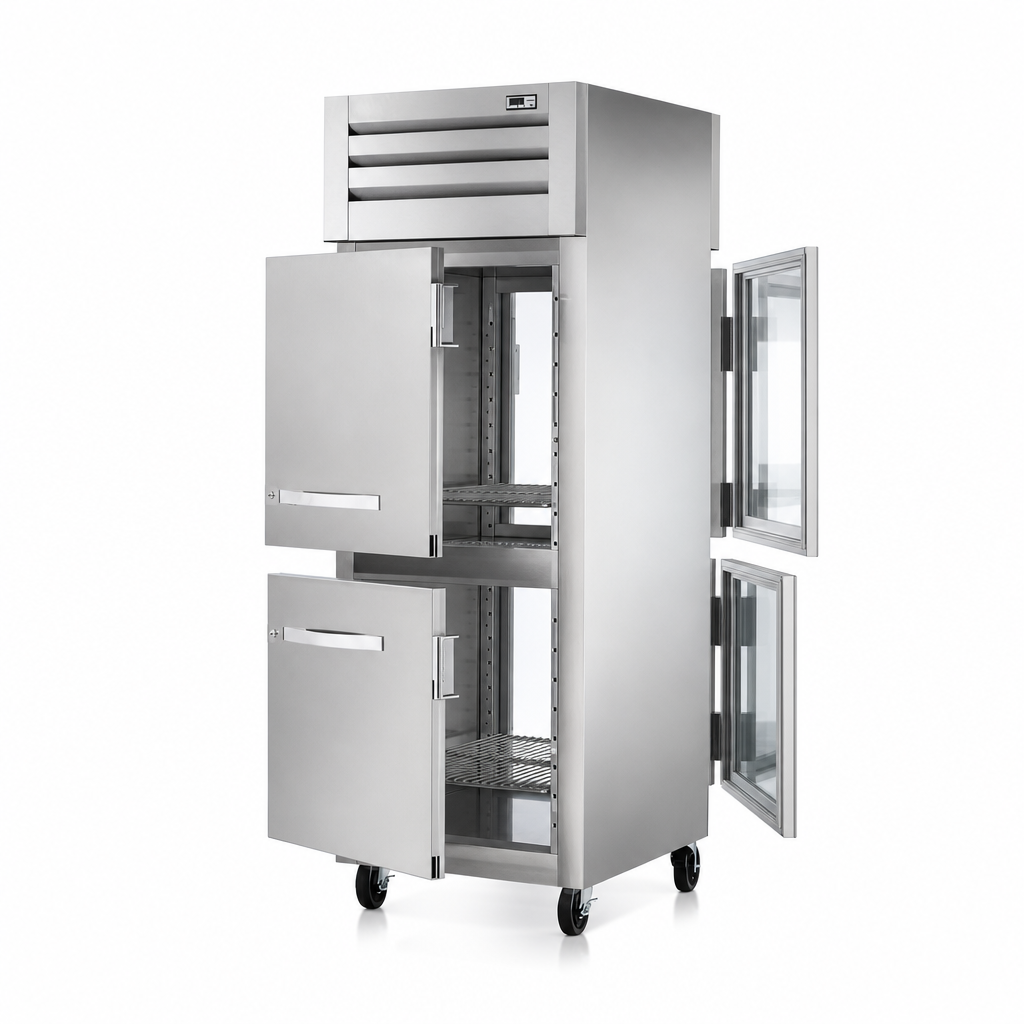

- Pass-thru design: load from the prep side, serve from the expo side to streamline service.
- Front: (2) solid stainless half doors | Rear: (2) “Low-E” double-pane glass half doors for quick visual checks.
- Self-closing doors with 120° stay-open feature, lifetime cam-lift hinges, bolt-style locks, and one-piece magnetic gaskets.
- Ecomate® high-density foamed-in-place insulation (zero ODP / zero GWP).
- Manual top vent for positive humidity control.
- Incandescent interior lighting with exterior on/off switch; safety-shielded.
- 5" (127 mm) locking plate casters for effortless mobility.
- NSF-4 compliant for open food, cULus Listed, UL EPH Classified.
Included Inside
- (1) Factory-installed Interior Kit #1: nine tray-slide sets & pilasters—supports (1) 18" × 26" sheet pan or (2) 14" × 18" pans per level.
- Tool-free removable door gaskets for fast sanitation.
Optional Upgrades
- Universal, rod-style, or additional tray-slide kits.
- Chrome wire shelf kit (three shelves).
- 6" legs: standard, seismic/flanged, or stainless steel.
- Enhanced security package.
Specifications
| Exterior dimensions (W × D × H) | 27 1/2" × 36 1/8" × 77 3/4" (699 × 918 × 1975 mm) Height excludes 6 1/8" (156 mm) casters. |
|---|---|
| Pass-thru door opening | 23 5/8" (600 mm) clear width |
| Temperature range | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Heating element | 1 × stainless steel, 1500 W total |
| Electrical | 208–240 V / 60 Hz / 1-phase, 1 × 15 A dedicated circuit NEMA 6-15P plug, 9 ft (2.74 m) cord |
| Construction | Stainless steel front, sides, interior walls, floor, & ceiling |
| Certifications | cULus • UL EPH • NSF-4 |
Industry-Leading Warranty
True covers every SPEC SERIES heated cabinet with a 7-year parts & labor warranty (U.S., Canada & Puerto Rico) and a 7-year compressor warranty, giving you complete peace of mind.
Need CAD drawings or additional resources? Contact us or visit True Manufacturing’s resource center.
