Description

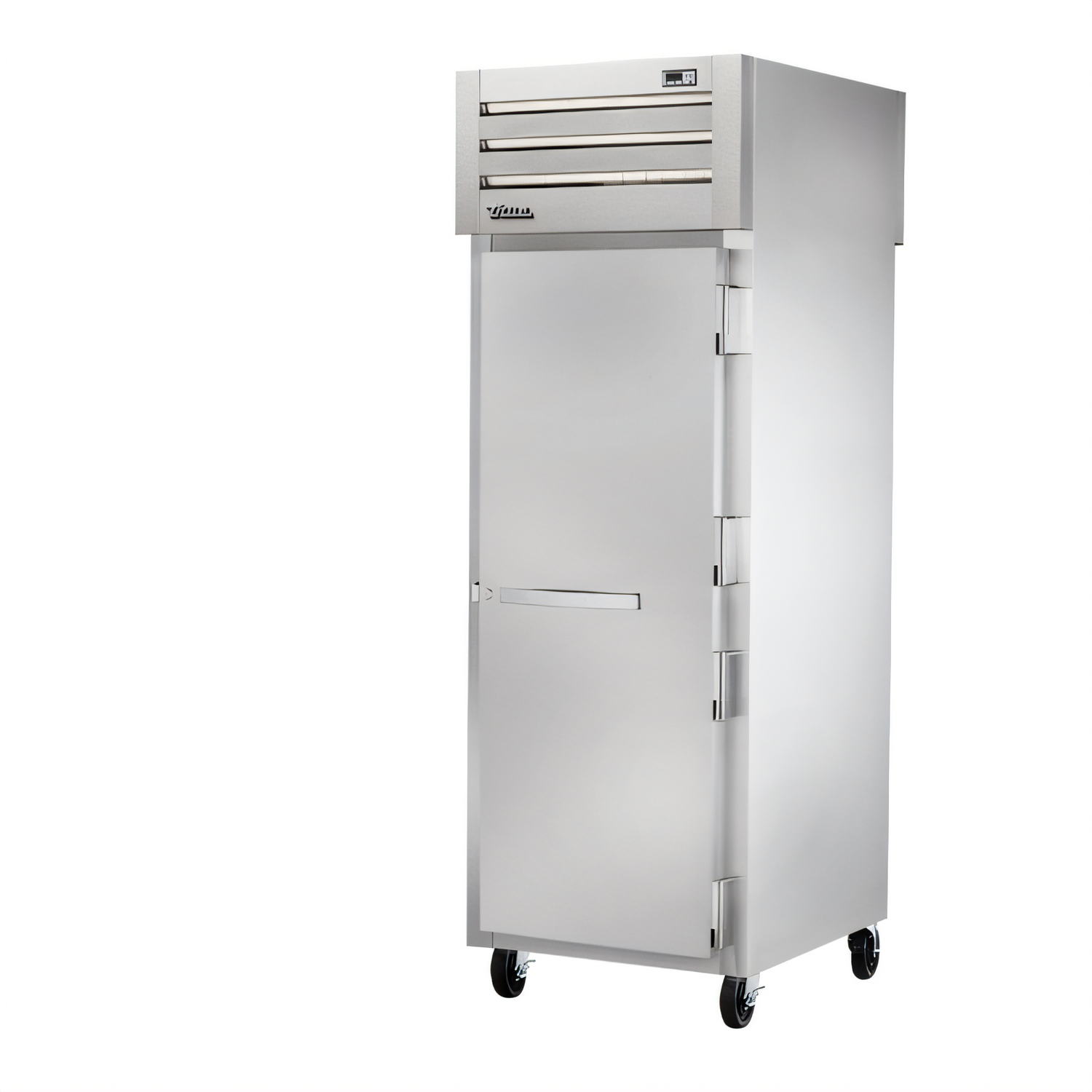

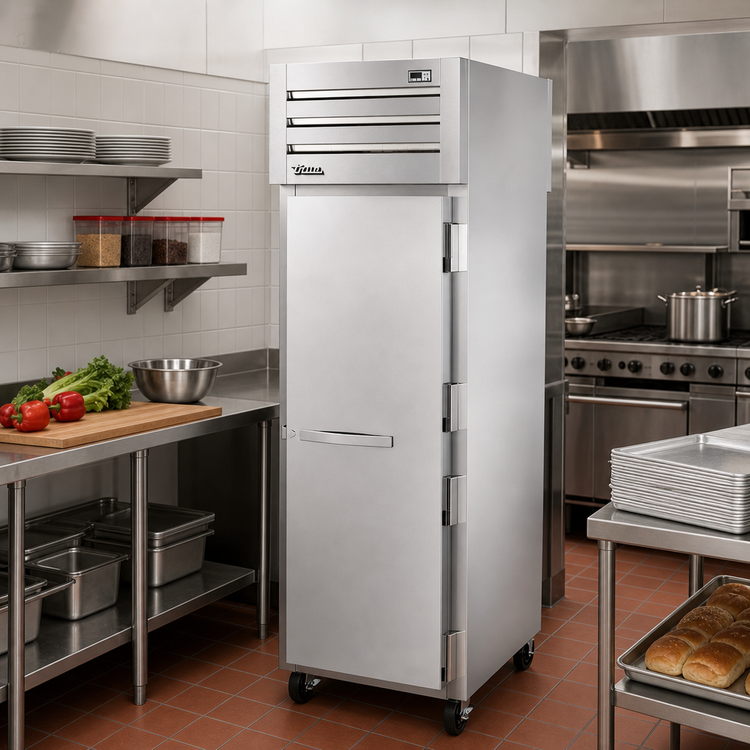

SPEC SERIES® Pass-Thru Heated Holding Cabinet
Model STR1HPT-1S-1S | True Mfg.Built in the USA for the most demanding commercial kitchens, True’s SPEC SERIES® STR1HPT-1S-1S keeps plated meals, baked goods and cooked food hot, safe and ready for service. The one-section, pass-thru design features locking stainless-steel doors on both sides, a precise digital control and rugged all-steel construction—perfect for cook-lines, banquets and high-volume operations.
Key Features & Benefits
- Holding temperature range: 140 °F – 180 °F (60 °C – 82.2 °C) maintained by a 1.5 kW stainless-steel heating element.
- Front & rear solid stainless-steel swing doors with keyed locks, heavy-duty cam-lift hinges and a 120° stay-open feature.

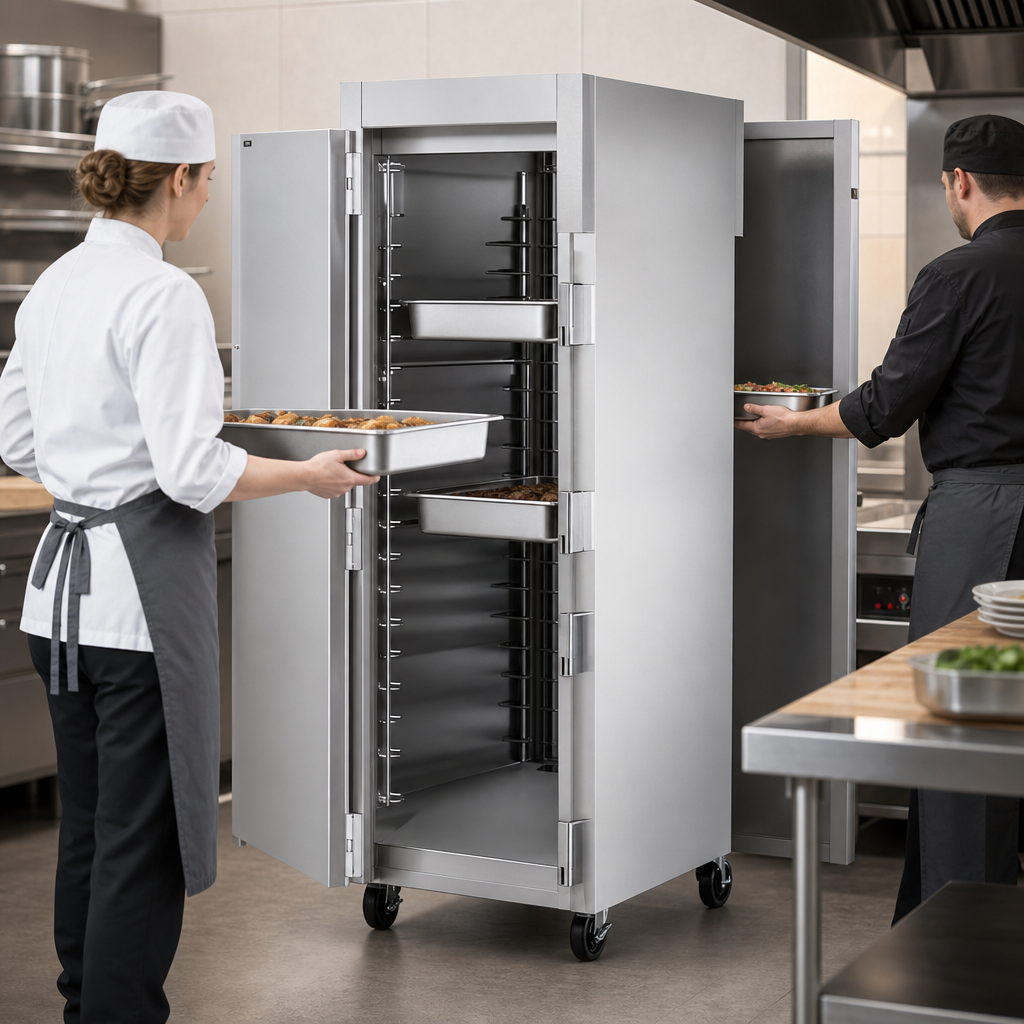

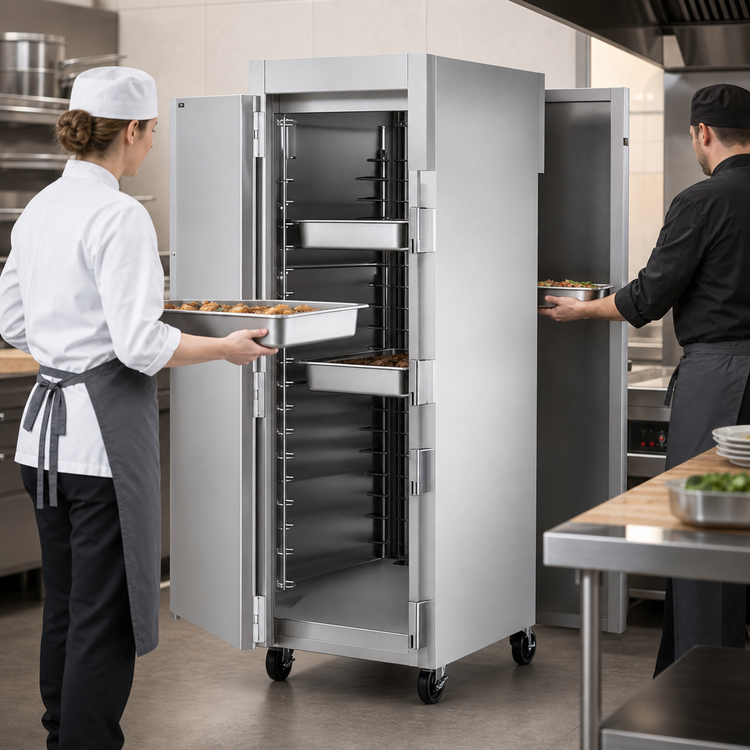

- Pass-thru workflow increases kitchen efficiency—load from the prep side, access from the service side.

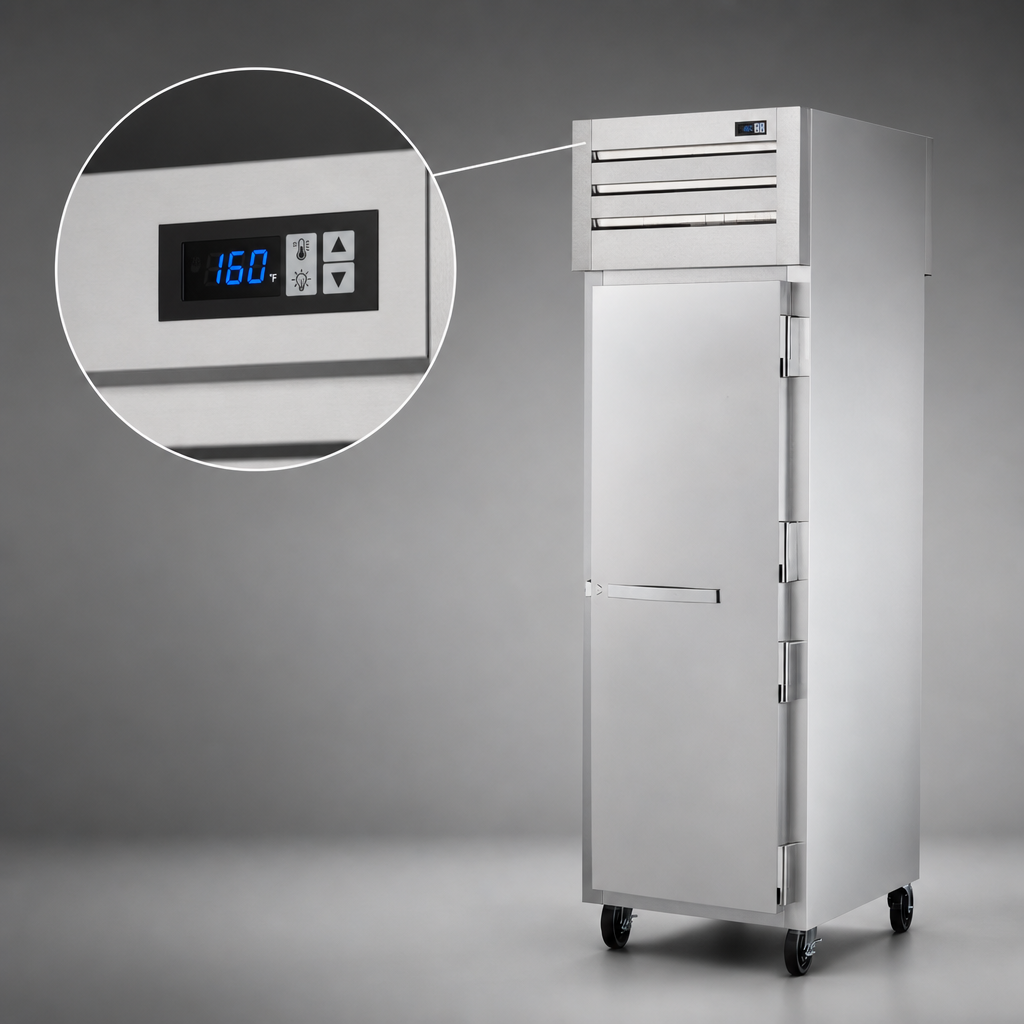

- Exterior digital temperature display (°F/°C) and on/off rocker switches for heat and lighting.
- Manually controlled top-mounted vent for positive humidity management.
- Energy-saving incandescent interior lighting activates from the control panel for quick product checks.
- Ecomate® high-density polyurethane insulation—zero ODP & zero GWP.
- 5" (127 mm) locking front casters for easy mobility during cleaning and service.
- NSF-4 certified for open food, UL EPH Classified & cULus listed.
What’s Included
- (1) Factory-installed interior kit (#1 tray slide set) accommodating full-size 18" × 26" sheet pans or (2) 14" × 18" pans.
- 9 ft (2.74 m) power cord with NEMA 6-15P plug.
- Factory-installed 5" caster set (front pair locking).
Technical Specifications
| Exterior Dimensions (W × D × H)* | 27 ½" × 36 ⅛" × 77 ¾" (699 × 918 × 1975 mm) |
|---|---|
| Section / Doors | 1 section | 2 solid pass-thru doors |
| Temperature Range | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Heating Power | 1.5 kW stainless-steel element |
| Electrical | 208-230 V / 60 Hz / 1-phase | 7.2 A | NEMA 6-15P |
| Caster Size | 5" diameter plate casters (front locking) |
| Construction | All stainless-steel exterior & interior; foamed-in-place Ecomate® insulation |
| Certifications | cULus, UL EPH Classified, NSF-4, Made in USA |
*Height listed does not include 6 ⅛" (156 mm) for casters.
Popular Accessories (sold separately)
- Additional interior kits: universal, steel-rod or tray-slide configurations.
- Chrome wire shelving kits (three shelves per set, adjustable on 6" increments).
- 6" standard, seismic or stainless-steel legs (replace casters).
- Security package for door and control-panel protection.
Industry-Leading Warranty
- 7-year Parts & Labor Warranty (U.S.A.).
- 7-year Heating-Element Warranty for added peace of mind.
Installation Note: Unit must be connected to a dedicated 15 A, single-phase circuit. Follow local codes and True’s installation manual for optimal performance.
