True SPEC SERIES® Heated Pass-Thru Cabinet – STR1HPT-1G-1S

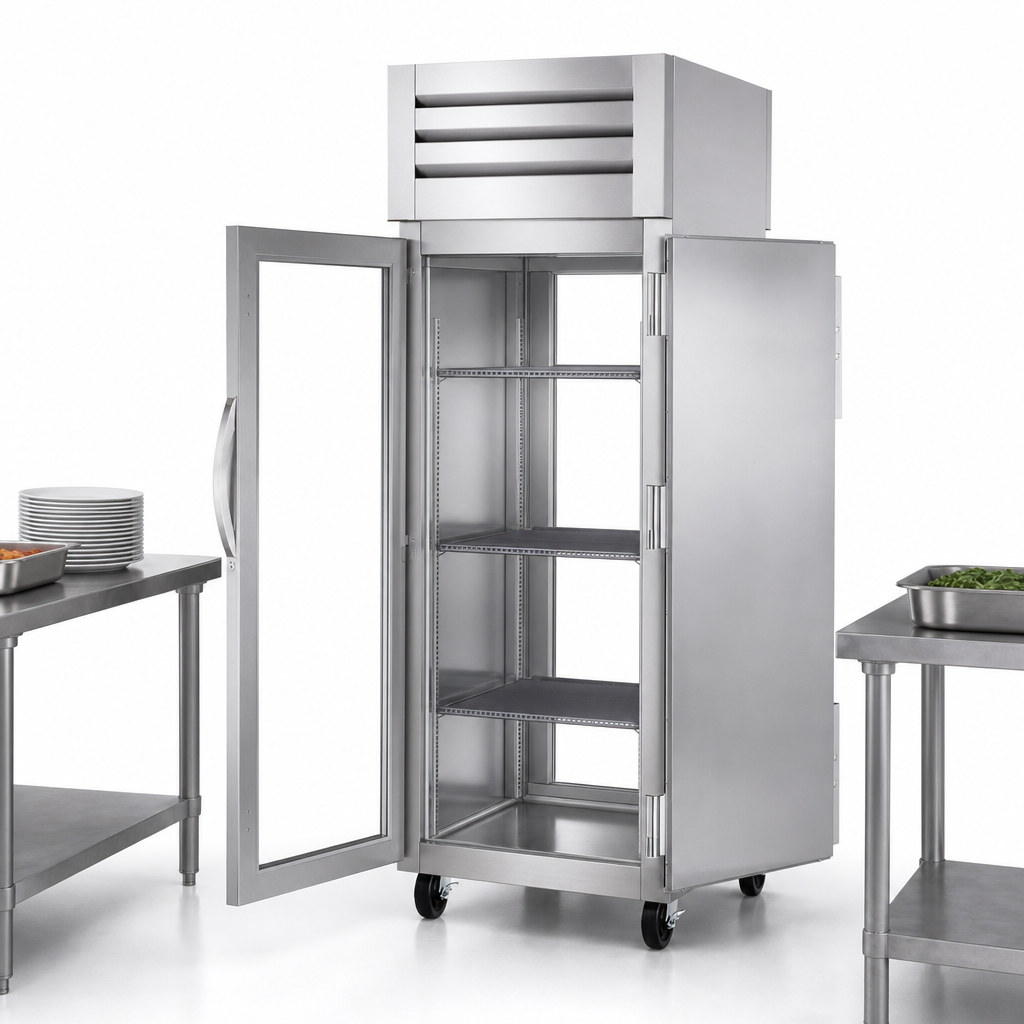

1-Section | Glass Front / Stainless Rear Doors | 1.5 kWBuilt for the fast pace of today’s commercial kitchens, True’s STR1HPT-1G-1S keeps cooked foods safely held between 140 °F and 180 °F while its pass-thru design streamlines loading and plating from opposite sides of the line. Premium stainless-steel construction, a full digital control system, and a factory-installed pan slide kit make this cabinet ready to work the moment it rolls off the truck.
Key Performance Benefits
- 1.5 kW stainless-steel heating element maintains 140 °F–180 °F (60 °C–82 °C) holding temperature.
- Low-E, double-pane glass front door delivers full product visibility with minimal heat loss.
- Solid stainless steel rear door allows loading from prep or holding areas.

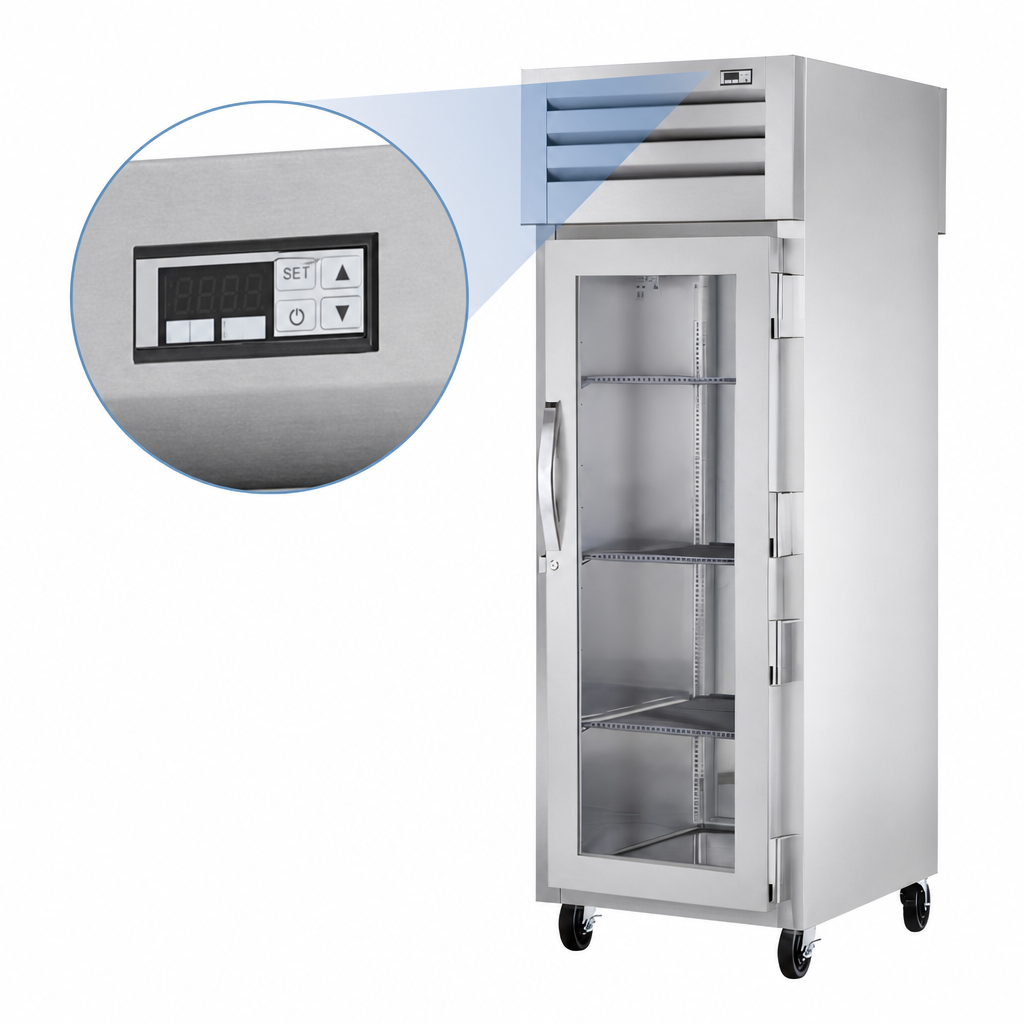

- Exterior digital controller shows °F / °C and features independent on/off switches for heat & lights.
- Manually controlled top vent for precise humidity management.
- Safety-shielded incandescent interior lighting.
Built to Last
- All stainless steel front, sides, interior liner, floor and ceiling.
- Ecomate® high-density polyurethane insulation (zero ODP / zero GWP) is foamed-in-place throughout.
- Self-closing doors with 120° stay-open feature, lifetime cam-lift hinges & bolt-style locks.
- Heavy-duty all-metal door handles stand up to constant use.
- 5" (127 mm) locking plate castors for quick mobility and easy cleaning.
- Made in the USA; cULus Listed & UL EPH Classified for open food product.
Factory-Installed Interior Kit
- Nine (9) sets of #1 type tray slides with anodized pilasters.
- Each level holds one full-size 18" × 26" sheet pan or two 14" × 18" pans.
- Slides remove without tools for effortless re-configuration and cleaning.
Specifications
| Model | STR1HPT-1G-1S |
|---|---|
| Door Configuration | 1 Low-E glass front / 1 stainless rear (swing, pass-thru) |
| Exterior Dimensions* | 27 ½" W × 36 ⅛" D × 77 ¾" H (699 × 918 × 1975 mm) |
| Height w/ 5" Castors | ≈ 83 ⅞" (2129 mm) |
| Holding Temperature | 140 °F – 180 °F (60 °C – 82 °C) |
| Heat Output | 1.5 kW stainless-steel element |
| Electrical | 208–240 V / 60 Hz / 1-phase, 15 A, NEMA 6-15P, 9 ft (2.74 m) cord |
| Castors | 5" locking plate (front) standard |
| Certifications | cULus, UL EPH Classified, Made in USA |
*Depth does not include 1 ½" (38 mm) for front & rear door handles.
Optional Accessories
- Universal, steel-rod or chrome shelf kits.
- 6" (153 mm) legs – standard, seismic or stainless.
- Additional security package.
Rock-Solid Warranty
True backs every SPEC SERIES heated cabinet with an unmatched 7-year parts & labor warranty.*
*Warranty valid for commercial installations in the U.S., Canada & Puerto Rico. See full warranty statement for complete terms and exclusions.
