Description

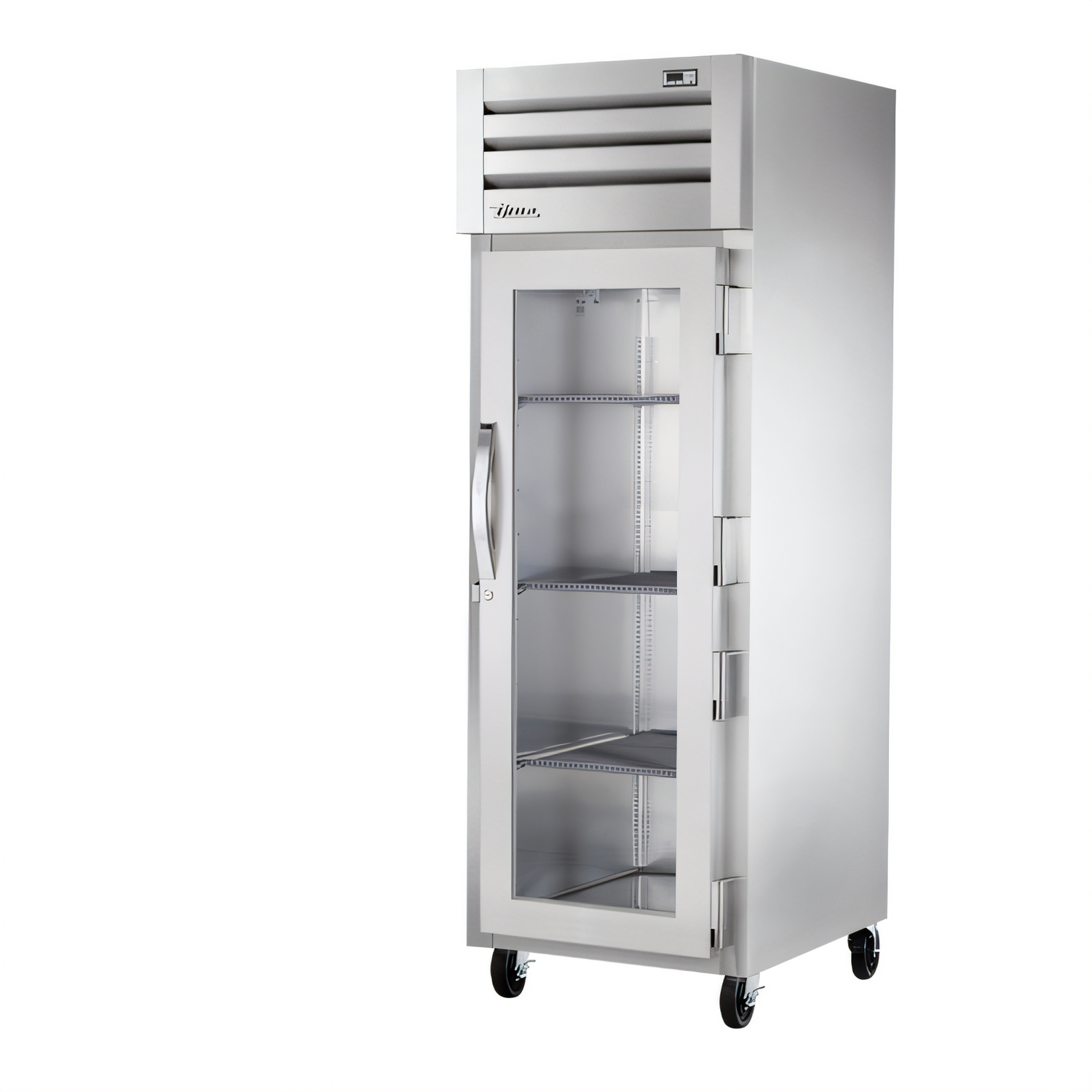

True Spec Series® STR1H-1G Heated Holding Cabinet

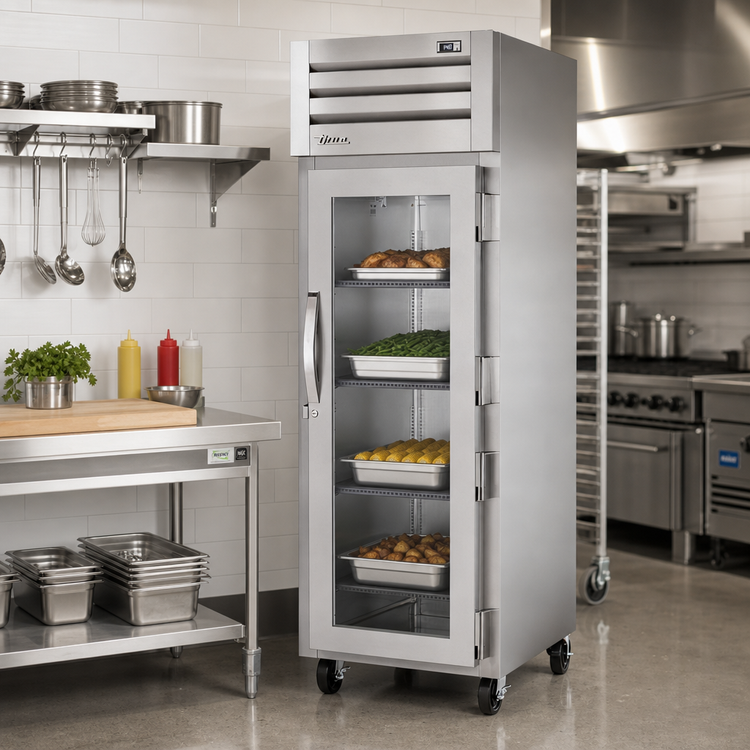

Single-section • Glass swing door • 140–180 °FBuilt for demanding commercial kitchens, the STR1H-1G keeps plated meals, pastries and cooked product hot, appetizing and ready to serve. 100 % made in the USA, this all-stainless reach-in marries rugged construction with precise digital controls for years of reliable performance.
Key advantages
- 1,500 W stainless steel heating element maintains 140 °F – 180 °F (60 °C – 82 °C) holding temps.

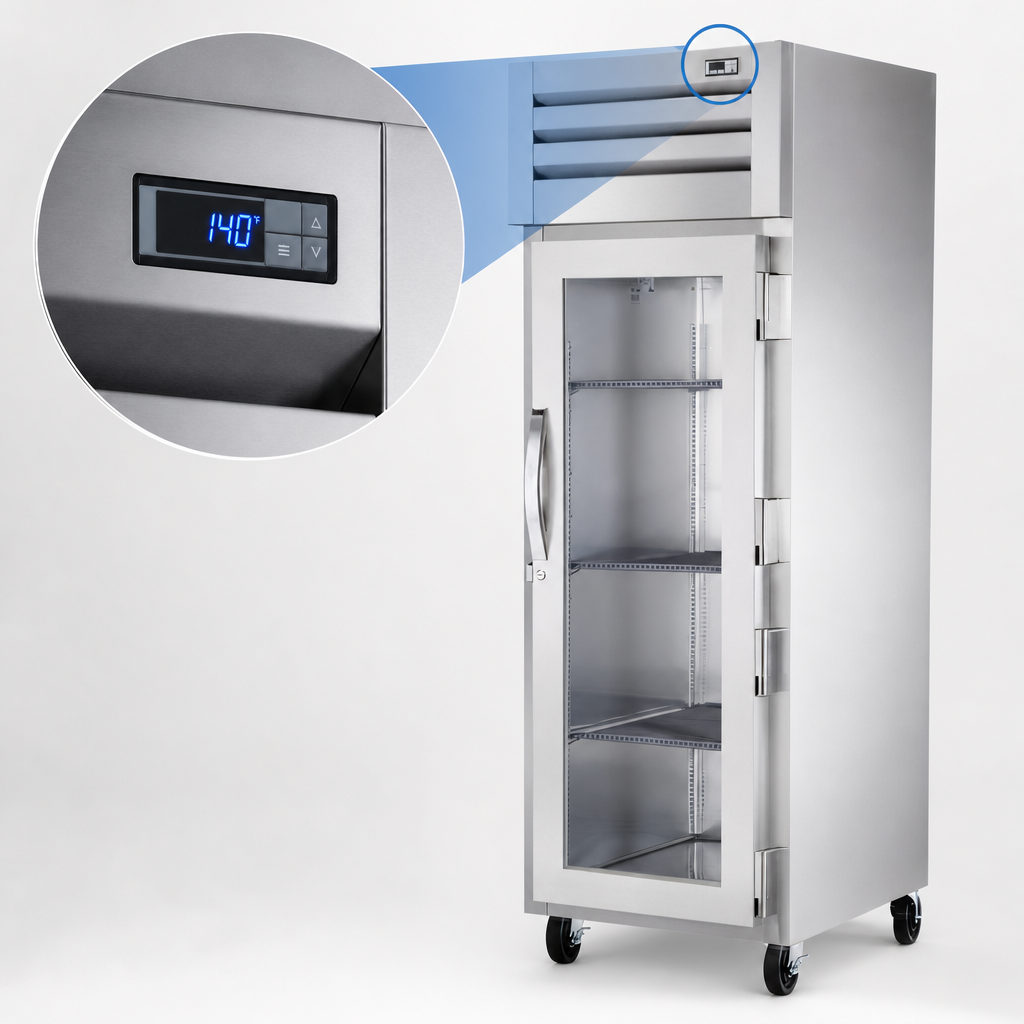

- Exterior digital controller with °F/°C readout and easy on/off rocker switch.
- Low-velocity fan system and manually adjustable top vent for even heat & humidity control.

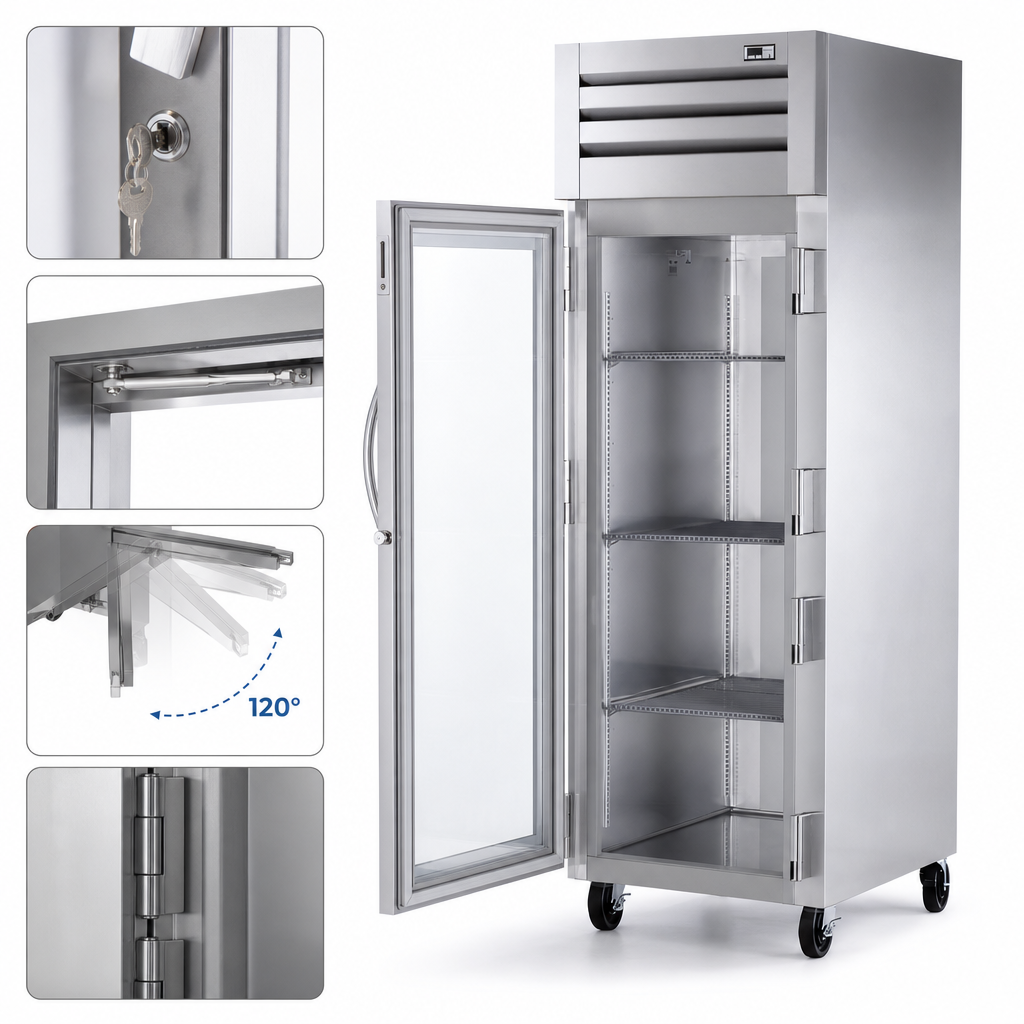

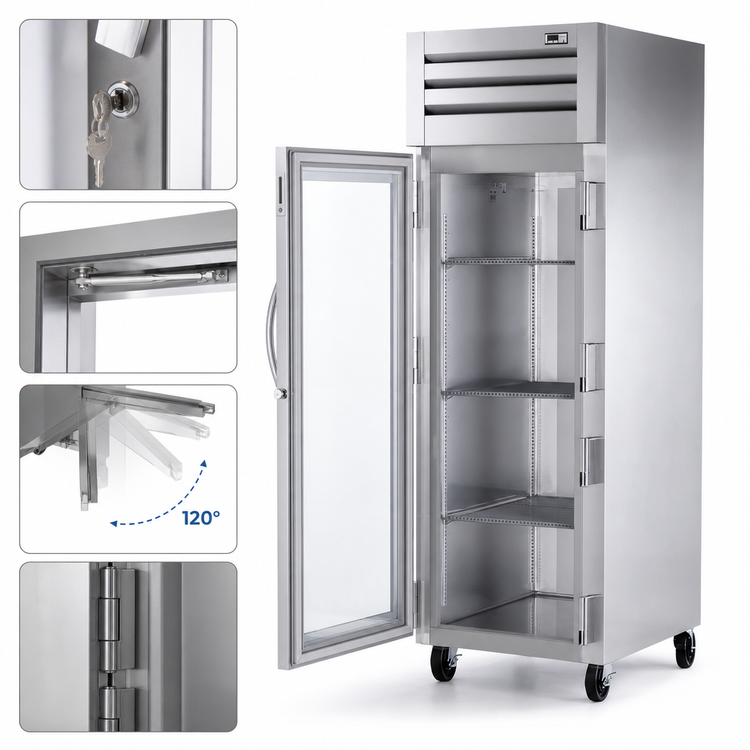

- “Low-E” double-pane glass door: self-closing, 120° stay-open, bolt-style lock & lifetime cam-lift hinges.
- All-stainless cabinet—front, sides, liner, floor, back & ceiling—for maximum durability and sanitation.
- Ecomate® foamed-in-place insulation (zero ODP/GWP) locks in heat and cuts energy use.
- Factory-installed 5" locking plate casters glide easily for cleaning and service access.
- Comes with one (1) interior kit—factory installed—to accommodate pans, trays or shelves as needed.
- NSF-4 listed for open food, cULus & UL EPH Classified.
Specifications
| Model | STR1H-1G |
|---|---|
| Cabinet type | Reach-in heated holding, 1 section |
| Door | 1 right-hinged glass swing door, self-closing / 120° stay-open |
| Temperature range | 140 °F – 180 °F (60 °C – 82 °C) |
| Heat source | 1 × 1,500 W stainless element with fan circulation |
| Exterior | Stainless steel door, front & sides |
| Interior | Stainless steel walls, floor, ceiling & door liner |
| Dimensions (W × D × H) | 27 ½″ × 33 ¾″ × 83 ⅞″ (with 5″ casters) |
| Electrical | 208-230 V / 60 Hz / 1-ph, 1.5 kW, 9 ft cord, NEMA 6-15P (dedicated 15 A circuit) |
| Certifications | NSF-4, cULus, UL EPH Classified |
| Origin | Made in the USA |
Industry-leading warranty
True protects your investment with a 7-year parts & labor warranty for commercial installations in the United States, Canada and Puerto Rico.
Unsure which tray slide or shelf kit best fits your menu? Contact us—our foodservice specialists will configure the STR1H-1G to match your workflow before it ships.
