Description

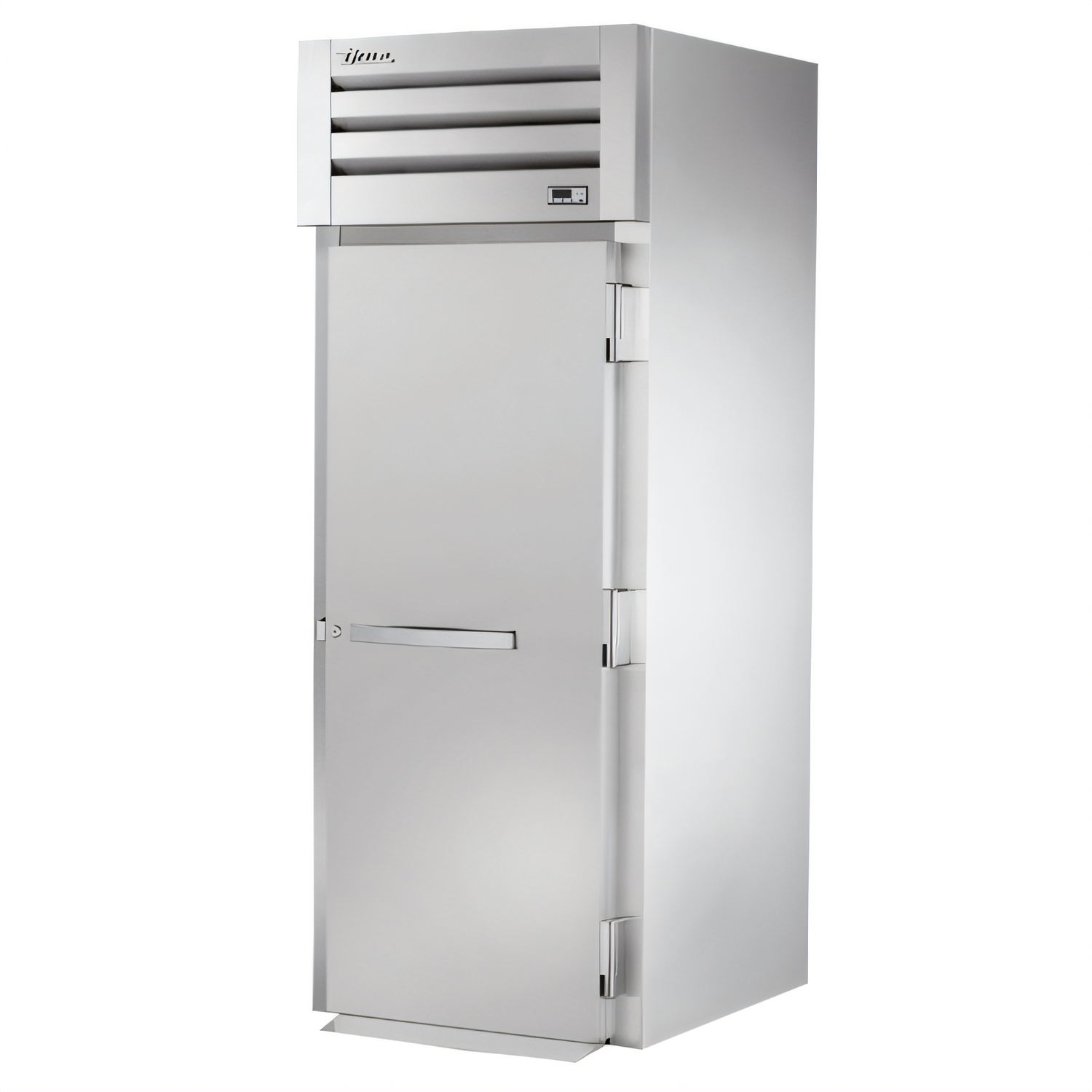

True SPEC SERIES® STR1FRI-1S Roll-In Freezer — 1 Section, Stainless Steel
-10 °F performance • Top-mounted 3/4 HP system • Accepts 27" × 29" × 66" rack (not included)Built for high-volume kitchens that demand rock-solid temperature recovery, the SPEC SERIES® STR1FRI-1S lets you roll a full upright rack straight into a stainless-steel freezer that holds a steady -10 °F. True’s legendary construction, advanced airflow design and best-in-class warranty make this a long-term investment you can count on shift after shift.
Key Features
- Self-contained capillary-tube refrigeration with eco-friendly R404A maintains –10 °F (–23.3 °C).
- Top-mounted 3/4 HP compressor keeps critical components away from floor splash & debris.
- Extra-large, epoxy-coated evaporator and oversized condenser for rapid pull-down.

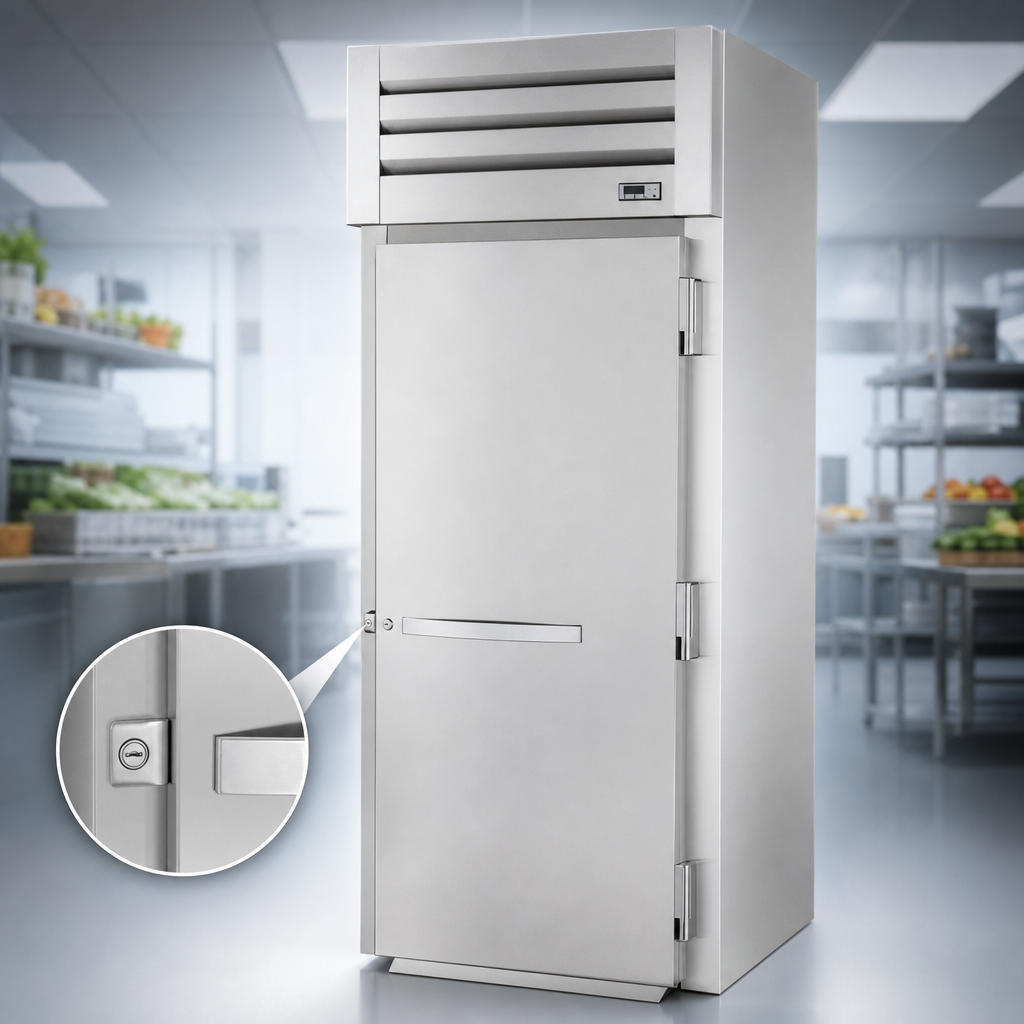

- Single solid stainless-steel door with lifetime-guaranteed cam-lift hinges and bolt-style lock.
- Positive-seal self-closing door stays open at 120° for easy cart loading.
- Heavy-gauge stainless ramp included; interior bumpers protect walls from cart impact.

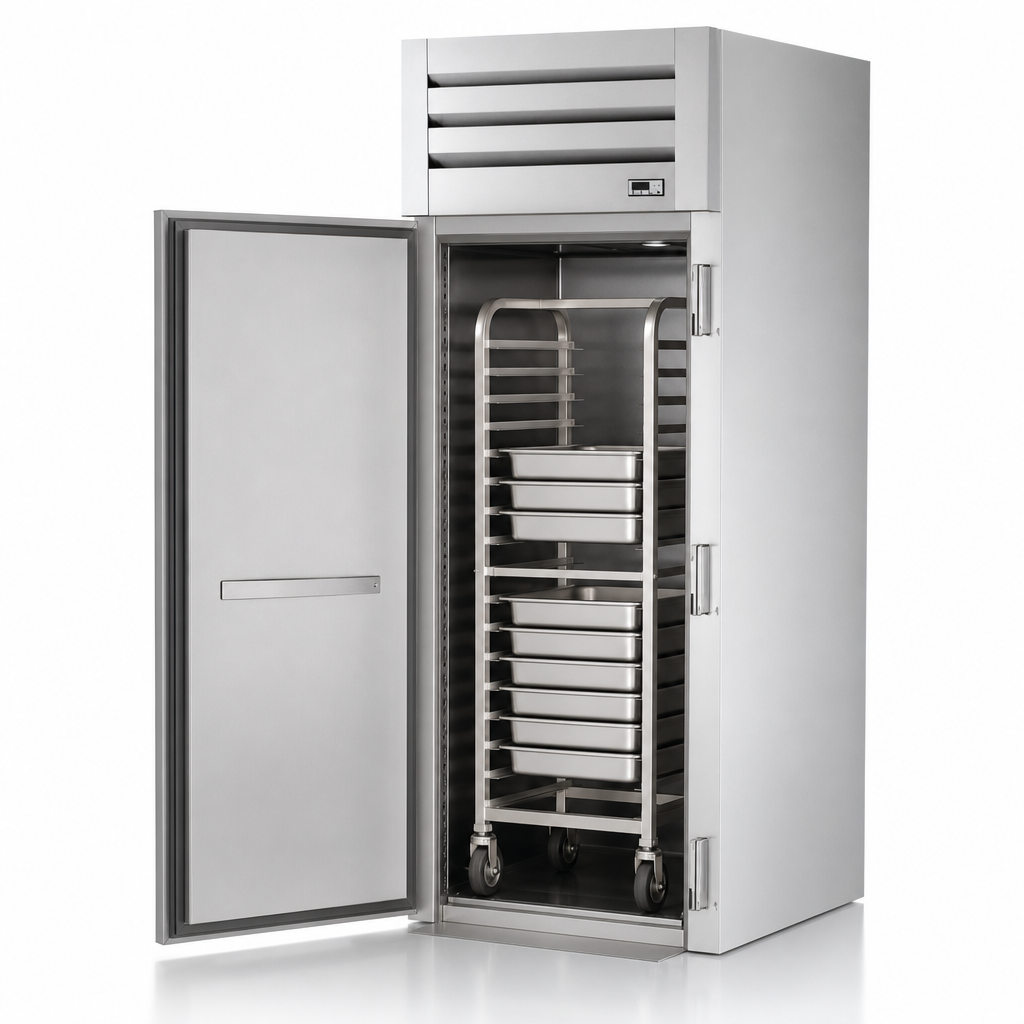

- Accepts roll-in racks up to 27" W × 29" D × 66" H (inboard casters).
- All-stainless interior—walls, back, floor, ceiling & door liner—for superior sanitation.
- High-density foamed-in-place insulation (zero ODP / GWP).
- Exterior digital temperature display selectable in °F or °C.
- Shielded incandescent lighting for clear product visibility.
- Automatic time-initiated, temperature-terminated defrost with fan delay for energy savings.
- NSF/ANSI 7, cULus & UL EPH classified; proudly Made in the USA.
At-a-Glance Specifications
| Model | STR1FRI-1S |
|---|---|
| Sections / Doors | 1 section / 1 solid swing door (field-reversible option) |
| Operating Temp. | -10 °F / -23.3 °C |
| Rack Capacity | (1) roll-in cart 27" W × 29" D × 66" H (not included) |
| Exterior | Stainless steel door, front & sides |
| Interior | All stainless steel |
| Refrigeration | Self-contained, top-mounted, 3/4 HP, R404A |
| Electrical | 115 V / 60 Hz / 1-ph • 12.0 amps • NEMA 5-15P • 9 ft cord |
| Overall Dimensions | 35" W × 34 ¾" D† × 83 ¾" H* |
| Ramp Depth | Add 4 ¼" (108 mm) to depth when ramp is installed |
| Certifications | cULus • UL EPH • NSF/ANSI 7 |
| Country of Origin | Made in USA |
† Depth does not include 4 ¼" (108 mm) for ramp.
* Height does not include ¼" (7 mm) for mechanical components.
Installation Requirements
- Dedicated 115 V / 15 amp outlet within 9 ft of unit.
- Doorway clearance for 35" width plus ramp depth.
- Minimum clearance above cabinet for service access to top-mounted system.
Industry-Leading Warranty
True backs this unit with an unmatched 7-year parts, labor and compressor warranty for foodservice installations in the USA, Canada & Puerto Rico.
