True Mfg. - General Foodservice STG2HRT-2S-2S SPEC SERIES Heated Cabinets & Holding Shelves
True Mfg. - General Foodservice STG2HRT-2S-2S SPEC SERIES Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STG2HRT-2S-2S SPEC SERIES Heated Ca...
Description

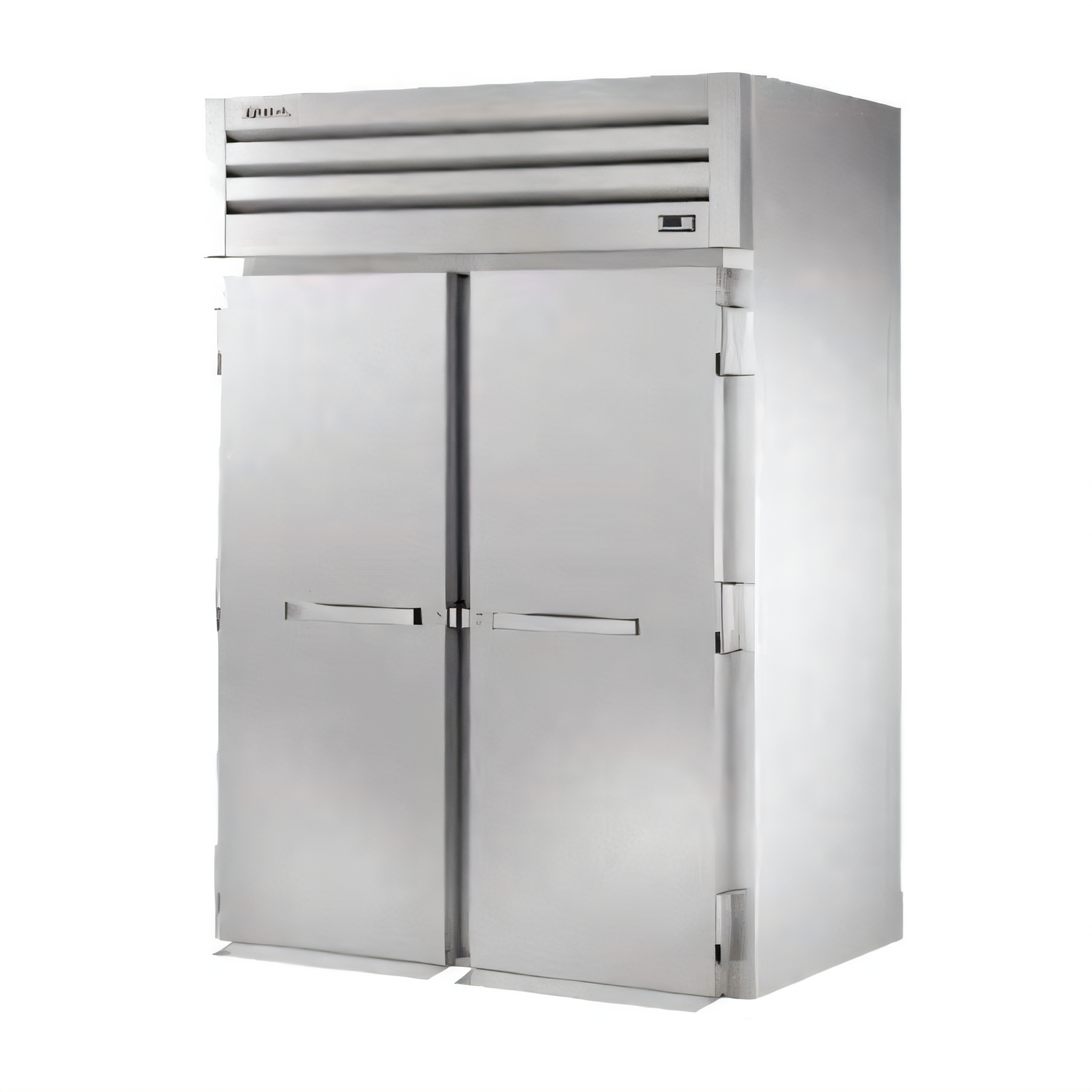

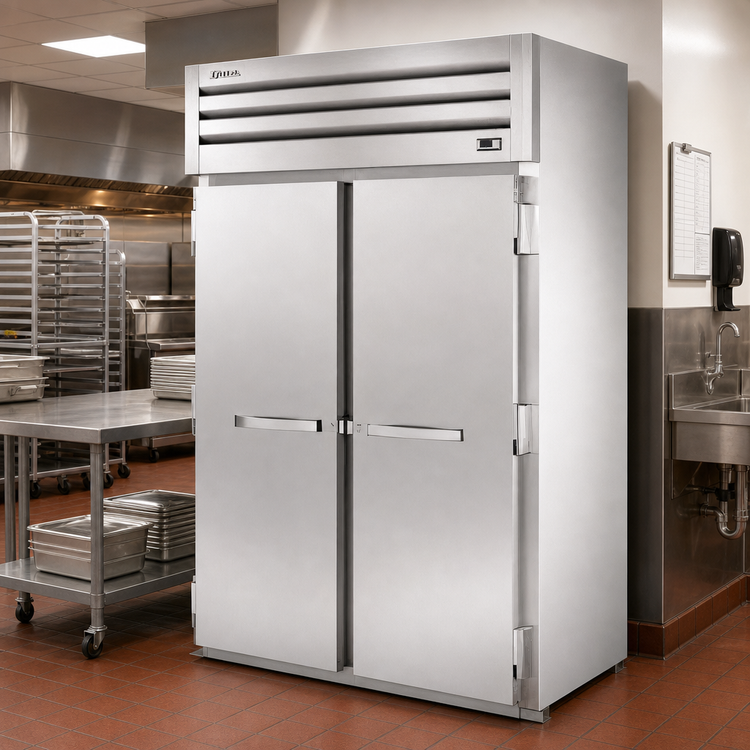

True SPEC SERIES® Two-Section Roll-Thru Heated Cabinet
Model STR2HRT-2S-2S | Front-to-Back Pass-Through ConvenienceKeep plated meals, sheet pans, or entire racks of cooked product hot, fresh, and ready for service with True’s flagship SPEC SERIES® roll-thru heated cabinet. Built in the USA and engineered for demanding commercial kitchens, this two-section unit delivers even, adjustable holding temperatures from 140°–180°F (60°–82°C) while allowing staff to load from one side and pull from the other without breaking the workflow.
Why You’ll Love It

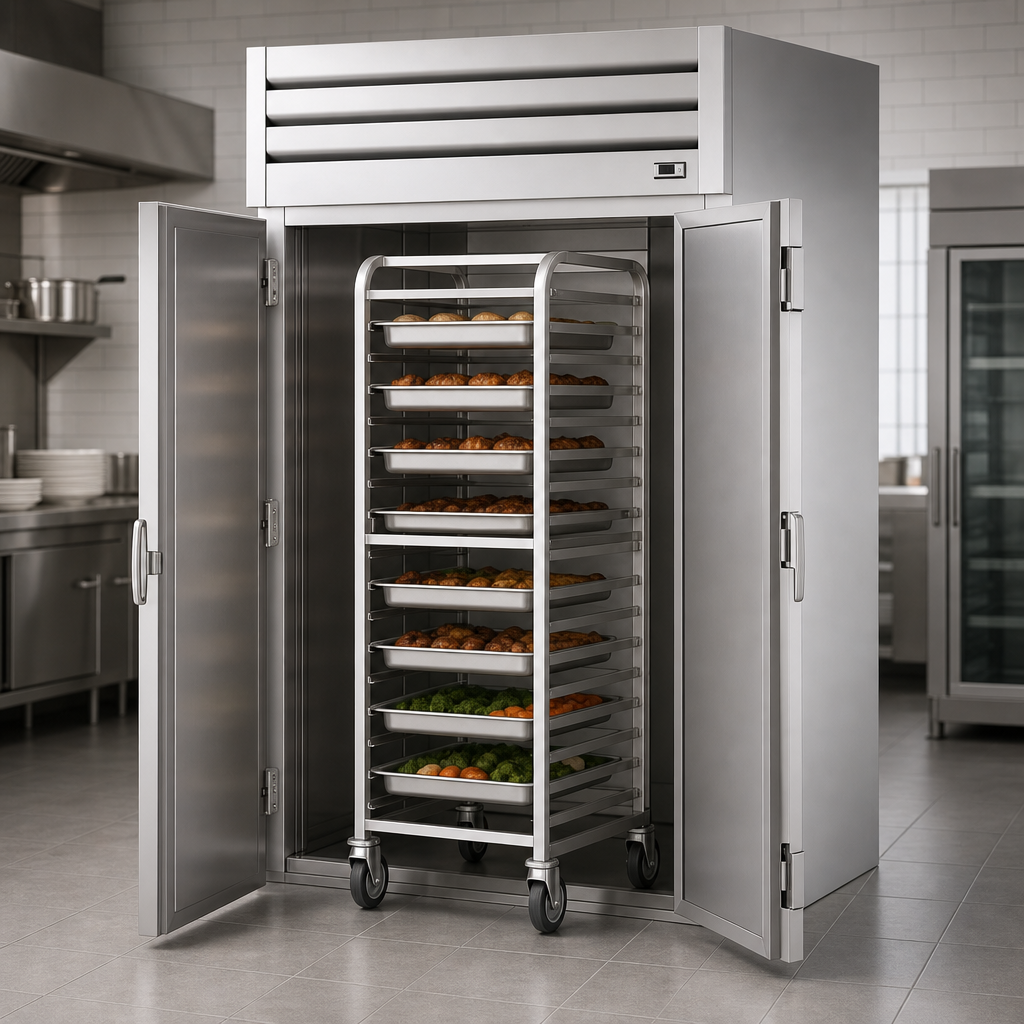

- True roll-thru design accepts full racks up to 27"W × 29"D × 66"H (carts not included) and includes heavy-gauge stainless-steel ramps on both sides.
- 4 kW heater system with twin stainless fin-tube elements per section and low-velocity circulation fans for precise, even heat.
- Fan & heater each have independent exterior ON/OFF switches for energy-saver flexibility.
- Exterior color-coded temperature display provides instant, accurate readout of cabinet temperature.
- Manual humidity vent and included 12" × 20" water pan let you dial-in moisture for breads, proteins, or plated entrées.
- Lifetime-guaranteed cam-lift hinges, bolt-style door locks, and heavy-duty handles withstand constant use.

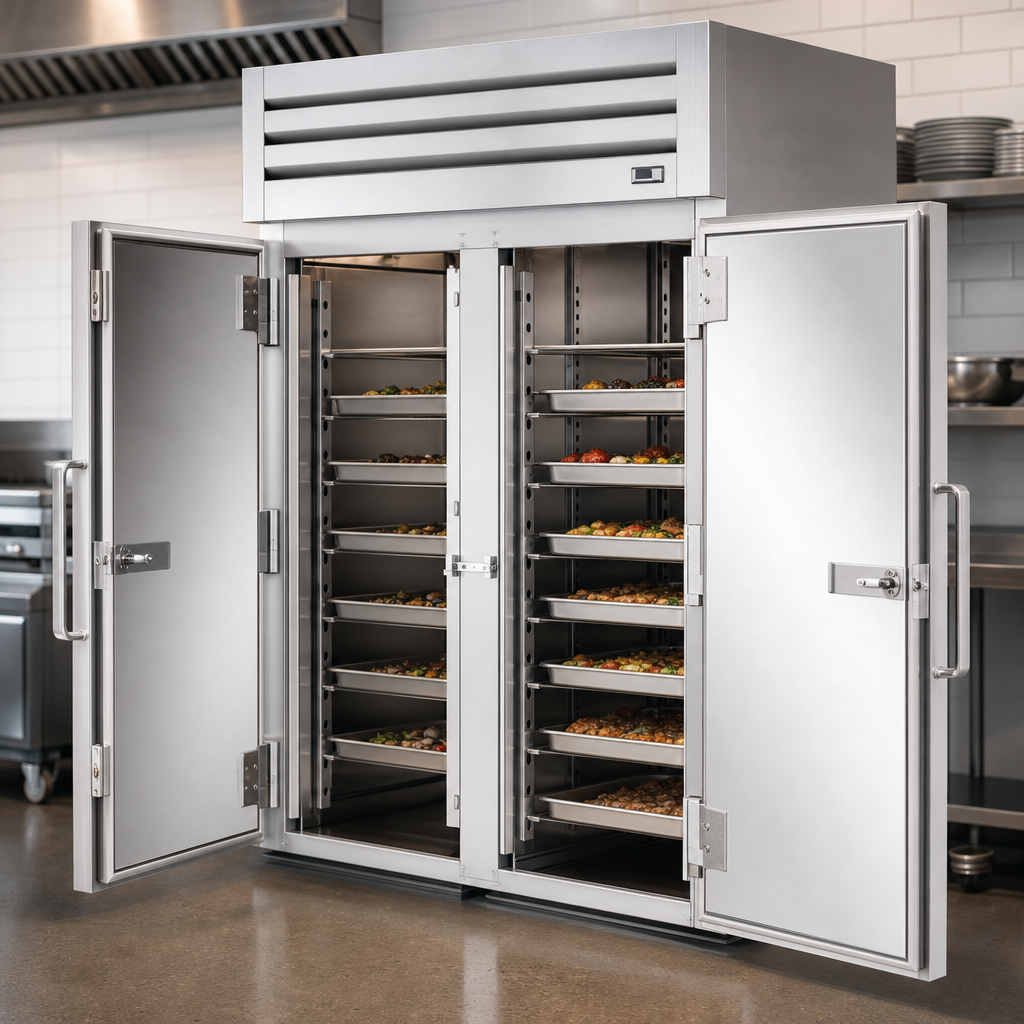

- Self-closing stainless doors with 120° stay-open feature for effortless cart loading.
- Incandescent, shielded interior lighting activated by exterior switch.
- Foamed-in-place, CFC-free insulation maximises heat retention while reducing energy costs.
- NSF/ANSI 4, cULus & UL EPH Classified for open food storage; 100 % Made in the USA.
Built for Rugged Service
- Stainless-steel front doors (front & rear) resist dents and corrosion.
- Aluminum sides & interior balance durability with lighter weight.
- Interior bumpers protect walls from cart impact.
- Removable, one-piece magnetic door gaskets simplify cleaning and replacement.
Technical Specifications
| Capacity | Roll-in racks up to 27" W × 29" D × 66" H (1 per section) |
|---|---|
| Holding Temp Range | 140° – 180°F (60° – 82°C) |
| Exterior Dimensions | 68" L × 37 ½" D † × 83 ¾" H * (1728 × 953 × 2128 mm) |
| Ramps | 4 ⅛" (105 mm) per side, stainless steel |
| Electrical | 4.0 kW | 115/208-230 V, 60 Hz, 1-phase | NEMA 14-20P |
| Controls | Electronic thermostat & external color-coded temperature display |
| Interior Lighting | Shielded incandescent, switch-activated |
| Approvals | cULus, UL EPH, NSF/ANSI 4 |
| Country of Origin | Made in USA |
† Depth does not include ramp. * Height does not include 1" (26 mm) for mechanical components.
Industry-Leading Warranty
- 7-year parts & labor coverage on the entire cabinet
- 7-year heater element warranty
- Backed by True’s nationwide service network for fast, dependable support
For full terms, visit the manufacturer’s warranty page or contact our team.
