True Mfg. - General Foodservice STG2F-4HS-HC SPEC SERIES Reach-In Refrigerators & Freezers
True Mfg. - General Foodservice STG2F-4HS-HC SPEC SERIES Reach-In Refrigerators & Freezers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STG2F-4HS-HC SPEC SERIES Reach-In R...
Description

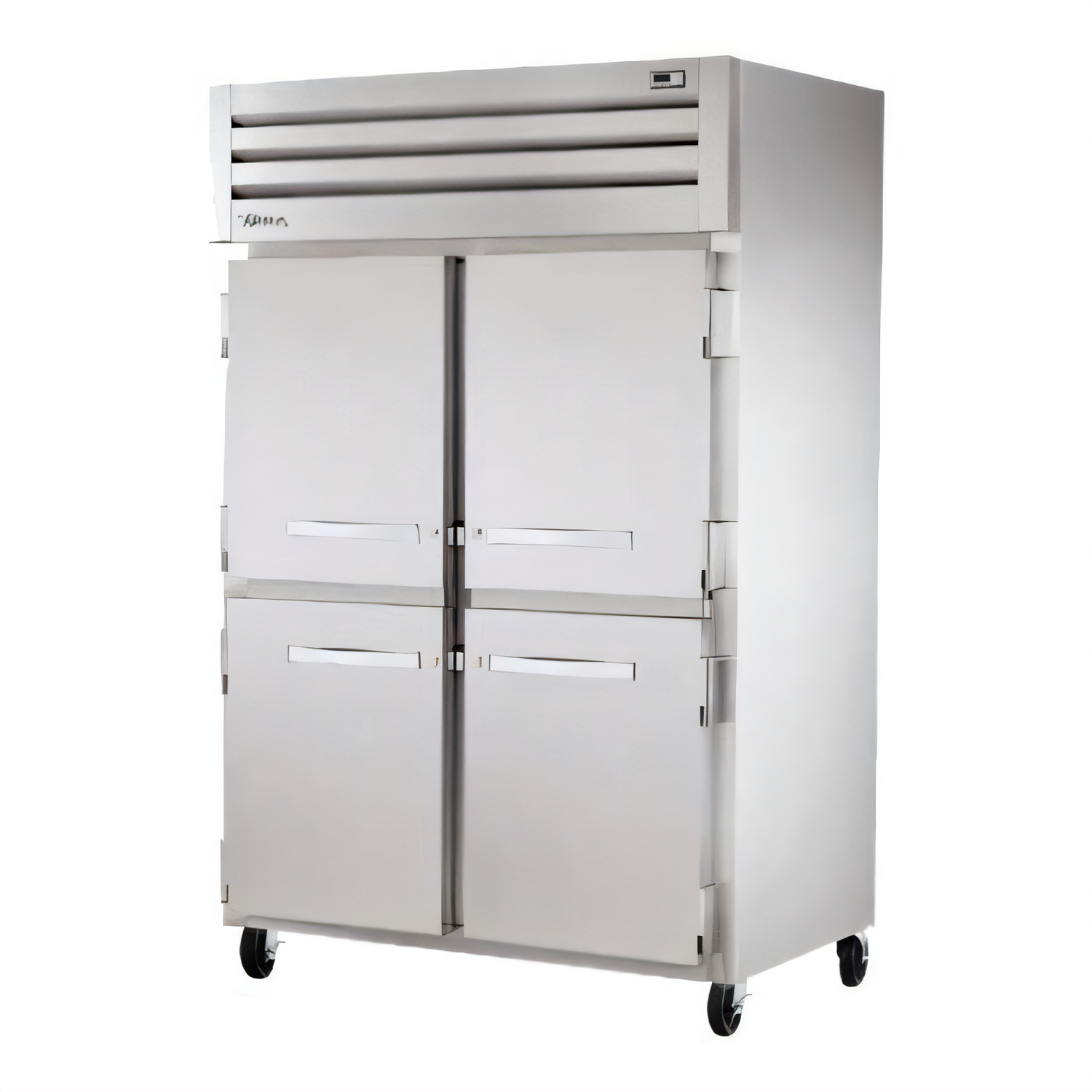

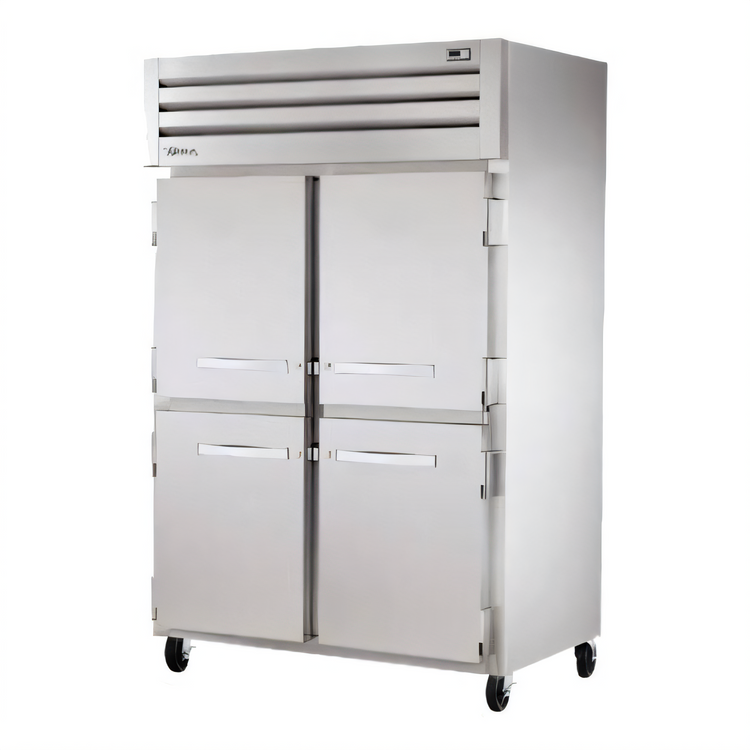

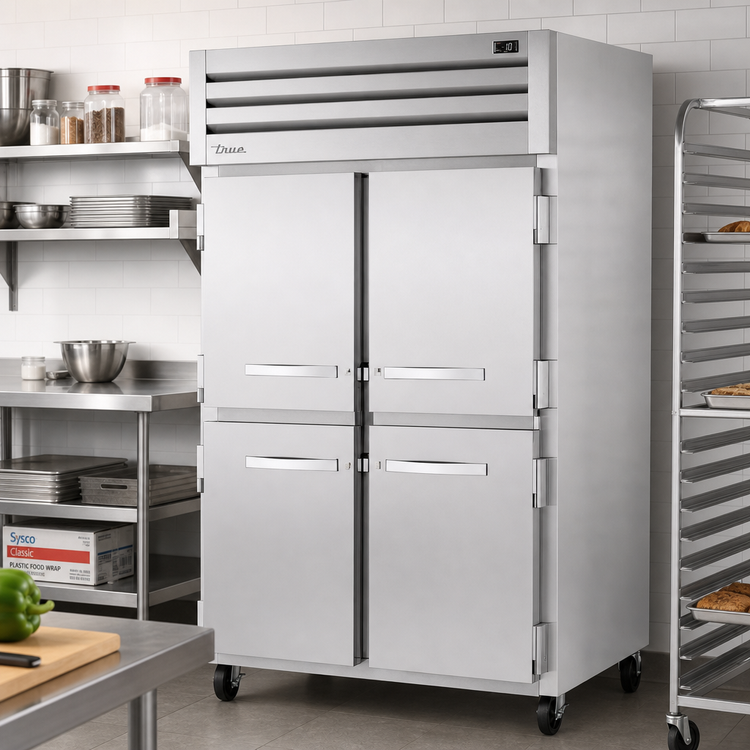

True Spec Series® Reach-In Freezer – 2 Section, 4 Half Doors (Model STG2F-4HS-HC)
-10 °F • Top-Mounted Self-Contained Refrigeration • Made in the USABuilt for the rigorous demands of today’s commercial kitchens, the Spec Series® STG2F-4HS-HC holds frozen foods and ice cream at a steady -10 °F while combining premium materials, advanced energy-saving technology, and True’s industry-leading 7-year full warranty package.
Key product highlights
- Four lockable stainless-steel half doors with lifetime-guaranteed cam-lift hinges and positive self-closing action with a 120° stay-open feature.

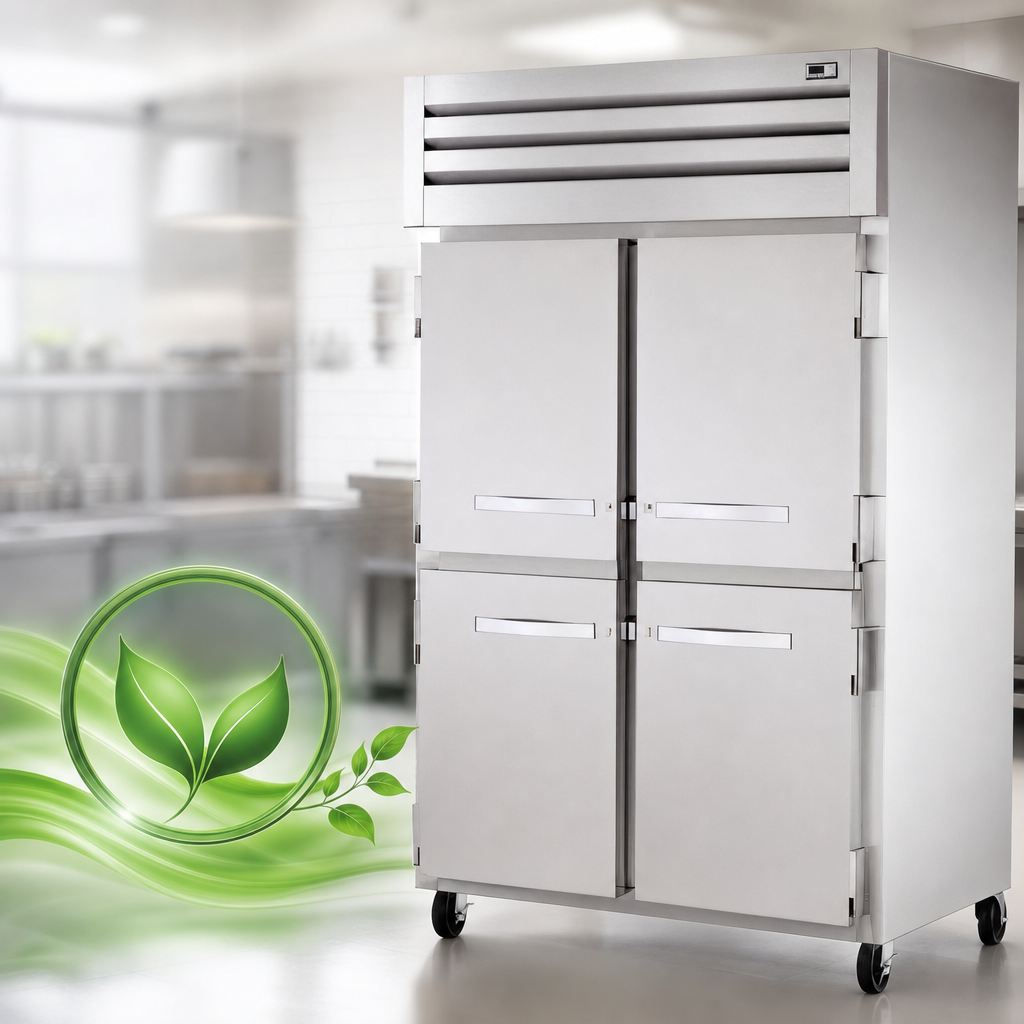

- -10 °F set point maintained by a high-capacity, factory-balanced refrigeration system using eco-friendly natural hydrocarbon refrigerant (0 ODP / 3 GWP).

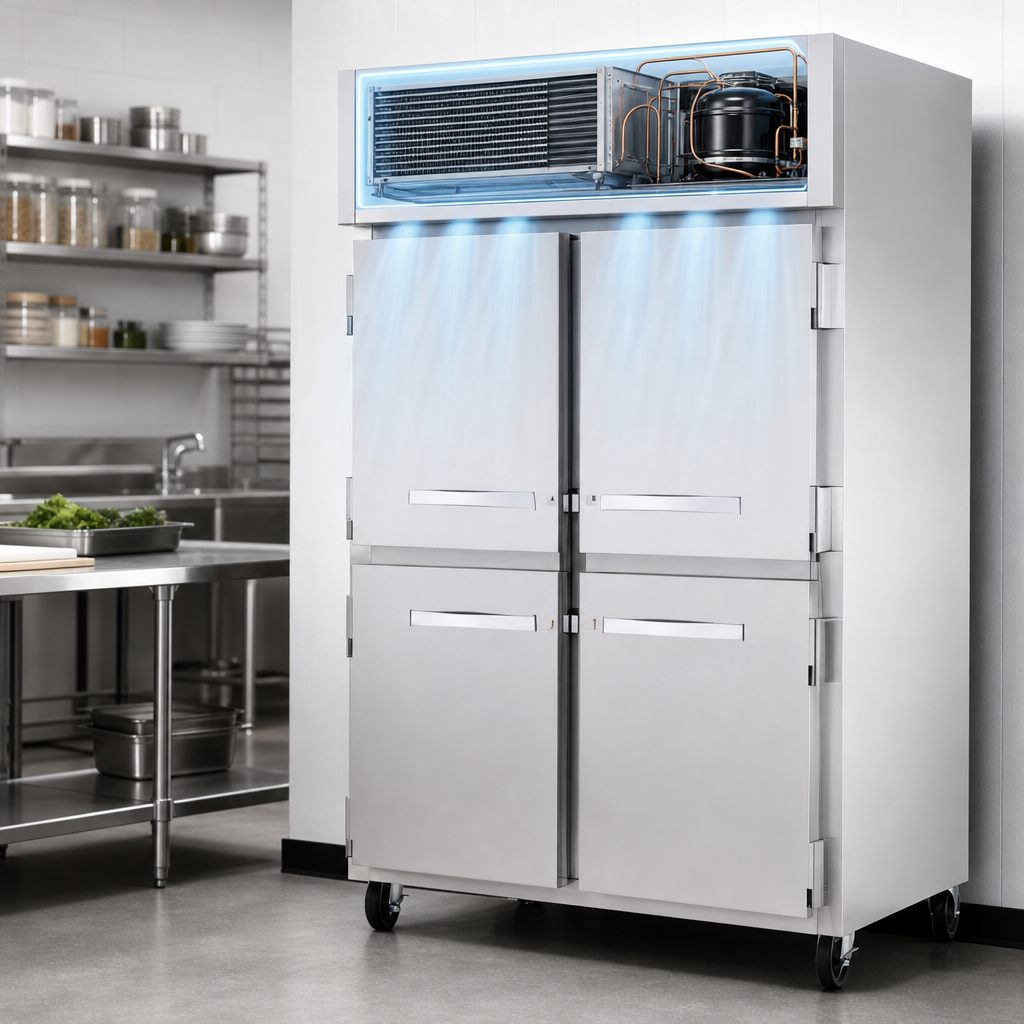

- Top-mounted, self-contained 1¼ HP compressor keeps the food zone clear and simplifies maintenance.
- Six heavy-duty, PVC-coated wire shelves (3 per section) on adjustable pilasters; rated at 250 lb (113 kg) per shelf.
- Energy-efficient LED interior lighting for brilliant, even visibility.
- Electronically-commutated evaporator & condenser fan motors (ECM) reduce heat output and energy consumption while extending motor life.
- High-density, zero-GWP polyurethane insulation foamed in place throughout cabinet and doors.
- 5 in. (127 mm) diameter plate castors—front set locks for secure positioning; field-install 6 in. legs available.
- Exterior digital °F/°C temperature display, epoxy-coated evaporator, and automatic time-initiated / temperature-terminated defrost with fan-delay for maximum efficiency.
- NSF/ANSI 7, cULus & UL EPH Classified for open food product.
Dimensions & electrical
| Exterior width | 52 5/8 in. (1337 mm) |
|---|---|
| Exterior depth | 33 3/4 in. (858 mm) add 1 1/2 in. for door handle |
| Exterior height | 77 3/4 in. (1975 mm) add 6 1/8 in. for castors |
| Interior finish | Aluminum side walls & back; stainless floor & ceiling |
| Horsepower | 1 1/4 HP top-mounted |
| Voltage / phase | 115 V / 60 Hz / 1-ph, 9.4 A |
| Plug type | NEMA 5-15P (9 ft. cord included) |
| Refrigerant | R-290 natural hydrocarbon |
| Certifications | cULus, UL EPH Classified, NSF/ANSI 7 |
Popular accessories (sold separately)
- 6 in. standard, seismic or stainless-steel legs
- Universal, rod, or #1 style tray slide kits for sheet-pan storage
- Additional chrome or PVC-coated shelves
- Field-reversible door hinge kit & security packages
7-year worry-free warranty
True backs every Spec Series freezer with an unmatched 7-year parts, labor & compressor warranty—the longest standard coverage in the industry.
