Description

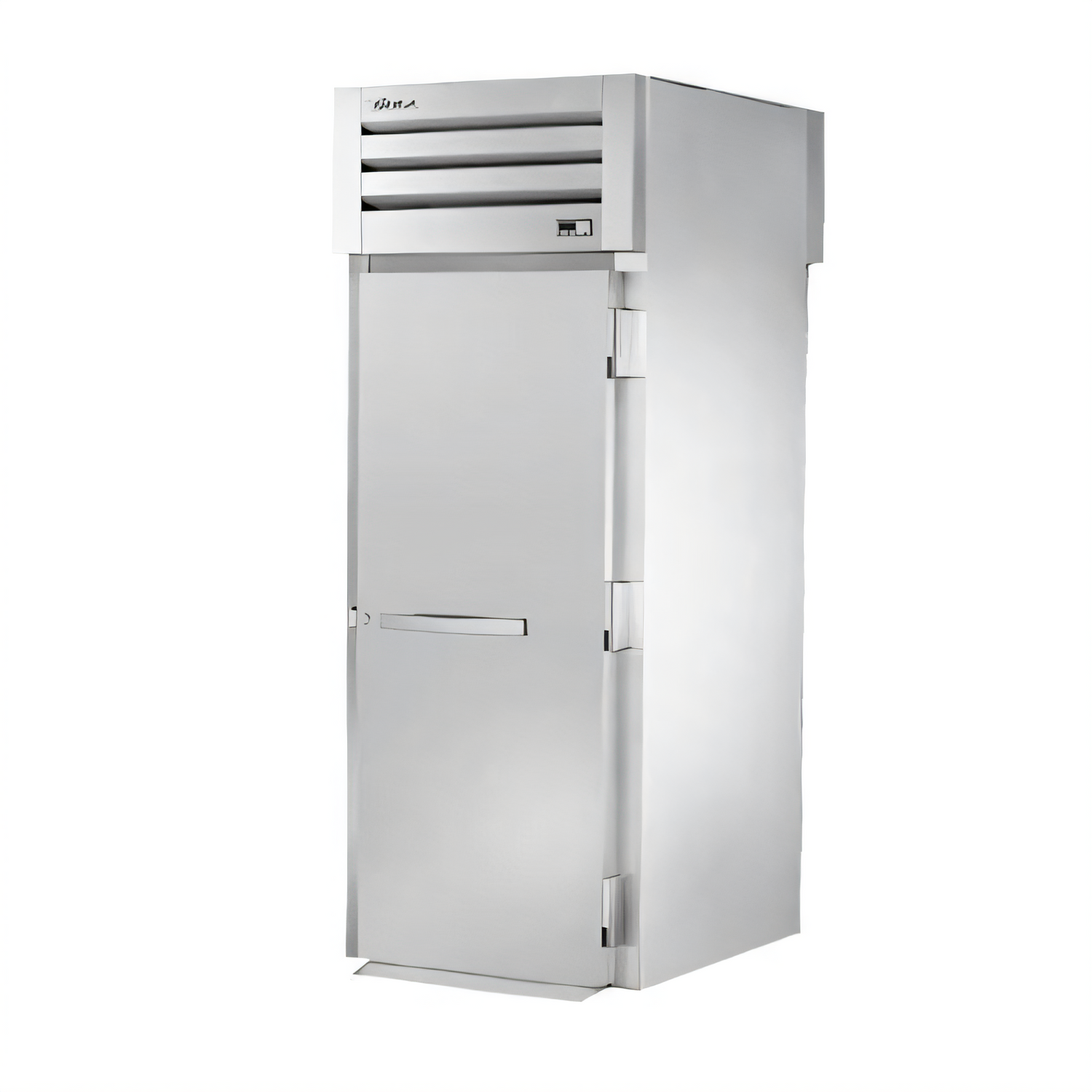

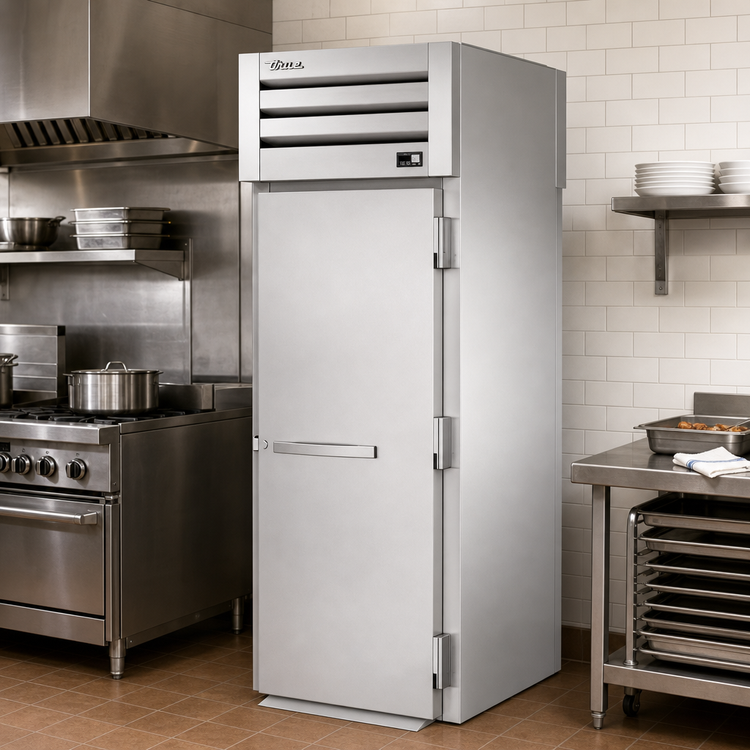

SPEC SERIES® Roll-Thru Heated Holding Cabinet – 1 Section
Model STG1HRT-1S-1S | Accepts 27" × 29" × 66" Cart (not included)Move product straight from the oven to the pass with True’s USA-built SPEC SERIES® roll-thru heated cabinet. Heavy-duty ramps, precision temperature control and lifetime-guaranteed hardware deliver dependable hot holding for even the busiest commercial kitchens.
Highlights

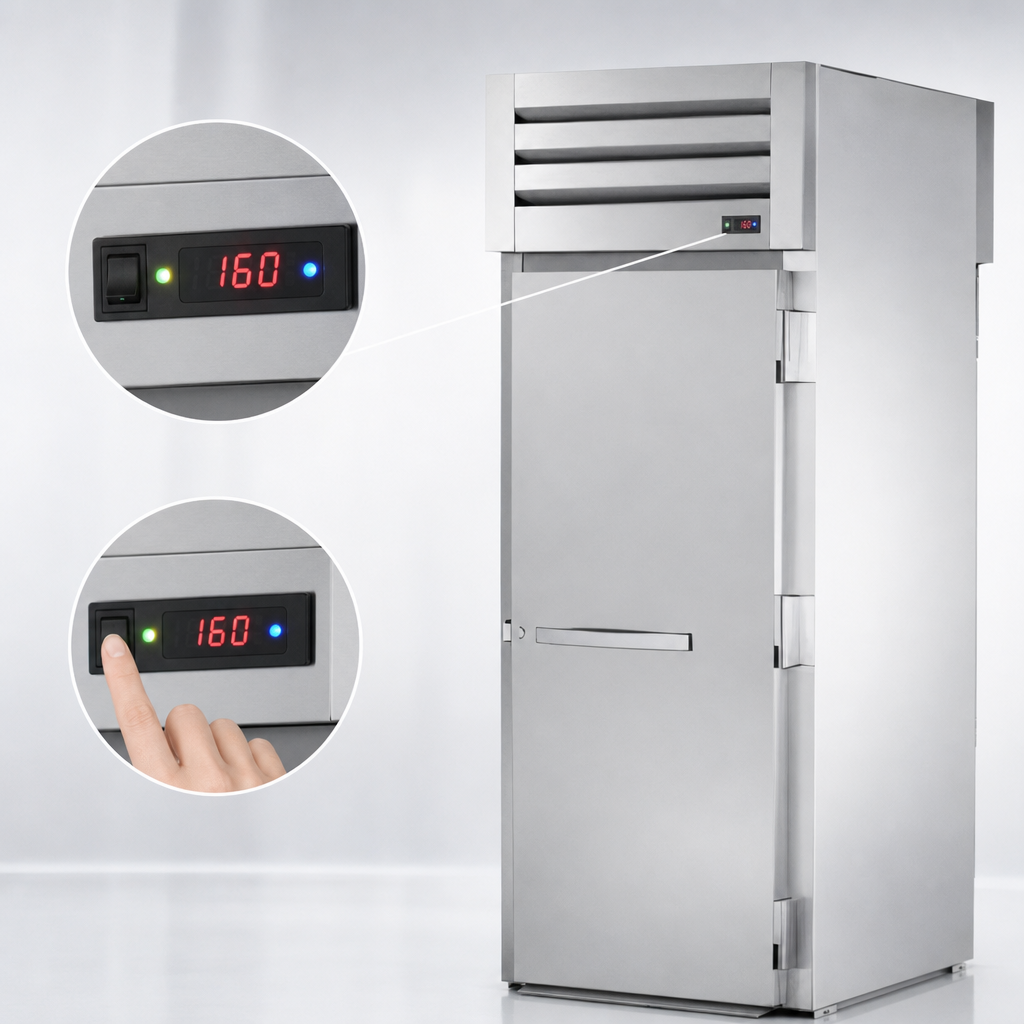

- 140 °F – 180 °F (60 °C – 82 °C) electronic temperature control with exterior color-coded display.
- Two 1 000 W stainless finned-tube heaters (2 kW total) plus low-velocity fans for even heat.
- Manual top vent and included 12" × 20" water pan for precise humidity management.

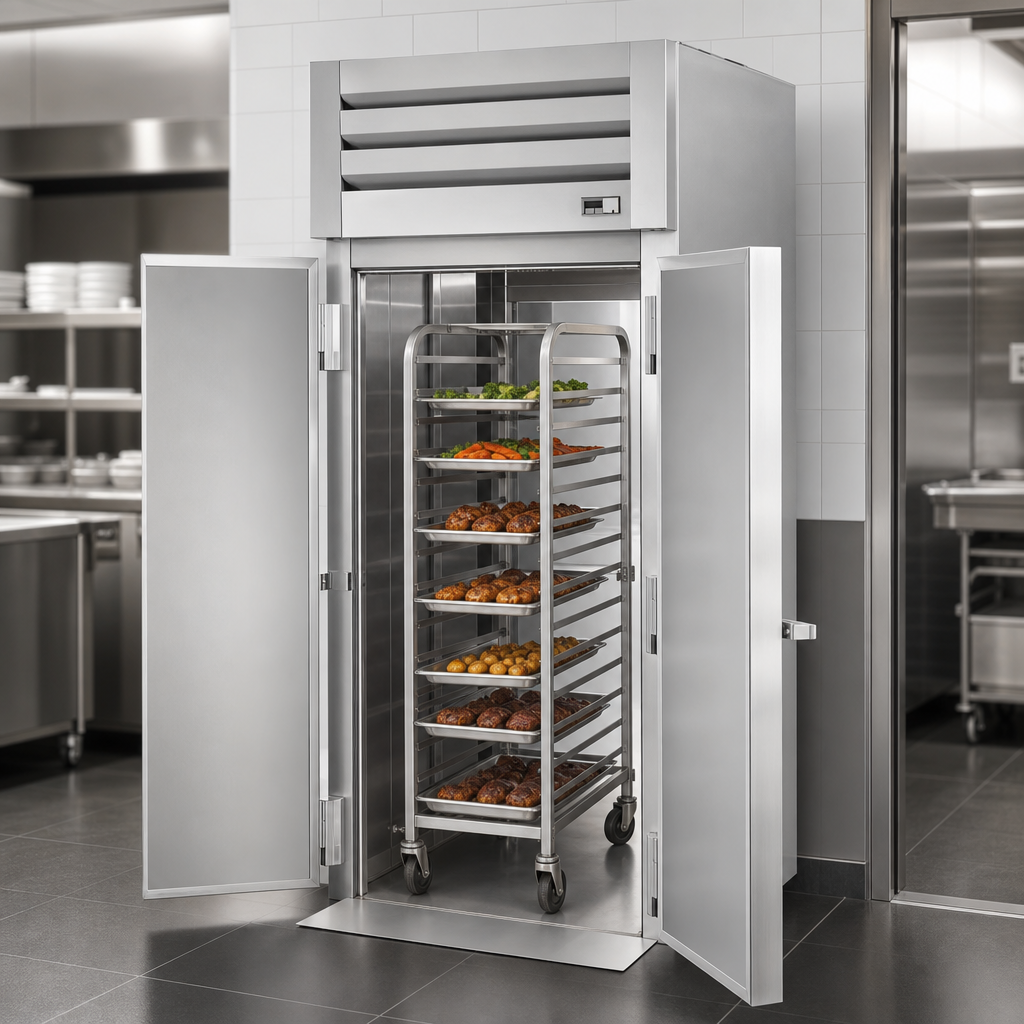

- Heavy gauge stainless steel ramps front & rear—roll racks in without lifting.
- Solid stainless doors (front & rear) with bolt-style locks, 120° stay-open position and tool-free magnetic gaskets.
- Lifetime-guaranteed cam-lift hinges and all-metal handles.
- Incandescent interior lighting, safety shielded and switch-controlled.
- cULus & UL EPH Classified for open food; Made in O’Fallon, Missouri USA.
SPEC SERIES Build Quality
- Stainless steel front doors with matching aluminum exterior sides.
- Aluminum interior walls & back; stainless floor and ceiling for easy wash-down.
- High-density, foamed-in-place polyurethane insulation (zero ODP / zero GWP).
- Stainless steel breaker caps protect door openings from cart impact.
Technical Specifications
Exterior dimensions (W × D × H) | 35" × 37 ½" × 83 ¾" (889 × 953 × 2128 mm) Depth excludes 4 ⅛" (105 mm) ramp each side. Height excludes 1" (26 mm) mechanical clearance. |
---|---|
Cart clearance | 27" W × 29" D × 66" H (686 × 737 × 1677 mm) |
Electrical | 2 000 W | 115/208-230 V, 60 Hz, 1-phase 9-ft cord with NEMA 14-20P Requires dedicated 20 A, 3-pole, 4-wire circuit. |
Doors | (2) Solid stainless swing doors, front & rear |
Temperature range | 140 °F – 180 °F (60 °C – 82 °C) |
Certifications | cULus, UL EPH Classified, Made in USA |
Warranty | 7-year parts & labor (Foodservice, U.S./Canada/Puerto Rico) |
