Description

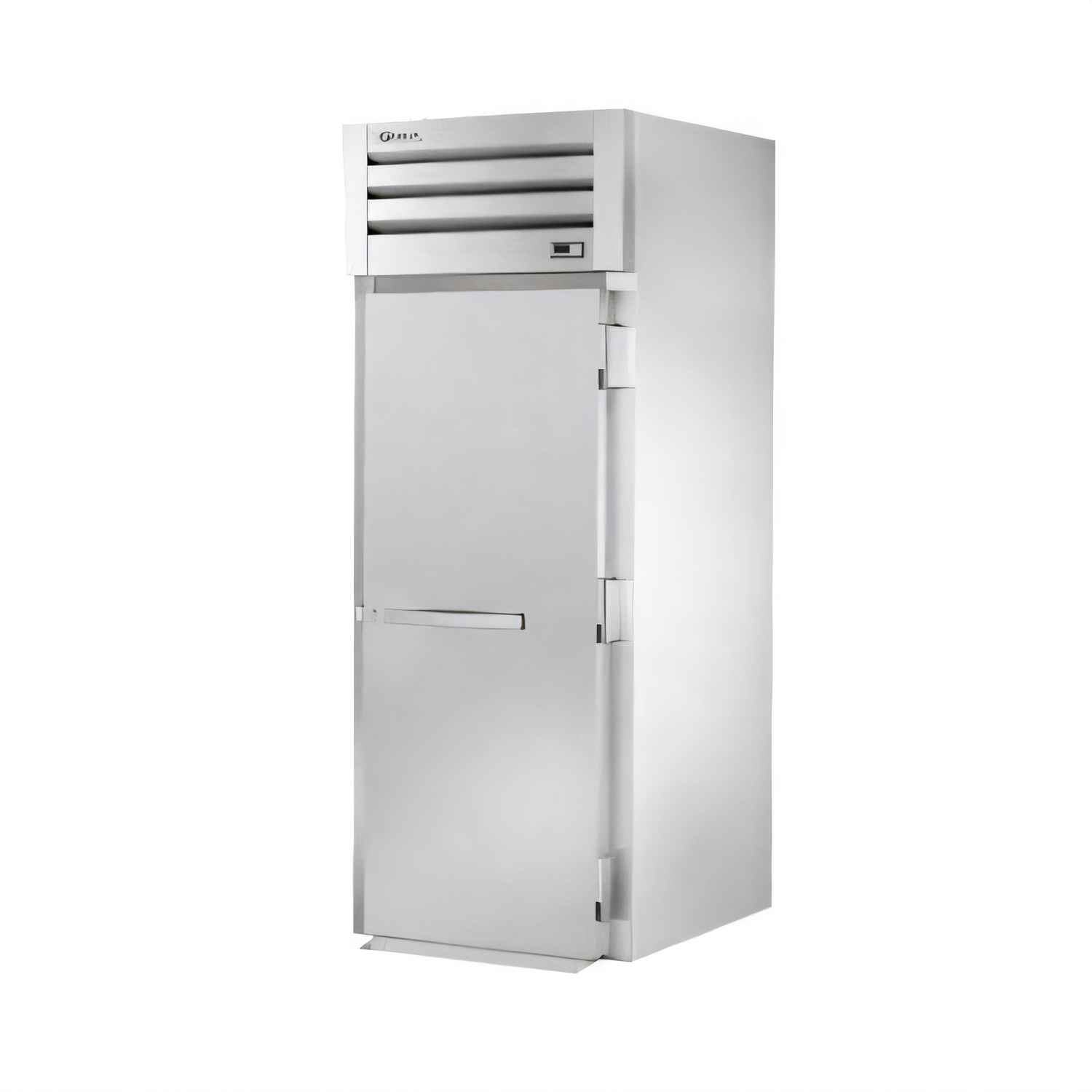

True SPEC SERIES® STG1HRI89-1S Roll-In Heated Holding Cabinet – 89 in H
One-section | Stainless Steel Door & Front | Aluminum Sides & InteriorKeep cooked product hot, safe, and ready for service with True’s premier roll-in heated cabinet. The STG1HRI89-1S pairs rock-solid construction with precision temperature control, letting you load a full rack, lock the door, and trust that every pan is held between 140 °F and 180 °F.
Key features

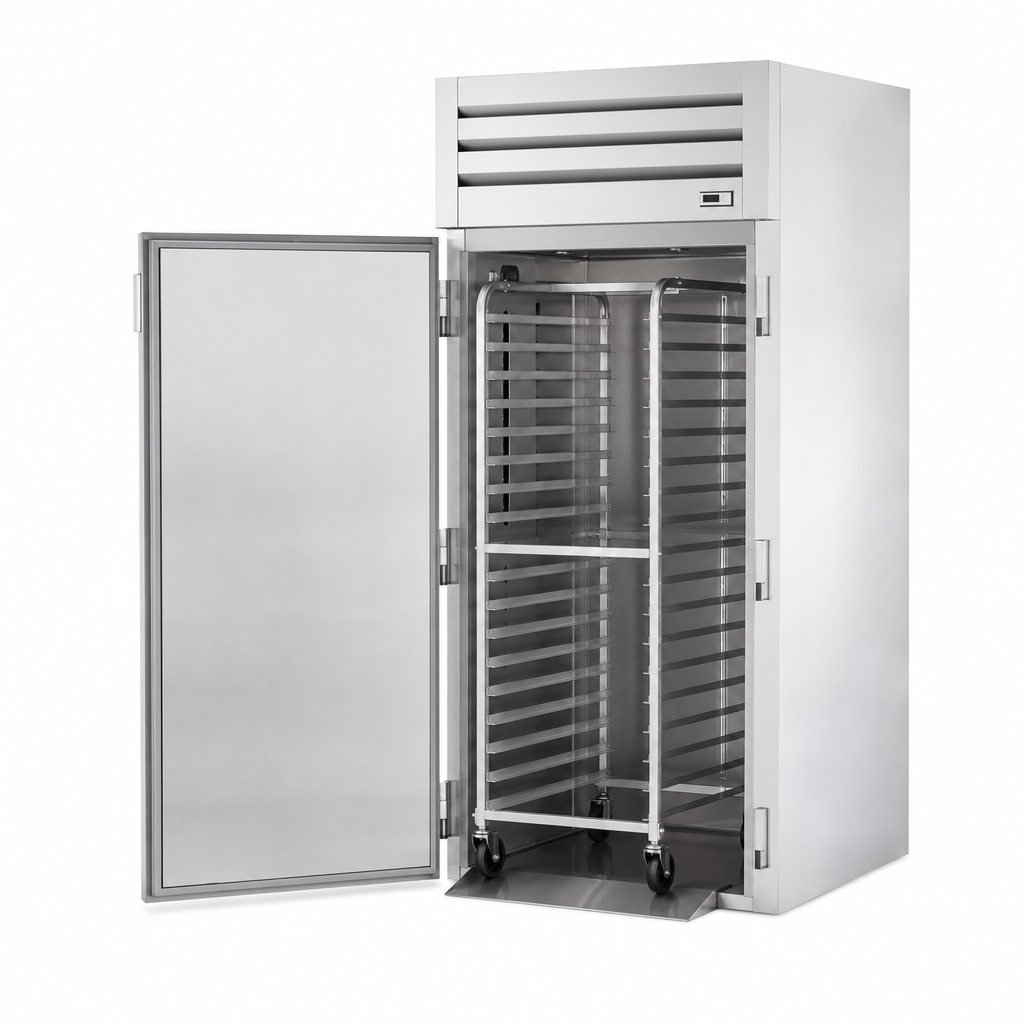

- Accepts roll-in racks (inboard casters) up to 27 in W × 29 in D × 72 in H.
- Dual 1 000 W stainless fin-tube elements (2 kW total) with low-velocity circulation fans for even heat.
- Exterior, color-coded temperature display with simple ON/OFF control.
- Top-mounted manual vent plus included 12 × 20 in water pan for adjustable humidity.
- Stainless steel loading ramp and internal bumpers guard against impact damage.

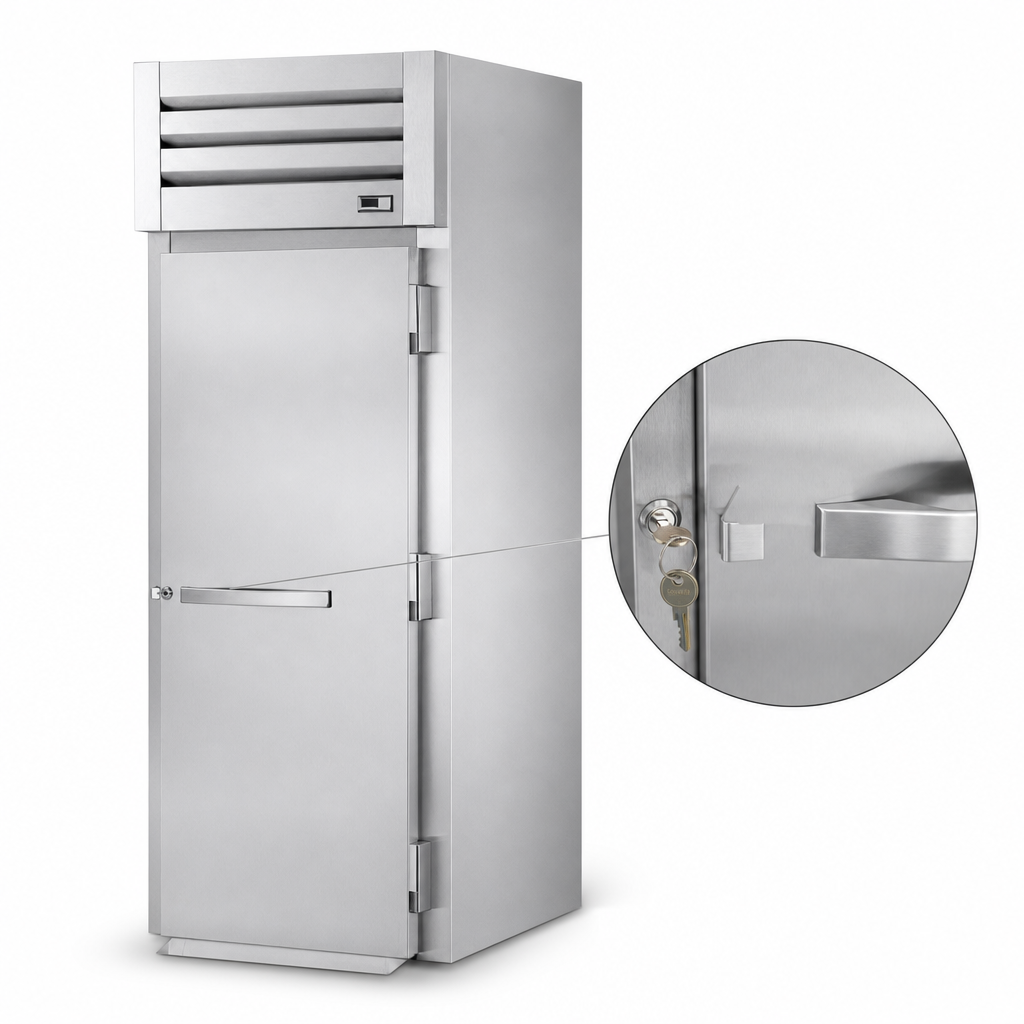

- Self-closing door with 120° stay-open stop, heavy-duty handle, bolt-style lock, and lifetime-guaranteed cam-lift hinges.
- Safety-shielded incandescent lighting activated by exterior switch.
- Foamed-in-place, high-density polyurethane insulation (zero ODP / zero GWP).
- cULus & UL EPH Classified; NSF/ANSI 4 compliant for open food.
- Made in the USA and backed by True’s 3-year parts & labor warranty.
Specifications
| Model | STG1HRI89-1S |
|---|---|
| Capacity | 1 roll-in rack (27 in W × 29 in D × 72 in H) |
| Exterior | Stainless steel door & front, aluminum sides |
| Interior | Aluminum side & back walls; stainless steel floor & ceiling |
| Dimensions | 35 in W × 34 ¾ in D † × 88 ¾ in H (889 × 883 × 2255 mm) |
| Heating Elements | 2 × 1 000 W (2 000 W total) |
| Temperature Range | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Electrical | 115/208-230 V, 60 Hz, 1-phase, 20 A, NEMA 14-20P, 9 ft (2.74 m) cord – dedicated circuit required |
| Certifications | cULus, UL EPH Classified, NSF/ANSI 4, Made in USA |
| Warranty | 3-year parts & labor; lifetime door lock, handle, and hinges |
Need a field-reversible hinge or stainless back panel? Contact us for factory-installed options.
