Description

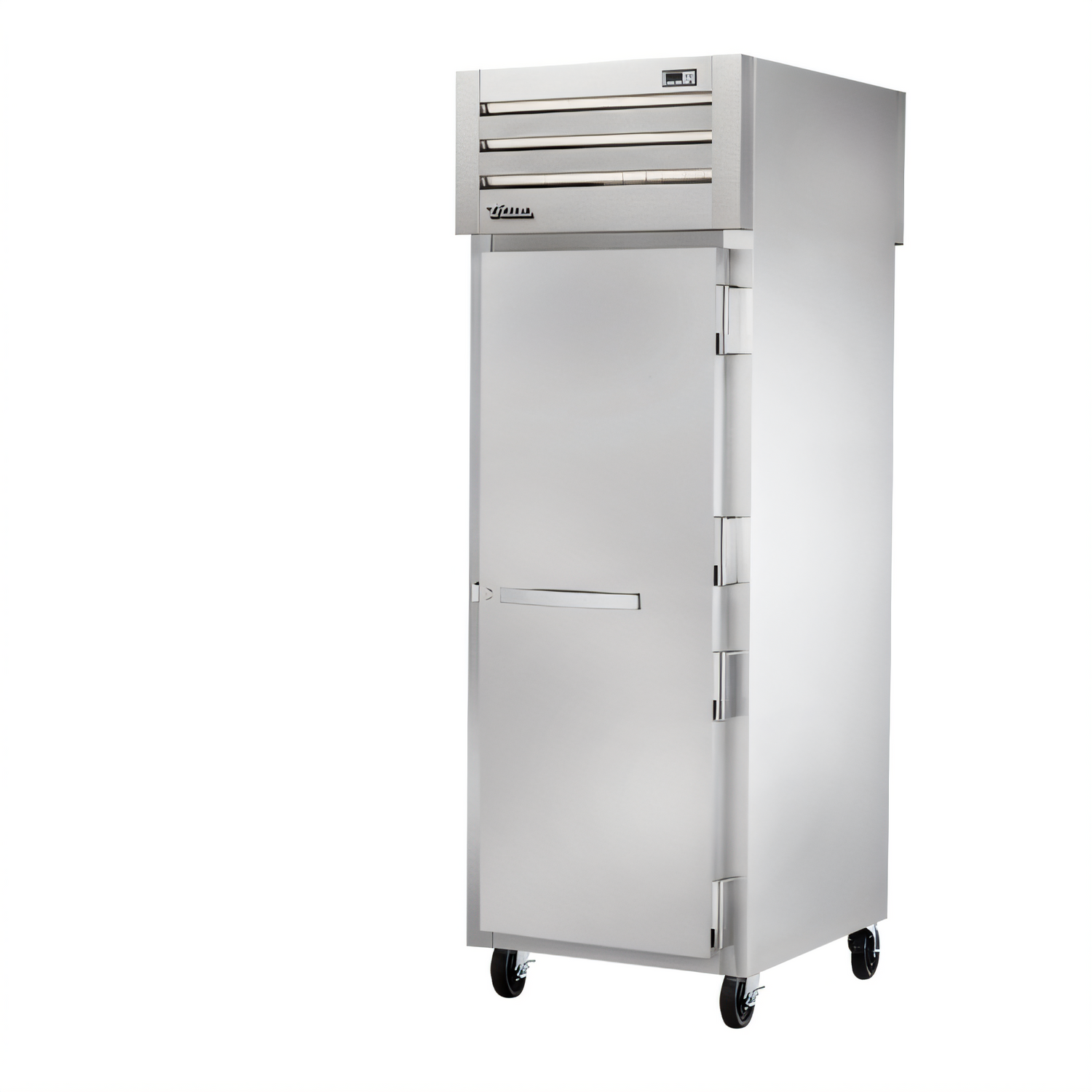

True Refrigeration SPEC SERIES® STR1HPT-1S-1S Pass-Thru Heated Holding Cabinet
1-Section • Solid Stainless Doors Front & Rear • 140-180 °F Holding RangeKeep plated meals, sheet-pans and hotel pans piping hot and service-ready with the True SPEC SERIES® STR1HPT-1S-1S. Engineered for the rigors of high-volume kitchens, this pass-thru cabinet provides even, reliable 140-180 °F (60-82 °C) heat on a compact 27½" footprint—perfect for banquette lines, prep areas and food court operations.
Why You’ll Love It
- Pass-Thru Convenience – Solid stainless doors on both sides speed up service and simplify tray loading.

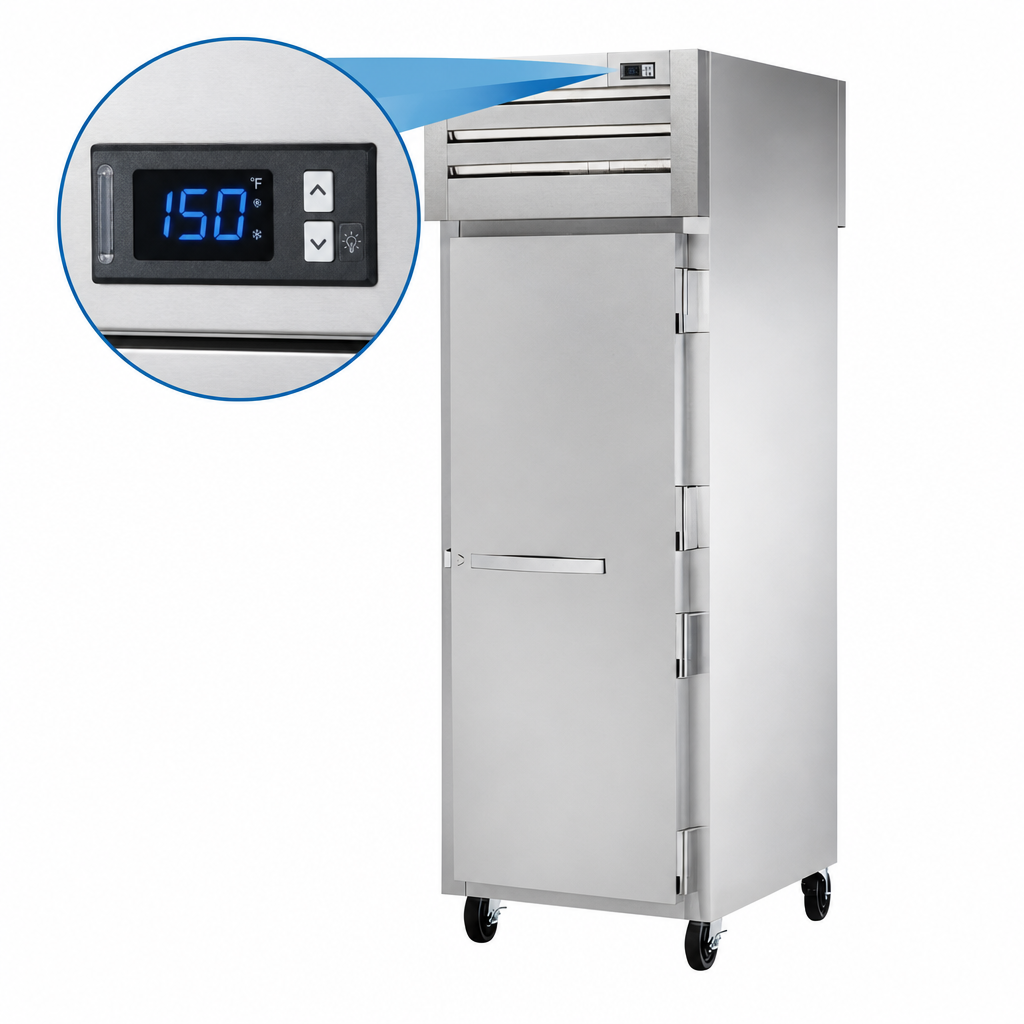

- Precise Digital Control – Front-mounted controller with bright LED read-out (°F/°C) keeps food safely in the HACCP hot-hold zone.
- Powerful 1.5 kW Heater – Stainless steel element and manual top vent deliver fast recovery and adjustable humidity.
- Built Like a Tank – Stainless front & doors, aluminum sides/interior, stainless floor/ceiling and Ecomate® foam insulation.
- Lockable, Self-Closing Doors – Bolt-style locks, lifetime-guaranteed cam-lift hinges and a 120° stay-open feature.
- Three Chrome Shelves Included – Heavy-duty, 25" × 27 ¾" wire shelves adjust on 6" increments for flexible storage.
- Ready to Roll – 5" diameter castors (front locking) come factory-installed for effortless mobility and cleaning access.
- Certified & Safe – NSF-4 listed for open food, cULus & UL EPH Classified, and proudly Made in the USA.
At-a-Glance Specifications
| Model | STR1HPT-1S-1S |
|---|---|
| Doors | (2) Solid stainless – front & rear, locking, self-closing |
| Sections / Shelves | 1 section / (3) chrome-plated wire shelves |
| Holding Range | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Heat Output | 1,500 W stainless steel element |
| Electrical | 208-230 V / 60 Hz / 1-phase, 8 A, NEMA 6-15P, 9 ft cord |
| Exterior (W×D×H) | 27 ½" × 36 ⅛" × 77 ¾" (699 × 918 × 1975 mm) Add 6 ⅛" (156 mm) for castors |
| Construction | Stainless front & doors, aluminum sides & interior, stainless floor & ceiling, foamed-in-place Ecomate® insulation |
| Mobility | (4) 5" plate castors – front locking |
| Certifications | NSF-4, cULus, UL EPH Classified |
| Origin | Made in the USA |
| Warranty | 3-year parts & labor (U.S.A.); lifetime on hinges and door handles |
Performance & Control
- Exterior rocker switch energizes the cabinet; separate switch controls the incandescent interior light.
- Manual top vent lets you dial in humidity—ideal for crispy fried items or moisture-sensitive breads.
- Magnetic, one-piece door gaskets remove without tools for quick sanitation.
Built for the Long Haul
- Ecomate® high-density polyurethane insulation—zero ODP, zero GWP.
- Lifetime-guaranteed cam-lift hinges align doors for a tight seal year after year.
- Positive-seal door design holds fast yet opens to 120° for painless loading and unloading.
- Field-upgradeable leg and tray-slide kits available to match your workflow (sold separately).
Looking for spec sheets, CAD blocks or optional accessories? Visit the True Refrigeration resource library or contact us through the True website.
