True Mfg. - General Foodservice  |  SPEC SERIES  |  SKU: STG1HPT-1G-1S

True Mfg. - General Foodservice STG1HPT-1G-1S SPEC SERIES Heated Cabinets & Holding Shelves

$7,350.71
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

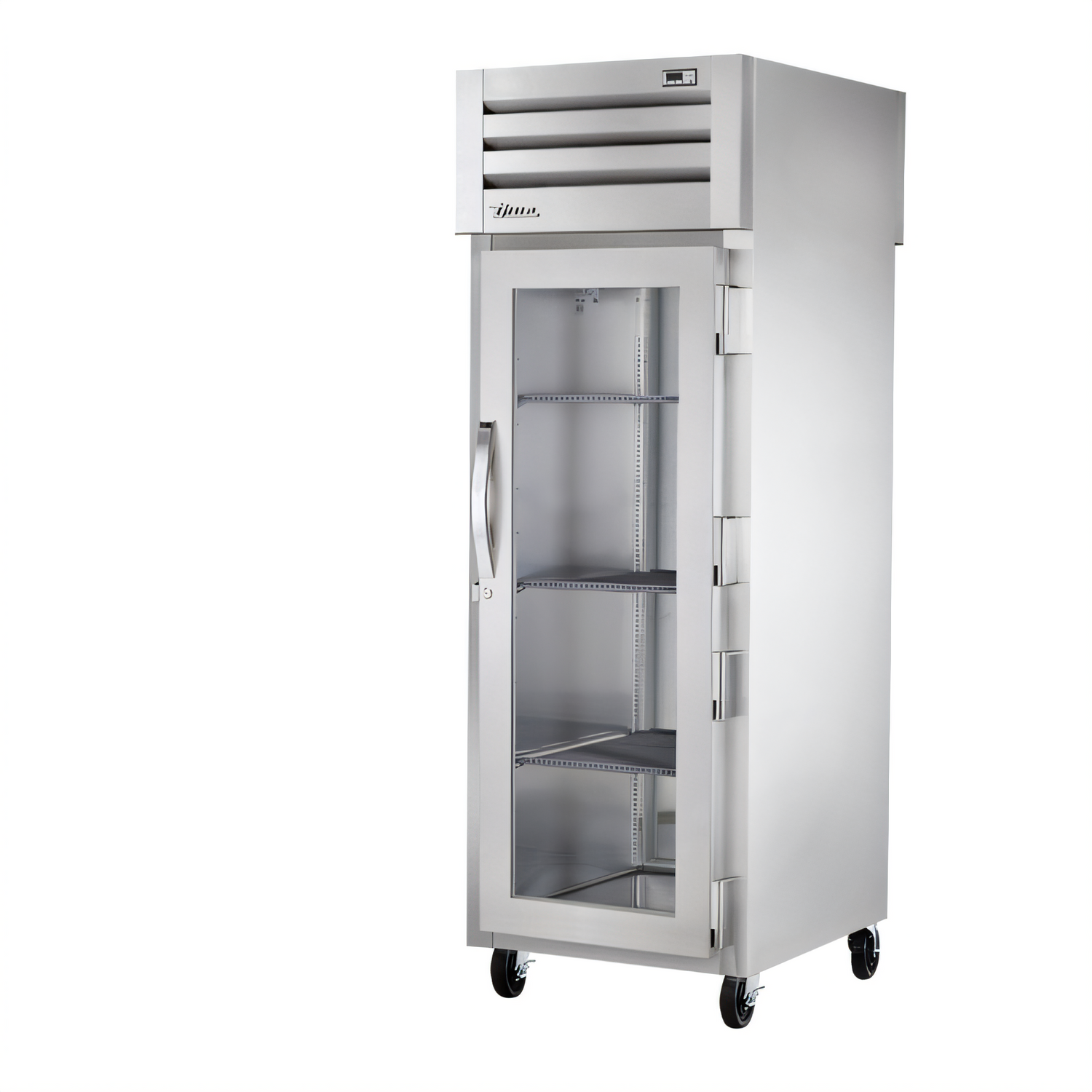

SPEC SERIES® Pass-Thru Heated Cabinet

Model STG1HPT-1G-1S • Glass Front / Solid Rear • 1 Section

Built in the USA for the most demanding commercial kitchens, the True SPEC SERIES® STG1HPT-1G-1S keeps plated meals, sheet-pans and baked goods hot, safe and ready for service. Consistent 140 – 180 °F holding, rugged all-metal construction and an industry-leading warranty make it the professional’s choice for banquets, hospitals, QSR chains and everywhere in-between.

Why you’ll love it

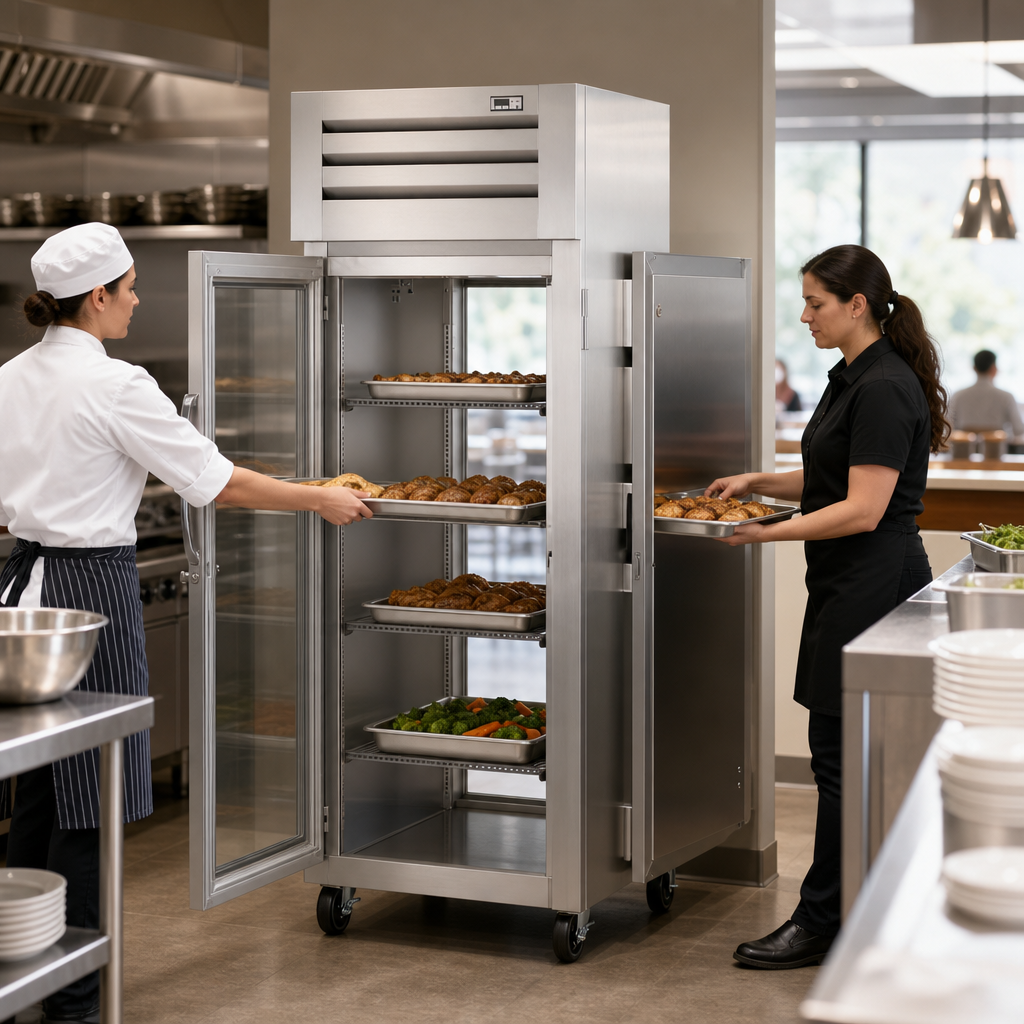

  • Pass-thru design streamlines work flow—load from the prep side, serve from the service side.
  • Low-E double-pane glass front door showcases product while minimizing heat loss.
  • Stainless-steel rear door, cam-lift hinges and heavy-duty handles built for decades of daily swings.
  • 1500 W stainless heating element, humidity vent and digital controls for precise 140–180 °F holding.
  • Three adjustable chrome shelves included; 11 tray-slide & universal pan kits available to customize capacity.
  • Foamed-in-place Ecomate® insulation—zero ODP / zero GWP and exceptional heat retention.
  • 5" locking castors glide easily for cleaning and service access; leg kits available.
  • cULus & UL EPH Classified; NSF-4 compliant for open food product.
  • Backed by True’s 7-year parts & labor warranty (USA/Canada).

At-a-glance specs

Exterior construction Stainless-steel doors, aluminum side panels
Interior All-aluminum liner, stainless floor & ceiling
Capacity (3) 25" × 27 ¾" chrome wire shelves, 250 lb load each
Temp range 140 °F – 180 °F  (60 – 82.2 °C)
Dimensions (W × D × H) 27 ½" × 36 ⅛" × 77 ¾"
+ 5" for castors; add 1 ½" for door handles
Electrical 1.5 kW, 208-230 V / 60 Hz / 1-ph, 15 A
NEMA 6-15P, 9 ft cord
Certifications cULus, UL EPH Classified, Made in USA
Warranty 7-year parts & labor (USA/Canada)

Included with your cabinet

  • (3) heavy-duty chrome shelves with clips
  • Front and rear door locks with lifetime-guaranteed bolt-style mechanism
  • Magnetic one-piece door gaskets—tool-free removal for cleaning
  • Incandescent interior lighting, safety-shielded
  • Factory-installed 5" diameter plate castors (front locking)

Popular add-ons (ship with cabinet)

  • Universal, sheet-pan or steam-table pan tray-slide kits
  • 6" legs (standard, seismic or stainless)
  • Additional chrome shelves
  • Security package

True requires a dedicated 15 A, single-phase circuit. Unit ships completely pre-wired—just plug and heat.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Brand_name

SPEC SERIES

Certifications

cULus, UL EPH Classified, Made in USA

Height

77.75in

Width

27.5in

Depth

36.13in

Shipping Weight

400.0lbs

Size

1 section

Exterior Finish

stainless steel front, aluminum sides

Doors

hinged glass & solid

Depth (front - back)

standard

Interior configuration

shelves

Interior Finish

aluminum interior

Thermometer

exterior digital

Specifications

SPEC SERIES® Heated Cabinet, pass-thru, one-section, (1) glass door front, (1) stainless steel door rear, locks, cam-lift hinges, digital temperature control, (3) chrome shelves, stainless steel front, aluminum sides, aluminum interior, 5" castors, 1.5kW, 208-230v/60/1-ph, NEMA 6-15P, cULus, UL EPH Classified, Made in USA
