True Mfg. - General Foodservice  |  SPEC SERIES  |  SKU: STG1H-1S

True Mfg. - General Foodservice STG1H-1S SPEC SERIES Heated Cabinets & Holding Shelves

$4,749.98
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation manual Warranty sheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

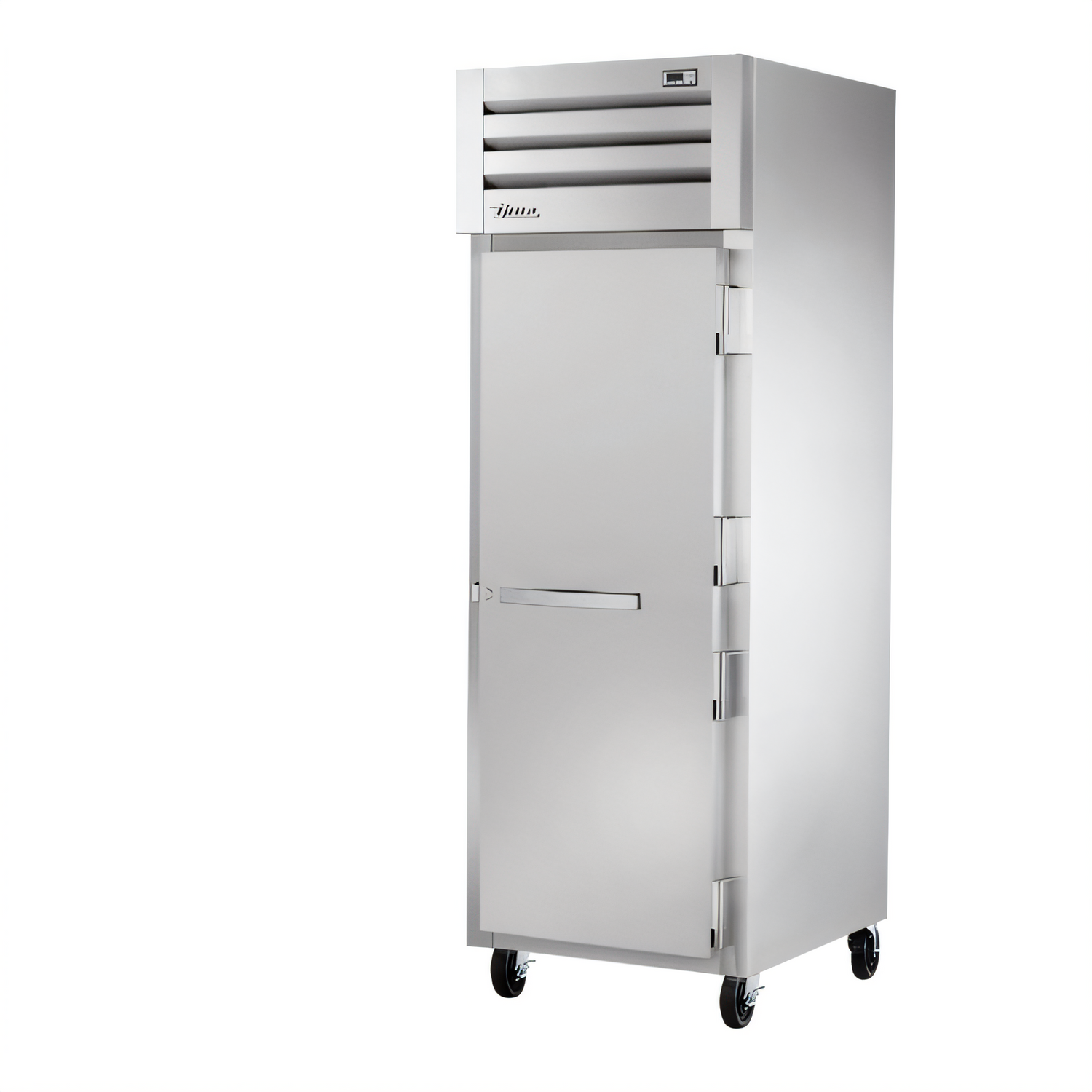

True SPEC SERIES® STG1H-1S Reach-In Heated Holding Cabinet | 1-Section

Digital 140–180 °F hot-holding with stainless door & 3 adjustable chrome shelves

Engineered for high-volume kitchens that refuse to compromise on food quality, the True STG1H-1S keeps pre-cooked menu items safely above the danger zone and ready for service. Rugged construction, precision controls and thoughtful details make this cabinet a long-term asset on any cookline.

Key Features
  • 140 °F – 180 °F (60 °C – 82 °C) holding range regulated by an exterior electronic thermostat.

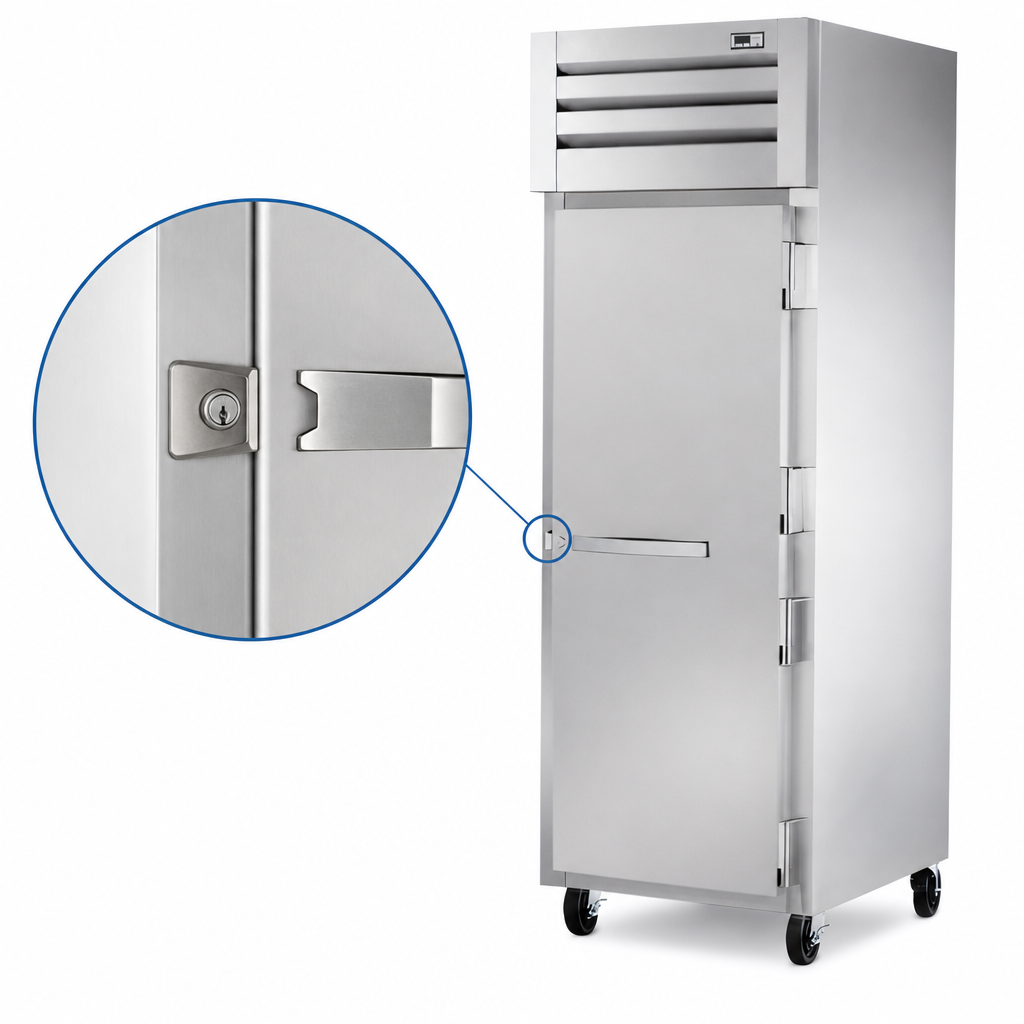

  • Full-length stainless steel solid swing door with bolt-style lock, heavy-duty handle and lifetime-guaranteed cam-lift hinges.
  • Bright, easy-read digital temperature display (°F / °C selectable).
  • Three (3) heavy-duty chrome-plated wire shelves, height-adjustable on ½ inch (13 mm) increments.
  • Low-velocity fan system delivers gentle, even heat throughout the cabinet.
  • Manually-controlled top vent puts operators in charge of cabinet humidity.
  • Durable cabinet: stainless front & door, corrosion-resistant aluminum sides, aluminum interior walls & back with stainless floor and ceiling.
  • Ecomate® foamed-in-place insulation – zero ODP, zero GWP.
  • Easy mobility on four 5 inch (127 mm) plate casters; front casters lock for secure positioning.
  • NSF-4 compliant for open food, cULus & UL EPH Classified.
  • Made in the USA and protected by a 3-year parts & labor warranty.
Specifications
Model STG1H-1S
Capacity 1 section  •  3 full-width shelves
Exterior Dimensions 27 ½" W × 33 ¾" D × 77 ¾" H (699 × 858 × 1975 mm)
Height excludes 5" (127 mm) casters.
Temperature Range 140 °F – 180 °F (60 °C – 82 °C)
Heat Output 1.5 kW stainless steel element
Electrical 208-240 V / 60 Hz / 1-phase  •  9 ft (2.74 m) cord  •  NEMA 6-15P
Construction Stainless door & front; aluminum sides; aluminum interior walls & back; stainless floor & ceiling
Insulation Foamed-in-place high-density polyurethane (Ecomate®)
Mobility Four 5" plate casters (front locking)
Approvals cULus  •  UL EPH Classified  •  NSF-4
Country of Origin USA
Optional Accessories (sold separately)
  • 6" (153 mm) adjustable legs or seismic/flanged legs
  • Additional chrome or electro-polished stainless shelves
  • Tray slide kits for 18 × 26, 14 × 18 and 12 × 20 pans
  • Stainless steel rear panel
Important: This cabinet is designed to maintain pre-heated food at safe serving temperatures. It is not intended to cook or reheat cold product. A dedicated 208-240 V / 60 Hz / 1-phase circuit is required.

Features & Specs

Manufacturer

True Mfg. - General Foodservice

Brand_name

SPEC SERIES

Certifications

cULus, UL EPH Classified, Made in USA

Height

77.75in

Width

27.5in

Depth

33.75in

Shipping Weight

350.0lbs

Exterior Finish

stainless steel front, aluminum sides

Interior Finish

aluminum interior

Interior configuration

shelves

Doors

hinged solid

Depth

standard depth

Size

1 section

Specifications

SPEC SERIES® Heated Cabinet, reach-in, one-section, (1) stainless steel door with lock, cam-lift hinges, digital temperature control, (3) chrome shelves, stainless steel front, aluminum sides, aluminum interior, 5" castors, 1.5kW, 208-230v/60/1-ph, NEMA 6-15P, cULus, UL EPH Classified, Made in USA
