True Mfg. - General Foodservice STG1H-1G SPEC SERIES Heated Cabinets & Holding Shelves
True Mfg. - General Foodservice STG1H-1G SPEC SERIES Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STG1H-1G SPEC SERIES Heated Cabinet...
Description

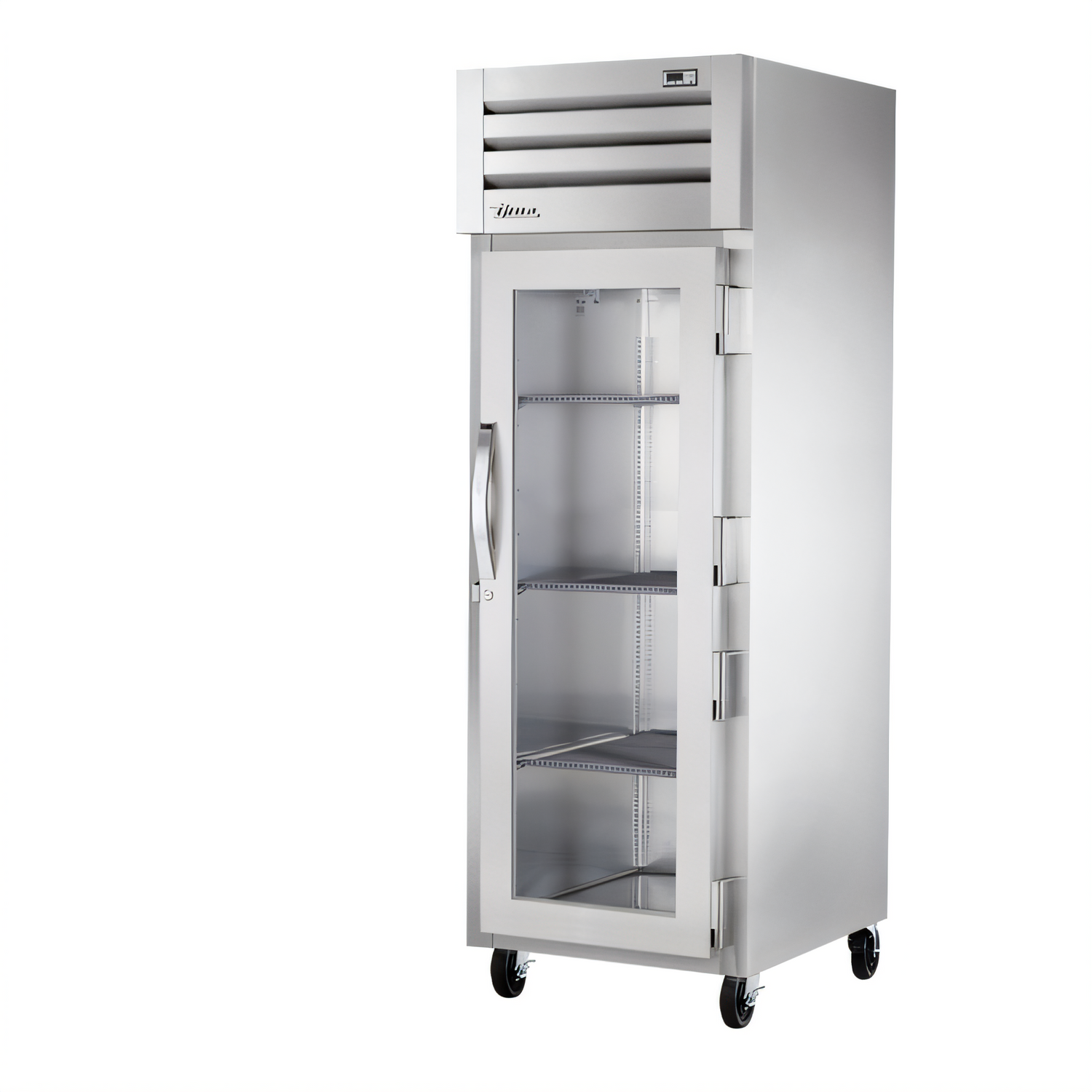

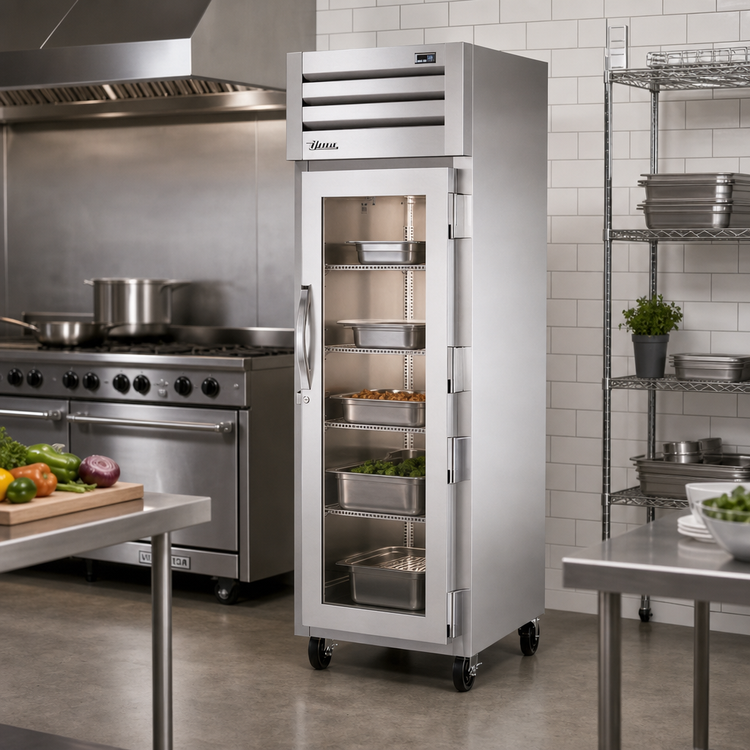

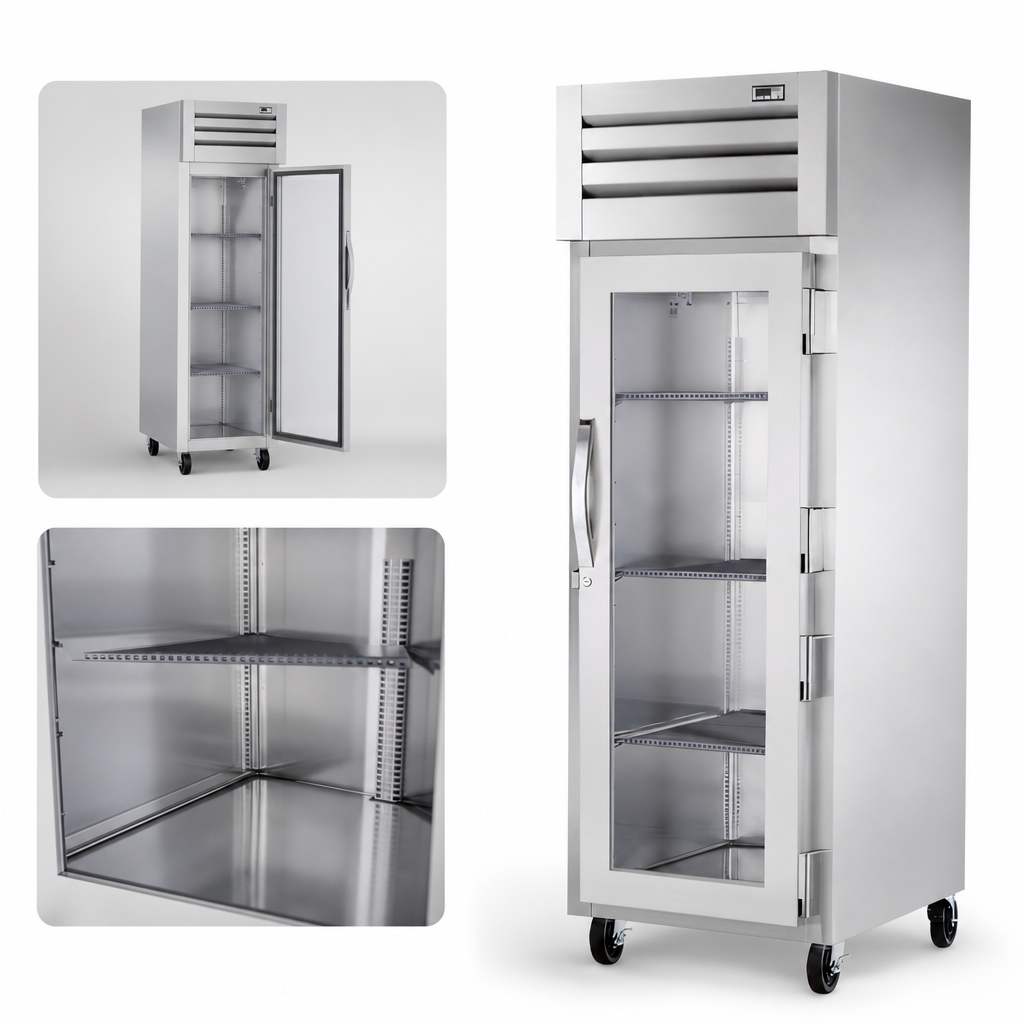

True Spec Series® STG1H-1G Reach-In Heated Holding Cabinet
One-section • Glass swing door • 1.5 kW • 208-230 V / 1 PhGive every plate the “just-out-of-the-oven” experience. The STG1H-1G keeps cooked or baked food at a precise 140-180 °F (60-82 °C) while its Low-E glass door showcases product, boosts impulse sales, and saves you precious prep-line space—all in a rugged, spec-grade cabinet made in the USA.
Why You’ll Love It
- Holds pans, trays, or plated meals safely above the danger zone (140-180 °F).
- Low-E, double-pane glass door maximizes product visibility and minimizes heat loss.
- Exterior digital control with °F/°C read-out for easy, accurate temperature dialing.
- Stainless steel front & door plus aluminum sides = tough, lightweight construction.
- 5" (127 mm) locking castors roll effortlessly for cleaning or service.
- cULus & UL EPH Classified; NSF-4 compliant for open food—ready for the cook-line.
- Backed by True’s industry-leading 7-year parts & labor warranty.
Standard Features
- 1 × stainless steel heating element (1.5 kW) with low-velocity fan circulation.
- Exterior on/off rocker switch and manual top vent for quick humidity control.
- Positive-seal, self-closing door with 120° stay-open position and lifetime cam-lift hinges.

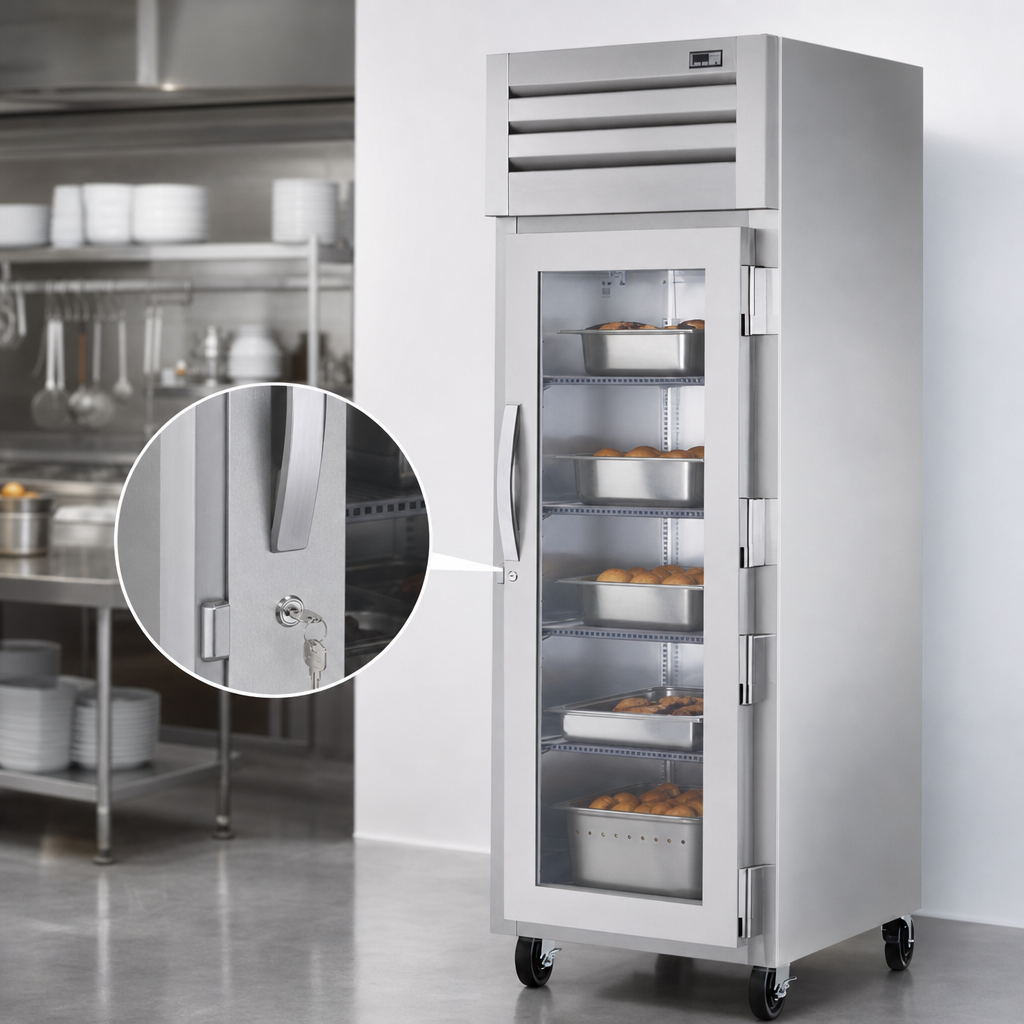

- Heavy-duty bolt-style door lock and all-metal tubular handle (lifetime guarantee).
- Ecomate® high-density foamed-in-place insulation (zero ODP, zero GWP).
- Three (3) chrome-plated shelves, adjustable on ½" (13 mm) increments.
- Incandescent interior light, shielded and switch-controlled from the front.
- 9 ft (2.74 m) cord with NEMA 6-15P for a dedicated 15 A, 208-230 V/60/1 outlet.
Specification Overview
| Exterior Construction | Stainless steel door & front, aluminum sides |
|---|---|
| Interior Construction | Aluminum sides & back, stainless floor & ceiling |
| Shelves Included | 3 × chrome wire, 25" W × 27 ¾" D (4 clips each) |
| Holding Temperature | 140-180 °F (60-82 °C) |
| External Controls | Digital thermostat ±1 °F accuracy, °F/°C selectable |
| Cabinet Dimensions | 27 ½" W × 33 ¾" D × 77 ¾" H (1975 mm), plus 5" castors |
| Electrical | 1.5 kW, 208-230 V / 60 Hz / 1 Ph, 15 A, NEMA 6-15P |
| Mobility | 5" plate castors, front set locking |
| Certifications | cULus, UL EPH Classified, NSF-4 |
| Country of Origin | Made in the USA |
Popular Options & Accessories
- Tray slide kits for full-size sheet pans or hotel pans (#1–#3).
- Additional chrome or electro-polished stainless shelves.
- 6" (153 mm) legs or seismic/flanged legs (replace castors).
- Stainless steel back for island placement.
Peace-of-Mind Warranty
True covers the entire cabinet—including parts & labor—for seven (7) years, plus seven-year coverage on the heating system. Register at purchase and enjoy world-class, US-based support.
