True Mfg. - General Foodservice STG1FPT-2HS-2HS SPEC SERIES Reach-In Refrigerators & Freezers
True Mfg. - General Foodservice STG1FPT-2HS-2HS SPEC SERIES Reach-In Refrigerators & Freezers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STG1FPT-2HS-2HS SPEC SERIES Reach-I...
Description

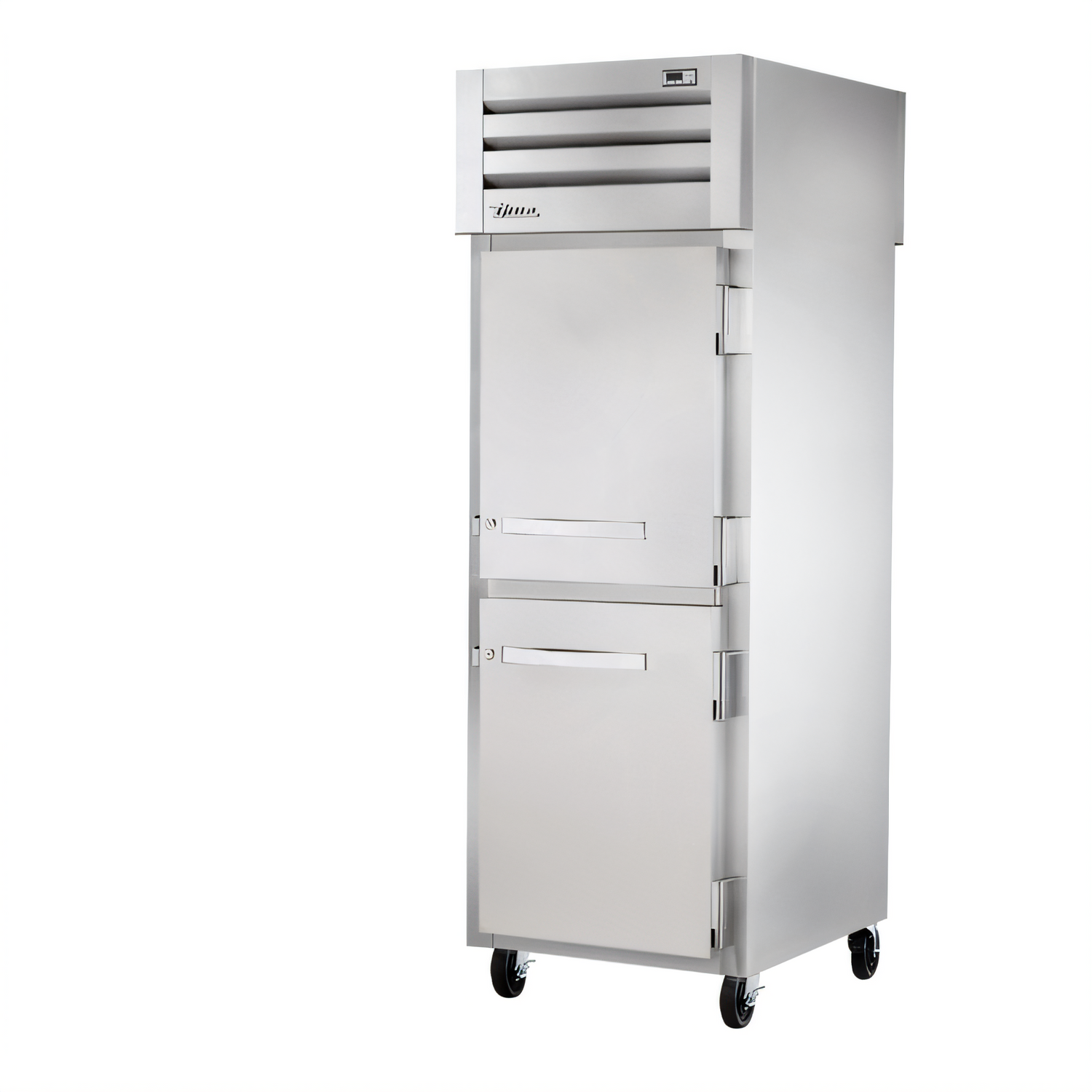

True SPEC SERIES® Pass-Thru Half-Door Freezer – 1 Section
Model STG1FPT-2HS-2HS | 27½″ W × 36⅛″ D × 77¾″ H*Move product from prep to plate without breaking the cold chain. True’s SPEC SERIES® pass-thru freezer lets you load from the back and pull from the front, streamlining busy cooklines while holding a rock-solid −10 °F (−23.3 °C). Built, engineered and warrantied in the USA, it delivers the heavy-duty construction, precise temperature control and long-term reliability chefs expect from the industry’s #1 refrigeration brand.
Key performance advantages

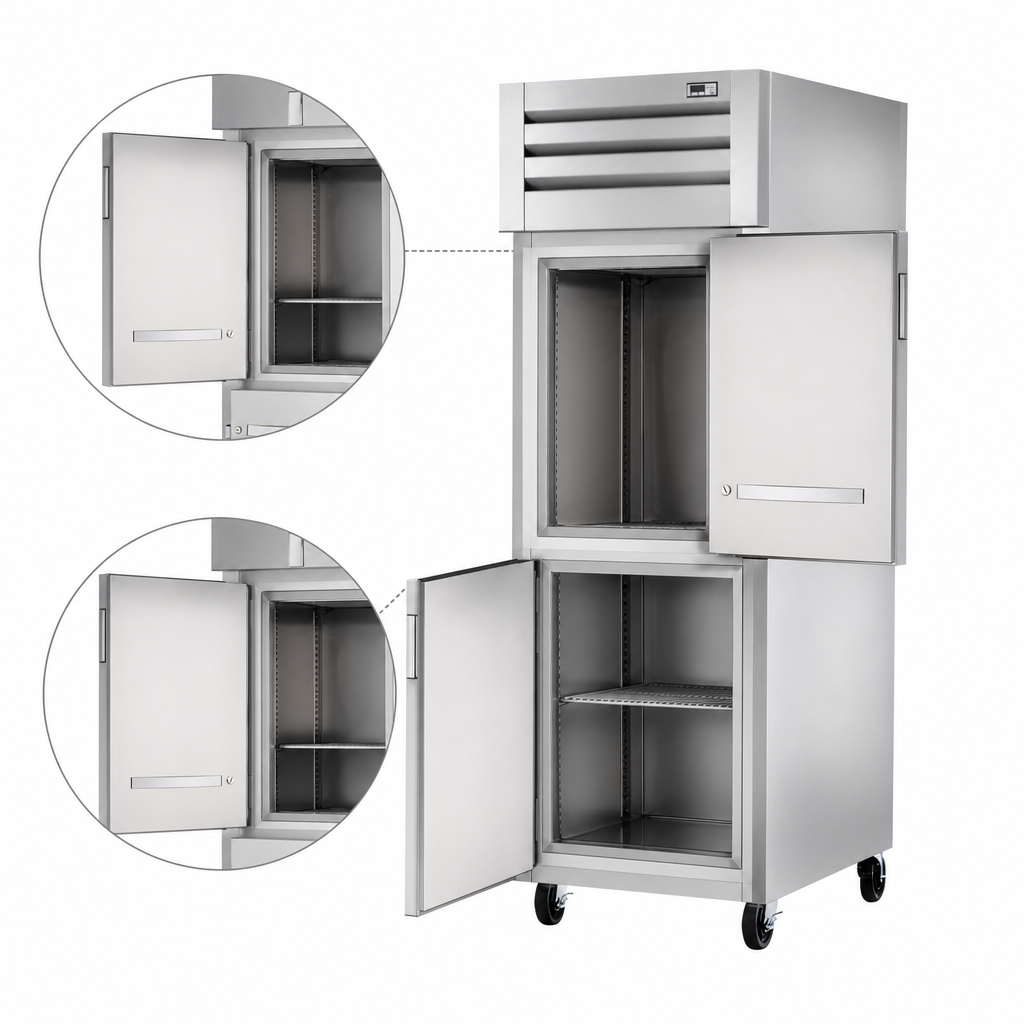

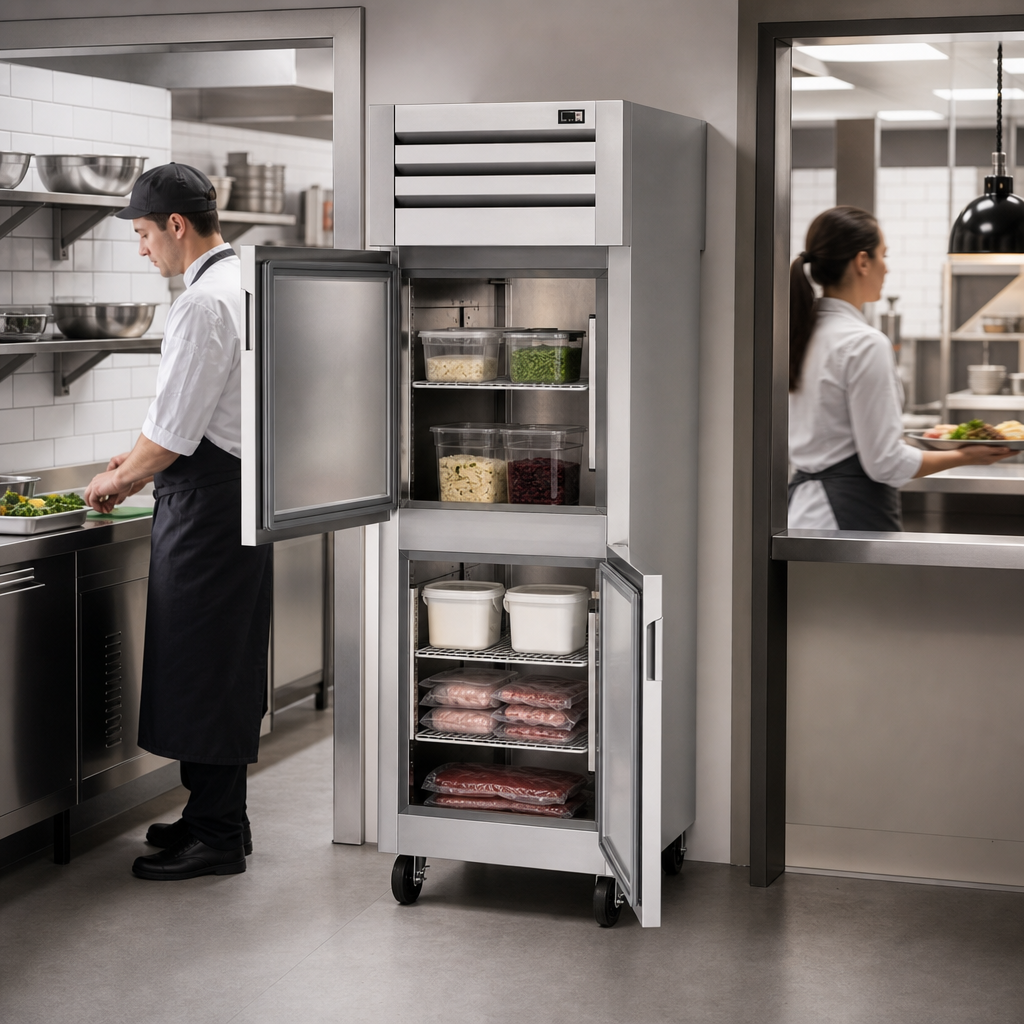

- Pass-thru design with (2) stainless-steel half doors front & rear; individual locks secure every compartment.
- Self-contained, top-mount, 3⁄4 HP refrigeration system charged with environmentally-friendly R404A refrigerant.
- Holds −10 °F – perfect for both frozen foods and ice cream.
- State-of-the-art electronically commutated (ECM) condenser & evaporator fan motors for up to 75 % energy savings over shaded-pole motors.
- Exterior digital temperature control/display (°F or °C) for easy, at-a-glance monitoring.
- Automatic defrost: time-initiated, temperature-terminated with fan-delay to prevent warm air blow-back.
- LED interior lighting with safety shield brings full-cabinet visibility while cutting energy use.
- Ecomate® high-density, CFC-free polyurethane insulation (zero ODP & zero GWP).
Built for daily abuse
- Stainless-steel front & doors paired with durable aluminum side panels & interior.
- Lifetime-guaranteed external cam-lift hinges and all-metal door handles.
- Positive-seal, self-closing doors with a 120° stay-open feature for safe loading.
- Three (3) heavy-duty PVC-coated wire shelves (gray) – adjustable on ½″ increments.
- 5″ diameter plate castors; front set locks for rock-solid positioning.
Technical specifications
| Cabinet type | One-section, pass-thru freezer |
|---|---|
| Door configuration | (2) stainless half doors front + (2) stainless half doors rear, all locking |
| Interior shelving | 3 × PVC-coated wire shelves (25″ W × 27¾″ D) |
| Temperature | Factory-set at −10 °F (−23.3 °C) adjustable via digital control |
| Refrigeration | Self-contained, top-mounted – 3⁄4 HP, R404A |
| Electrical | 115 V / 60 Hz / 1-phase, 8.7 A, NEMA 5-15P, 9 ft (2.74 m) cord |
| Exterior dimensions* | 27½″ W × 36⅛″ D × 77¾″ H (699 × 918 × 1975 mm) |
| Castors / legs | 5″ locking castors standard; 6″ legs (standard, seismic or stainless) optional |
| Compliance | cULus, UL EPH Classified, NSF-7 for open food product |
| Country of origin | Made in the USA |
*Height does not include 6⅛″ for castors (or 6″ for optional legs). Depth does not include 1½″ for front & rear door handles.
Included & optional accessories
- Included: 3 heavy-duty shelves, factory-installed tray slide pilasters, locking castors.
- Tray slide kits #1–#4 for sheet-/steam-pan staging.
- Additional chrome or universal shelves.
- 6″ standard, seismic/flanged, or stainless-steel legs.
Industry-leading warranty
True backs every SPEC SERIES® freezer with a 7-year parts, labor & compressor warranty (USA/Canada/Puerto Rico). That’s peace of mind no import can match.
