Description

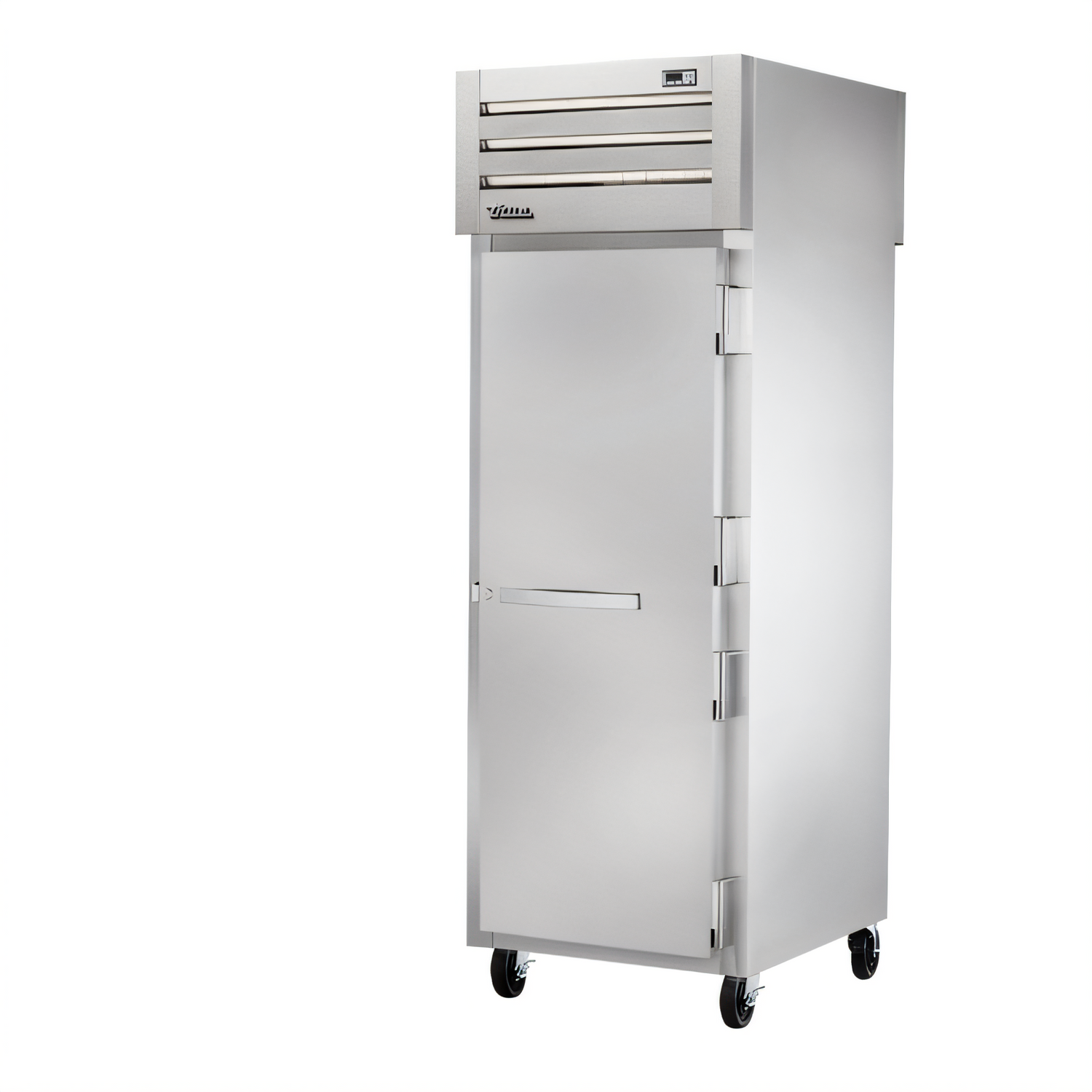

SPEC SERIES® Pass-Thru Freezer – 1 Section
Model STG1FPT-1S-1S | True RefrigerationBuilt for high-volume, high-traffic kitchens, True’s SPEC SERIES® one-section pass-thru freezer lets you load from prep and pull from the cook-line—all while holding product at a rock-solid -10°F (-23.3 °C). Rugged construction, top-mounted refrigeration, and a best-in-class 7-year warranty make it the last freezer you’ll need for years to come.
Top Reasons You’ll Love It

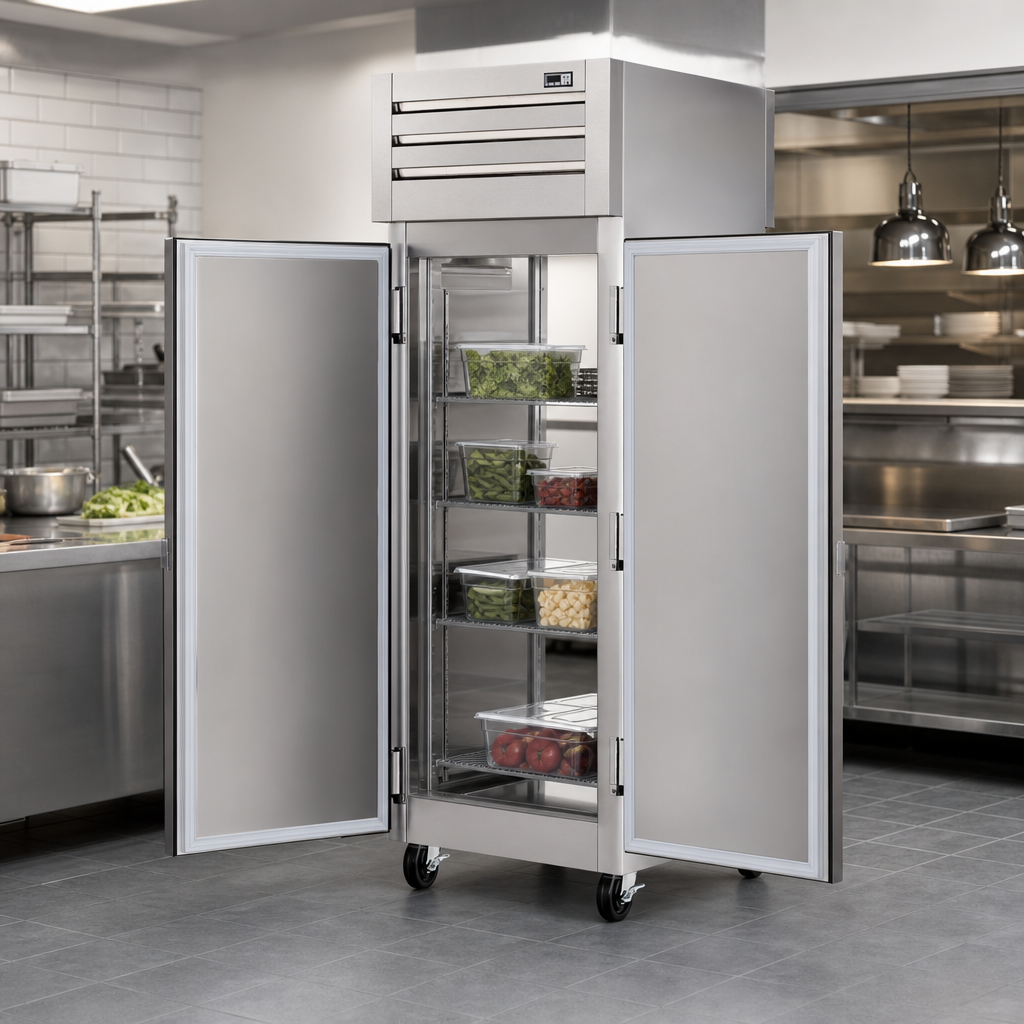

- True pass-thru workflow – solid stainless doors front & rear speed up production and reduce cross-traffic.

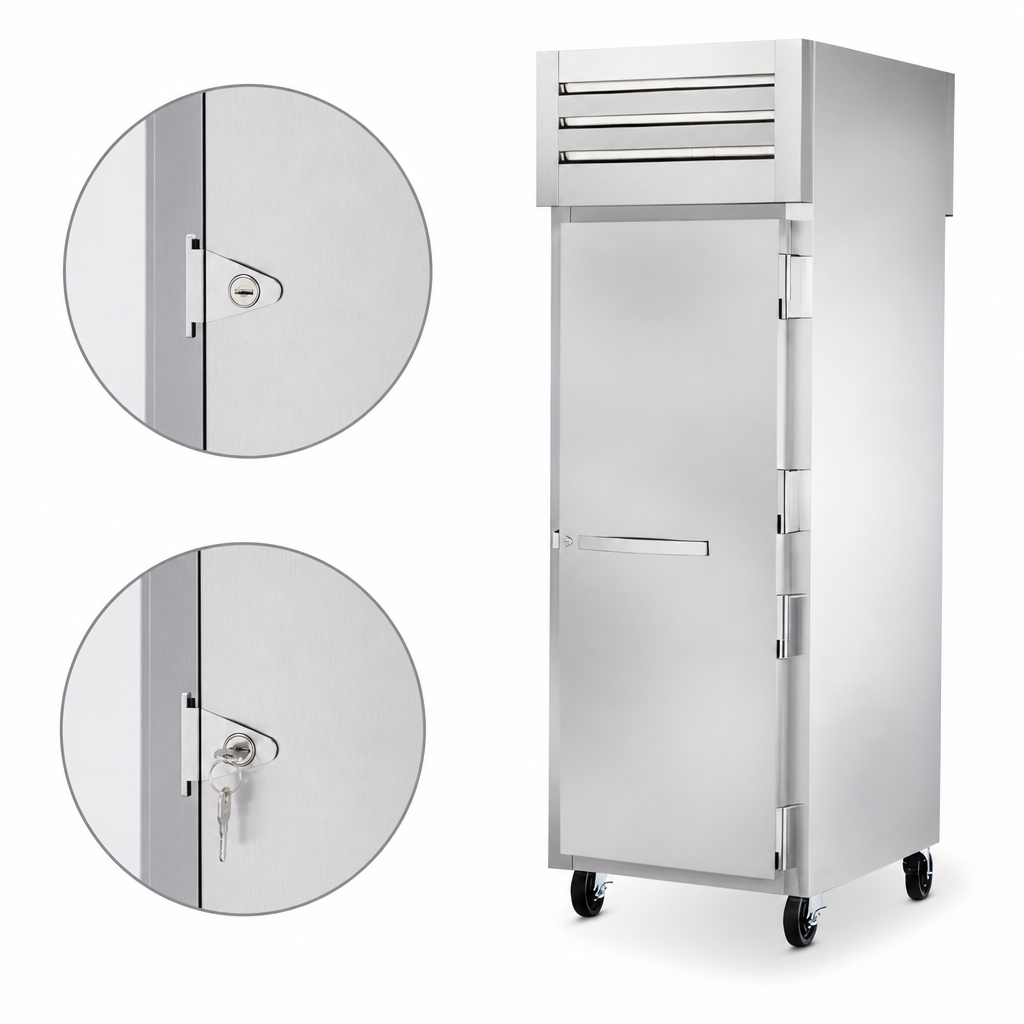

- Locks, cam-lift hinges & stay-open feature (120°) keep doors secure yet operator-friendly; all-metal handles & hinges carry a lifetime guarantee.
- High-capacity, self-contained system with eco-friendly R404A maintains -10°F, perfect for frozen foods & ice cream.
- Energy-saving ECM fan motors move more air, create less heat, and cut operating costs.
- Top-mounted refrigeration keeps the food zone unobstructed and easier to clean.
- LED lighting and three heavy-duty, PVC-coated gray wire shelves (adjustable on ½" increments).
- Durable “kitchen-proof” build – stainless steel front & doors, corrosion-resistant aluminum sides & interior, plus Ecomate® insulation (zero ODP / zero GWP).
- Factory-installed 5" locking castors – roll it in, plug it in, and you’re in business.
- Exterior digital control & display toggle between °F/°C and provide quick system diagnostics.
- cULus & UL EPH Classified; proudly Made in the USA.
Technical Specifications
| Doors / Sections | 1 front + 1 rear, solid, self-closing with locks |
|---|---|
| Shelves (included) | 3 adjustable, heavy-duty gray PVC-coated wire |
| Temperature Range | -10°F (-23.3 °C) factory-set |
| Refrigeration | 3/4 HP, capillary tube, R404A |
| Electrical | 115 V / 60 Hz / 1-phase, 8.7 A, NEMA 5-15P (9 ft cord) |
| Exterior Dimensions | 27 ½" W × 36 ⅛" D × 77 ¾" H* |
| Construction | Stainless front & doors, aluminum sides & interior; foamed-in-place Ecomate® insulation |
| Mobility | 5" (127 mm) locking plate castors (standard) |
| Certifications | cULus, UL EPH Classified, NSF-7 compliant |
| Warranty | 7-year parts & labor • 7-year compressor (U.S./Canada) |
*Height shown does not include 6 ⅛" castors; depth does not include 1 ½" for door handles.
Popular Add-Ons (sold separately)
- Universal pan slide kits for 18"×26", 14"×18", or 12"×20" pans
- Additional wire shelves
- 6" adjustable legs (standard, stainless, or seismic-flanged)
