Description

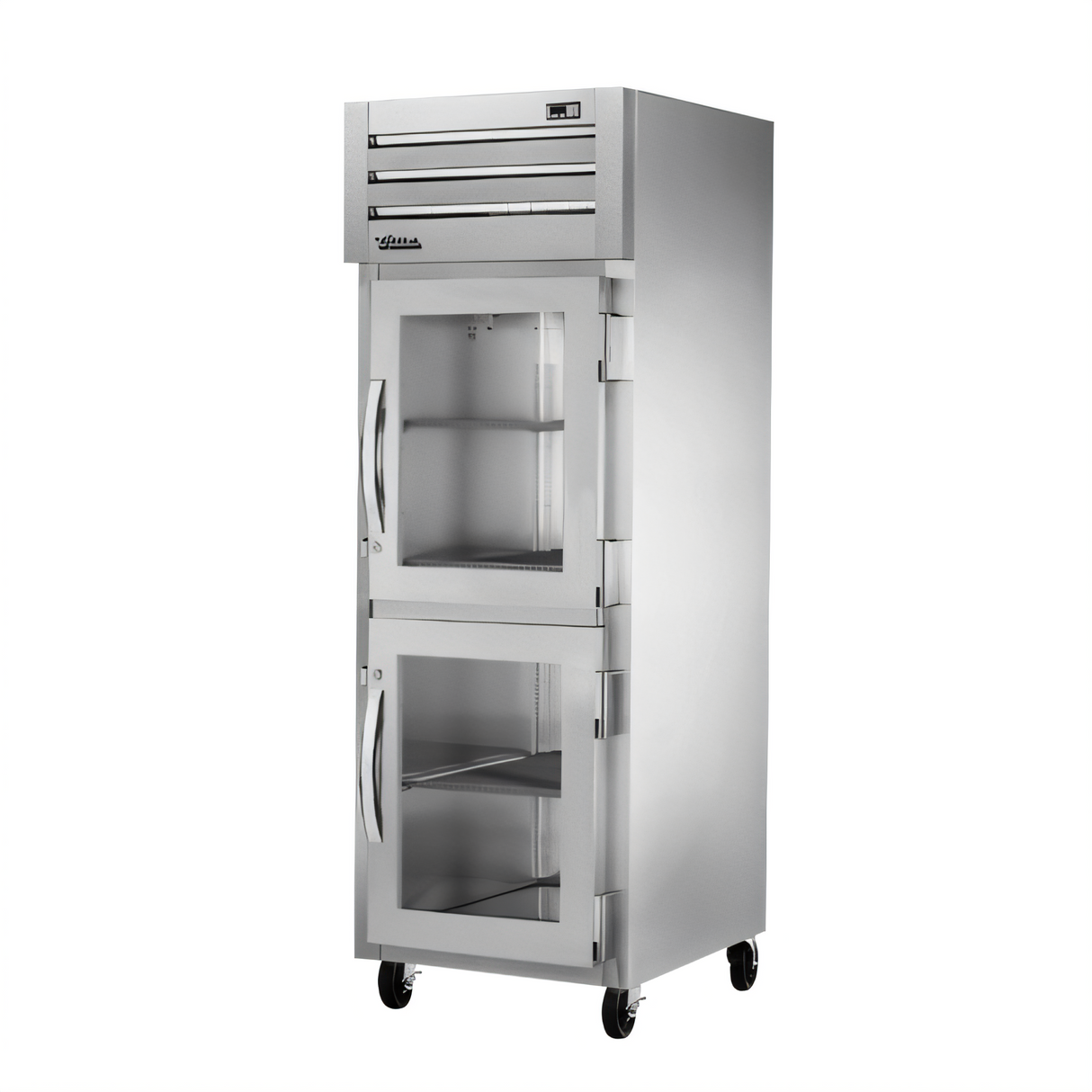

True Spec Series® STG1F-2HG-HC One-Section Glass Half-Door Reach-In Freezer
27 ½" W • –10 °F holding temperature • Hydrocarbon refrigerantKeep frozen inventory locked-in, lit-up and ready for service with the True Spec Series® STG1F-2HG-HC. Built in the USA for the rigors of commercial kitchens, this one-section freezer combines -10 °F performance, energy-saving R290 refrigeration and an industry-leading 7-year warranty— all in a space-saving 27 ½" footprint.
Why This Freezer Stands Out
- Two triple-pane glass half doors—self-closing, 120° stay-open, cam-lift hinges & bolt-style locks.

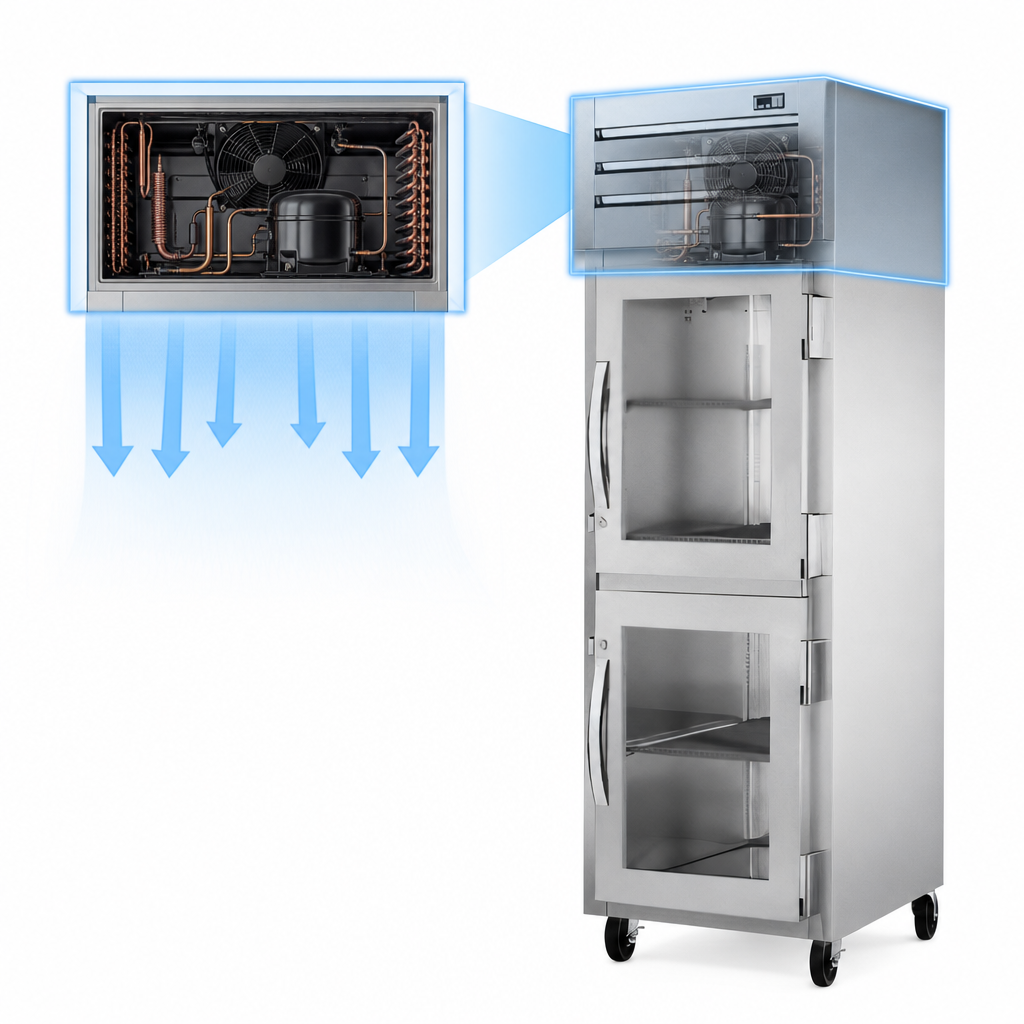

- Top-mounted, factory-balanced system holds –10 °F (–23.3 °C) for ice cream & frozen foods.
- Energy-efficient ECM evaporator & condenser fans plus bright, safety-shielded LED lighting.
- 3 PVC-coated gray wire shelves, adjustable on ½" increments for flexible product spacing.
- 3/4 HP compressor with eco-friendly R290 refrigerant (0 ODP / 3 GWP).
- 5" locking castors for easy cleaning—optional 6" legs or seismic legs available.
- Cabinet foamed-in-place with Ecomate® insulation (zero ODP & zero GWP).
- Digital temperature control & exterior display (°F/°C).
- NSF/ANSI 7 for open food, cULus listed & UL EPH Classified.
- Proudly Made in the USA and backed by True’s 7-year parts, labor & compressor warranty*.
Technical Specifications
| Model | STG1F-2HG-HC |
|---|---|
| Doors | (2) Glass half-size, self-closing with locks & 120° hold-open |
| Shelves | (3) Heavy-duty PVC-coated (gray) wire, adjustable |
| Exterior | Stainless steel doors, aluminum sides |
| Interior | Aluminum walls; stainless steel floor & ceiling |
| Temperature | Maintains –10 °F (–23.3 °C) |
| Overall Dimensions | 27 ½" W × 33 ¾" D × 77 ¾" H (add 6 ⅛" for castors) |
| Horsepower | ¾ HP |
| Refrigerant | R290 Hydrocarbon |
| Voltage | 115 V / 60 Hz / 1-Ph |
| Amperage | 10.4 A |
| Plug | NEMA 5-15P (9 ft cord) |
| Mobility | 5" diameter castors, front set locking |
| Certifications | cULus • UL EPH Classified • NSF/ANSI 7 |
| Country of Origin | USA |
*Warranty applies to units purchased & installed in the USA, Canada and Puerto Rico. Refer to the full warranty statement for terms and exclusions.
