Description

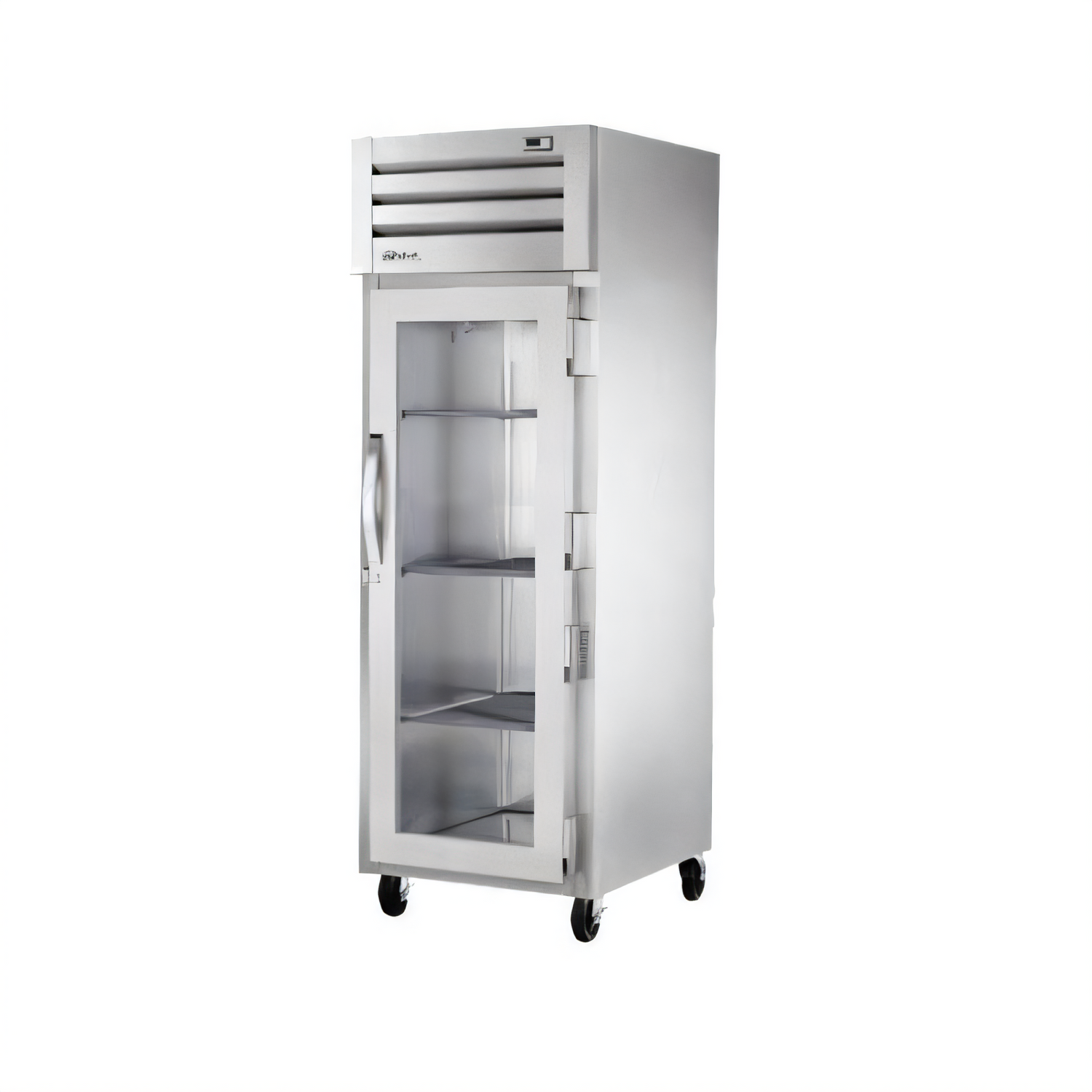

True Spec Series® Single-Section Glass Door Reach-In Freezer
Model STG1F-1G-HC | -10 °F holding temperatureBuilt for demanding commercial kitchens that refuse to compromise, the Spec Series® STG1F-1G-HC keeps product at a rock-solid -10 °F while showcasing it behind a crystal-clear, triple-pane glass door. Rugged stainless steel, energy-saving hydrocarbon refrigeration and a best-in-class 7-year parts, labor & compressor warranty make this the last one-section freezer you’ll need for years to come.
Why Operators Choose This Freezer

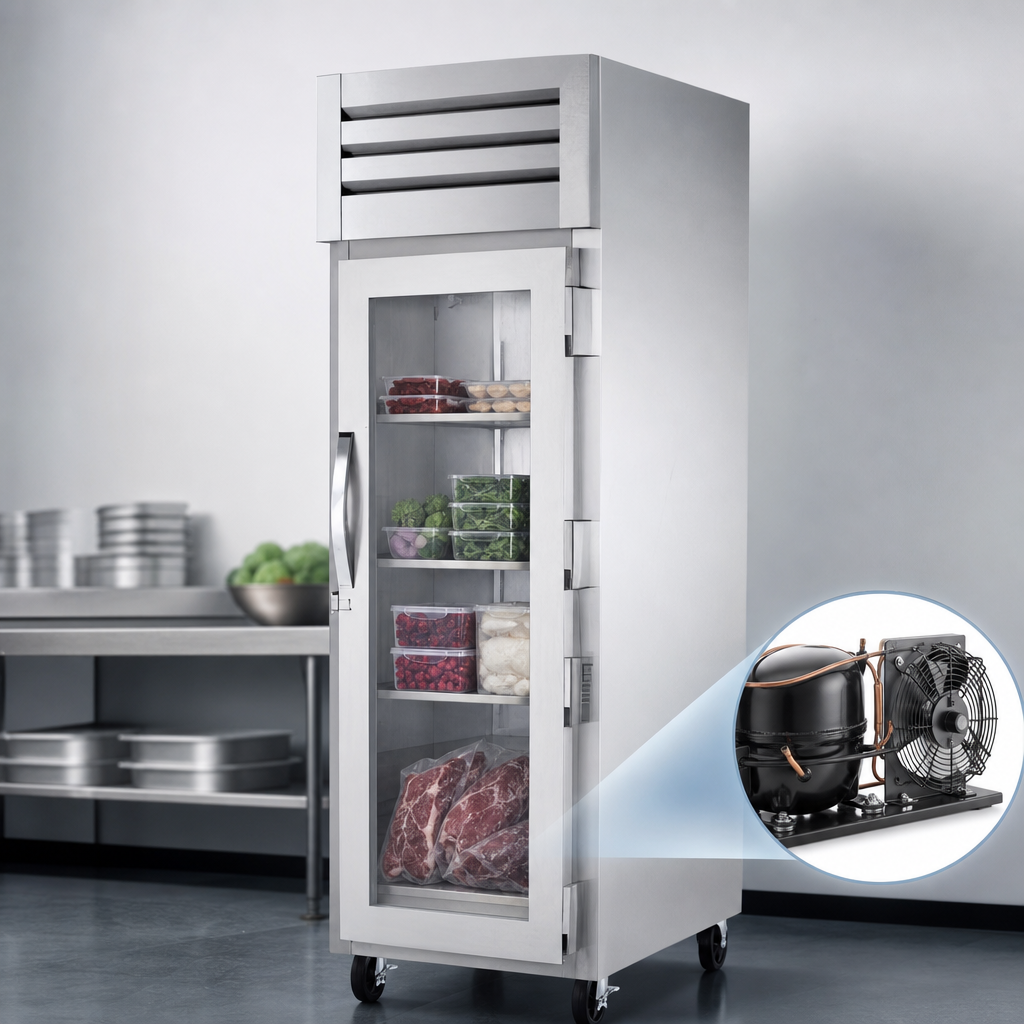

- Factory-balanced R290 hydrocarbon refrigeration system hits and holds -10 °F (-23.3 °C).
- Triple-pane thermal glass door with lifetime bolt-style lock, heavy-duty cam-lift hinges & 120° stay-open feature.
- Digital temperature control/display (°F or °C) for quick, at-a-glance verification.
- Stainless steel front paired with corrosion-resistant aluminum sides & interior for a perfect strength-to-weight ratio.
- (3) heavy-duty gray, PVC-coated wire shelves—height adjustable on ½" (13 mm) increments.
- Energy-efficient LED lighting brightly illuminates every shelf.
- 5" (127 mm) locking plate castors roll easily for cleaning and service access.
- Foamed-in-place Ecomate® insulation (zero ODP, zero GWP).
- NSF/ANSI 7 for open food, cULus & UL EPH Classified, Made in the USA.
Technical Specifications
| Capacity | One full section |
|---|---|
| Exterior Dimensions (W × D × H) | 27 ½" × 33 ¾" × 77 ¾" (699 × 858 × 1975 mm) +6 ⅛" (156 mm) for standard castors |
| Door | 1 glass swing door, self-closing, field-reversible, lockable |
| Shelves | 3 adjustable, PVC-coated wire shelves |
| Temperature Range | Factory-set to -10 °F (-23.3 °C) |
| Refrigerant | R290 (natural, low GWP) |

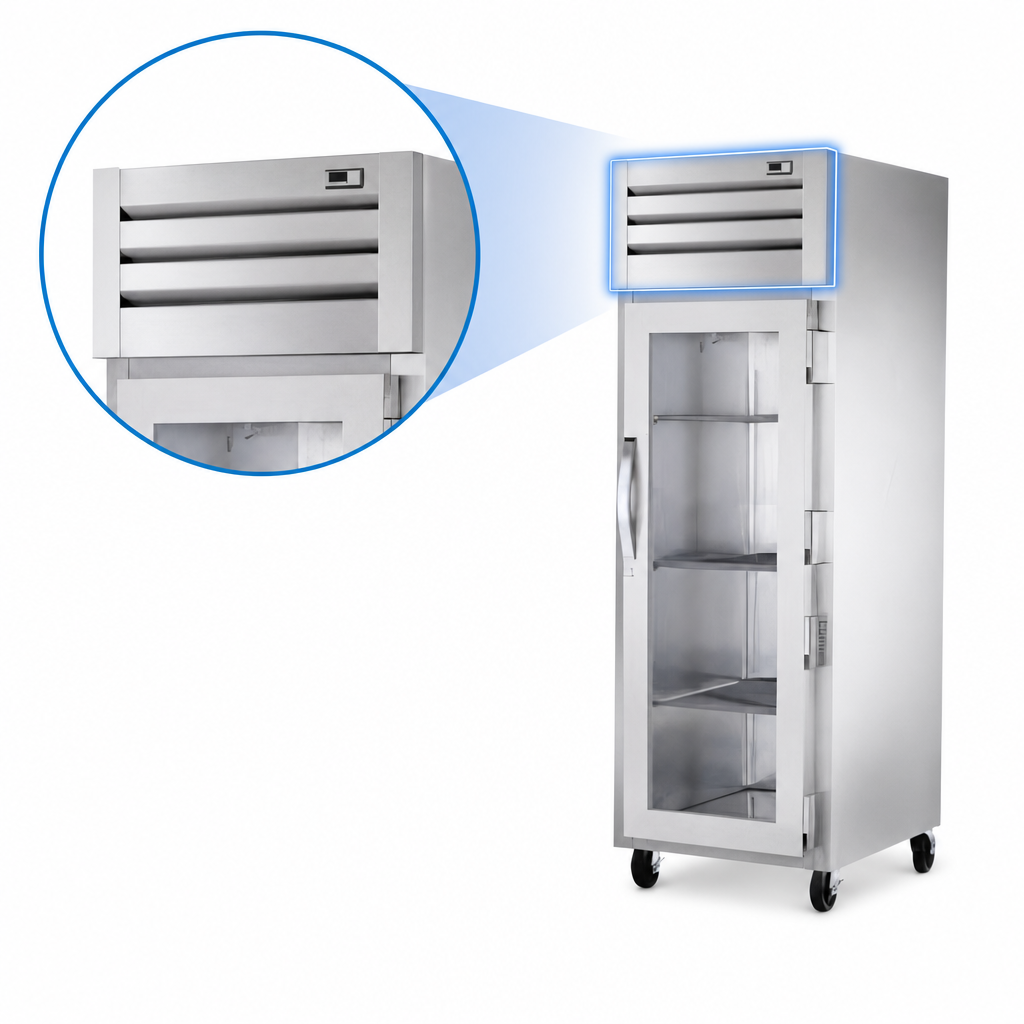

| Compressor | 1 HP, top-mounted |
| Electrical | 115 V / 60 Hz / 1-ph, 8.9 amps, NEMA 5-15P, 9 ft (2.74 m) cord |
| Certifications | cULus, UL EPH Classified, ENERGY-SAVING ECM fans |
| Warranty | 7-year parts & labor | 7-year compressor |
Included
- Factory-installed 5" locking castors
- Lifetime door lock, hinges & handle
- LED interior lighting
- Three adjustable shelves with clips
- 9 ft factory-installed power cord with plug
Popular Accessories (sold separately)
- 6" stainless or seismic/flanged legs
- Universal pan slide kits & additional shelf kits
- Security packages & stainless steel backs
Specifications are subject to change without notice. Dimensions rounded to the nearest ⅛". True and Spec Series® are registered trademarks of True Manufacturing Co., Inc.
