Description
SPEC SERIES® Roll-Thru Heated Cabinet – Two-Section
Model STA2HRT-2S-2S | Made in the USA by True ManufacturingBuilt for high-volume kitchens that need rock-solid holding power, the True SPEC SERIES® roll-thru heated cabinet keeps pre-cooked or baked foods hot, safe, and ready for service while letting you roll full oven racks straight through the unit. Heavy-gauge stainless ramps, front-&-rear doors, and an intuitive color-coded temperature display make loading, monitoring, and unloading fast and effortless.
Key Performance Benefits
- 140 °F-180 °F (60 °C-82 °C) holding range maintained by a 4 kW dual-element heater system.
- Low-velocity circulation fans assure even temperatures top-to-bottom; fans & heater each have their own exterior ON/OFF switch.

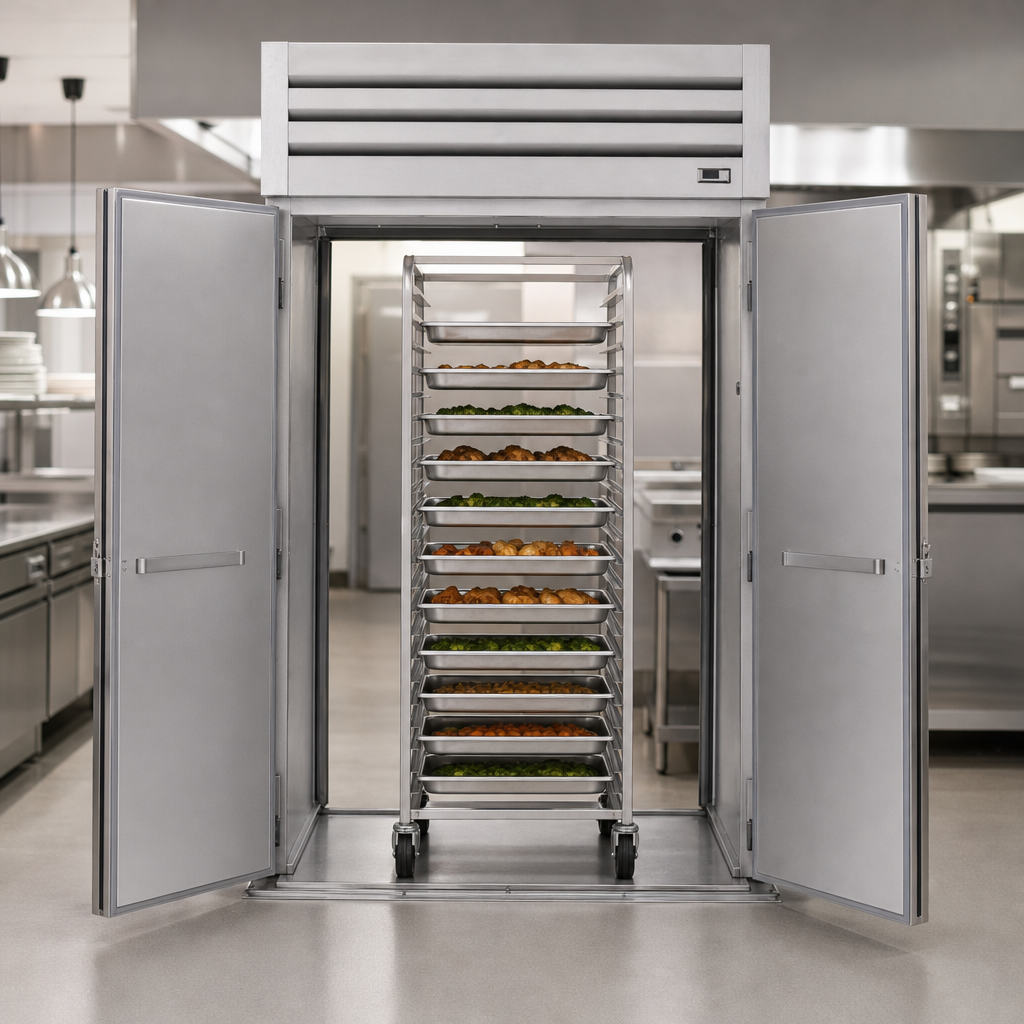

- Front & rear solid stainless doors create a true roll-thru “pass-thru” line for maximum workflow efficiency.
- Exterior, color-coded LED display gives an at-a-glance confirmation of the internal cabinet temperature.
- Manually-adjustable top vent lets you dial-in humidity; a 12 × 20 in water pan is included when extra moisture is needed.
- NSF-4 listed for direct food contact—ideal for open pans, sheet trays, or plated meals.
Construction Highlights
- Stainless steel front, sides, doors & ramps paired with an easy-clean aluminum interior for the perfect balance of durability and weight.
- Foamed-in-place high-density polyurethane insulation (zero ODP / zero GWP) locks in heat and lowers energy use.
- Lifetime-guaranteed bolt-style door locks, heavy-duty all-metal handles, and cam-lift hinges with a 120° stay-open position.
- Magnetic one-piece door gaskets remove without tools for quick sanitation.
- Interior bumpers protect the walls from rolling racks.
- Two heavy-gauge stainless ramps (one each side) are factory-installed and serrated for safe cart transfer.
Roll-In Capacity
Designed for racks with inboard casters up to 27 in W × 29 in D × 66 in H (686 × 737 × 1677 mm). Racks not included.
Technical Specifications
| External Dimensions | Length 68 in (1728 mm) Depth 37 ½ in (953 mm) +4 ⅛ in (105 mm) ramp each side Height 83 ¾ in (2128 mm) +1 in (26 mm) mechanical |
|---|---|
| Sections / Doors | 2 sections | 4 solid stainless swing doors (2 front, 2 rear) |
| Holding Temperature | 140 °F – 180 °F (60 °C – 82 °C) |
| Heat Output | 4 kW total (two 1 kW finned-tube elements per section) |
| Electrical | 115/208-230 V | 60 Hz | 1-phase | 20 A dedicated circuit Factory-wired NEMA 14-20P cord & plug included |
| Approvals | cULus | UL EPH Classified | Made in USA |
Best-in-Class Warranty
True backs this cabinet with a 7-year parts & labor warranty and a 7-year compressor warranty (USA/Canada/Puerto Rico). See warranty sheet for full details.
