Description

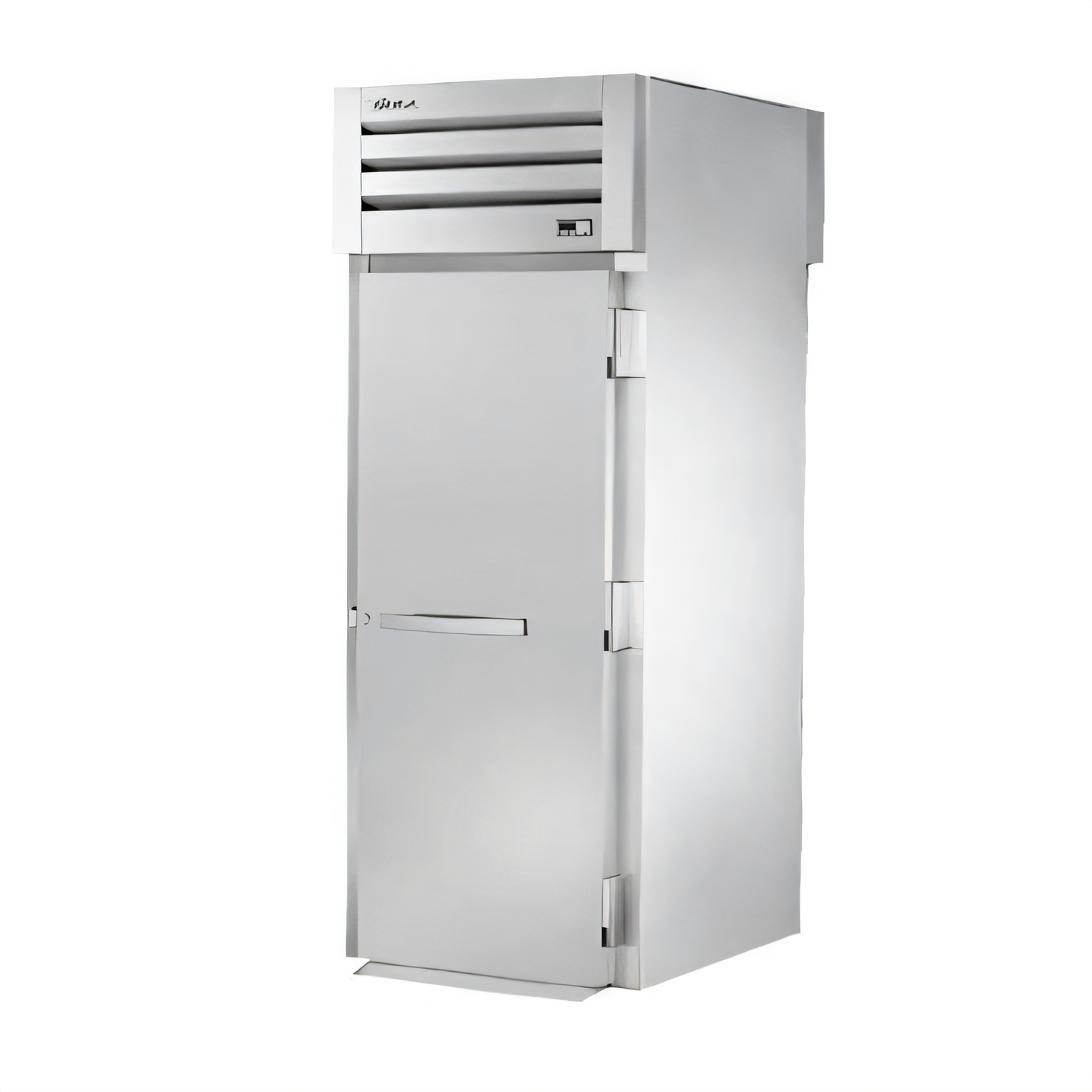

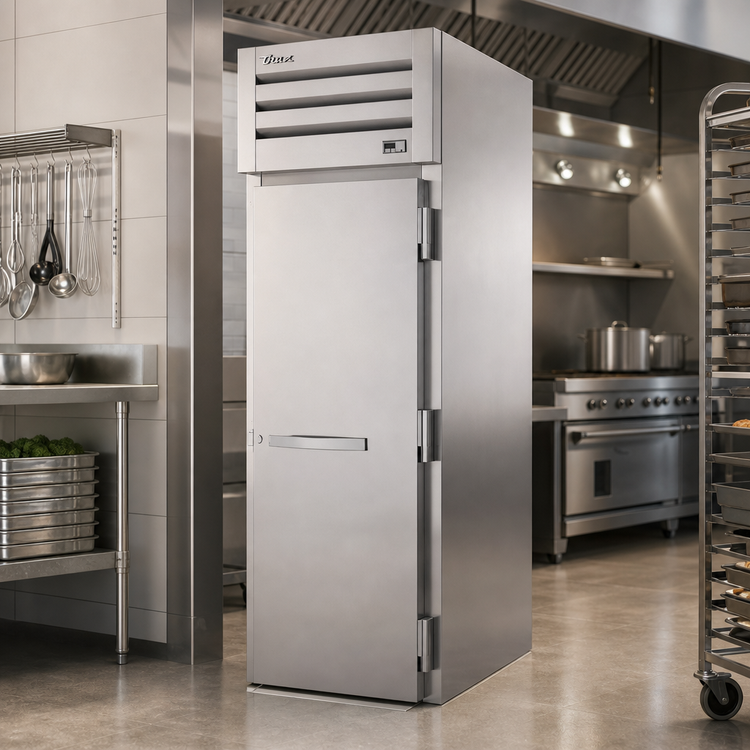

True Spec Series® One-Section Roll-Thru Heated Holding Cabinet – STA1HRT-1S-1S
2.0 kW • Front & Rear Stainless Doors • Fits 27" × 29" × 66" Racks (not included)Built for the busiest commercial kitchens, the True Spec Series® STA1HRT-1S-1S keeps plated meals, pans and proofs hot, safe and ready for service. Heavy-gauge stainless doors on both sides, a color-coded temperature display and lifetime-guaranteed hardware deliver the durability and ease of use operators expect from America’s #1 refrigerated & heated cabinet manufacturer.
Key Features
- Holding temperature range: 140 °F – 180 °F (60 °C – 82.2 °C) via exterior electronic control.
- Two 1 000 W stainless finned-tube heating elements (total 2 kW) with low-velocity circulation fans.
- Manual top vent and included 12" × 20" pan for adjustable humidity.

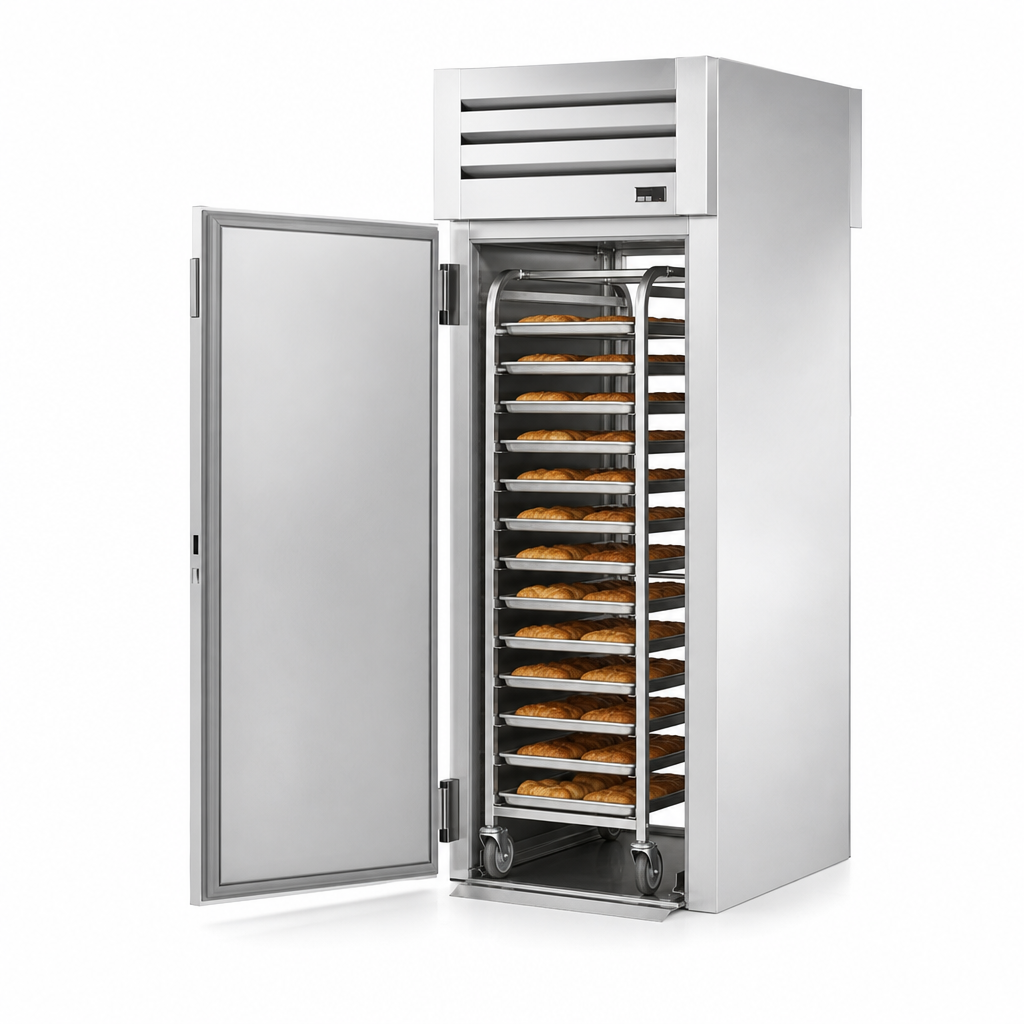

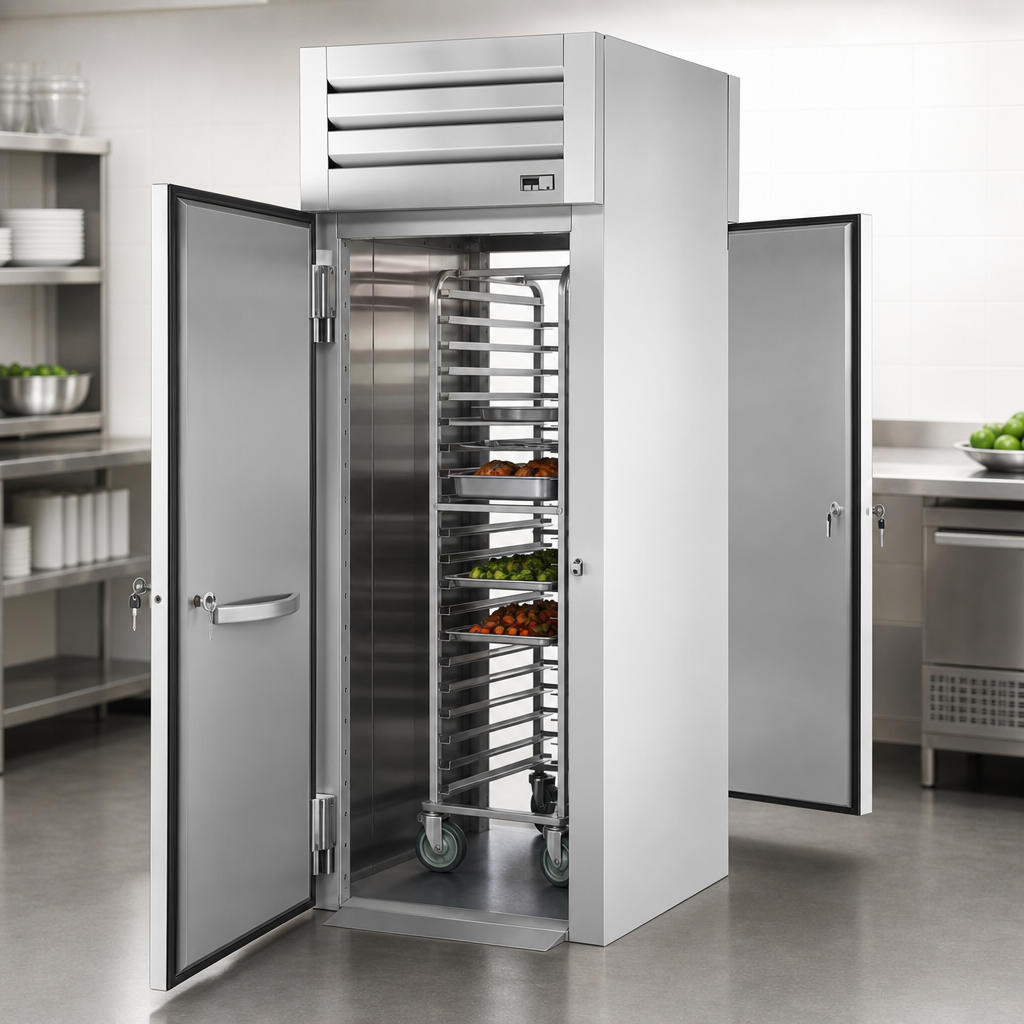

- Roll-thru configuration with self-closing stainless doors (front & rear) for continuous workflow.
- Lifetime-guaranteed bolt door locks, cam-lift hinges (3 per door) and all-metal handles.
- Tool-less, one-piece magnetic door gaskets for quick sanitation.
- Exterior color-coded temperature display for instant cabinet-temp verification.
- Incandescent interior lighting with exterior switch and safety shield.
- Pair of heavy-duty stainless steel ramps guides rack smoothly into place.
- Foamed-in-place Ecomate® insulation – zero ODP / zero GWP.
Capacity
- Accepts one roll-in rack (inboard casters) up to 27" W × 29" D × 66" H (686 × 737 × 1 677 mm).
Specifications
| Exterior | Stainless steel doors, front & sides |
|---|---|
| Interior | Aluminum side walls & back; stainless floor & ceiling |
| Overall Dimensions | 35" W × 37 ½" D† × 83 ¾" H* (889 × 953 × 2 128 mm) |
| Heating Elements | 2 × 1 000 W (stainless finned-tube) |
| Electrical | 115/208–230 V, 60 Hz, 1-ph, 20 A dedicated circuit, NEMA 14-20P, 9 ft (2.74 m) cord |
| Controls | Exterior on/off switches (heat, fans, lights) & electronic temperature controller |
| Certifications | cULus Listed, UL EPH Classified, NSF-4, Made in USA |
| Warranty (USA/Canada/PR) | 7-year parts, labor & compressor |
†Depth excludes 4 ⅛" (105 mm) ramp each side.
*Height excludes 1" (26 mm) for mechanical components.
Ideal Applications
- Bakeries holding proofed or baked goods
- Catering & banquet staging
- Institutional tray-line service
- High-volume restaurants needing extra hot-hold capacity
What’s Included
- Spec Series® STA1HRT-1S-1S heated cabinet
- Two removable stainless entry ramps
- 12" × 20" stainless water pan
- Factory-installed 9 ft NEMA 14-20P power cord
- Owner’s manual & warranty registration
- Roll-in rack not included
