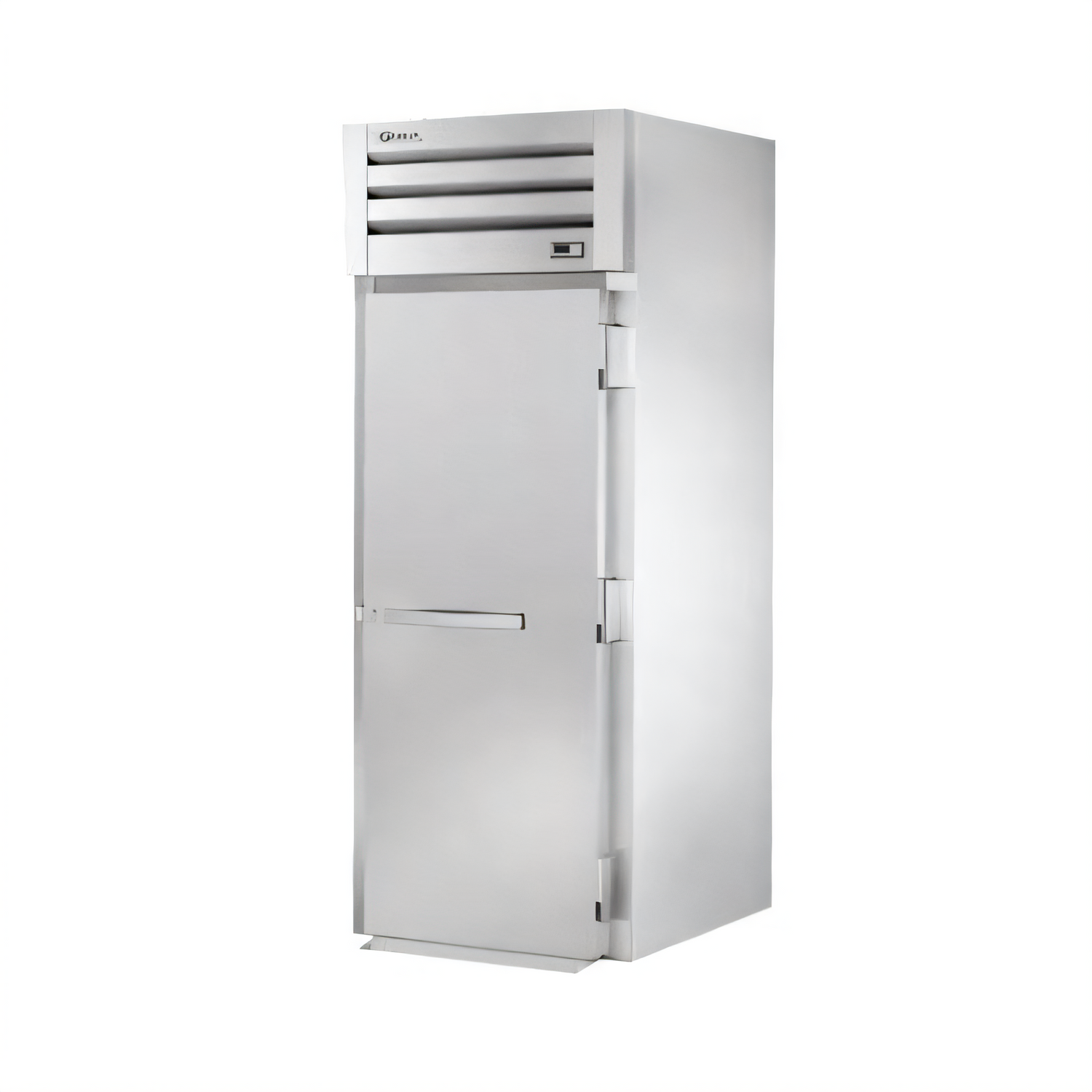

True SPEC SERIES® STA1HRI89-1S Roll-In Heated Cabinet
89" H • 1-Section • Stainless Front & Sides • Aluminum InteriorGive bulk trays, sheet pans and plated meals the perfect holding environment with True’s SPEC SERIES® STA1HRI89-1S. This full-height, roll-in heated cabinet keeps cooked food between 140 – 180°F (60 – 82.2°C) so every plate reaches the pass as hot and appetizing as when it left the oven. Built in the USA for the rigors of high-volume kitchens, it pairs rugged stainless-steel construction with intuitive electronic controls and energy-efficient insulation.
Performance & Construction Highlights
- Two 1000 W stainless finned-tube heating elements (2 kW total) deliver fast, even heat.

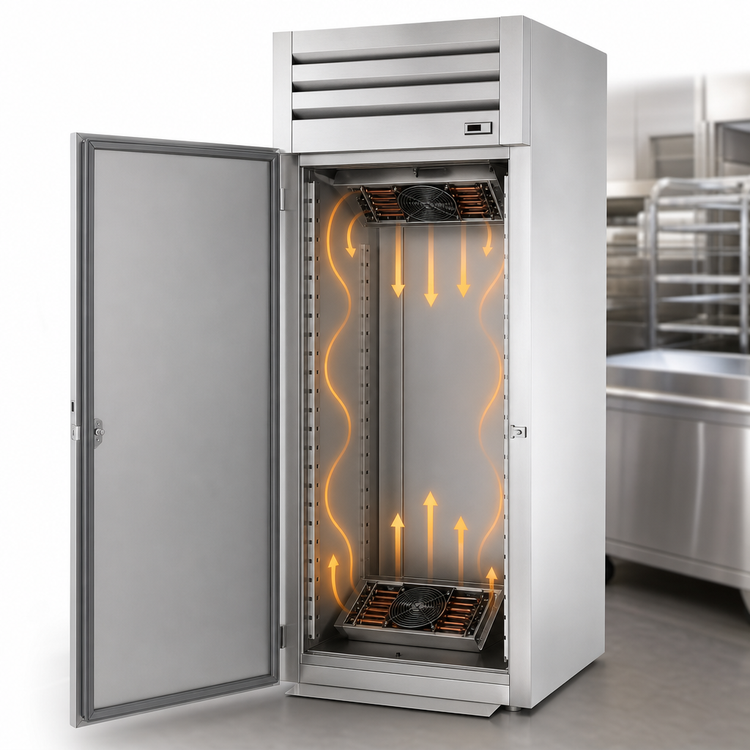

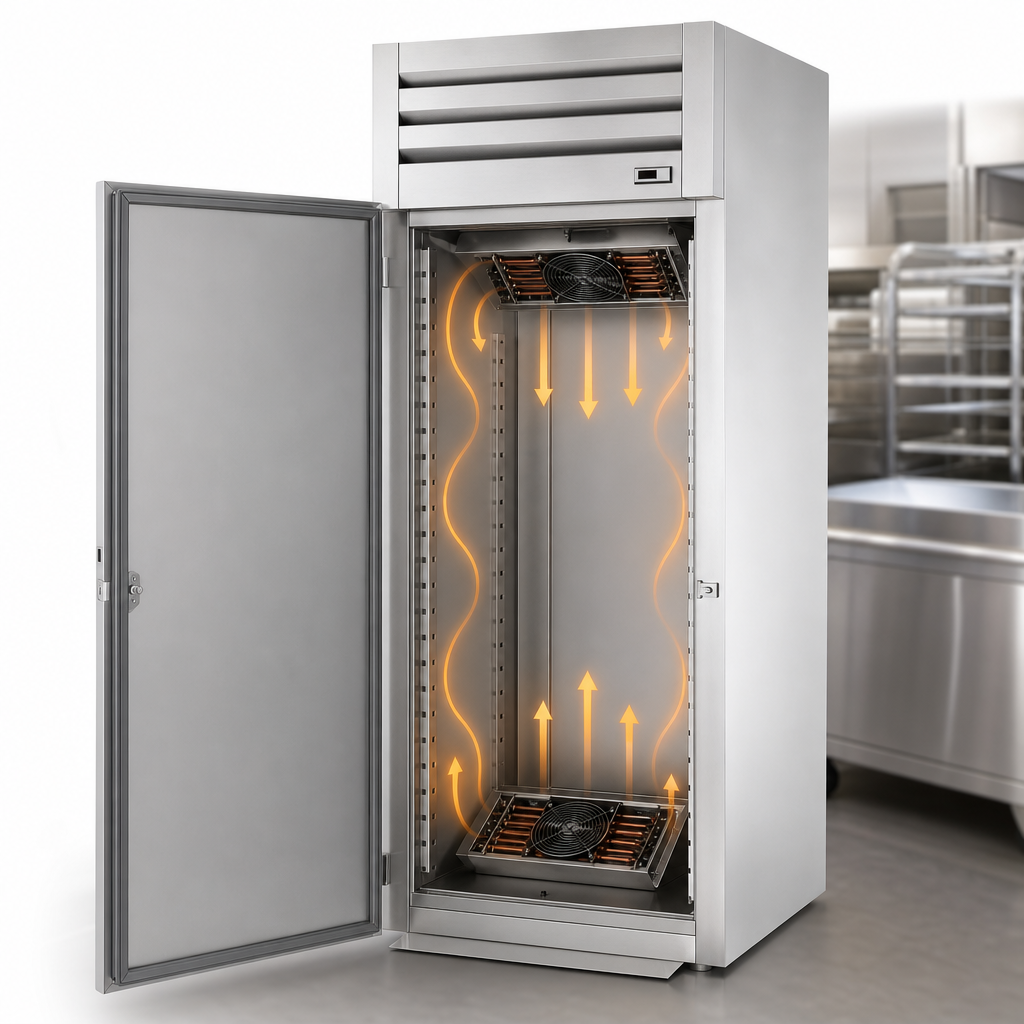

- Low-velocity fans maintain uniform cabinet temperature; exterior switch for easy fan control.
- Exterior, color-coded temperature display plus electronic on/off & set-point adjustment.
- Manually adjustable top vent lets you fine-tune cabinet humidity; 12" × 20" water pan supplied.
- Locking, self-closing stainless door with 120° stay-open position, bolt-style lock & cam-lift hinges (lifetime warranty).
- Bright, shielded incandescent interior lighting activated by exterior switch.
- Included heavy-gauge stainless steel ramp and interior bumpers protect walls during rack loading.
- Entire cabinet foamed-in-place with zero-ODP, zero-GWP polyurethane insulation.
- NSF/ANSI 4 compliant for open food, cULus & UL EPH Classified.
- Built, engineered and tested in O’Fallon, Missouri — Made in USA.
Technical Specifications
| Model | STA1HRI89-1S |
|---|---|
| Exterior | Stainless steel door, front & sides |
| Interior | Aluminum side & back walls; stainless floor & ceiling |
| Overall Dimensions | 35"W × 34 3⁄4"D × 88 3⁄4"H (889 × 883 × 2255 mm) +4 1⁄8" (105 mm) depth for ramp |

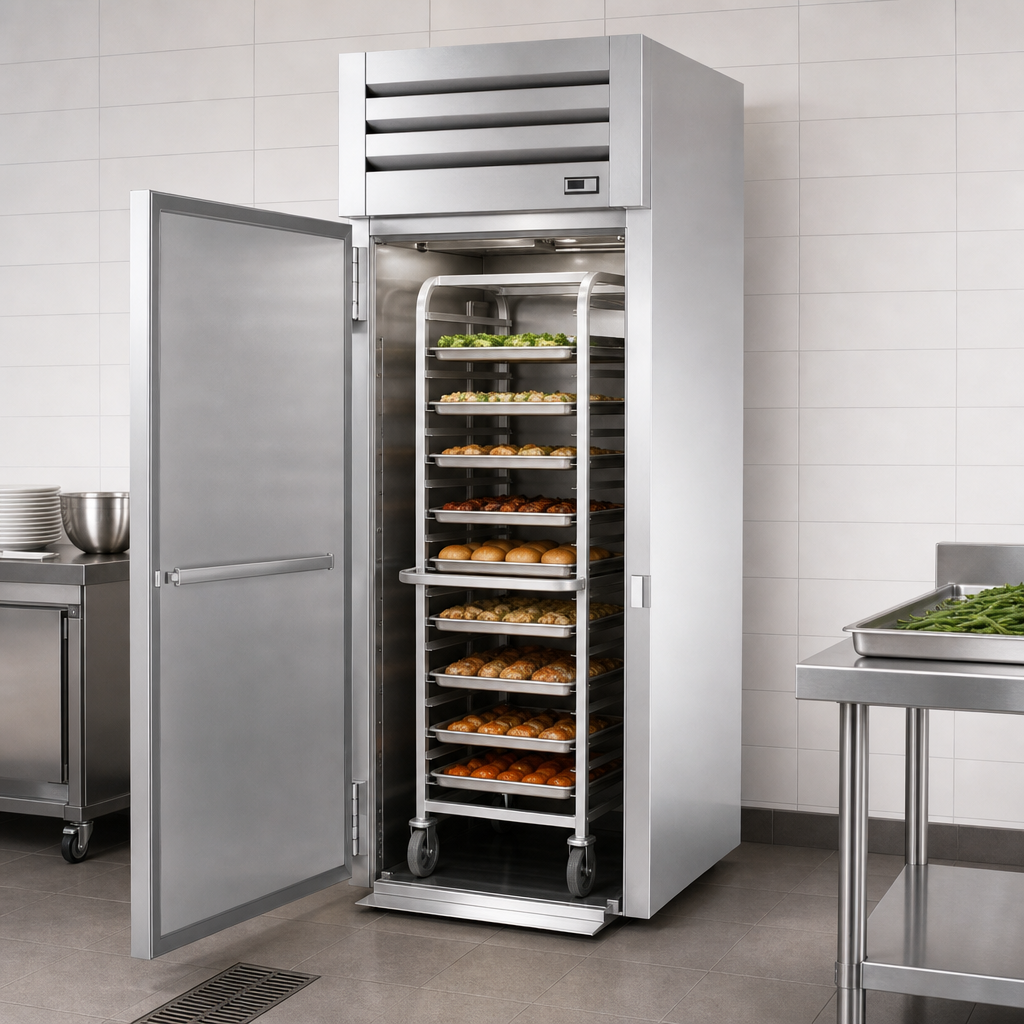

| Roll-In Capacity | (1) rack up to 27"W × 29"D × 72"H |
| Holding Temperature | 140 – 180°F (60 – 82.2°C) |
| Heating Elements | (2) × 1000 W stainless finned tube |
| Total Wattage | 2000 W |
| Electrical | 115/208-230 V, 60 Hz, 1-phase, 20 A dedicated circuit |
| Plug | NEMA 14-20P, 9 ft (2.74 m) cord |
| Approvals | cULus, UL EPH, NSF/ANSI 4 |
| Country of Origin | USA |
Designed for holding hot, cooked product only; unit will not raise the temperature of refrigerated or ambient food.
Industry-Leading Warranty
True backs the SPEC SERIES® with a 7-year parts & labor warranty, plus 7 years on the heating system components for unmatched peace of mind.
