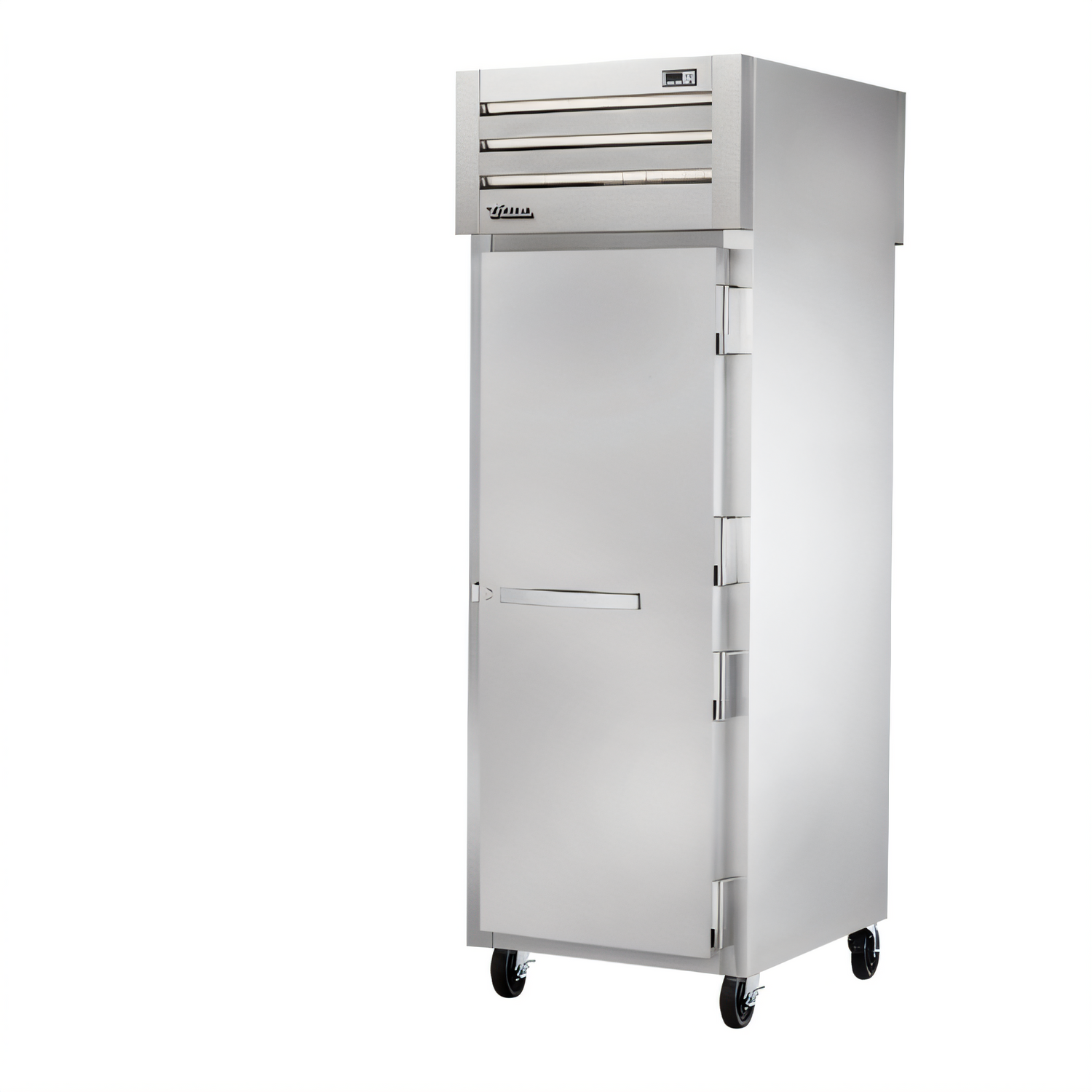

True SPEC SERIES® Pass-Thru Heated Cabinet | Model STA1HPT-1S-1S
One-section • Stainless front & sides • 140 – 180 °F holding rangeKeep plated entrées, baked goods and prepared foods hot, safe and ready for service with True’s premium SPEC SERIES® pass-thru heated cabinet. Built in Missouri and engineered for demanding commercial kitchens, this single-section unit delivers rock-solid temperature consistency, rugged durability and easy mobility in a space-saving 27 ½ in. footprint.
Why It Stands Out
- 140 °F – 180 °F (60 °C – 82.2 °C) holding range with exterior on/off switch and electronic temperature control.

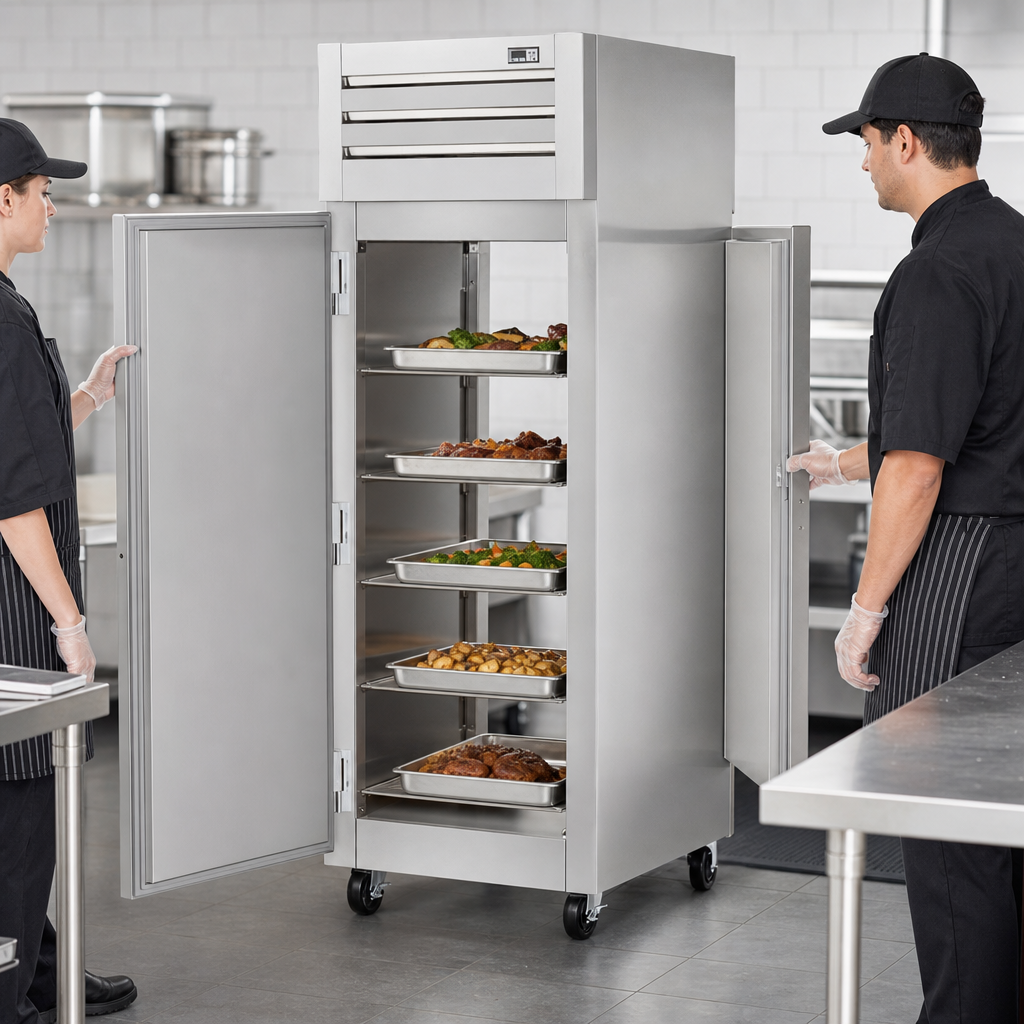

- Pass-thru configuration speeds work flow—load from the kitchen, unload at the service line.
- (2) solid stainless doors (front & rear) with factory-installed locks, cam-lift hinges, and a 120° stay-open feature.

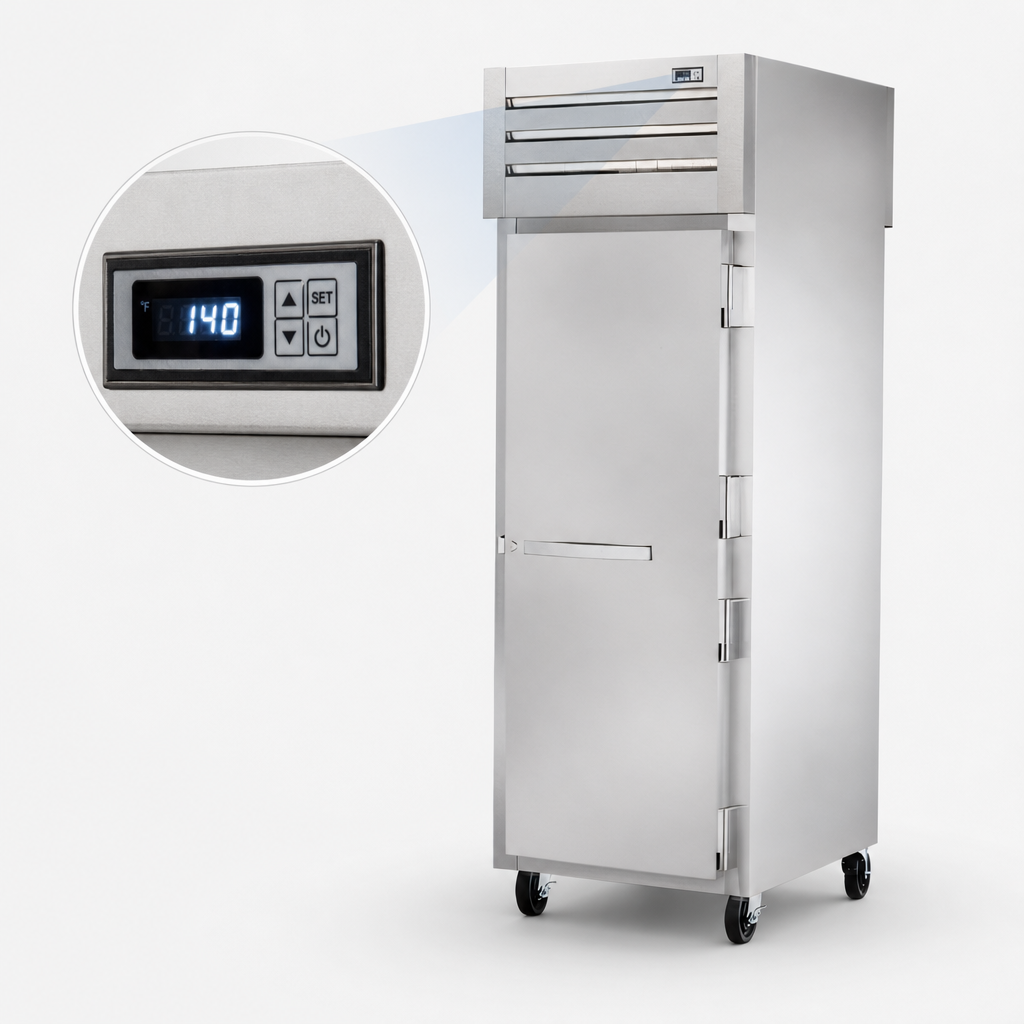

- Bright digital temperature display toggles between °F / °C at the touch of a button.
- Three heavy-duty chrome-plated wire shelves, adjustable in 6 in. increments.
- 5 in. locking plate castors glide easily for cleaning and repositioning.
- cULus, UL EPH Classified & NSF-4 listed for open food—fully compliant with U.S. health codes.
- Made in the USA and backed by an industry-leading 7-year parts & labor warranty.
Consistent Heat & Humidity Control
- 1.5 kW stainless steel heating element distributes uniform electric heat throughout the cabinet.
- Foamed-in-place Ecomate® insulation (zero ODP / zero GWP) locks in heat and saves energy.
- Manually controlled top vent lets you fine-tune cabinet humidity for crisp or moist holding.
- Magnetic one-piece door gaskets pop out without tools for quick sanitation.
SPEC SERIES Construction
- Stainless steel front, doors & sides stand up to daily abuse and commercial cleaners.
- Aluminum interior walls with stainless steel floor & ceiling for corrosion-resistant longevity.
- Lifetime-guaranteed all-metal door handles and bolt-style locks safeguard product.
At-a-Glance Specifications
| Model | STA1HPT-1S-1S |
|---|---|
| Capacity | 1 full section, 3 chrome shelves (25 L × 27 ¾ D in.) |
| Exterior Dimensions | 27 ½ W × 36 ⅛ D × 77 ¾ H in. * (699 × 918 × 1975 mm) |
| Holding Temperature | 140 °F – 180 °F (60 °C – 82.2 °C) |
| Electrical | 208-230 V / 60 Hz / 1-ph | 1.5 kW | NEMA 6-15P | 9 ft cord |
| Mobility | (4) 5 in. plate castors, front two locking |
| Certifications | cULus, UL EPH Classified, NSF-4 |
| Country of Origin | Made in the USA |
*Height shown does not include 6 ⅛ in. for castors.
Factory & Field Options
- 6 in. adjustable legs (standard, seismic / flanged, or stainless).
- Additional chrome shelves, universal pan slides or tray slide kits.
- Security package for high-value product holding.
Best-in-Class Warranty
True backs the SPEC SERIES® with an unprecedented 7-year parts, labor and compressor warranty—so you can invest with total confidence.
Specifications are subject to change without notice. Always verify installation requirements prior to ordering.
