Description

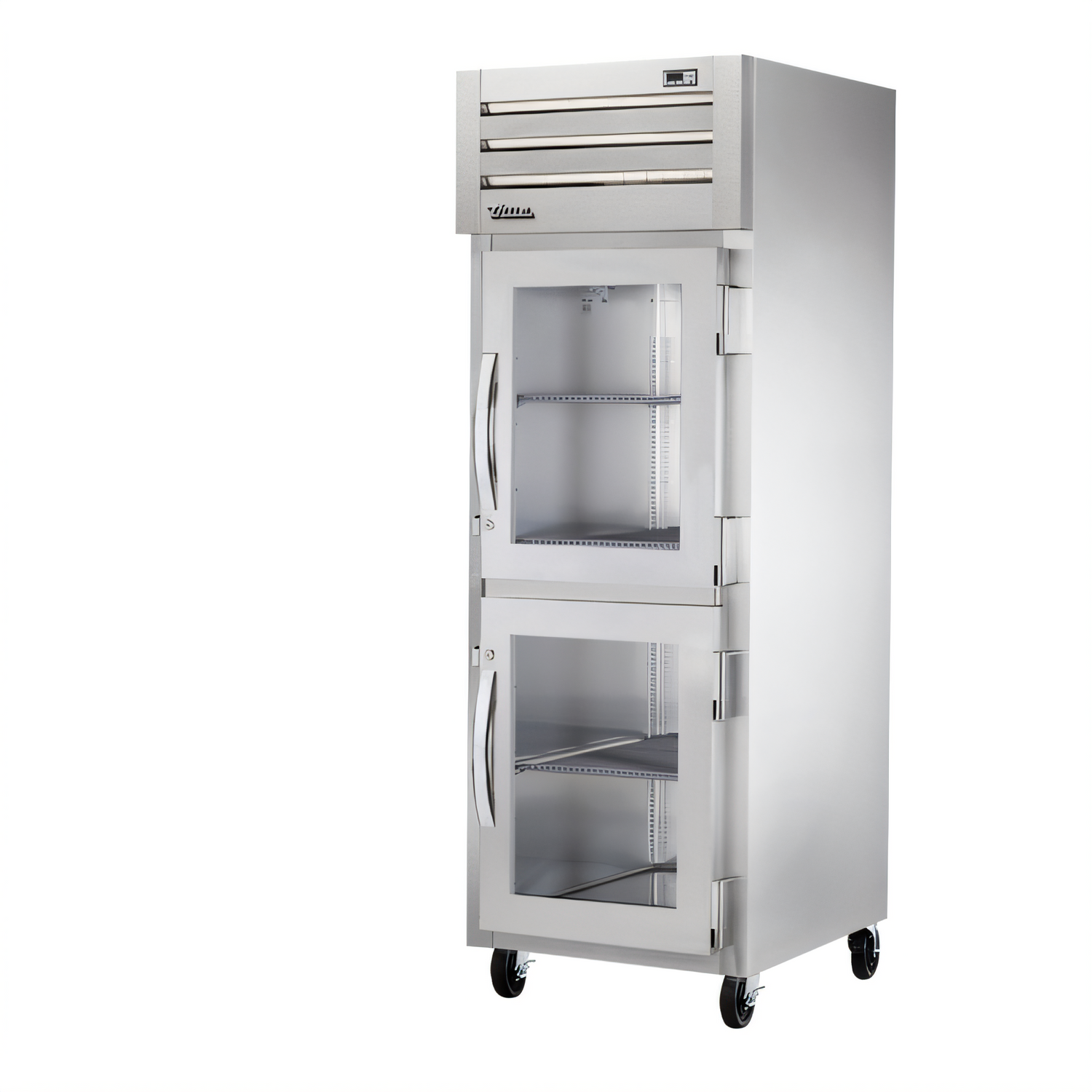

True SPEC SERIES® Glass Half-Door Heated Cabinet
Model STA1H-2HG • One-Section Reach-InHold plated meals, casseroles and baked goods at a perfect 140 °F–180 °F without sacrificing kitchen floor space or energy efficiency. Built in the USA for demanding foodservice environments, the True SPEC SERIES® STA1H-2HG pairs rugged all-stainless exteriors with precise digital heat control and crystal-clear glass half doors that invite a quick visual inventory while locking in heat.
Key Performance Features

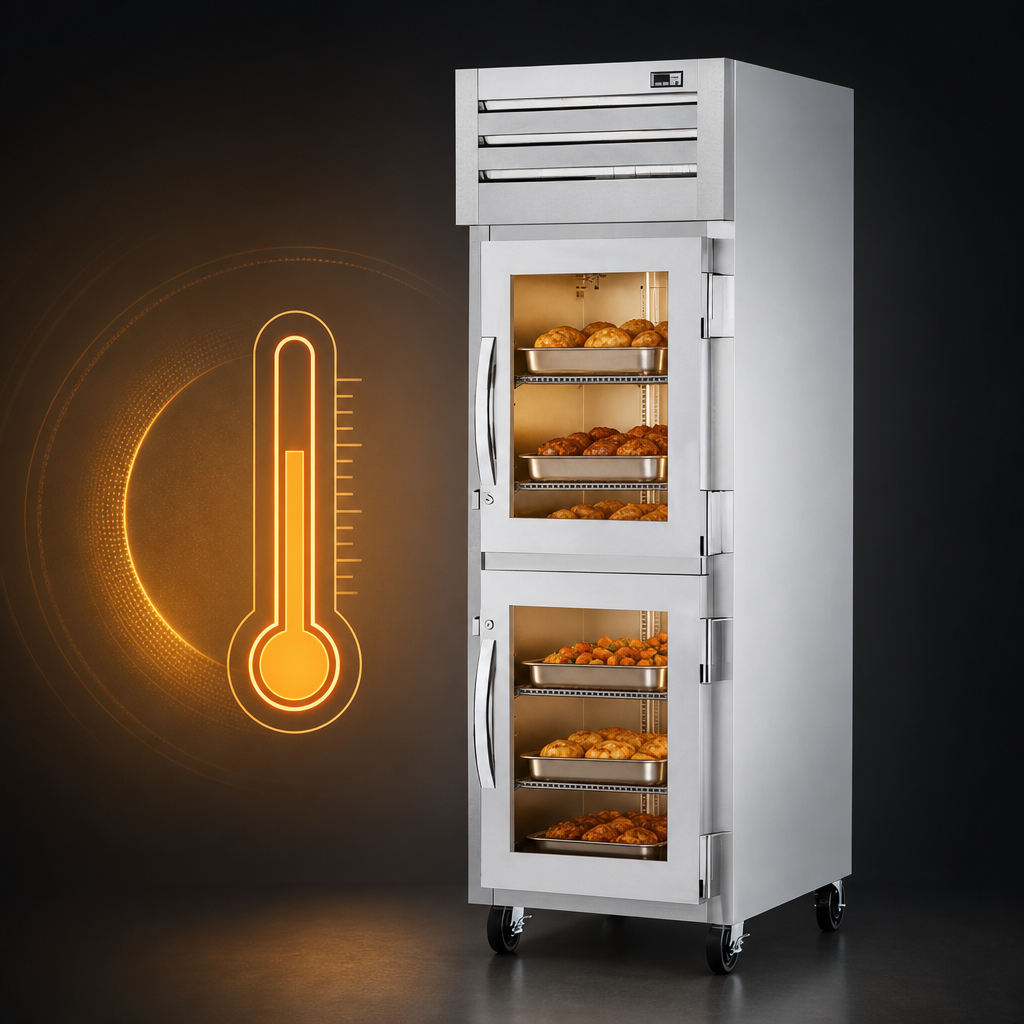

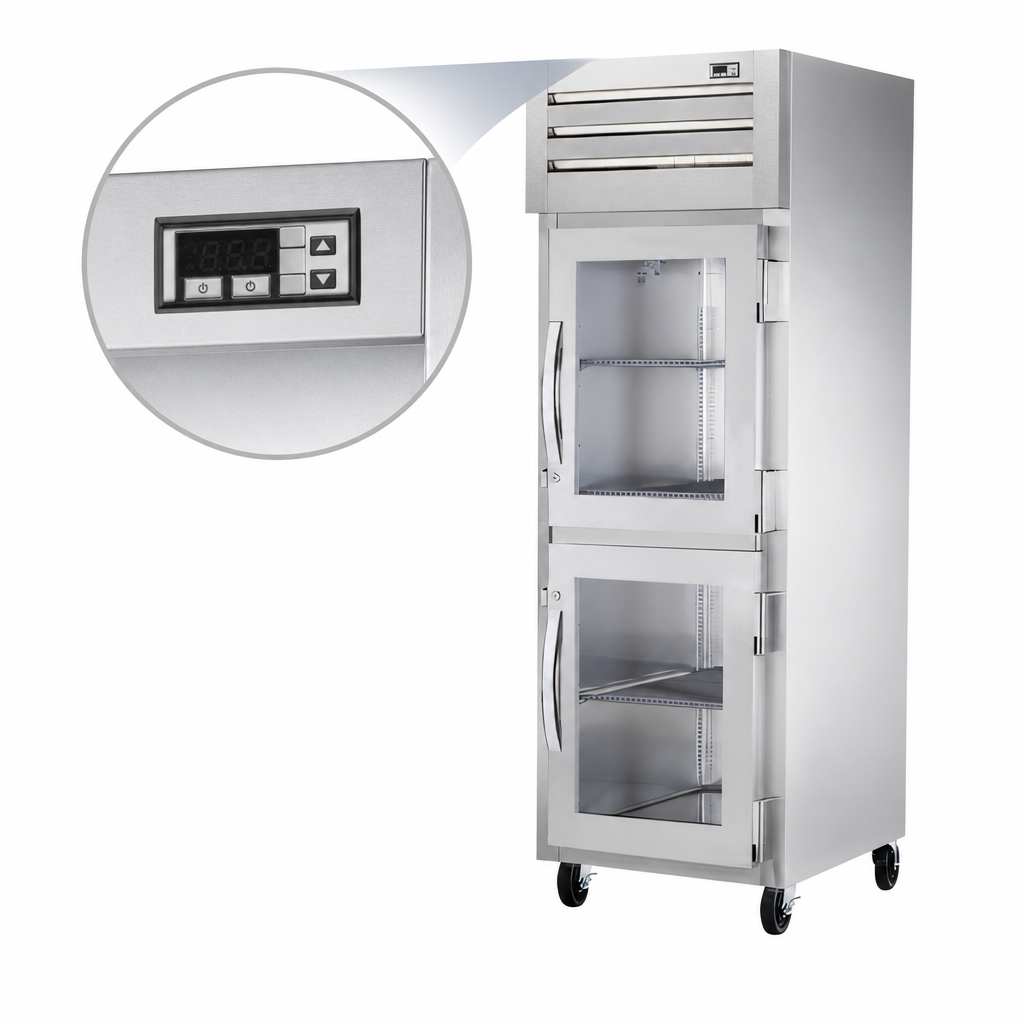

- Electronic temperature control with exterior on/off switch—set & forget 140 °F–180 °F (60 °C–82.2 °C).
- (2) Low-E, double-pane glass half doors: self-closing with 120° stay-open, cam-lift hinges & bolt-style locks.
- 1500 W stainless steel element and low-velocity fans ensure uniform cabinet temperature.
- Manual top vent gives you hands-on humidity management for crisp or moist holding.
- Durable stainless steel front, doors & sides; lightweight aluminum interior cleans up fast.
- Foamed-in-place Ecomate® insulation—zero ODP & zero GWP.
- (3) Chrome-plated wire shelves, adjustable on ½" (13 mm) increments.
- 5" locking plate castors standard for easy mobility.
- NSF-4 compliant for open food; cULus & UL EPH Classified.
- Designed to hold hot food—unit is not intended to heat cold or ambient product.
Dimensions & Capacity
| Exterior (W × D × H*) | 27 ½" × 33 ¾" × 77 ¾" (699 mm × 858 mm × 1975 mm) |
|---|---|
| Interior Construction | Aluminum sides & back, stainless floor & ceiling |
| Shelf Size | 25" W × 27 ¾" D (635 mm × 705 mm) |
| Shelves Included | 3 chrome shelves / 4 clips each |
| Net Weight | Approx. 355 lb (161 kg) |
*Height does not include 6 ⅛" (156 mm) for castors.
Electrical
| Voltage | 208–230 V / 60 Hz / 1-phase |
|---|---|
| Watts / Amps | 1500 W / 6.5 A |
| Plug | NEMA 6-15P, 9 ft (2.74 m) cord |
| Circuit | 15 A dedicated (unit ships pre-wired) |
Included & Optional Accessories
- (3) Chrome shelves & clips (included)
- Universal, #1 tray or half-section rod slide kits
- 6" adjustable, or seismic/flanged legs in lieu of castors
- Electro-polished stainless shelves
- Additional shelves or slide kits (sold separately)
- Stainless steel back panel
Certifications & Warranty
- NSF-4 for open food storage
- cULus & UL EPH Classified
- Made in the USA, ANSI/NSF compliant materials
- 7-year parts, labor & compressor warranty (USA, Canada & Puerto Rico – foodservice use)
Need a spec sheet, CAD file or accessory pricing? Chat with our team and we’ll get it over to you today.
