True Mfg. - General Foodservice STA1H-1S SPEC SERIES Heated Cabinets & Holding Shelves
True Mfg. - General Foodservice STA1H-1S SPEC SERIES Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STA1H-1S SPEC SERIES Heated Cabinet...
Description

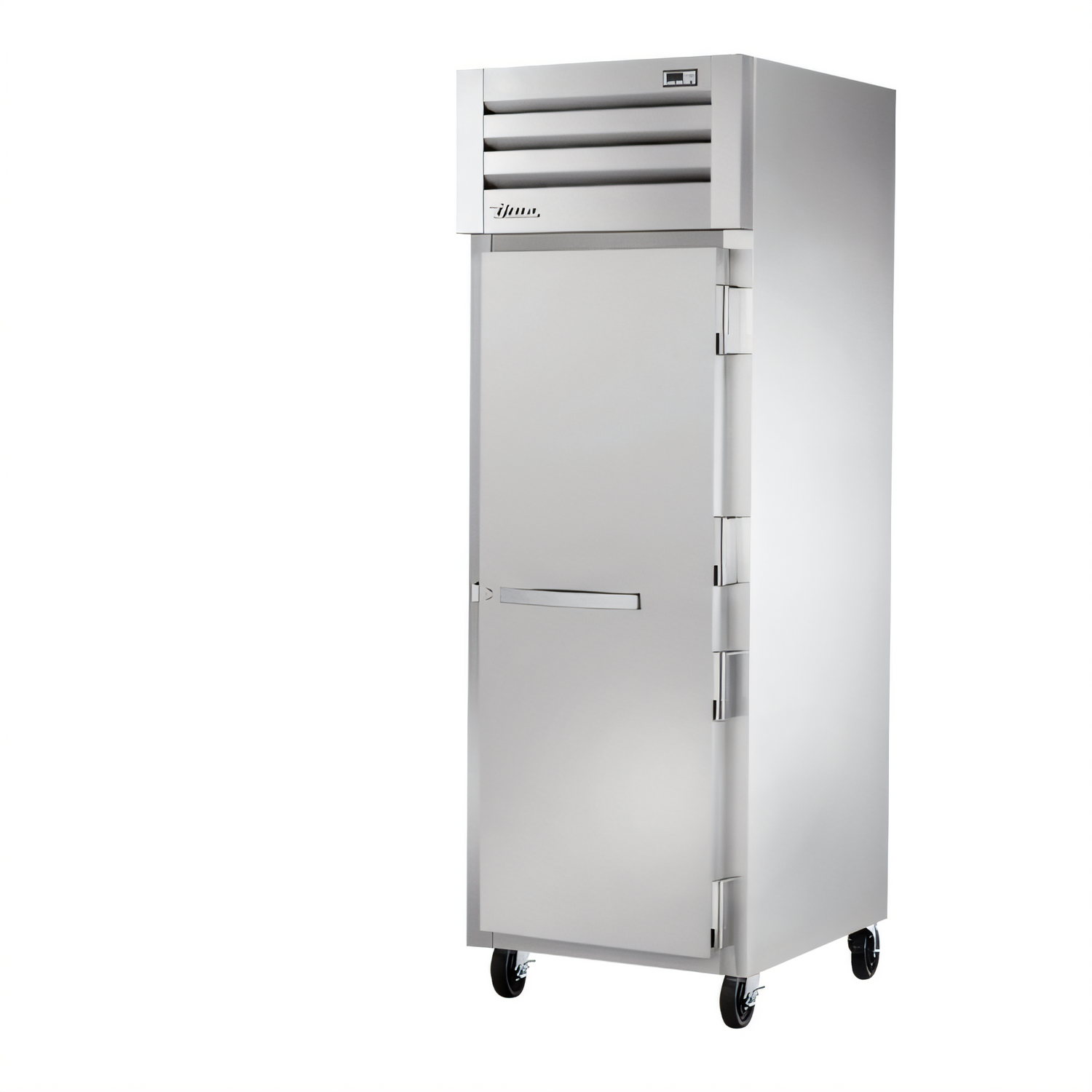

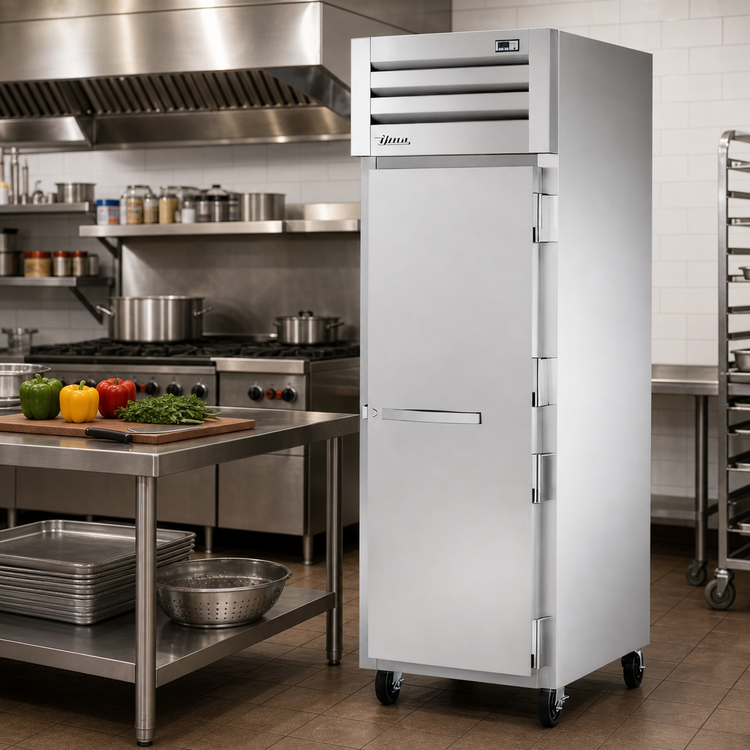

True Spec Series STA1H-1S Heated Holding Cabinet
One-section • Reach-in • 27 ½" W × 33 ¾" D × 77 ¾" H*Keep plated meals, sheet-pans and hotel pans at food-safe serving temperatures with the Made-in-USA True Spec Series STA1H-1S. Its stainless-steel exterior, fast-acting 1.5 kW heater and precise digital controls give chefs rock-solid performance in the smallest possible footprint.
Why You’ll Love It
- 140 – 180 °F (60 – 82 °C) holding range maintained by a 1.5 kW corrosion-resistant heater.
- Exterior digital temperature display switches between °F and °C at the touch of a button.
- Low-velocity fans circulate gentle, even heat to every corner of the cabinet.
- Manually adjustable top vent for positive humidity control.

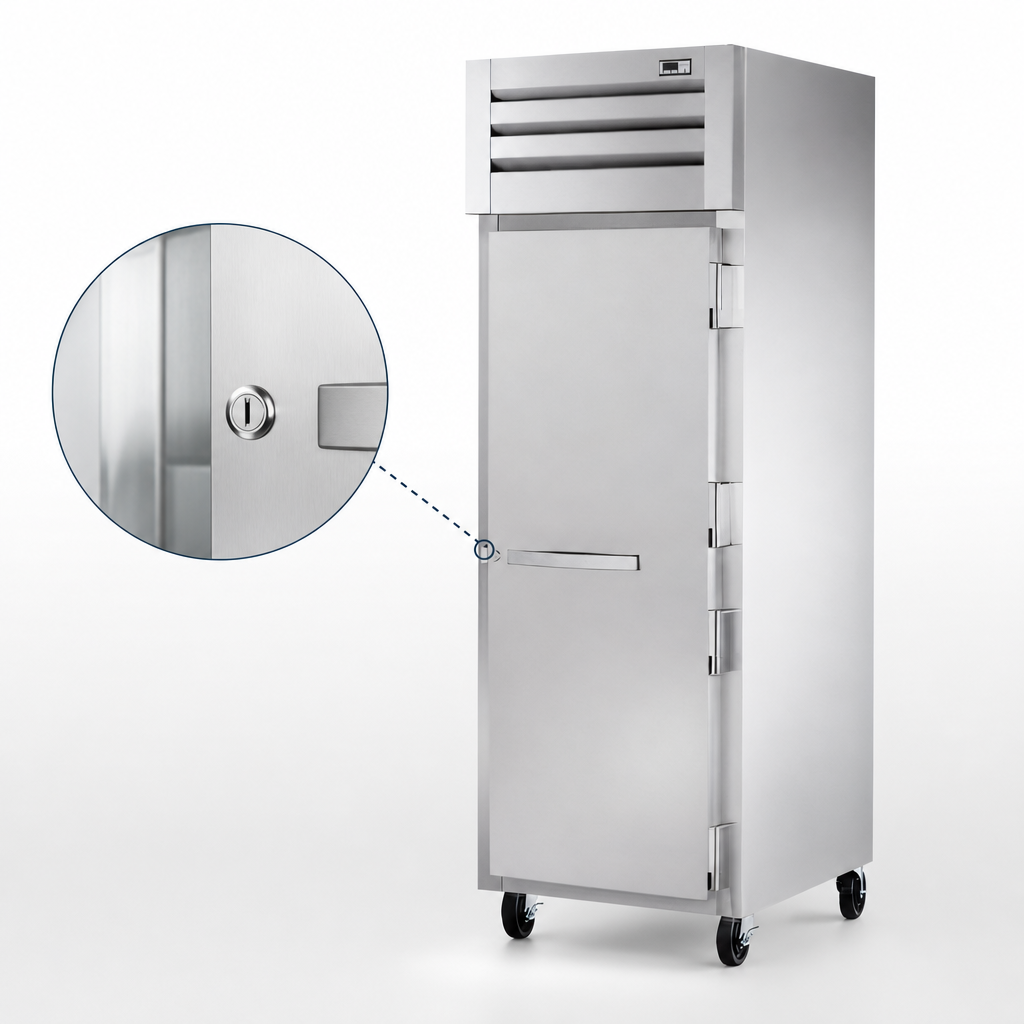

- One solid stainless-steel door with bolt-style lock, 120° stay-open feature and lifetime-guaranteed cam-lift hinges.

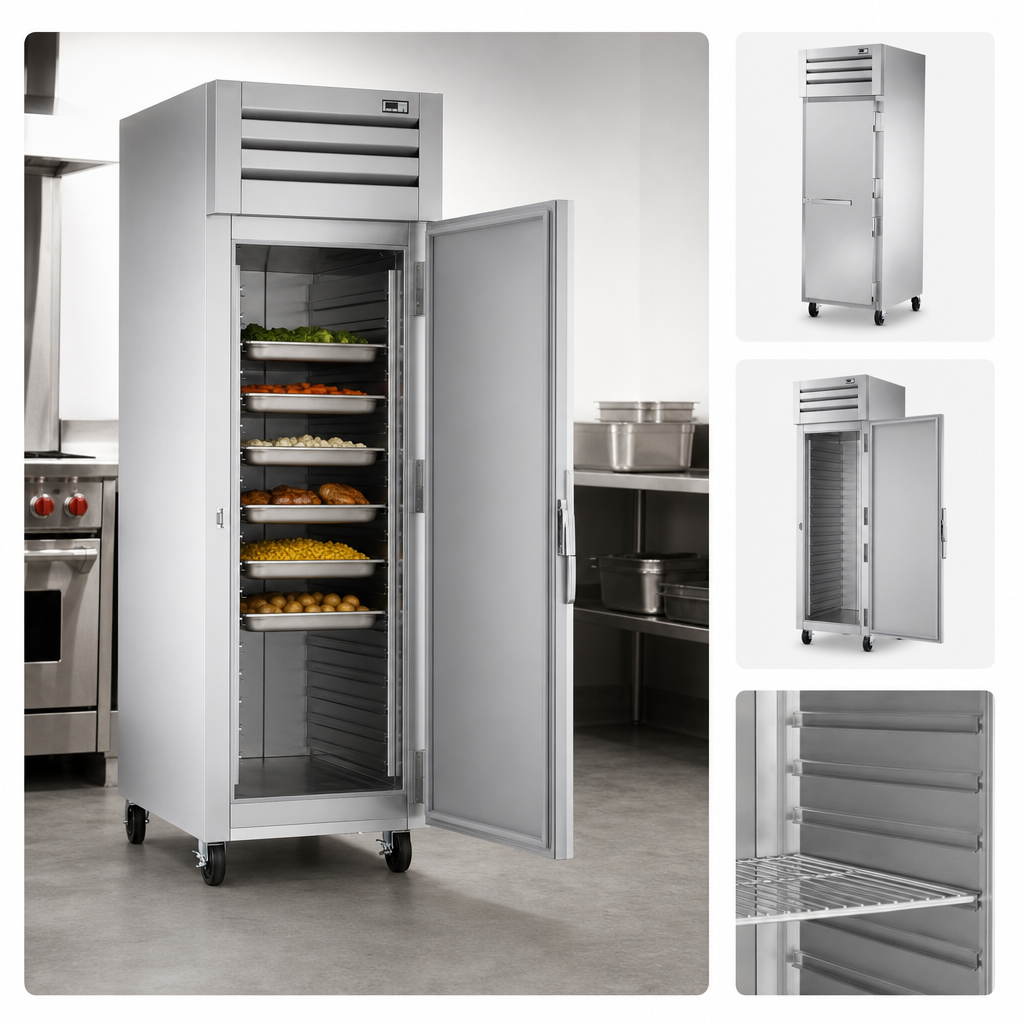

- Three heavy-duty chrome wire shelves (adjustable on ½" increments).
- Durable construction: stainless door, front & sides; aluminum interior walls & back; stainless floor & ceiling.
- High-density Ecomate® foamed-in-place insulation (zero ODP & zero GWP).
- (4) 5" diameter plate casters, front set locking, for easy mobility.
- cULus, UL EPH Classified & NSF-4 listed for open food product.
Specifications
| Capacity | 1 full section |
|---|---|
| Holding range | 140 – 180 °F / 60 – 82.2 °C |
| Exterior dimensions* | 27 ½" W × 33 ¾" D × 77 ¾" H (699 × 858 × 1975 mm) |
| Height w/ 5" casters | ≈ 84" (2134 mm) |
| Shelves (included) | (3) chrome wire, 25" W × 27 ¾" D |
| Electrical | 208-230 V / 60 Hz / 1-phase, 1.5 kW, NEMA 6-15P, 9 ft cord |
| Certifications | cULus, UL EPH Classified, NSF-4 |
| Country of origin | Made in the USA since 1945 |
| Warranty (USA/Canada) | 7-year parts & labor, 7-year compressor |
What’s in the Box
- True STA1H-1S heated cabinet
- (3) adjustable chrome shelves & clips
- (4) 5" locking plate casters (pre-installed)
- Factory-installed magnetic door gasket
- Attached 9 ft power cord with NEMA 6-15P plug
- Owner’s manual & warranty registration
Popular Options (sold separately)
- 6" standard or seismic legs (replace casters)
- Universal, full-size sheet-pan or half-size tray slide kits
- Electro-polished stainless-steel shelves
- Additional chrome shelves
- Stainless-steel rear panel for pass-through installations
*Nominal height shown; add 6 ⅛" (156 mm) for casters or 6" (153 mm) for optional legs. Specifications are subject to change without notice.
