True Mfg. - General Foodservice STA1H-1G SPEC SERIES Heated Cabinets & Holding Shelves
True Mfg. - General Foodservice STA1H-1G SPEC SERIES Heated Cabinets & Holding Shelves is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STA1H-1G SPEC SERIES Heated Cabinet...
Description

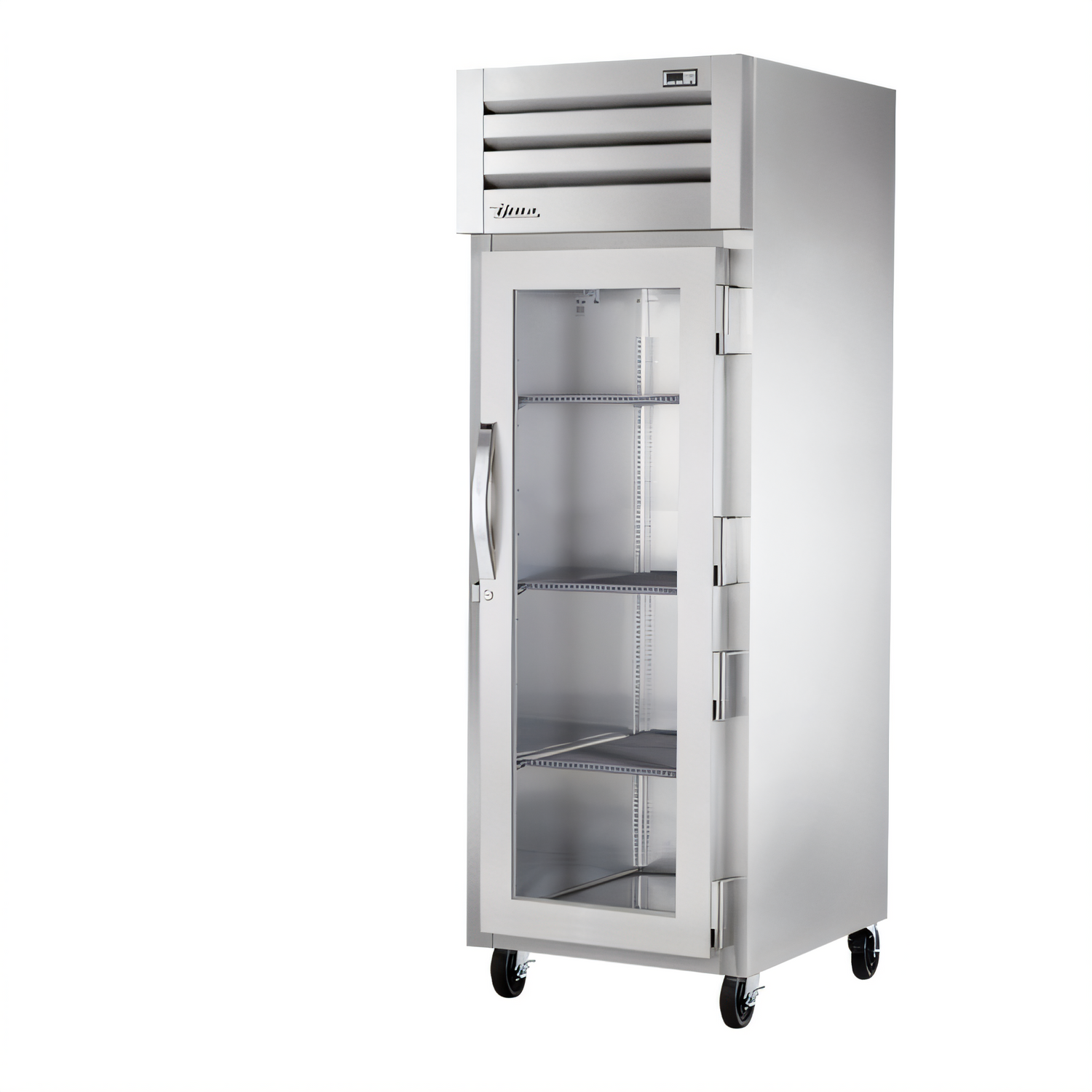

True SPEC SERIES® One-Section Glass Door Heated Cabinet
Model STA1H-1G | Made in the USAHold plated meals, sheet pans or bakery items at safe-serving temperatures without sacrificing visibility or floor space. True’s SPEC SERIES® STA1H-1G combines a Low-E double-pane glass door, heavy-duty construction and precise digital controls to keep product between 140 °F and 180 °F (60 – 82 °C) all day long.
Performance & Construction Highlights
- 1500 W stainless-steel heating element with low-velocity fans for uniform heat distribution.
- External on/off switch and °F/°C digital temperature display for quick, intuitive control.
- Manually operated top-mounted vent lets you dial-in cabinet humidity for crispy or moist results.

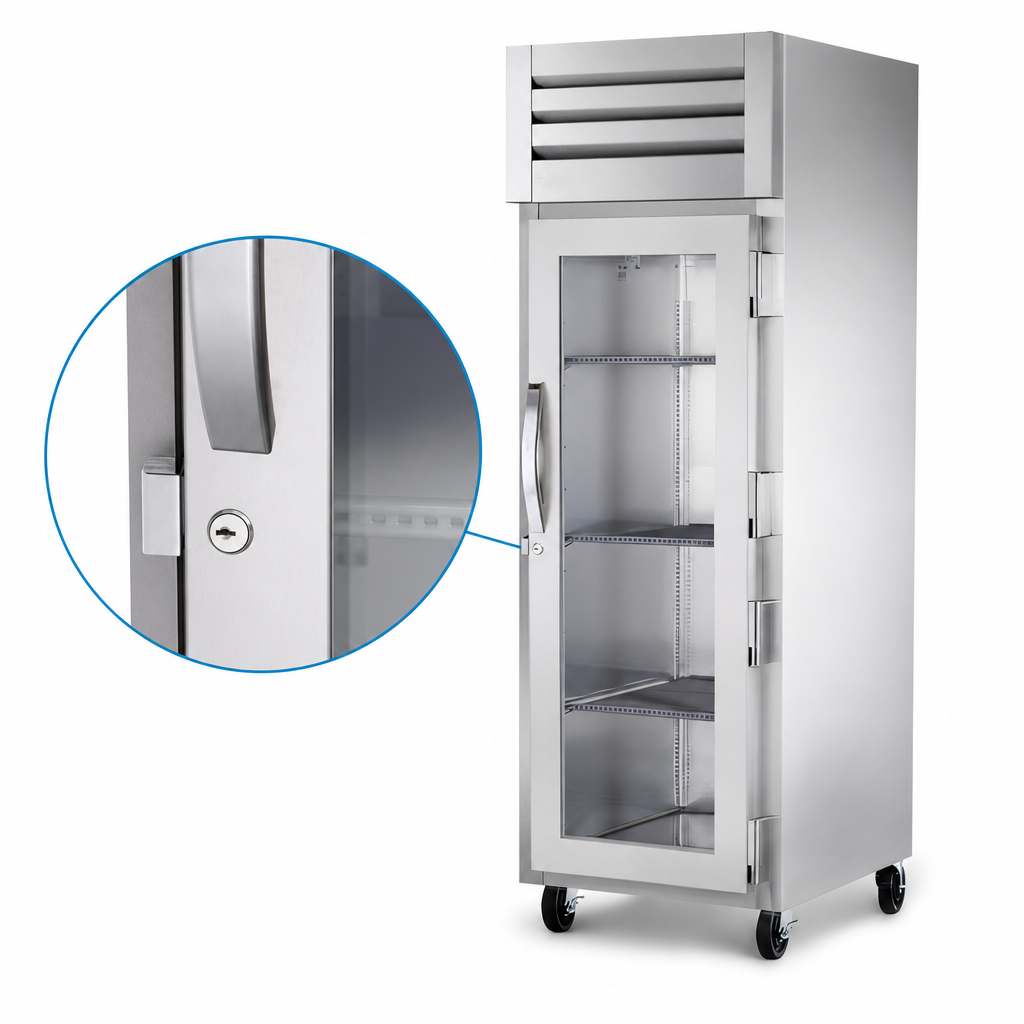

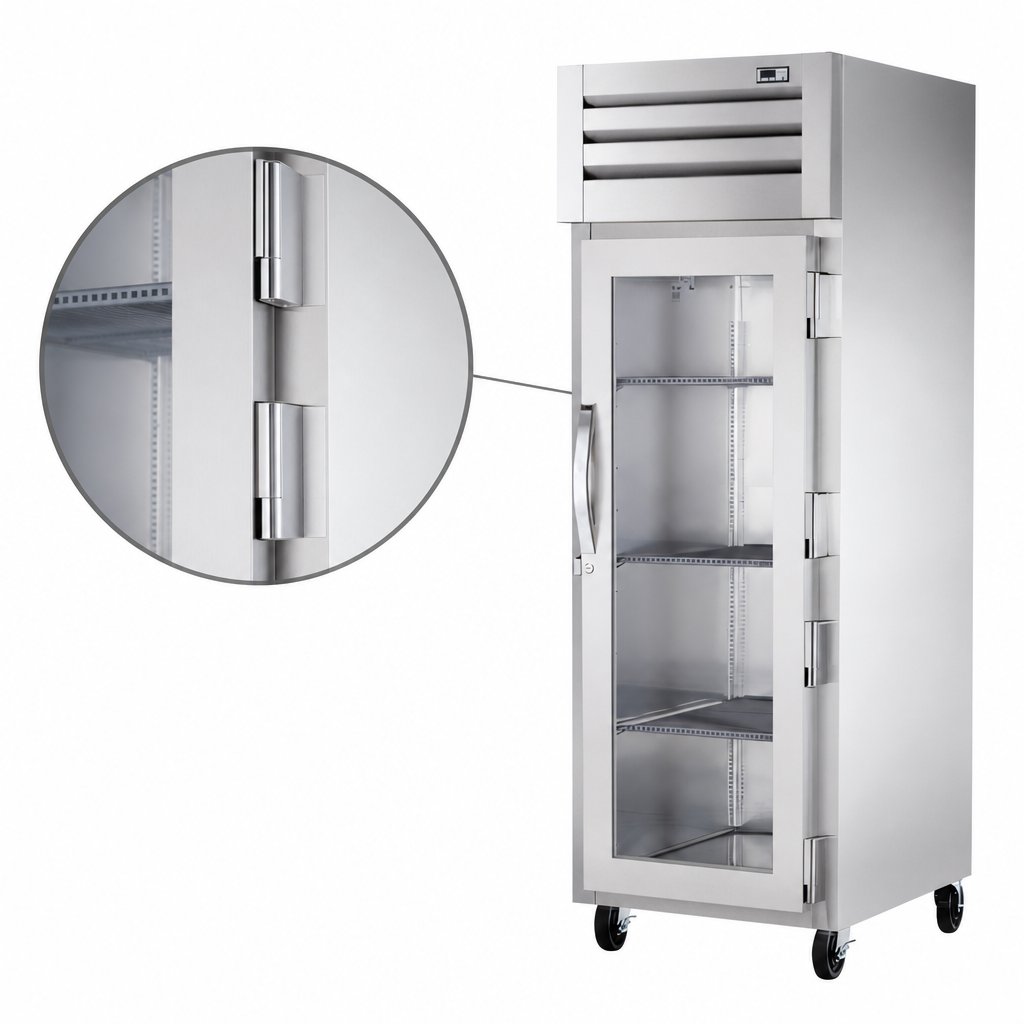

- Self-closing glass door features a 120° stay-open position, bolt-style lock and lifetime-guaranteed cam-lift hinges.
- Stainless-steel front & sides with Ecomate foamed-in-place insulation (zero ODP & zero GWP).
- Aluminum interior, stainless floor & ceiling, plus three adjustable chrome shelves (1/2" increments) – rated at 250 lb each.
- Factory-installed 5" locking plate castors provide easy mobility; optional 6" legs available.
- NSF-4 compliant, cULus listed and UL EPH Classified for open food holding.
Specifications
| Exterior Dimensions (W × D × H) | 27 ½" × 33 ¾" × 77 ¾" (add 6 ⅛" for castors) |
|---|---|
| Capacity | 3 full-size 18" × 26" sheet pans on included shelves |
| Temperature Range | 140 °F – 180 °F (60 – 82 °C) |
| Electrical | 1.5 kW, 208-230 V / 60 Hz / 1-phase, 9 ft cord, NEMA 6-15P |
| Required Circuit | Single-use 15 A dedicated outlet |
| Listings | cULus, UL EPH, NSF-4 |
| Warranty (U.S./Canada) | 7 yr Parts & Labor • 7 yr Compressor |
Popular Accessories (sold separately)
- Universal, sheet-pan or half-pan slide kits (field-installable).
- Electro-polished stainless-steel shelves.
- 6" standard or seismic-rated legs.
- Additional chrome shelves and pilaster sets.
- Stainless-steel back panel for pass-thru or island placement.
Need help selecting slides or shelves? Contact our food-service team for expert assistance.
