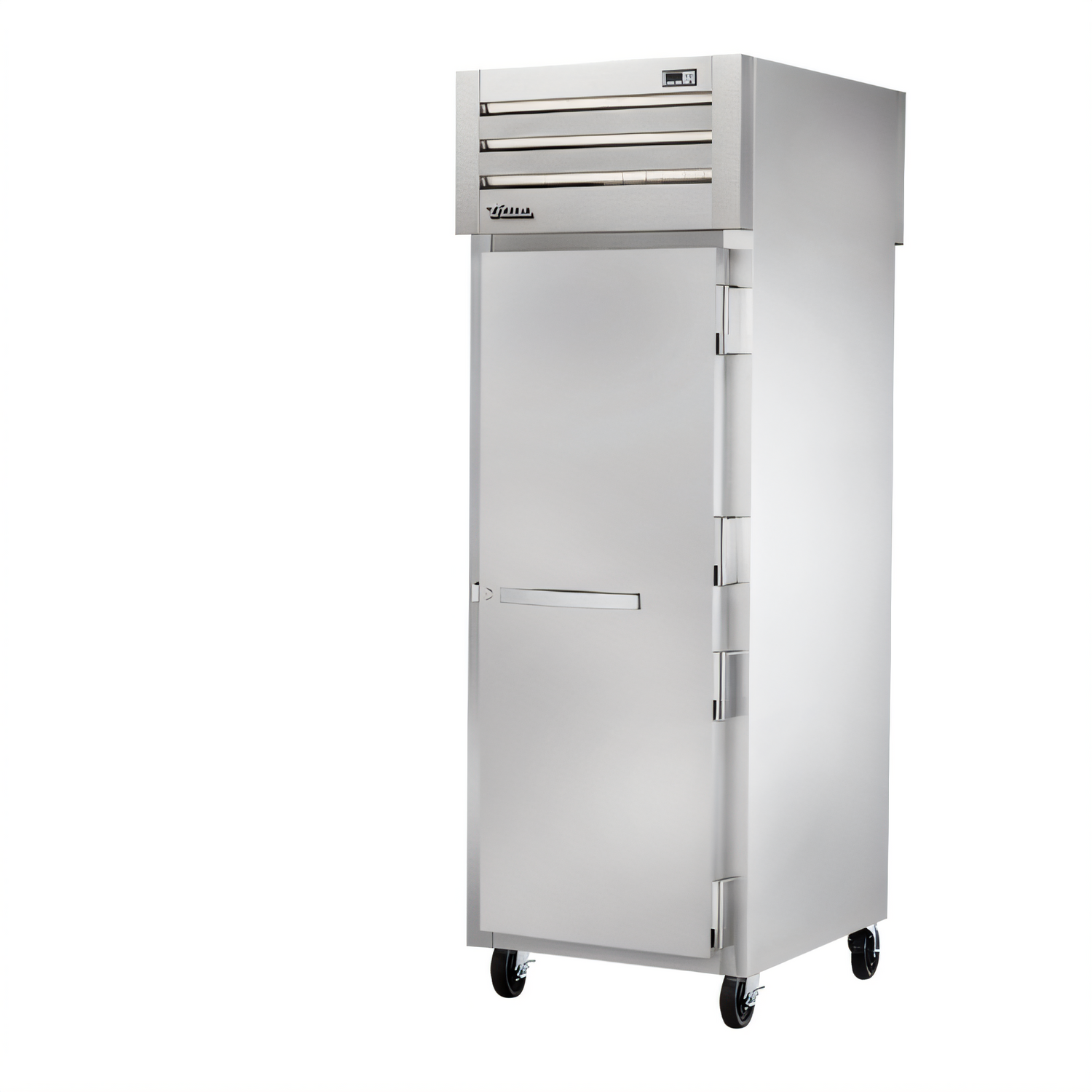

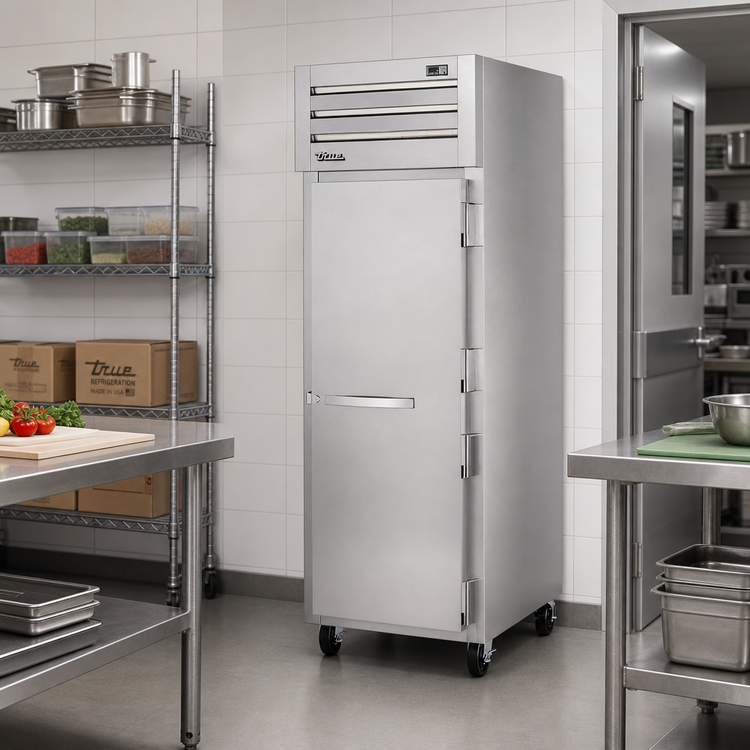

True SPEC SERIES Pass-Thru Solid Door Freezer, One-Section, Self-Contained, Top-Mounted

Stainless Steel Front & Sides, Aluminum Interior, 115V

Designed for high-traffic kitchens, this pass-thru freezer delivers secure front-and-rear access, dependable -10°F storage, and rugged stainless steel construction.

  • Pass-thru design with solid front and rear swing doors streamlines loading, staging, and service from either side.
  • Self-contained, top-mounted refrigeration keeps the system out of the food zone and helps preserve usable storage space.
  • Digital temperature control and -10°F performance support frozen food and ice cream storage.
  • Stainless steel exterior and aluminum interior are built for durability and easier cleaning in busy kitchens.
  • Includes three chrome shelves, LED interior lighting, cam-lift hinges, locks, and self-closing doors.
  • Factory pre-wired for 115V/60Hz/1-phase service with cord and plug included; mounted on 5-inch casters.

Overall Dimensions:

27.5"W x 36.13"D x 77.75"H

Product Weight:

410.0 lb

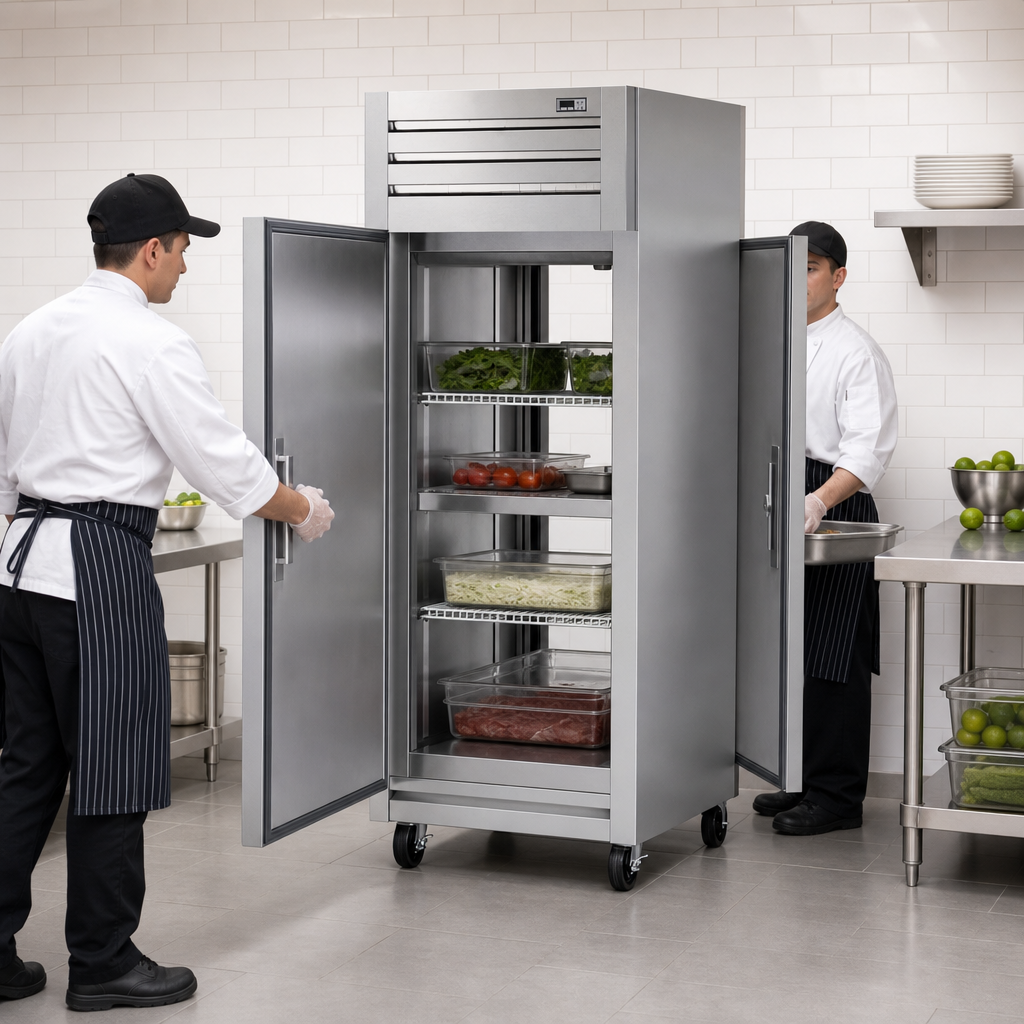

Pass-Thru Access

Front and rear solid swing doors let staff load, retrieve, and stage product from either side of the cabinet.

Pass-Thru Access

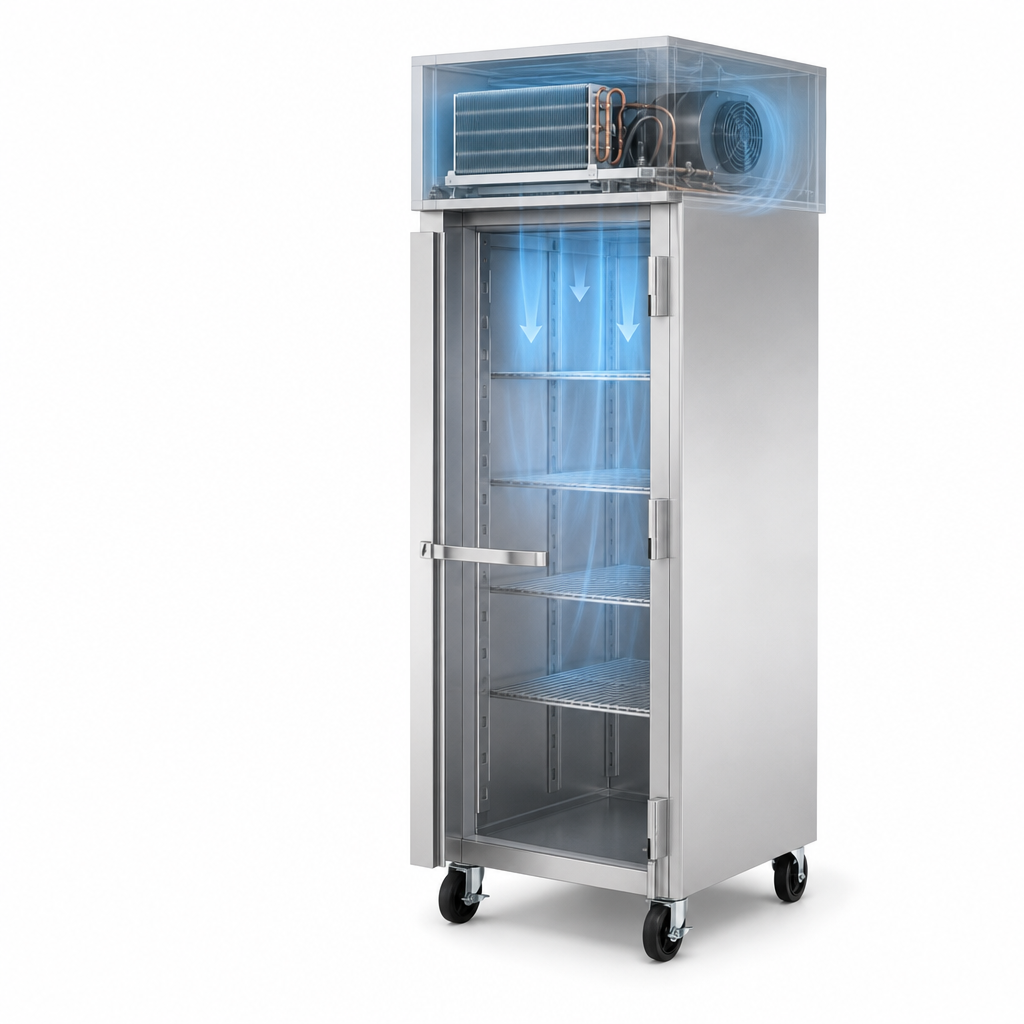

Self-Contained, Top-Mounted Refrigeration

The refrigeration system is built in and mounted on top to keep components out of the food zone and maximize interior space.

Self-Contained, Top-Mounted Refrigeration

Digital Temperature Control

Exterior digital control and display make it easy to monitor and adjust cabinet temperature.

Low-Temperature Performance

Designed to maintain -10°F (-23.3°C), making it suitable for frozen foods and ice cream.

Durable Cabinet Construction

Stainless steel exterior surfaces and an aluminum interior are built for demanding commercial use.

Included Shelving and Lighting

Ships with three heavy-duty chrome plated wire shelves and LED interior lighting for visibility.

Secure Door Hardware

Doors include locks, cam-lift hinges, self-closing action, and magnetic gaskets for a tight seal.

Automatic Defrost

Time-initiated, temperature-terminated defrost helps reduce energy use and shorten defrost cycles.

Pre-Wired Electrical Connection

Unit is ready for final connection to a 115V/60Hz/1-phase, 15 amp dedicated outlet with cord and plug set included.

Mobility on Casters

Standard 5-inch casters make the unit easier to position and service in the kitchen.

Type Freezer
Style Pass-Thru
Installation Type Floor Model
Compartments 1
Refrigeration Type Self-Contained
Controls Digital
Temperature Range -10°F (-23.3°C)
Material Stainless Steel
Interior Finish Aluminum
Horsepower 3/4 HP
Voltage 115 Volts
Amps 8.7 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 9 Feet
Shipping Width 28 Inches
Shipping Depth 37 Inches
Shipping Height 78 Inches
Shipping Weight 410 Pounds
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor, plus 2-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has solid front and rear swing doors with locks, cam-lift hinges, self-closing action, and magnetic gaskets.
It is designed to maintain -10°F (-23.3°C).
The unit is pre-wired for 115V/60Hz/1-phase operation and requires a 15 amp dedicated outlet. A cord and plug set is included.
Three heavy-duty chrome plated wire shelves are included per section.
Yes. It uses a self-contained, top-mounted refrigeration system.
Yes. It includes 5-inch casters, with locks on the front set.
