True Mfg. - General Foodservice STA1F-1S-HC SPEC SERIES Reach-In Refrigerators & Freezers
True Mfg. - General Foodservice STA1F-1S-HC SPEC SERIES Reach-In Refrigerators & Freezers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STA1F-1S-HC SPEC SERIES Reach-In Re...
Description

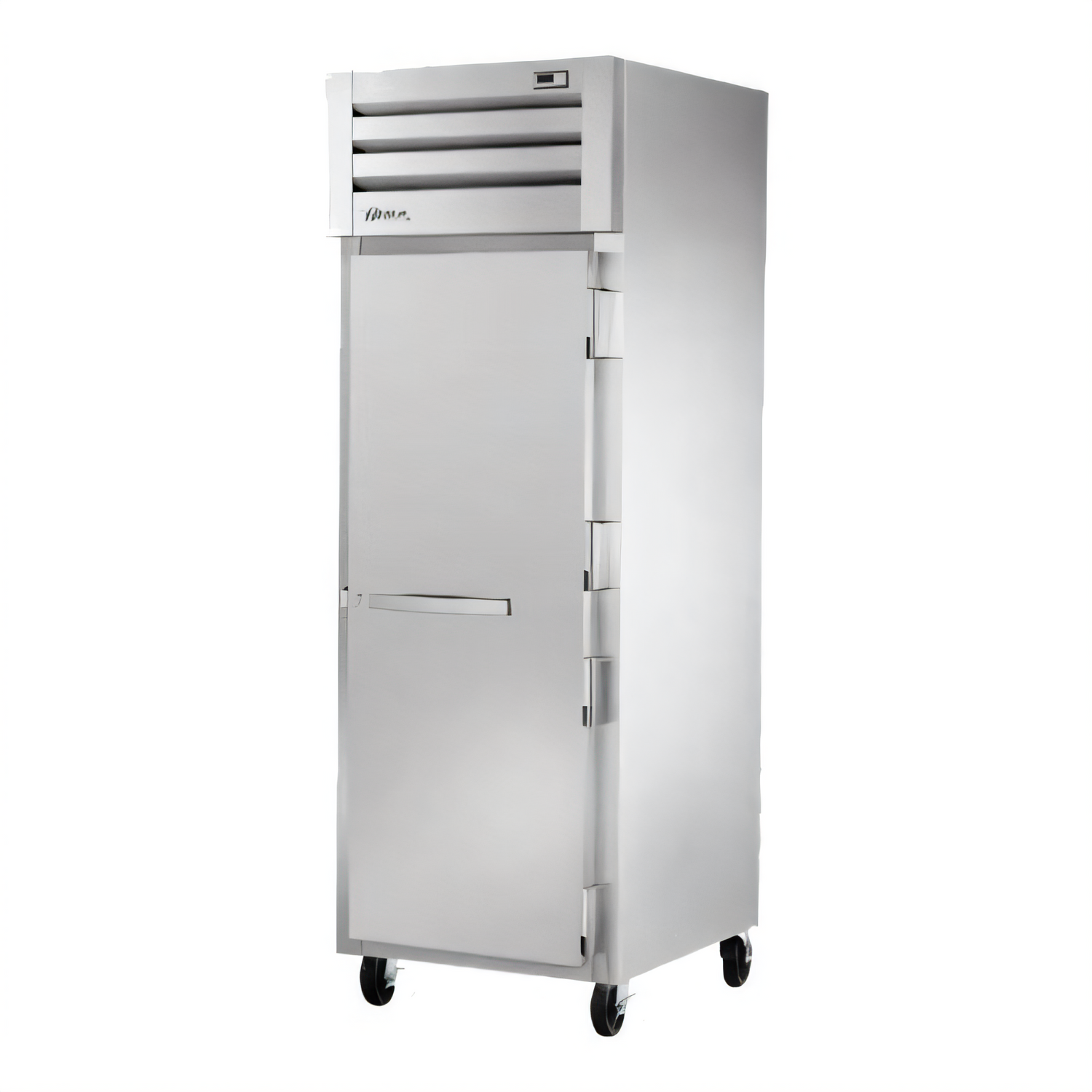

SPEC SERIES® STA1F-1S-HC Reach-In Freezer
One-Section • –10°F Holding • Stainless Door & FrontEngineered for operators who refuse to compromise, the True SPEC SERIES STA1F-1S-HC delivers rock-solid –10°F (–23.3 °C) performance, premium materials built to last a lifetime, and the day-to-day conveniences that keep busy kitchens moving. From its top-mounted, hydrocarbon refrigeration system to its lifetime-guaranteed door hardware, every detail is designed, built and tested in the USA for unbeatable reliability.
Why You’ll Love It

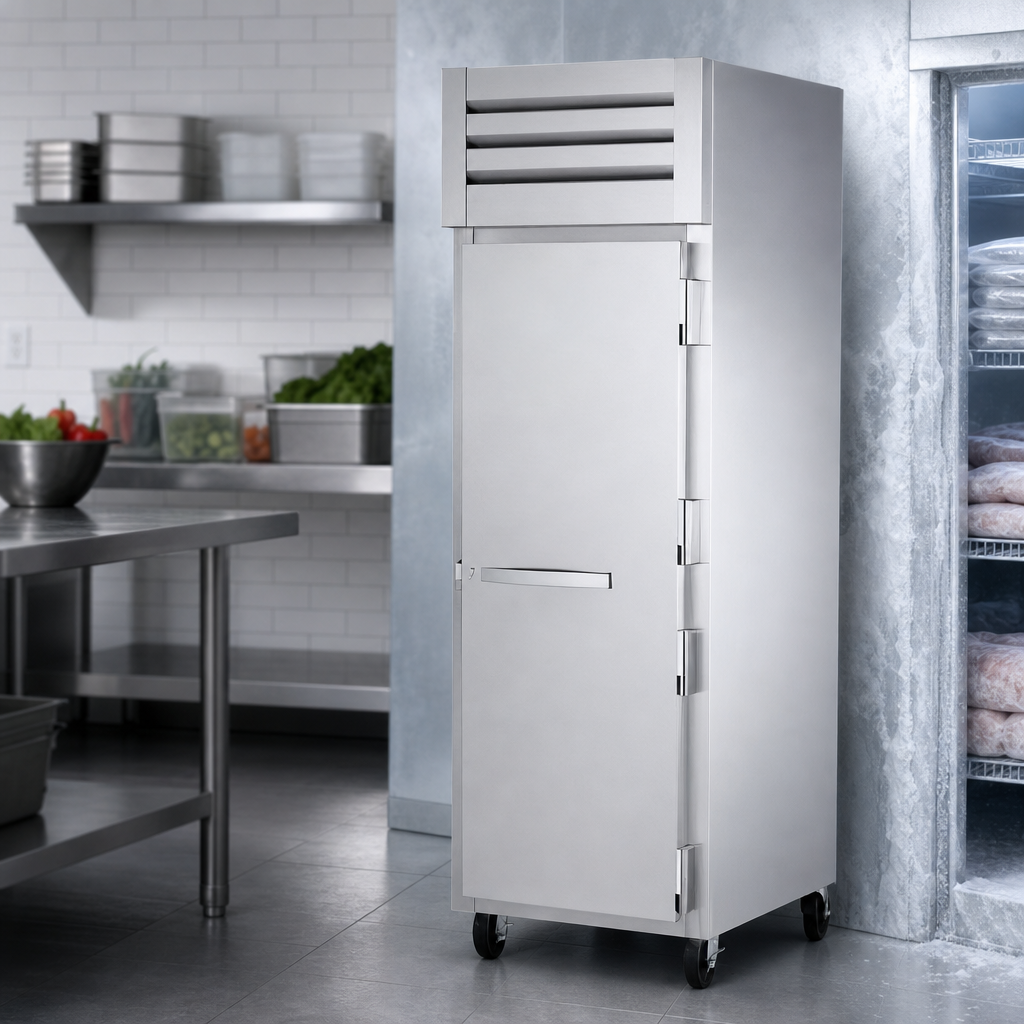

- Self-contained R290 hydrocarbon refrigeration maintains –10°F, ideal for ice cream & frozen foods.
- Top-mounted ½ HP compressor stays clear of floor debris and maximises interior storage space.
- Electronically commutated (ECM) evaporator & condenser fan motors for energy-efficient, whisper-quiet airflow.

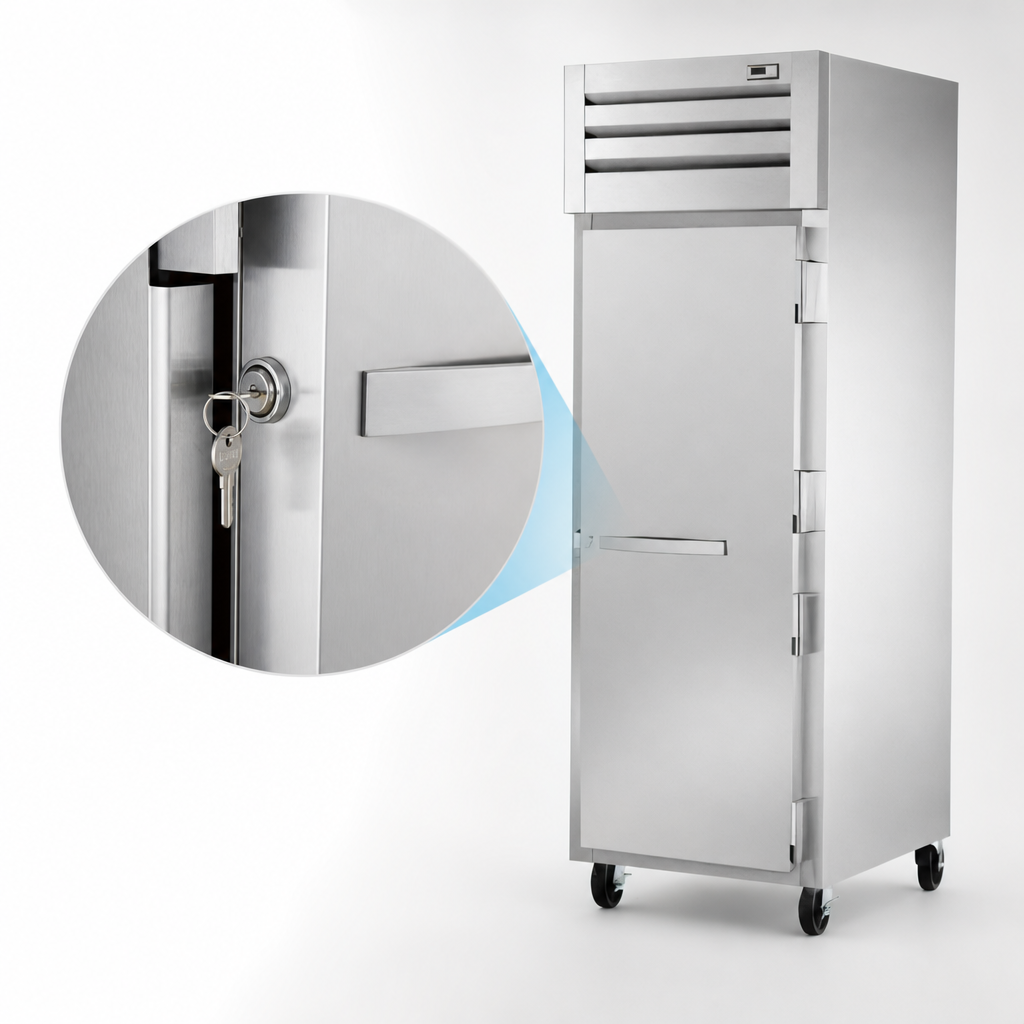

- (1) Solid stainless steel door with bolt-style lock, cam-lift hinges & 120° stay-open feature— all lifetime-guaranteed.
- Bright, safety-shielded LED interior lighting for full-cabinet visibility.
- (3) Heavy-duty chrome-plated wire shelves, adjustable on ½" increments.
- Foamed-in-place Ecomate® insulation (zero ODP, zero GWP) for outstanding thermal retention.
- Externally mounted digital temperature display— switchable °F / °C with a tap.
- 5" locking plate castors roll effortlessly for cleaning and service access.
- NSF/ANSI 7, cULus & UL EPH Classified for open-food storage; proudly Made in the USA.
Technical Specs
| Model | STA1F-1S-HC |
|---|---|
| Temperature | Factory set to –10°F (–23.3 °C) |
| Sections / Doors | 1 section / 1 solid stainless door with lock |
| Shelving | (3) adjustable chrome wire shelves |
| Exterior | Stainless steel door, front & sides |
| Interior | Corrosion-resistant aluminum walls; stainless floor & ceiling |
| Refrigerant | R290 hydrocarbon (natural, low-GWP) |
| Compressor | ½ HP, top-mounted |
| Electrical | 115 V / 60 Hz / 1-ph, 6.0 A, NEMA 5-15P, 9 ft cord |
| Dimensions (W × D × H) | 27 ½" × 33 ¾" × 77 ¾" (699 mm × 858 mm × 1975 mm) |
| Castors | 5" diameter, front set locking |
| Certifications | NSF/ANSI 7 • cULus • UL EPH Classified |
| Country of Origin | USA |
Height listed excludes 6 ⅛" (156 mm) for castors. Specifications subject to change without notice.
Best-in-Class Warranty
- 7-Year parts & labor coverage.
- 7-Year compressor parts coverage.
- Backed directly by True Refrigeration’s nationwide service network.
