True Mfg. - General Foodservice STA1F-1G-HC SPEC SERIES Reach-In Refrigerators & Freezers
True Mfg. - General Foodservice STA1F-1G-HC SPEC SERIES Reach-In Refrigerators & Freezers is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
True Mfg. - General Foodservice STA1F-1G-HC SPEC SERIES Reach-In Re...
Description

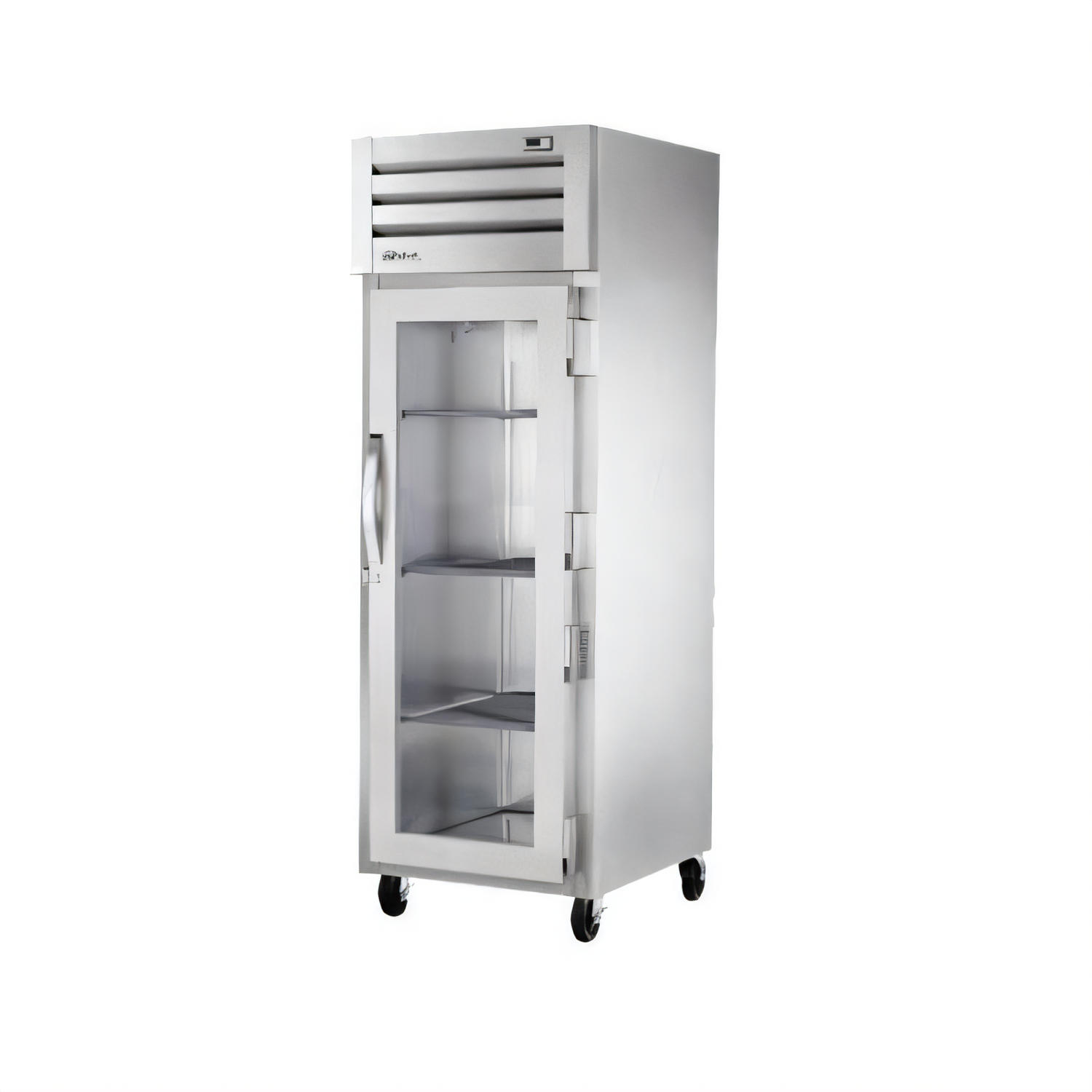

True SPEC SERIES® Reach-In Glass Door Freezer – Model STA1F-1G-HC

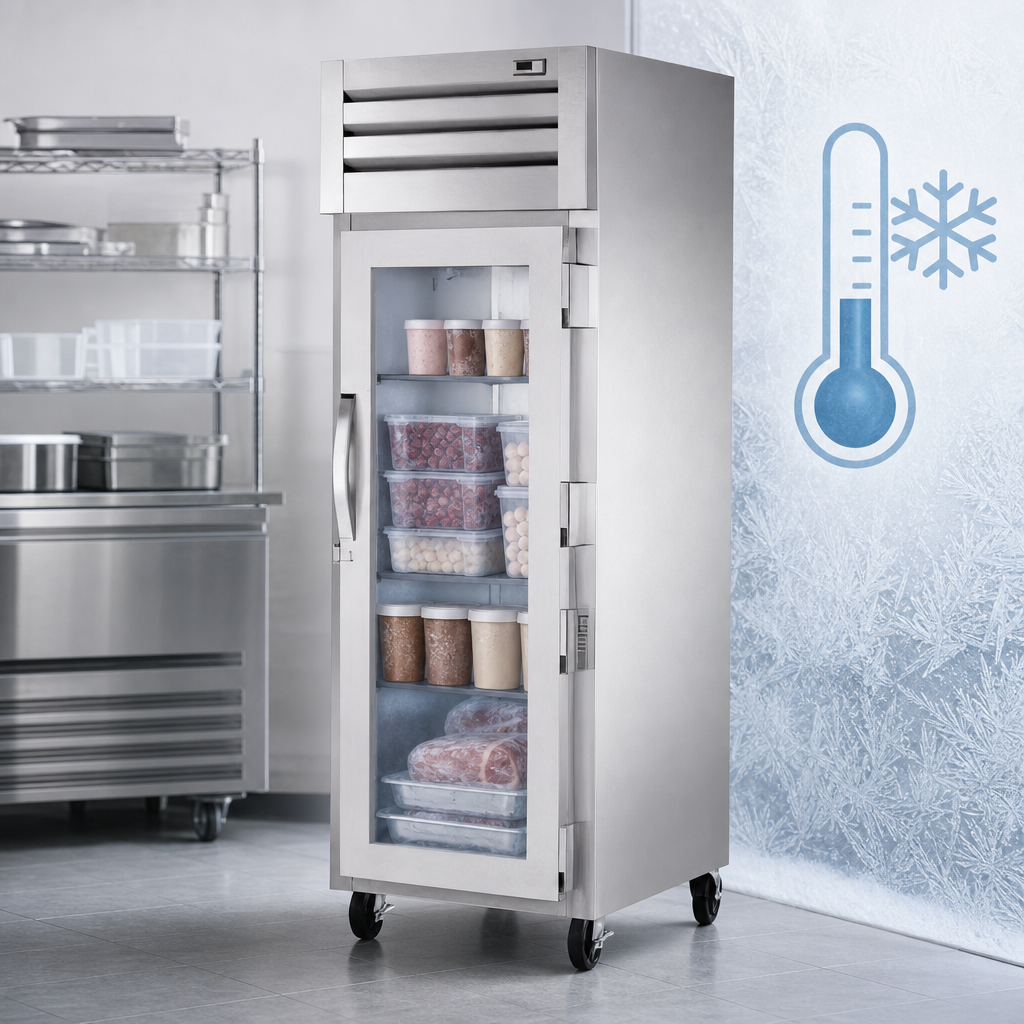

27 ½" one-section • -10 °F holding temperature • Made in USAEngineered for high-volume kitchens, the True SPEC SERIES® STA1F-1G-HC maintains an ice-cold -10 °F (-23.3 °C) in a space-saving single-door footprint. A triple-pane thermal glass door showcases product while a top-mounted, 1 HP R290 system delivers powerful, eco-friendly refrigeration.
Why this freezer is a smart choice
- Self-contained R290 hydrocarbon refrigeration – zero ODP & just 3 GWP.
- Triple-pane glass door with factory lock, lifetime bolt-style latch & all-metal handle.
- Lifetime external cam-lift hinges for smooth self-closing (with 120 ° stay-open).
- Heavy-duty construction:
- Stainless steel front, door & sides
- Aluminum interior walls / back; stainless floor & ceiling
- Foamed-in-place Ecomate® insulation (zero ODP, zero GWP)
- (3) adjustable, chrome-plated shelves on ½" increments.
- Bright, low-heat LED interior lighting.
- Exterior digital temperature display selectable in °F or °C.
- 5" plate castors (front set locking) for effortless cleaning access.
- NSF/ANSI 7 for open food, cULus & UL EPH Classified.
Built for performance
- Electronically commutated fan motors – quieter, cooler & up to 75 % more efficient.

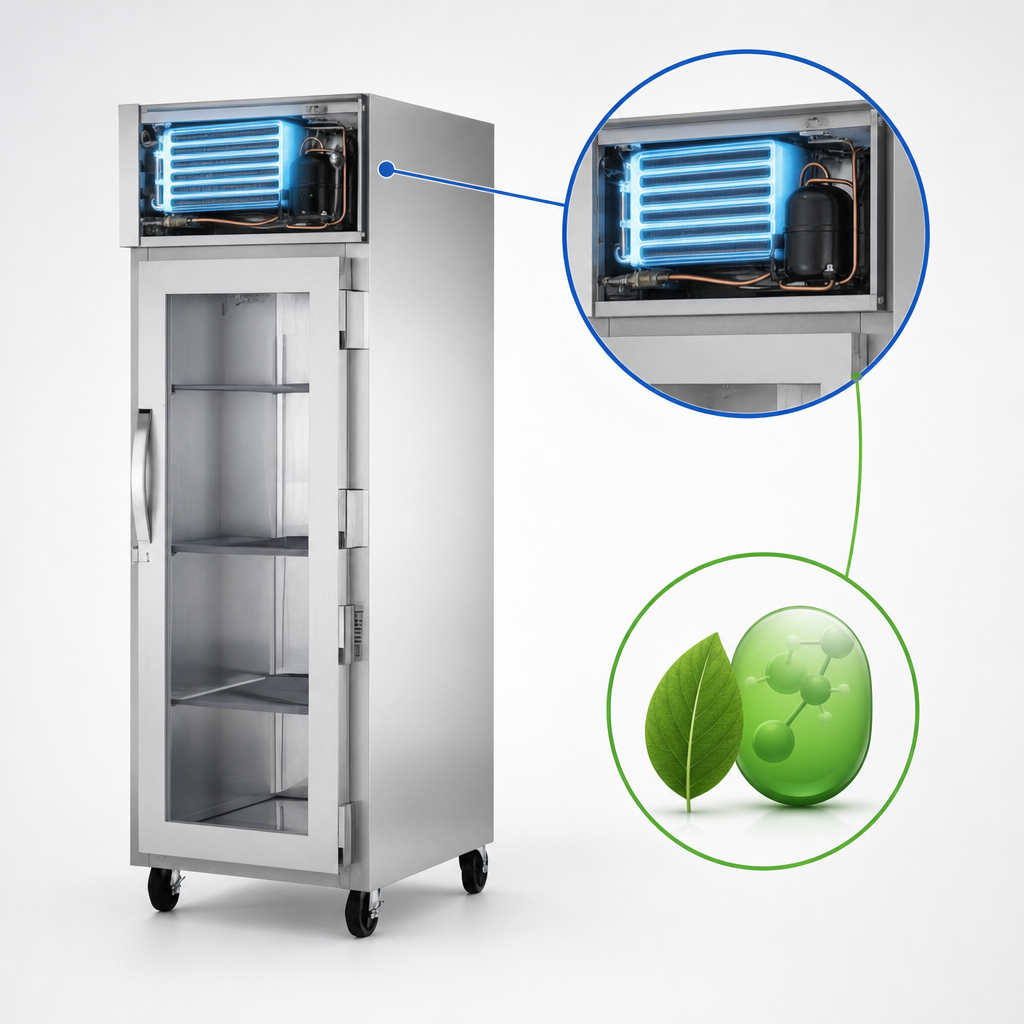

- Top-mounted system keeps the food zone obstruction-free.
- Time-initiated, temp-terminated automatic defrost with fan-delay for rapid recovery.
- Epoxy-coated evaporator resists corrosion for longer life.
Specifications
| Model | STA1F-1G-HC |
|---|---|
| Door | (1) right-hinged, self-closing glass swing door |
| Shelves | (3) chrome-plated wire, 26 ⅝" L × 21 ⅝" D |
| Interior temp. | -10 °F (-23.3 °C) |
| Horsepower | 1 HP top-mounted compressor |
| Refrigerant | R290 Hydrocarbon |
| Electrical | 115 V / 60 Hz / 1-ph, 8.9 A, NEMA 5-15P, 9 ft cord |
| Dimensions (W × D × H) | 27 ½" × 33 ¾" × 77 ¾"* |
| Castors | 5" diameter plate (locks front) |
| Certifications | cULus, UL EPH Classified |
| Origin | O’Fallon, Missouri – USA |
*Depth excludes 1 ½" door handle. Add 6 ⅛" for overall height with castors.
What’s in the box
- Factory-installed locking castors
- (3) chrome shelves & (12) shelf clips
- Owner/operation manual
- Pre-wired 9-ft power cord with plug
Industry-leading 7-Year Warranty
True backs every SPEC SERIES® freezer with 7 years of parts, labor & compressor coverage (U.S., Canada & Puerto Rico).
