Description

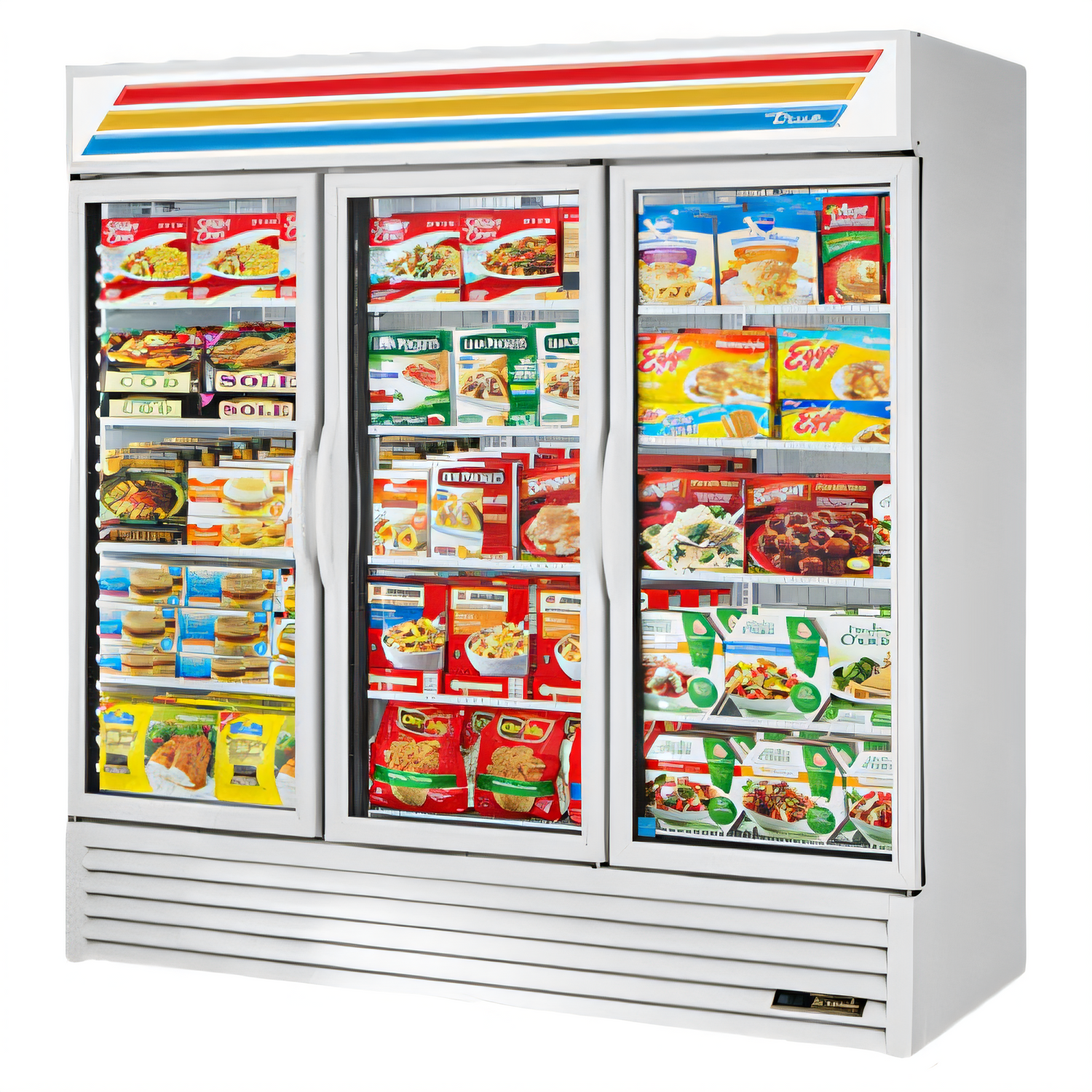

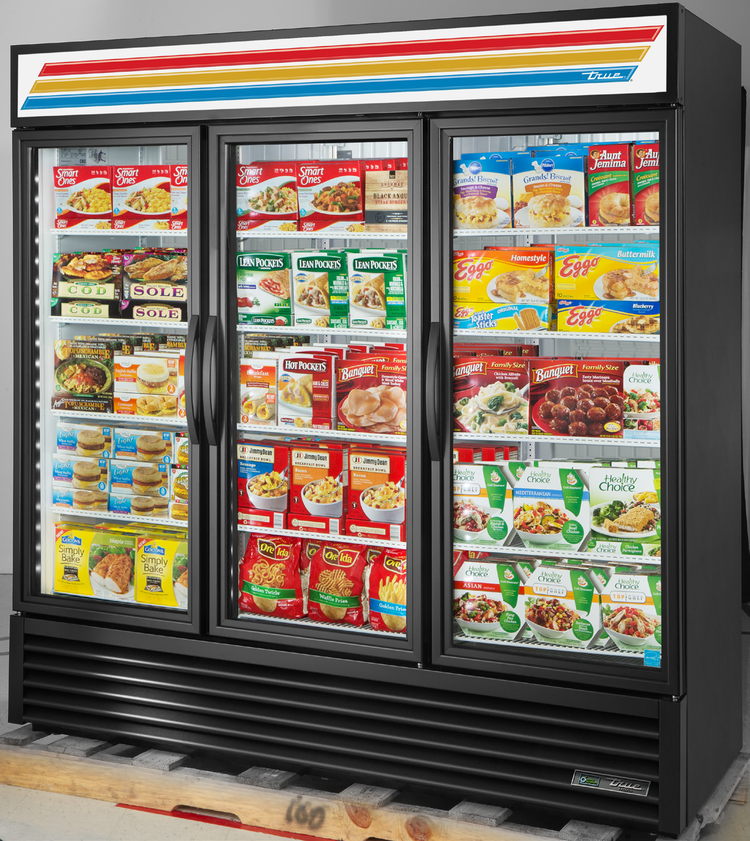

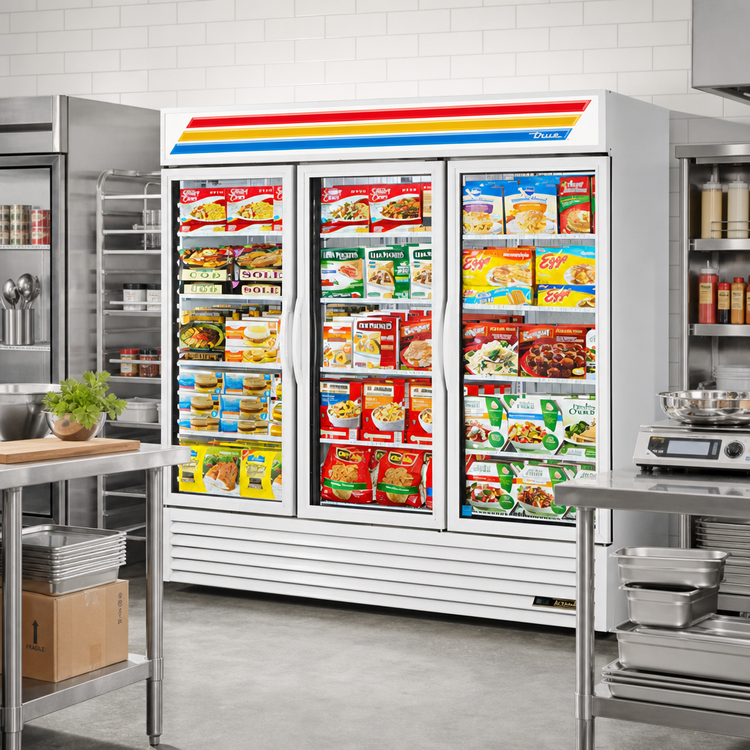

True GDM-72F-LTF-HC Freezer Merchandiser
3-Section • -15 °F Low-Temp • 12 Shelves • True Standard Look 01Showcase ice-cream and frozen entrées in their best light while keeping them locked at a steady -15 °F (-26.1 °C). The GDM-72F-LTF-HC is True’s flagship, full-width glass door freezer—built in the USA, engineered for heavy-duty commercial traffic, and backed by an unmatched 7-year parts, labor & compressor warranty.
Built-In Advantages

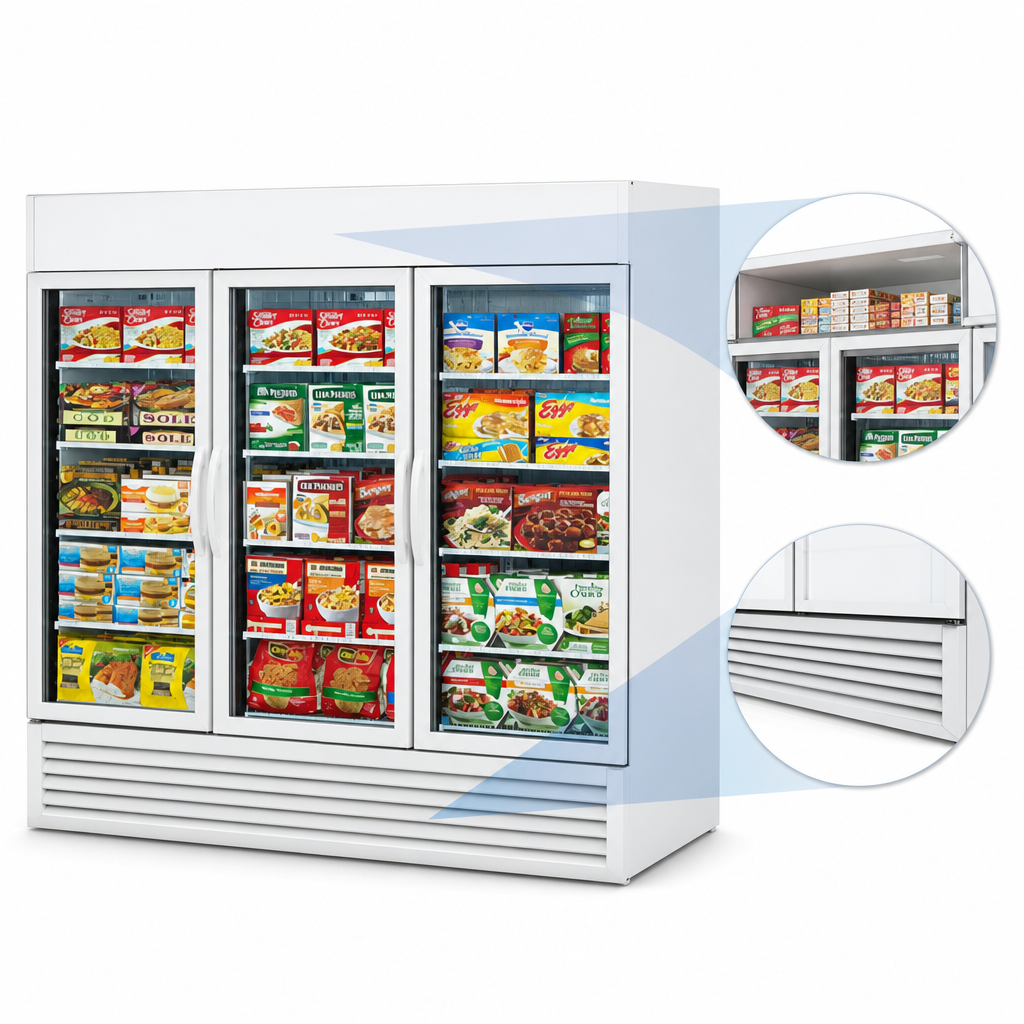

- Dual ¾ HP bottom-mounted compressors for rapid pull-down and easy service access.

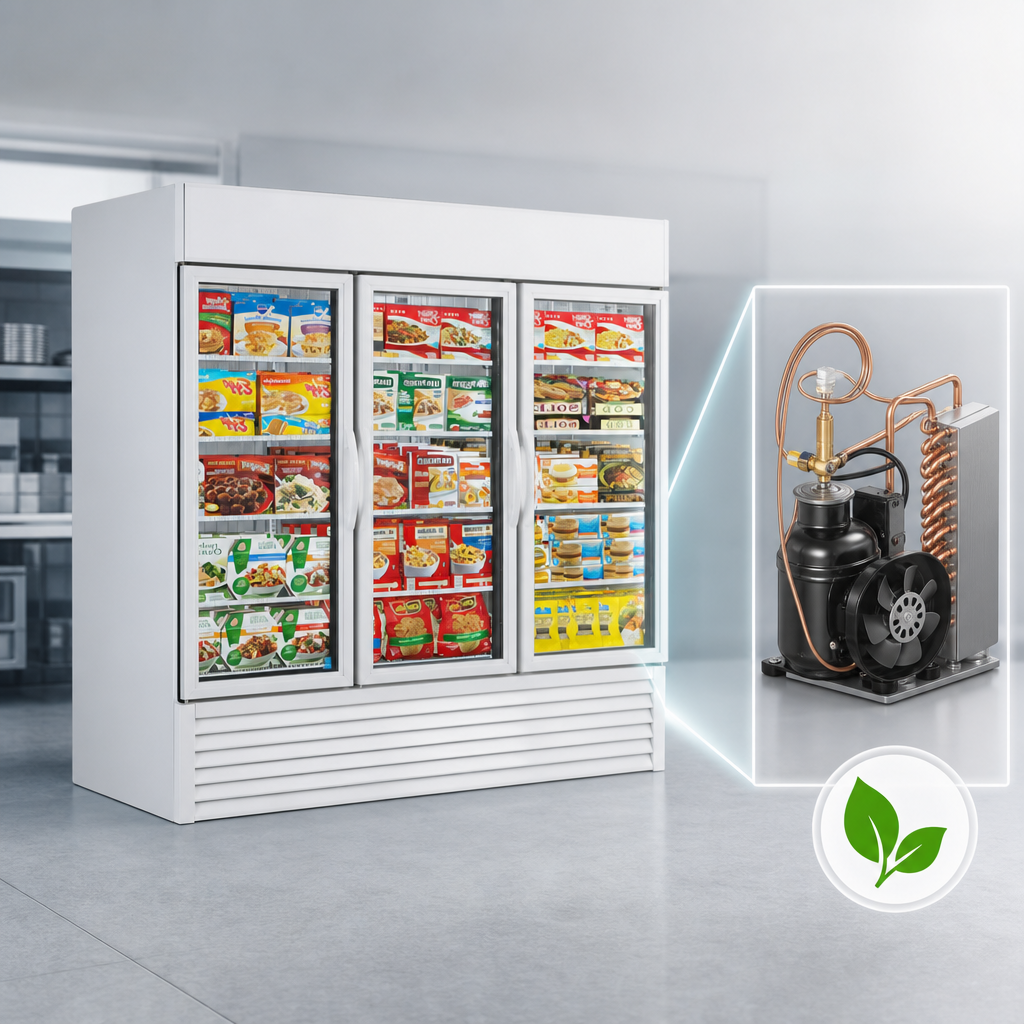

- Factory-balanced, self-contained refrigeration system charged with R290 hydrocarbon refrigerant (0 ODP / 3 GWP).
- Triple-pane, thermal-insulated glass doors with self-closing torsion hinges and 12 in. handles.
- Brilliant, safety-shielded LED lighting plus an illuminated exterior sign panel (header).
- White, non-peel powder-coated steel exterior and white aluminum interior with stainless steel floor.
- Entire cabinet is foamed-in-place with zero-GWP polyurethane insulation for superior temperature retention.
- “No-stoop” lower shelf raises product into the shopping sight-line; top of cabinet doubles as extra storage.
- 12 heavy-duty, PVC-coated wire shelves (adjustable on ½ in. increments) to fit virtually any package height.
- Energy-saving ECM evaporator & condenser fan motors reduce heat and cut utility costs.
- Time-initiated, temperature-terminated automatic defrost for the shortest possible defrost cycle.
Technical Specifications
| Model | GDM-72F-LTF-HC ~ TSL01 |
|---|---|
| Capacity | 3 glass sections / 12 full-width shelves |
| Temperature Range | Factory set to -15 °F (-26.1 °C) |
| Exterior | White powder-coated steel (chip & peel-resistant) |
| Interior | White aluminum liner with stainless steel floor |
| Refrigerant | R290 (natural, environmentally friendly) |
| Horsepower | (2) × ¾ HP compressors |
| Electrical | 115 V / 60 Hz / 1-ph, 10.4 A, NEMA 5-20P (dedicated 20 A circuit) |
| Dimensions (W × D × H) | 78 ¹⁄₈ in. × 29 ⁷⁄₈ in.* × 78 ⁵⁄₈ in. (1985 × 759* × 1998 mm) |
| Crated Weight | 790 lb (359 kg) |
| Listings | cULus, UL EPH Classified |
| Country of Origin | Made in O’Fallon, Missouri, USA |
*Depth excludes 1 5⁄8 in. (42 mm) door handles.
7-Year Total Coverage
True’s industry-leading warranty covers parts, labor, and compressors for seven full years, assuring worry-free operation long after competitor coverage ends.
Ideal Applications
- Supermarkets & grocery aisles
- Convenience stores & fuel stations
- Cafeterias & food courts
- Specialty ice-cream & frozen dessert shops
