Description

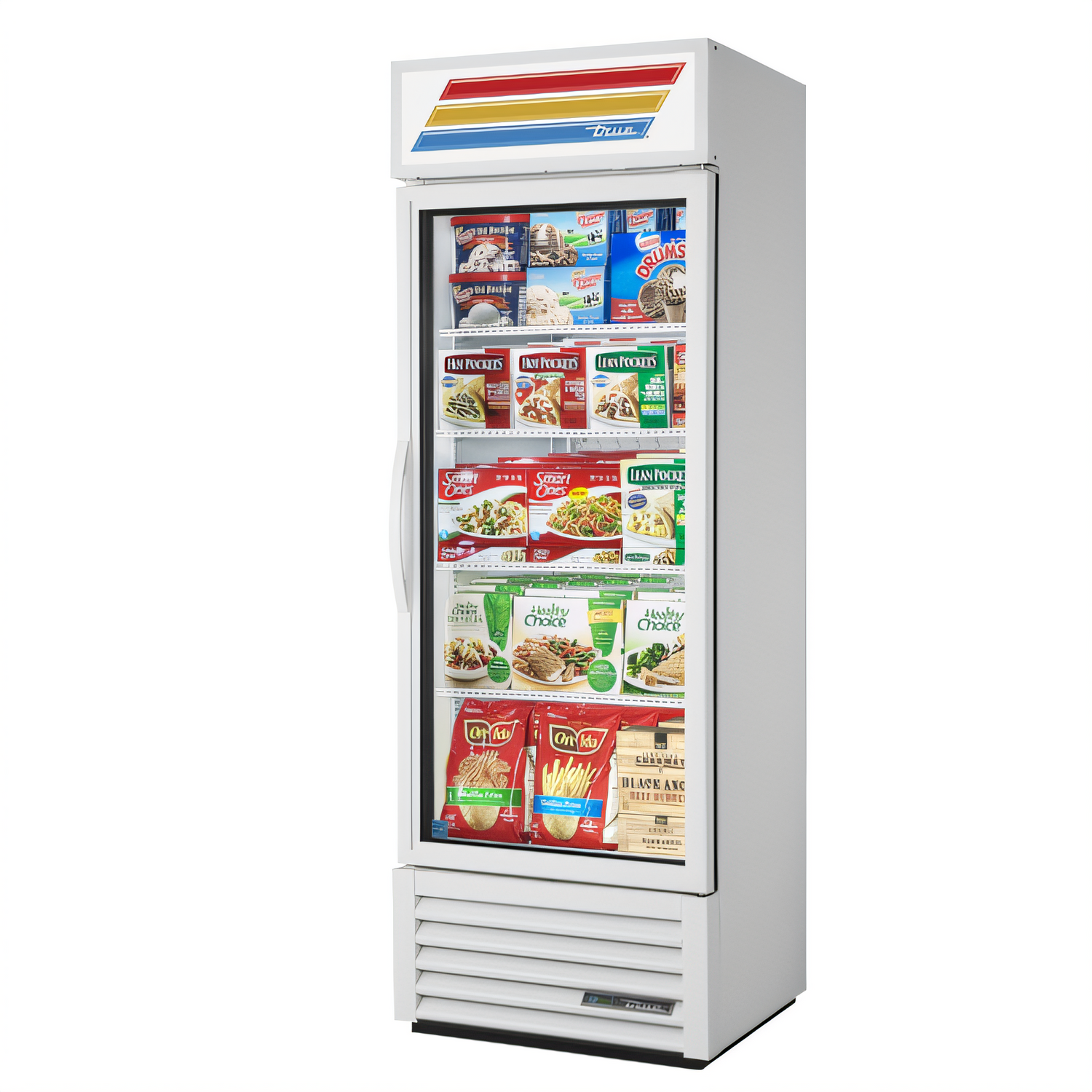

True GDM-19T-F-HC Freezer Merchandiser
Swing-Door • One Section • True Standard Look V01Showcase ice cream and frozen entrées right where customers can’t miss them. The GDM-19T-F-HC pairs brilliant LED lighting and a low-E glass door with a high-efficiency R290 refrigeration system that locks in –10 °F temperatures—all in a compact 27 inch footprint.
Key features
- Bottom-mounted, self-contained refrigeration with a powerful 1 HP compressor (R290) holding –10 °F / –23.3 °C.
- Triple-pane Low-E glass door: self-closing, torsion-type hinges, 12″ handle, and removable magnetic gasket.
- Four heavy-duty, PVC-coated wire shelves—adjust on ½″ increments for fast planogram changes.
- Bright, safety-shielded LED interior lighting for uniform product illumination and energy savings.
- White powder-coated steel exterior; white aluminum interior liner with easy-clean stainless steel floor.
- Foamed-in-place, high-density polyurethane insulation with zero ODP & zero GWP.
- “No-stoop” lower shelf raises merchandise into the buy zone; top of cabinet can be used for storage or signage.
- Slide-out condenser coil and ECM fan motors for easy maintenance and lower lifetime energy costs.
- Factory-installed 9′ cord with NEMA 5-15P; runs on a standard 115 V / 8.7 A dedicated circuit.
- cULus Listed, UL EPH Classified and proudly Made in the USA.
Perfect for
- Convenience & grocery stores
- Cafeterias, concession stands, coffee shops
- Back-bar or end-cap frozen promotions
- Ice-cream parlors & novelty kiosks
Technical specifications
| Model | GDM-19T-F-HC ~ TSL01 |
|---|---|
| Capacity | ≈ 19 cu. ft. (538 L) |
| Exterior dimensions (W × D × H) | 27″ × 24 ⅞″ × 78 ⅝″ (686 × 632 × 1 998 mm) |
| Door type | 1 hinged, triple-pane Low-E glass, self-closing |
| Shelves supplied | 4 adjustable wire shelves with chrome clips |
| Temperature holding | –10 °F (–23.3 °C) |
| Refrigerant | R290 Hydrocarbon (0 ODP / 3 GWP) |
| Compressor | 1 HP, bottom-mounted |
| Electrical | 115 V / 60 Hz / 1-ph, 8.7 A, NEMA 5-15P |
| Lighting | LED, safety-shielded |
| Certifications | cULus, UL EPH Classified |
| Warranty (USA/Canada) | 7-year parts & labor • 7-year compressor |
Looking for black or stainless exteriors, seismic legs, or extra shelves? Contact us for factory-approved accessories.
