Description
True GDIM-72NT-HC 3-Door Ice Merchandiser
170-Bag Capacity • White Exterior • Hydrocarbon RefrigerationKeep pre-bagged ice crystal-clear and customer-ready while slashing energy costs. Built in the USA by the world’s #1 glass-door merchandiser manufacturer, the True GDIM-72NT-HC holds ice at a frosty 20 – 25 °F and shows it off through three sparkling, triple-pane glass doors.
Key Benefits
- Stores up to 170 × 8 lb (4 kg) bags across three wide sections.

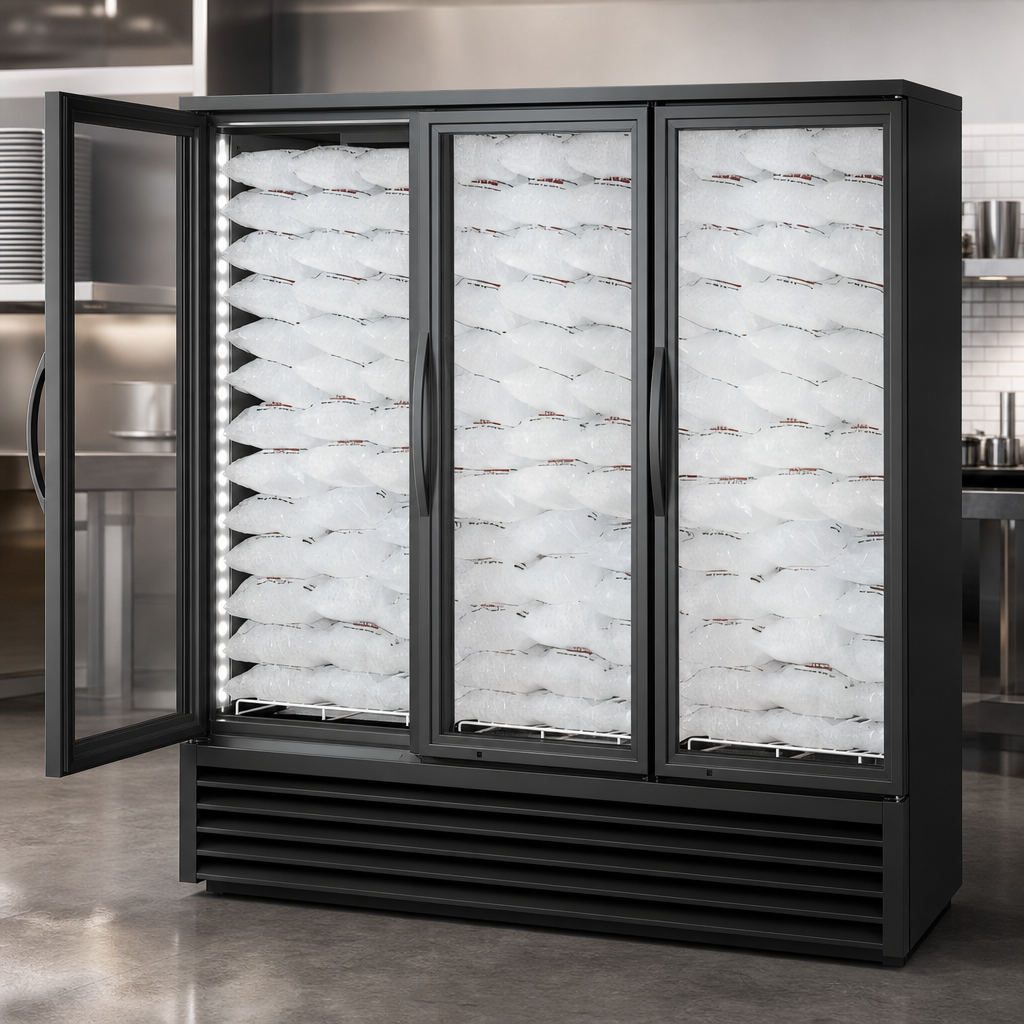

- Heated, triple-pane glass doors with anti-fog film stay clear and self-close for a tight seal.
- Bright, energy-saving LED interior lighting & illuminated “ICE” sign panel drive impulse sales.
- Eco-friendly R290 refrigeration holds 20 – 25 °F (-6.6 – -3.8 °C) with low energy draw.
- Rigid, white vinyl-coated steel exterior resists chipping; white aluminum interior & stainless floor clean in seconds.

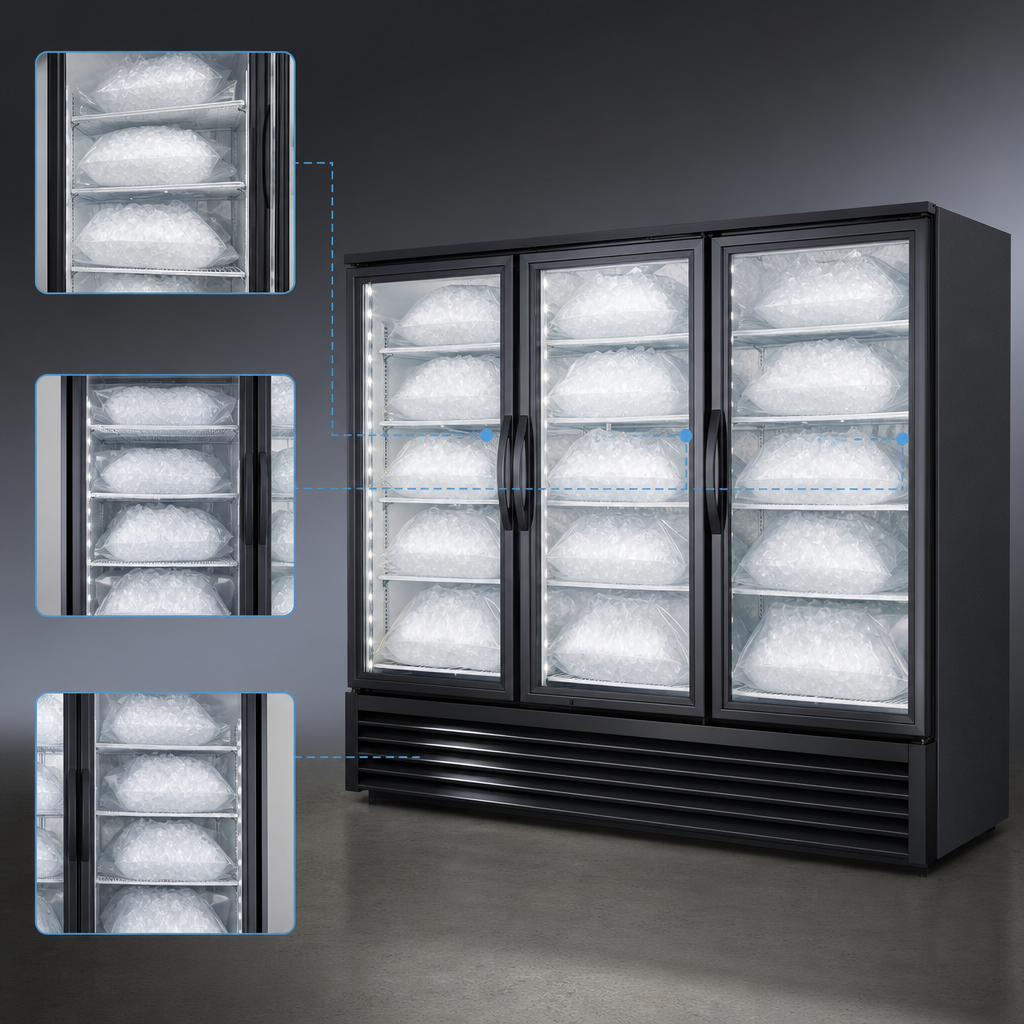

- Three removable floor racks & full-length back-guard keep bags off the deck and out of the airflow path.
- Leveling legs, foamed-in-place zero-ODP insulation, and ECM fan motors for rock-solid performance.
- Certified cULus & UL EPH Classified; proudly Made in the USA.
Low-Cost, High-Performance Refrigeration
- Bottom-mounted, self-contained ½ HP refrigeration system for easy service access.
- Electronically commutated fan motors cut heat and power use while moving consistent airflow.
- Automatic, time-initiated/temperature-terminated defrost shortens cycles and saves energy.
Specifications
Model | GDIM-72NT-HC ~TSL01 (white exterior option) |
---|---|
Sections / Doors | 3 / 3 heated, self-closing glass doors |
Bag Capacity | 170 × 8 lb (4 kg) bags |
Temperature Range | 20 – 25 °F (-6.6 – -3.8 °C) |
Exterior Finish | White vinyl-coated steel |
Interior Finish | White aluminum liner with stainless steel floor |
Lighting | LED (safety shielded) |
Refrigerant | R290 (natural hydrocarbon) |
Compressor | ½ HP, bottom-mounted, self-contained |
Electrical | 115/208-230 V • 60 Hz • 1-Ph • 11.1 A • NEMA 14-20P plug |
Dimensions (W × D × H) | 78 1/8″ × 29 7/8″ × 78 5/8″ (1985 × 759 × 1998 mm) |
Floor Racks Included | 3 |
Shipping Weight | 790 lb (359 kg) |
Certifications | cULus, UL EPH Classified |
Warranty | 7-Year Parts, Labor & Compressor (USA/Canada/Puerto Rico) |
Also available in black powder-coat or full stainless finishes—ask for details & lead times.
